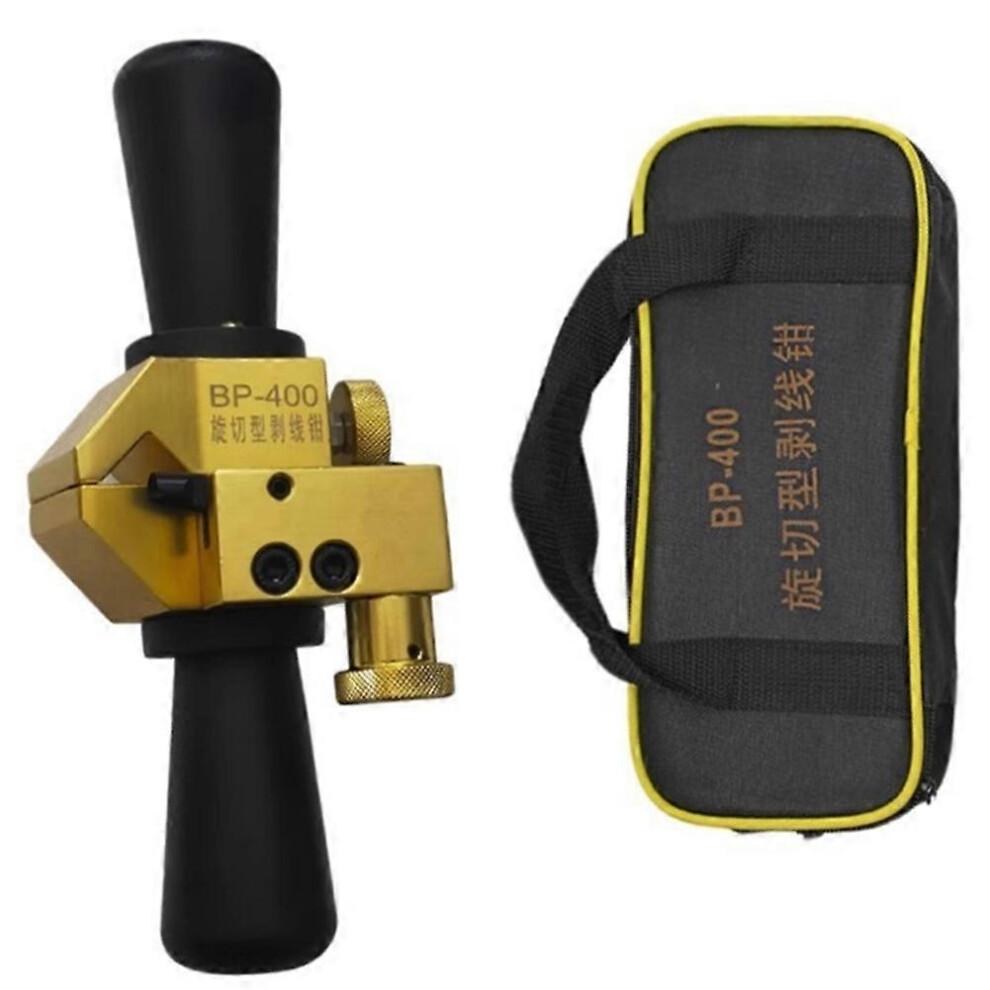

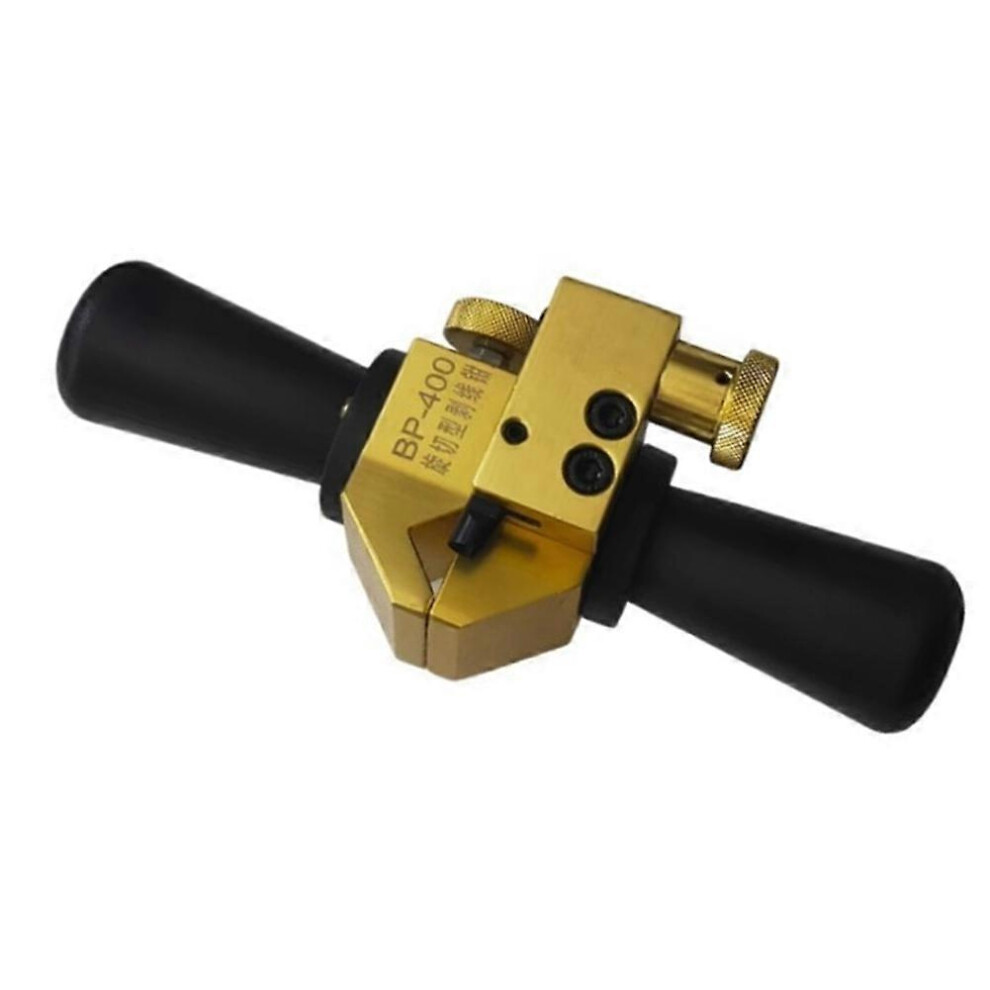

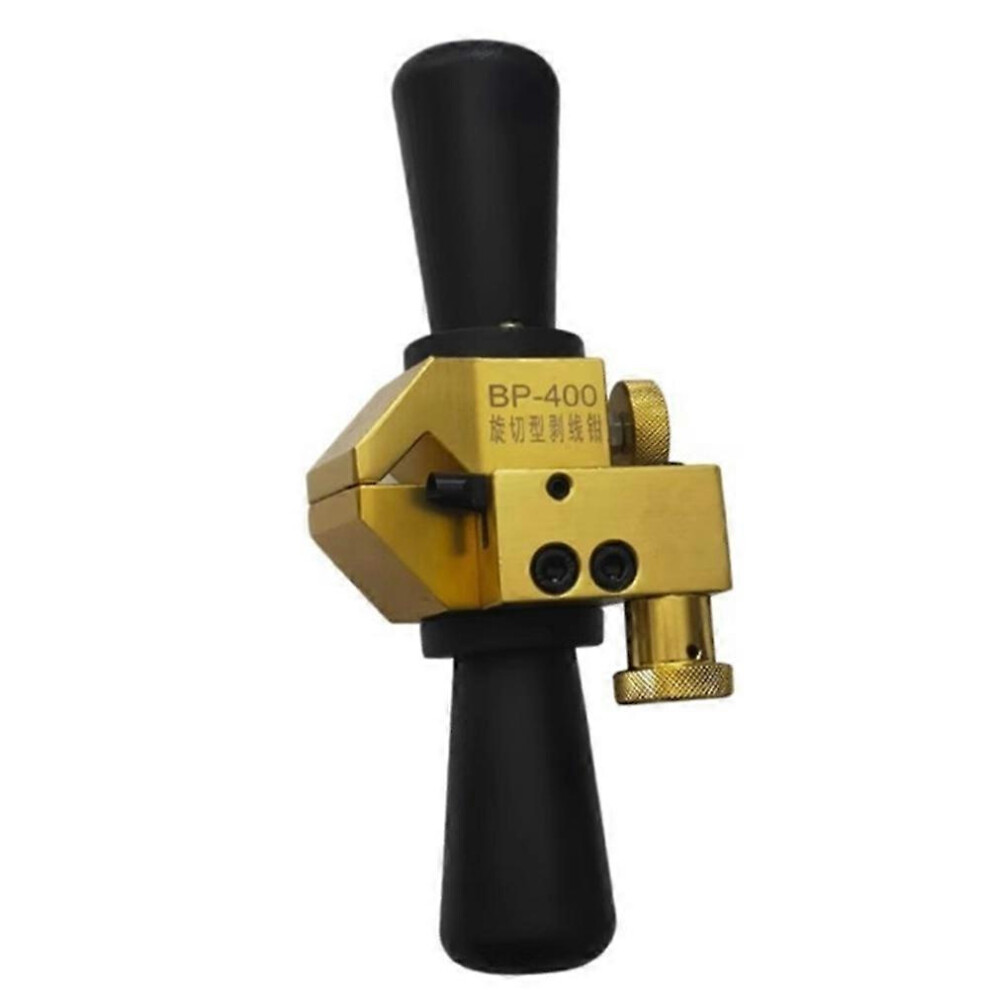

BP-400 Rotary Cable Stripping Machine for High Low Voltage Insulated Wires

BP-400 Rotary Cable Stripping Machine for High Low Voltage Insulated Wires Beschrijving

Manual stripper for stripping insulation layer of various wires and cables
Peeling speed, standard shape, accurate adjustable, labor-saving application
High efficiency, is an essential tool for power engineering operations
Model:BP-400
Peeling depth: less than 4.5mm
Weight:0.83KG
Scope of application: copper aluminum cable with diameter below 30MM
Operation procedure:
1. Clamping wire: make the tool holder of the wire stripper face up, loosen the movable support stop wheel, pull the handle of the support, put the cable into the V-shaped slot, place the end of the cable to be stripped in the position of the blade, move the clamping block to clamp (moderate), and lock the hand wheel;

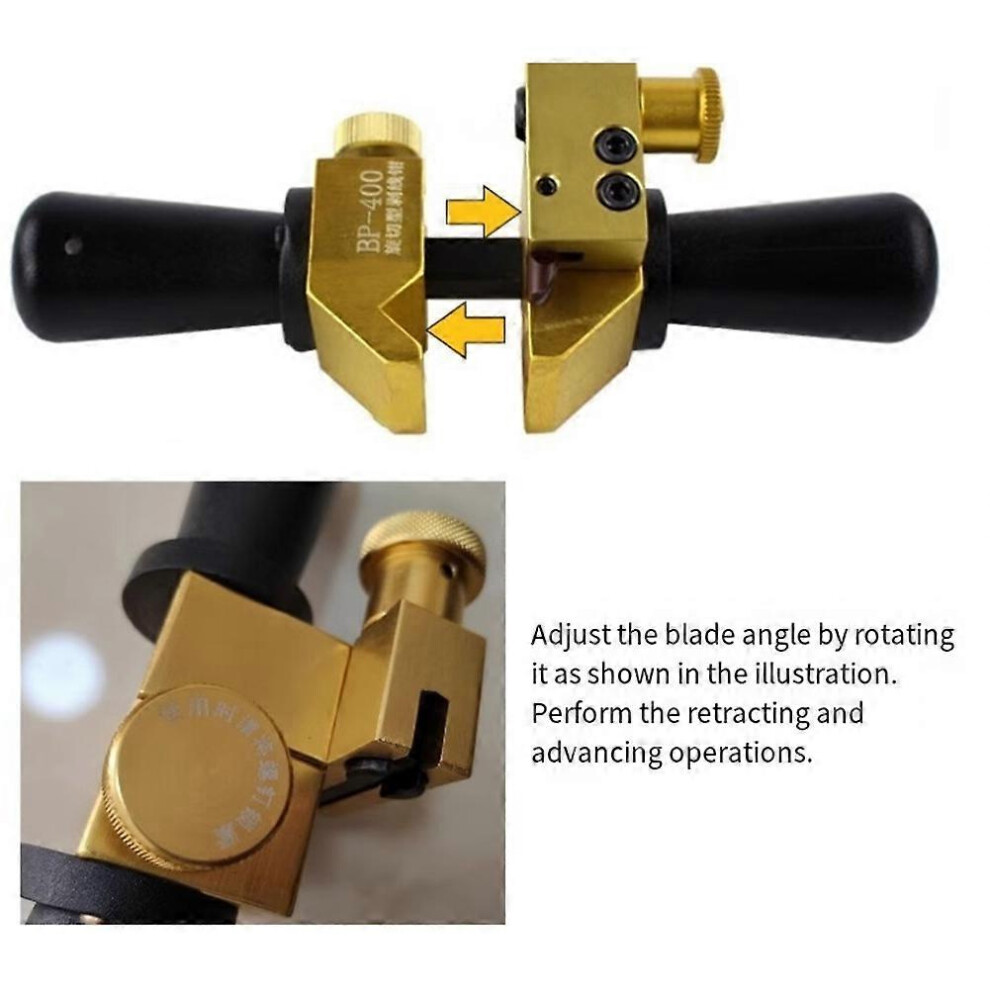

2. Adjusting the knife: first turn the blade adjusting nut on the fixing clip block so that the blade tip is placed on the cable cladding and the core plane, and then turn the adjusting nut on the fixing clip block to tilt the blade;
3. Stripping: turn the handle of the stripper, at this time, the stripper can turn the wrapped layer into a spiral bar; Then turn the wire stripper, you can cut off the spiral strip in a circular circle, stripping can be completed.
Note:The color of the accessories of this product is random, and the designation is not accepted.
Color:As shown
Material:High-Carbon Steel
Package Contents:
1set * BP-400 multi-function wire strippers
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
