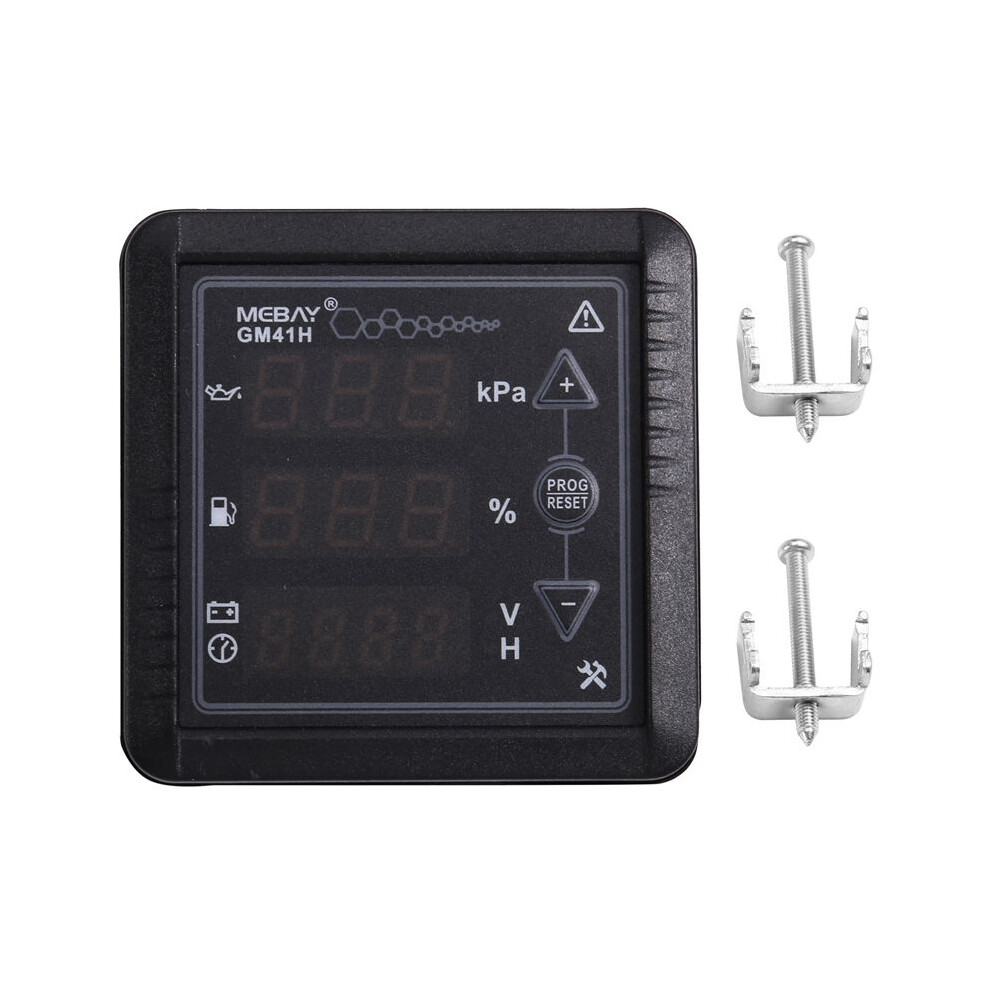

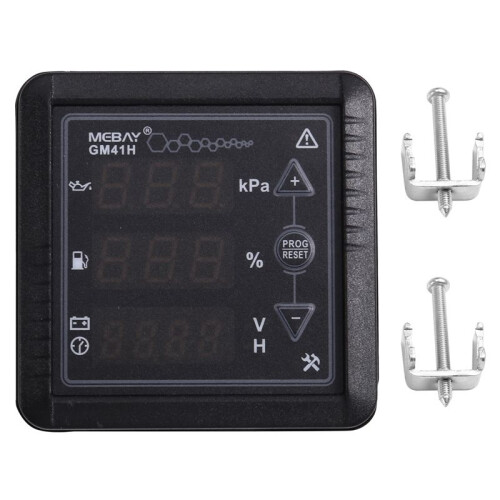

MEBAY GM41H Engine Multifunctional Digital Display Meter PEMP Fuel Level/Battery/Voltage/Hour Meter

MEBAY GM41H Engine Multifunctional Digital Display Meter PEMP Fuel Level/Battery/Voltage/Hour Meter Beschrijving

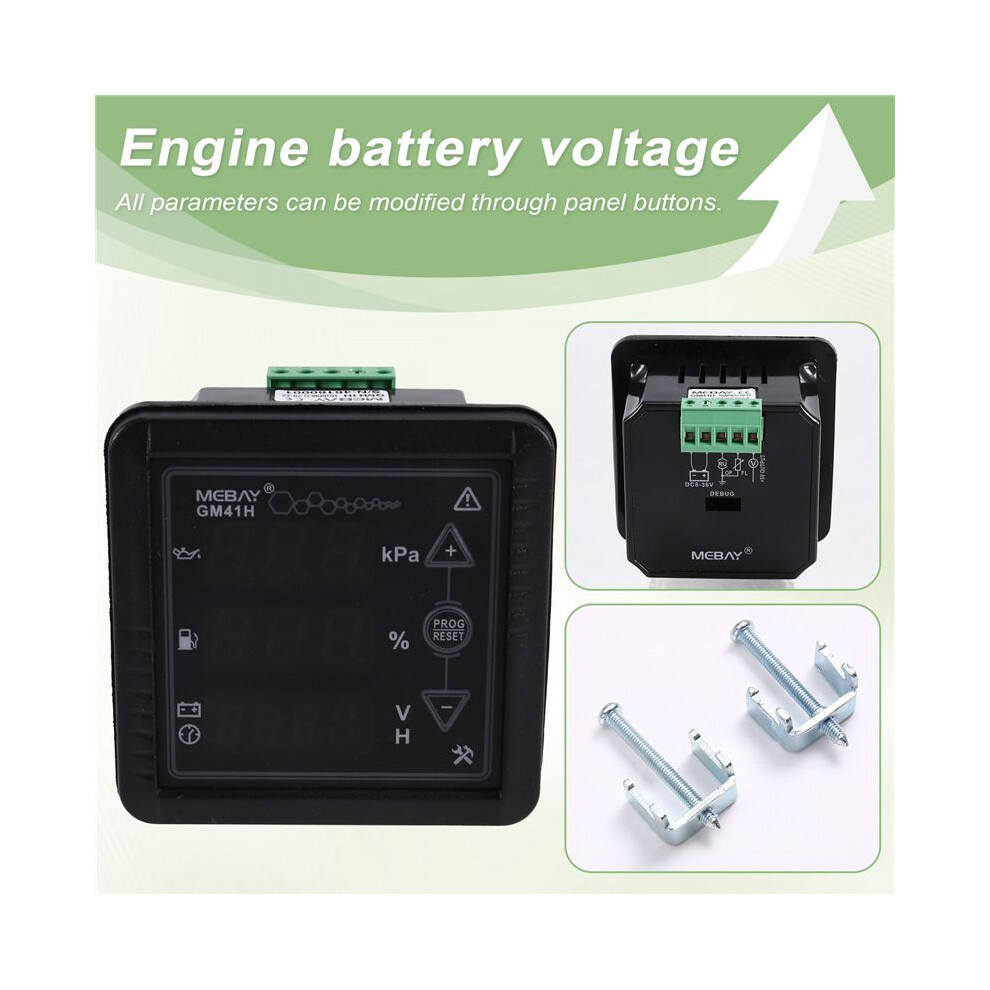

GM41H is a and cost-effective instrument, which is used to measure and display engine oil pressure, fuel level, battery voltage and accumulated running of engine. The instrument adopts high brightness LED digital display tube, which is durable.
The parameters can be adjusted and set by pressing the key to meet the requirements of different applications. In addition, European terminal connection is adopted to facilitate the installation, removal and replacement of modules.
It is controlled by 32-bit high performance single chip microcomputer; The measured value is displayed by 3 screens and 4 high brightness digital tube; A variety of built-in sensor curves can be selected, and the sensor parameter curve can be customized;
With maintenance prompt function, three kinds of maintenance countdown can be set, and the first maintenance and routine maintenance can be distinguished; It has two sensor analog inputs, among which the oil pressure sensor is compatible with voltage signal input;

1. Main Features
All parameters can be modified through panel buttons;
It is equipped with standard waterproof , and the protection performance of the panel reaches IP54 after installation;

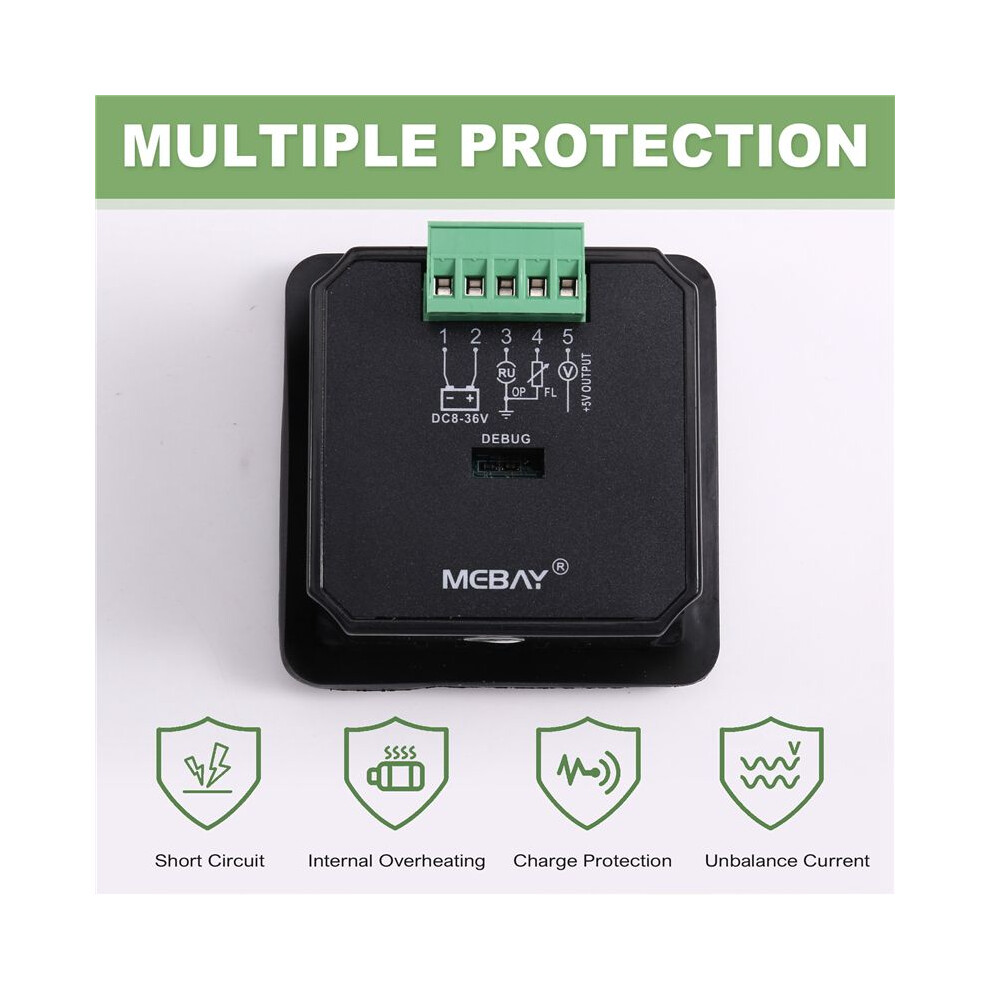

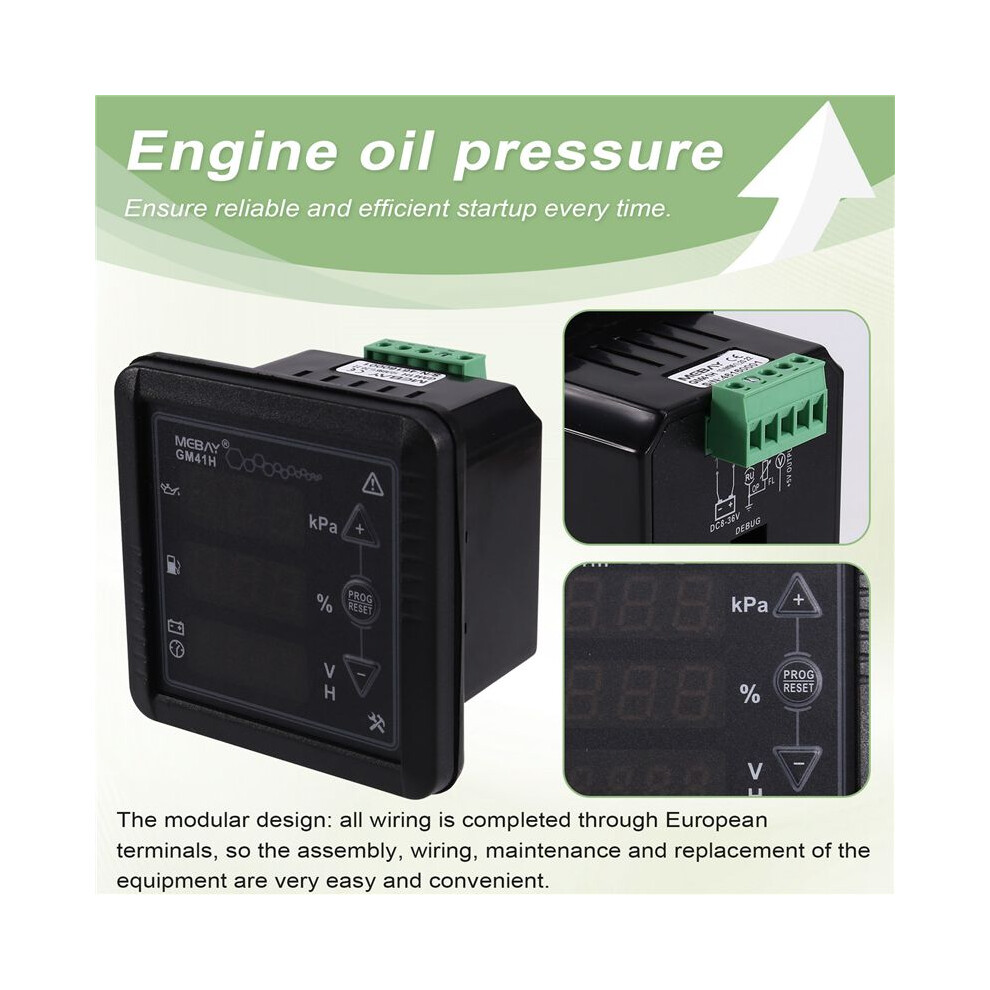

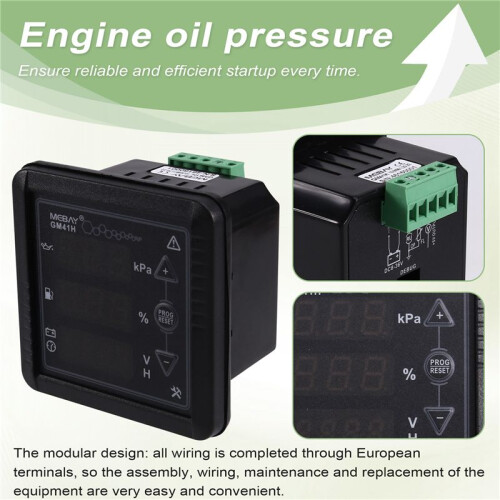

The modular design: all wiring is completed through European terminals, so the assembly, wiring, maintenance and replacement of the equipment are very easy and convenient
2. Parameters Display
Engine oil pressure
Engine fuel level
Engine battery voltage
Total running

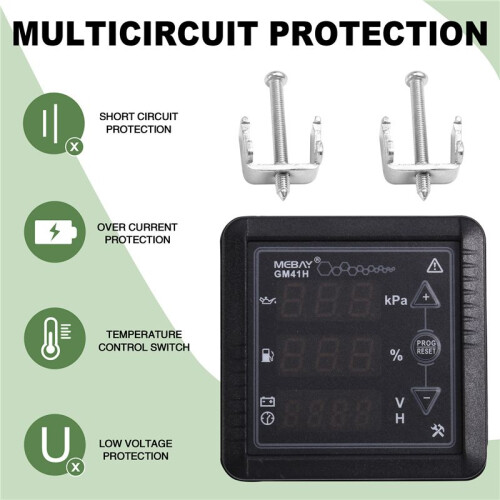

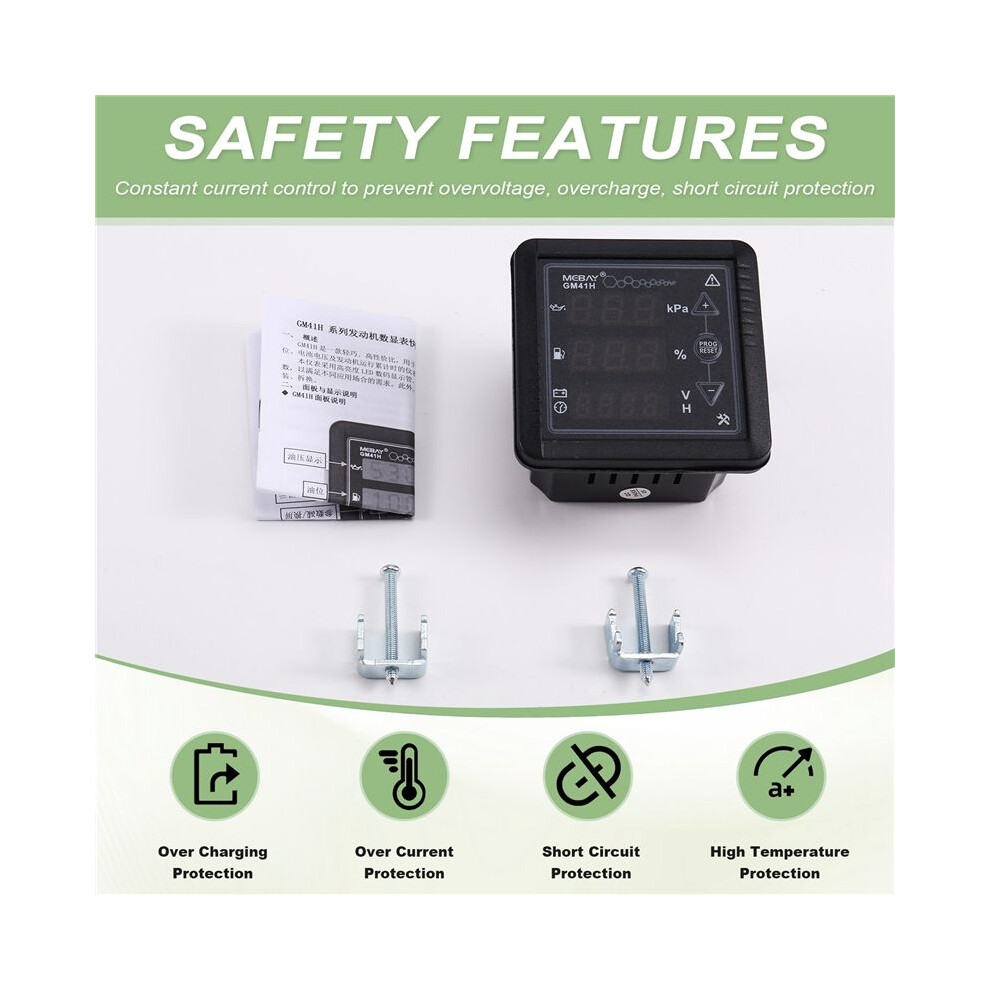

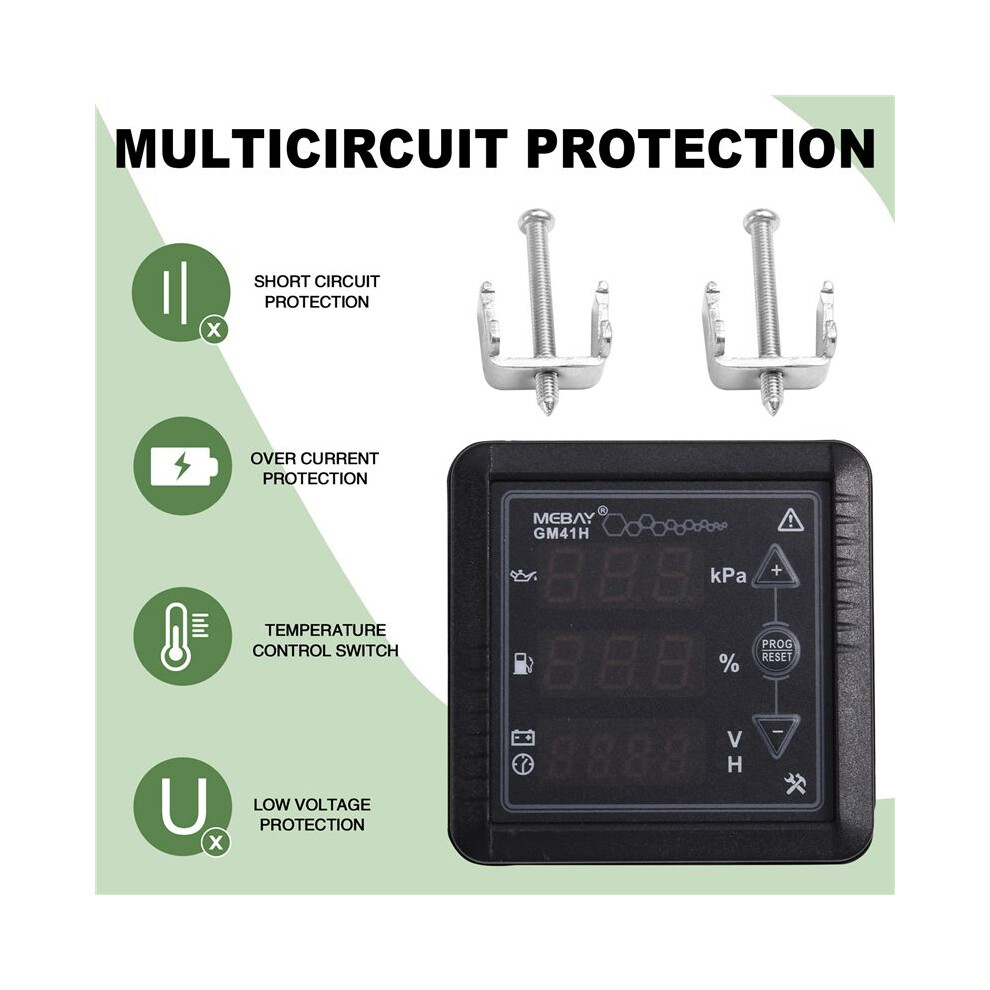

3. Protection
Low oil pressure
Sensor open
Maintenance expire
Low fuel level warning
Battery under voltage warning
4. Parameters
Working voltage:DC8V-36V Continuous

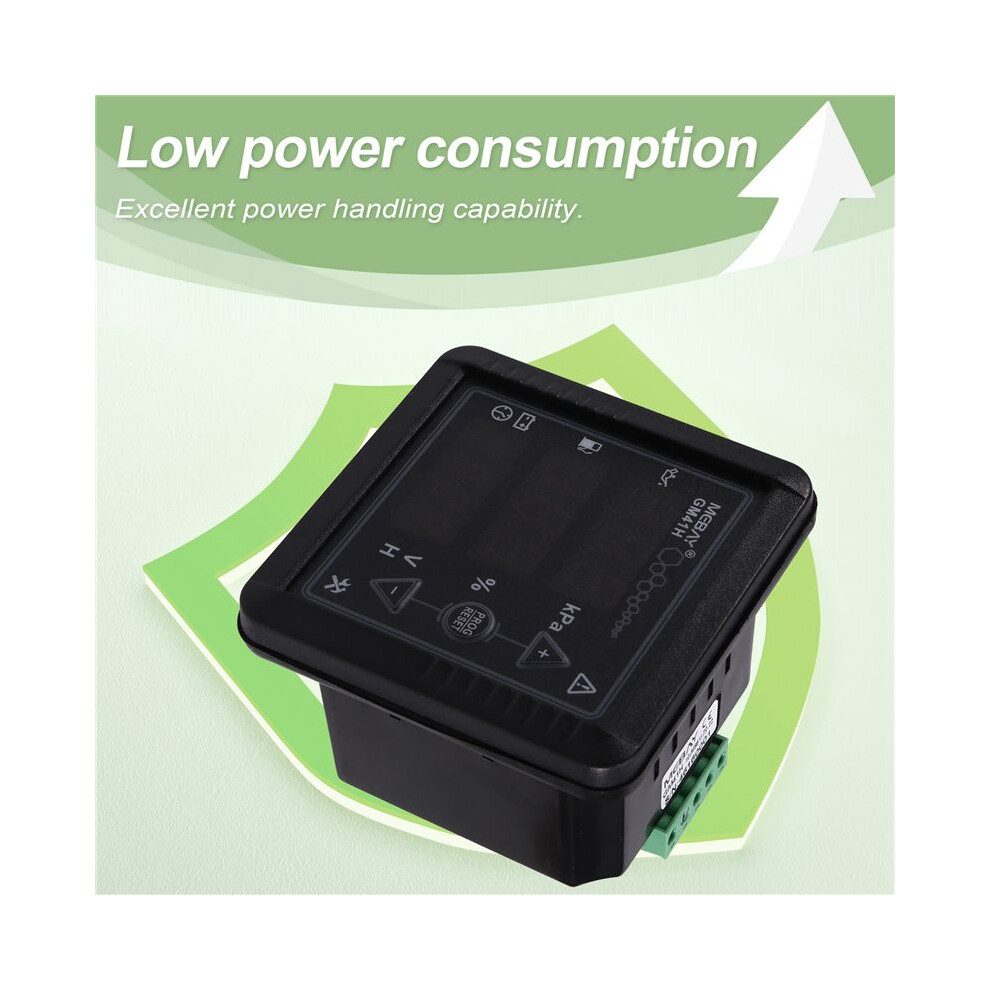

Power consumption:
Standby:24V:MAX 1W
Working:24V:MAX 1.5W
MAX Accumulating : 999999.9Hours(Min storage :1min)
Work
