SX1281 2.4GHz E28-2G4M27S SMD Module DIY Wireless Transceiver CDSENET IoT PCB SPI

SX1281 2.4GHz E28-2G4M27S SMD Module DIY Wireless Transceiver CDSENET IoT PCB SPI Beschrijving

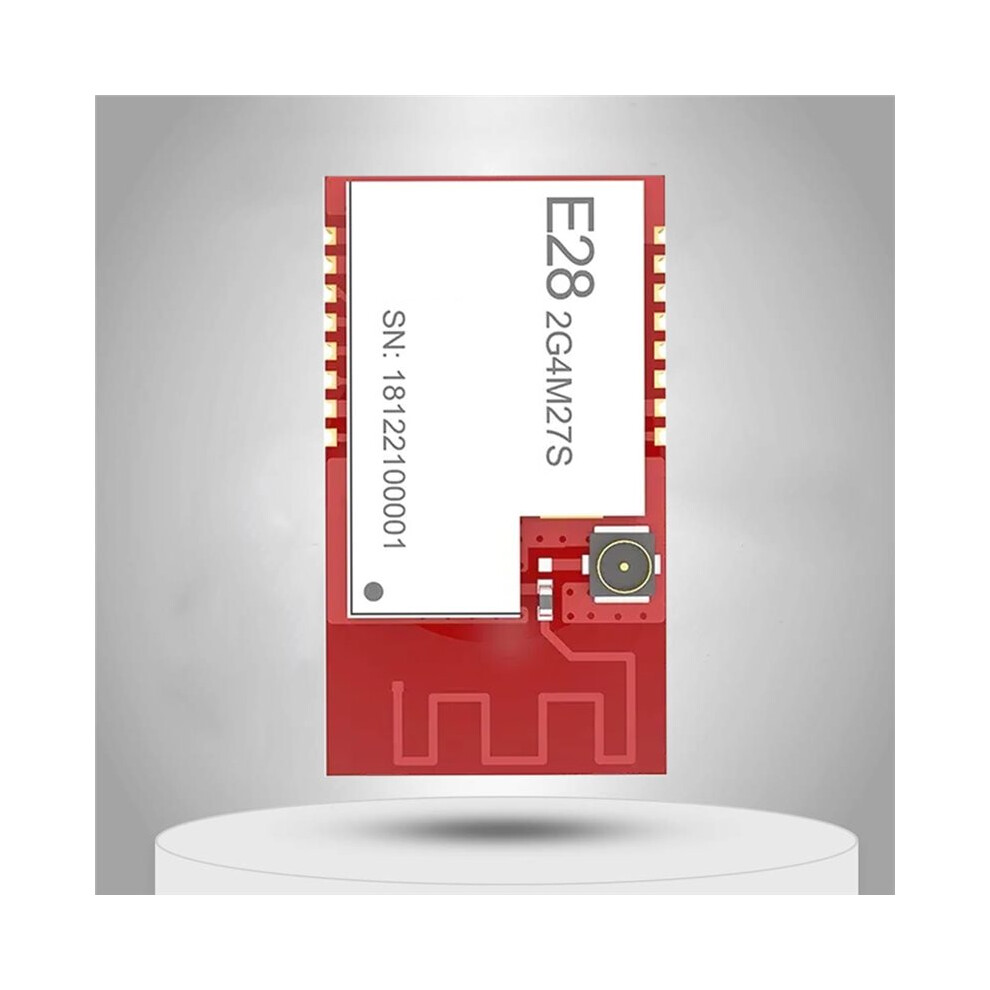

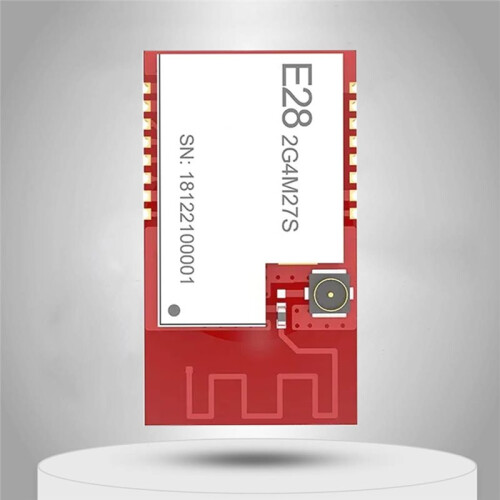

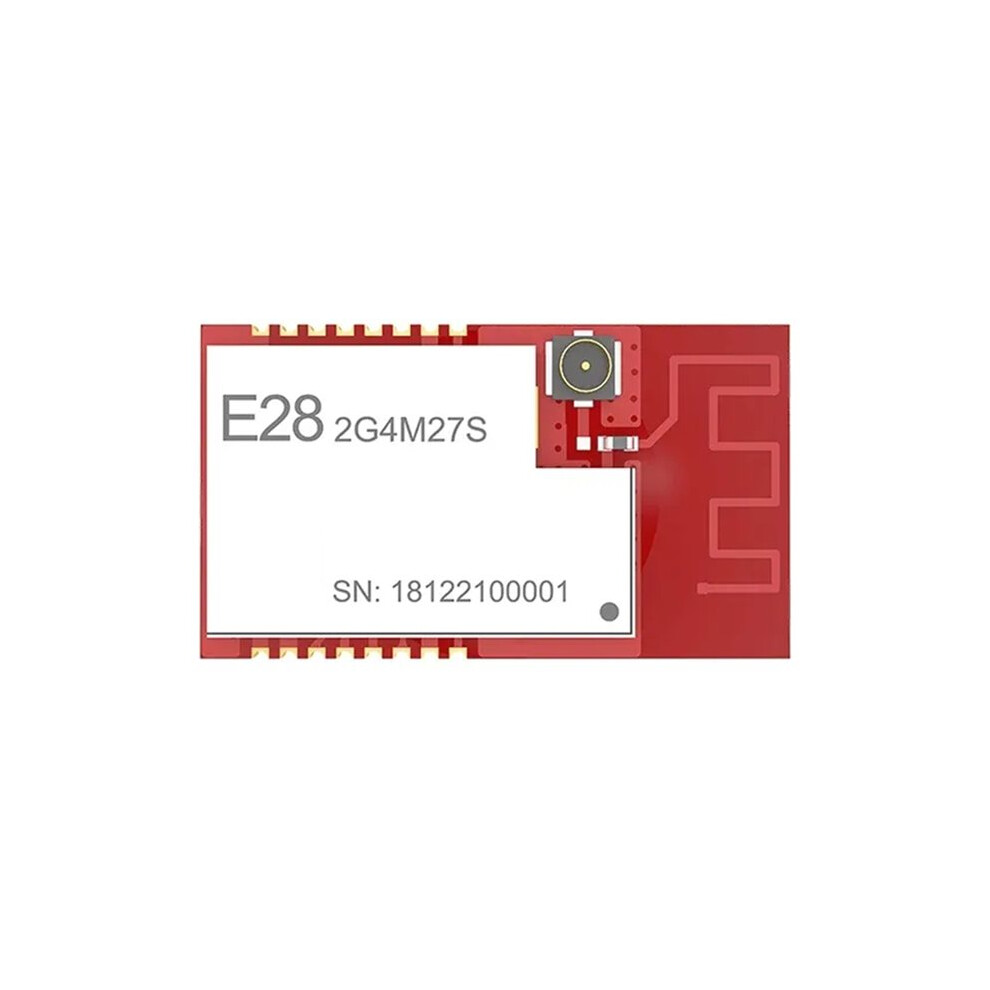

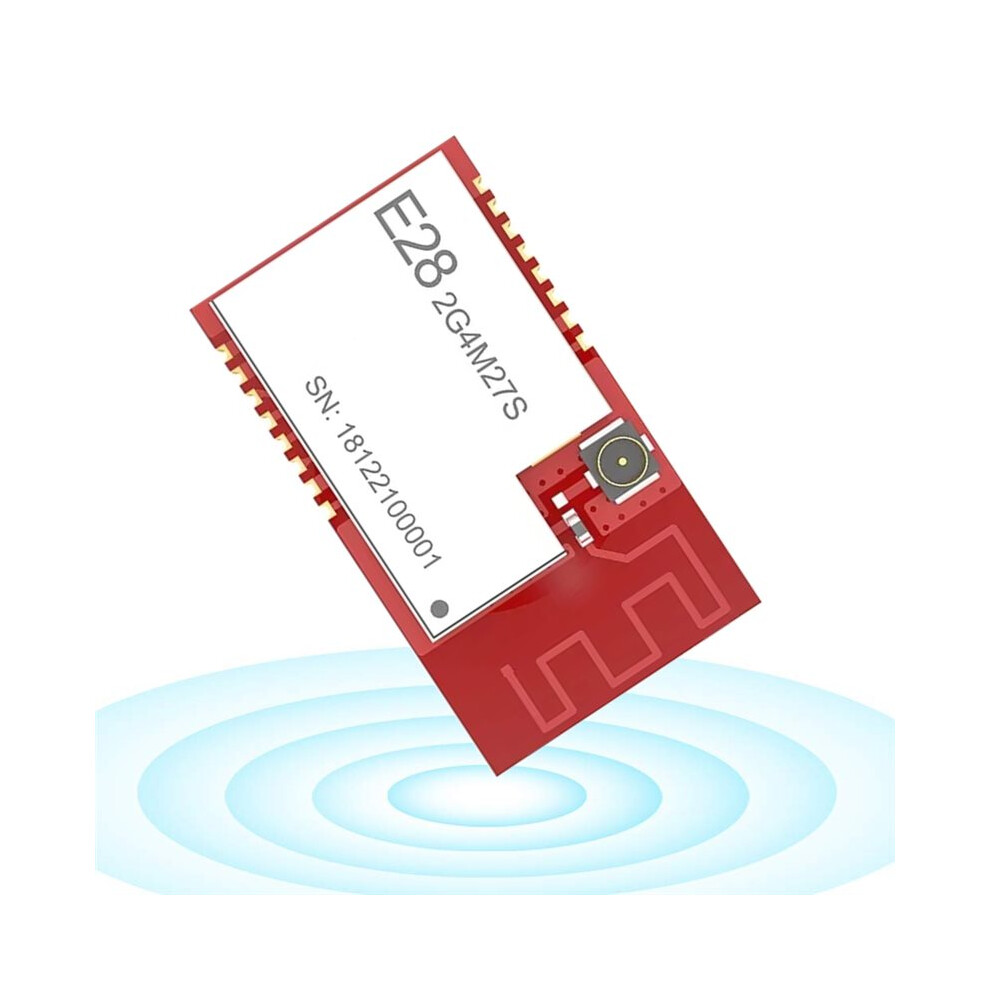

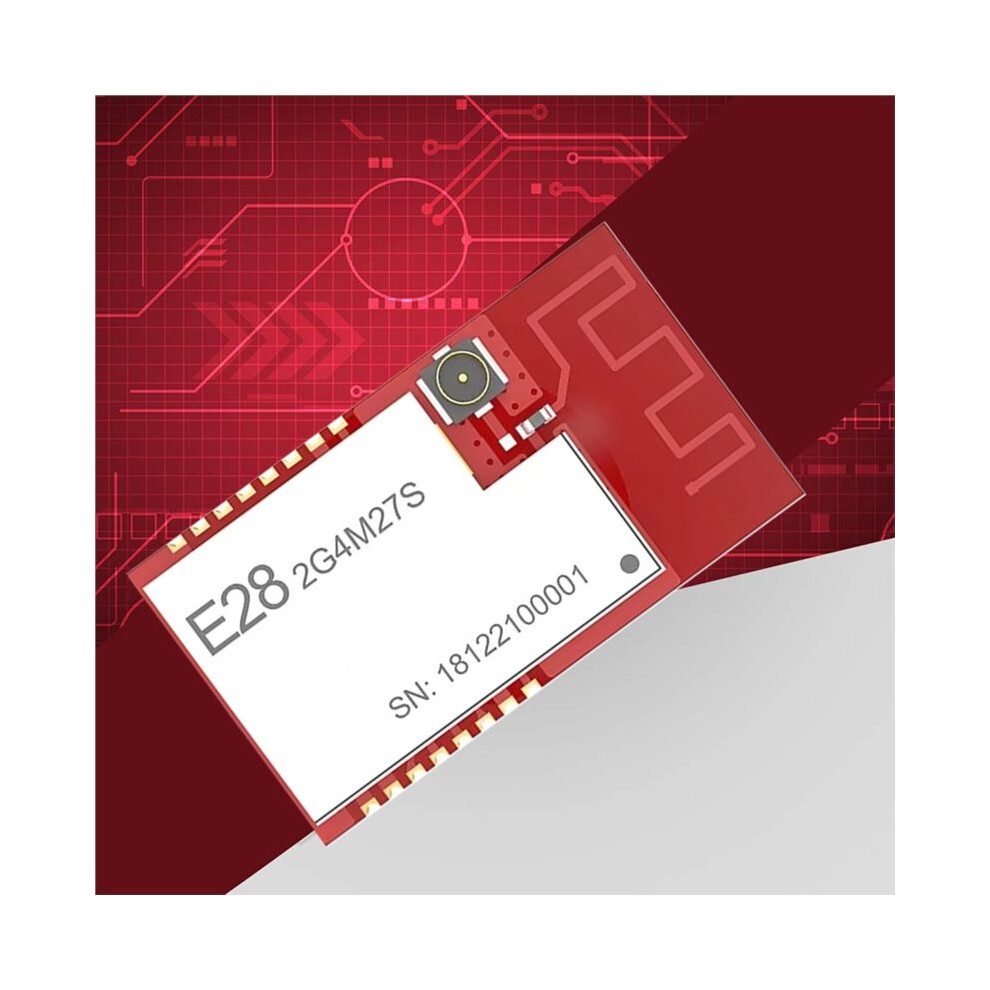

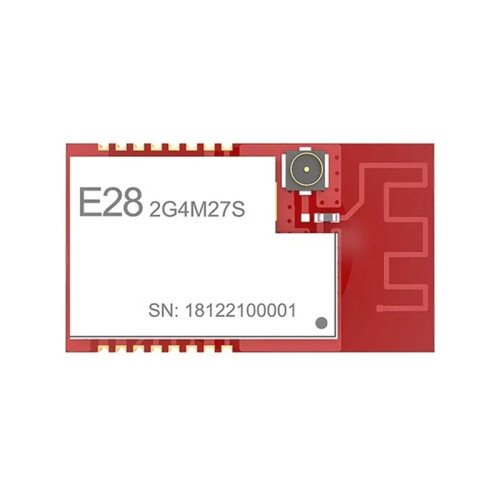

The SX1281 2.4GHz E28-2G4M27S SMD module is a compact DIY wireless transceiver designed for IoT and embedded applications
Chipset: Based the SX1281 high‑performance 2.4GHz RF transceiver chipset for robust and efficient wireless communication
Frequency Band: Operates in the global 2.4GHz ISM band, suitable for worldwide license‑free applications
Output Power: to 500mW RF output, supporting longer communication distances and better signal penetration
Interface: SPI communication interface for easy integration with mainstream MCU platforms such as STM32, , ESP32, and other microcontrollers

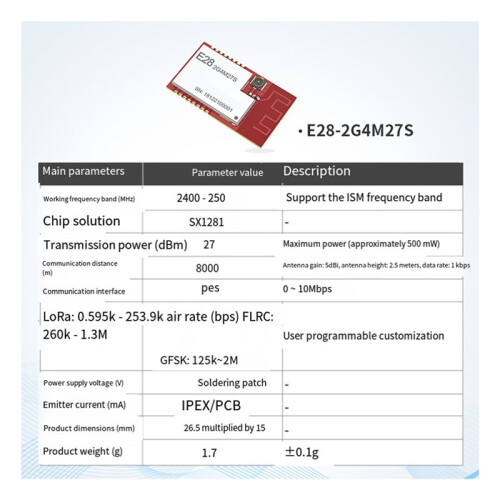

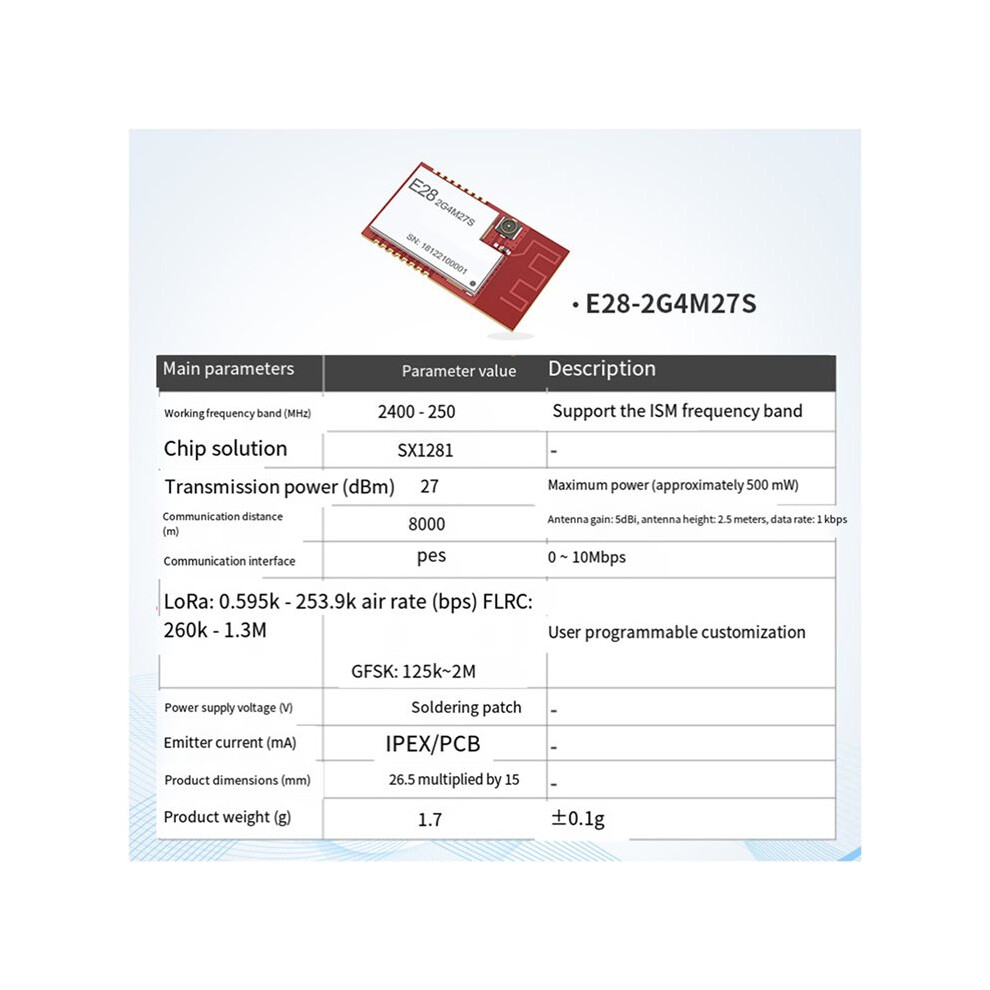

Specifications
Operating Frequency (MHz): 2400~2500, supports ISM band
Chip Solution: SX1281
Transmit Power (dBm): 27, Maximum Power (approx. 500mW)
Communication Distance (m): 8000, Antenna Gain 5dBi, Antenna Height 2.5m, Air Speed 1kbps
Communication Interface: SPI 0~10Mbps
Air Rate (bps): LoRa: 0.595k~253.9k, FLRC: 260k~1., GFSK: 125k~2M, User Programmable
Power Supply Voltage (V): Surface Mount
Transmit Current (mA): IPEX/PCB
Due to different batches, there may be differences in product appearance and printed text, which will not affect use

Package Contents:
1*SX1281 2.4GHz E28-2G4M27S SMD Module
