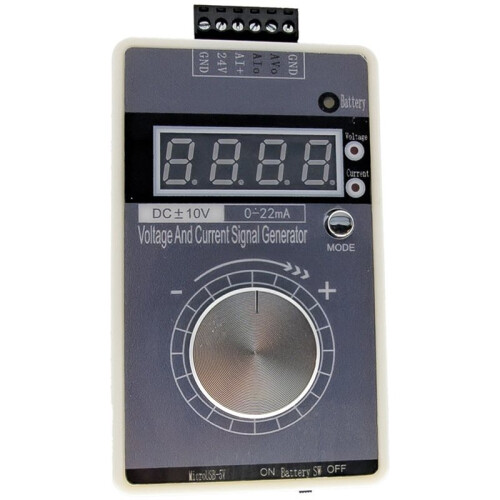

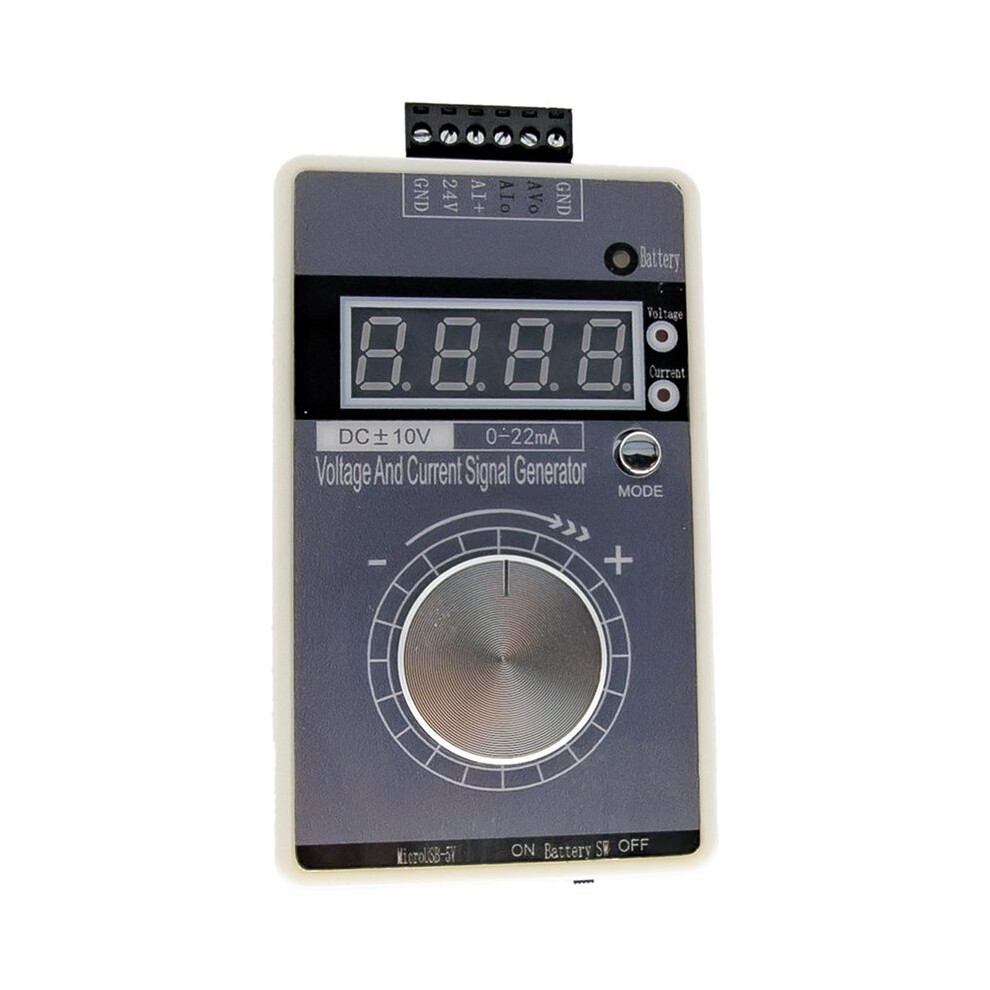

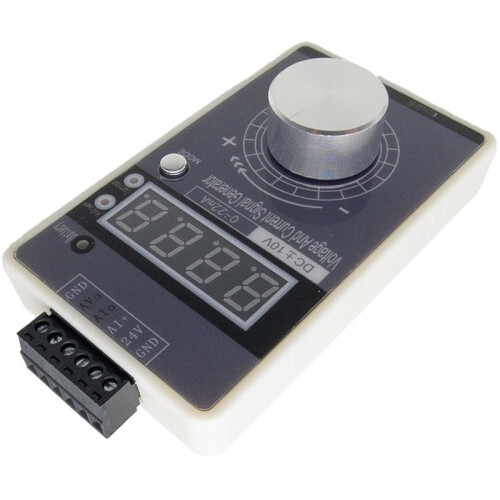

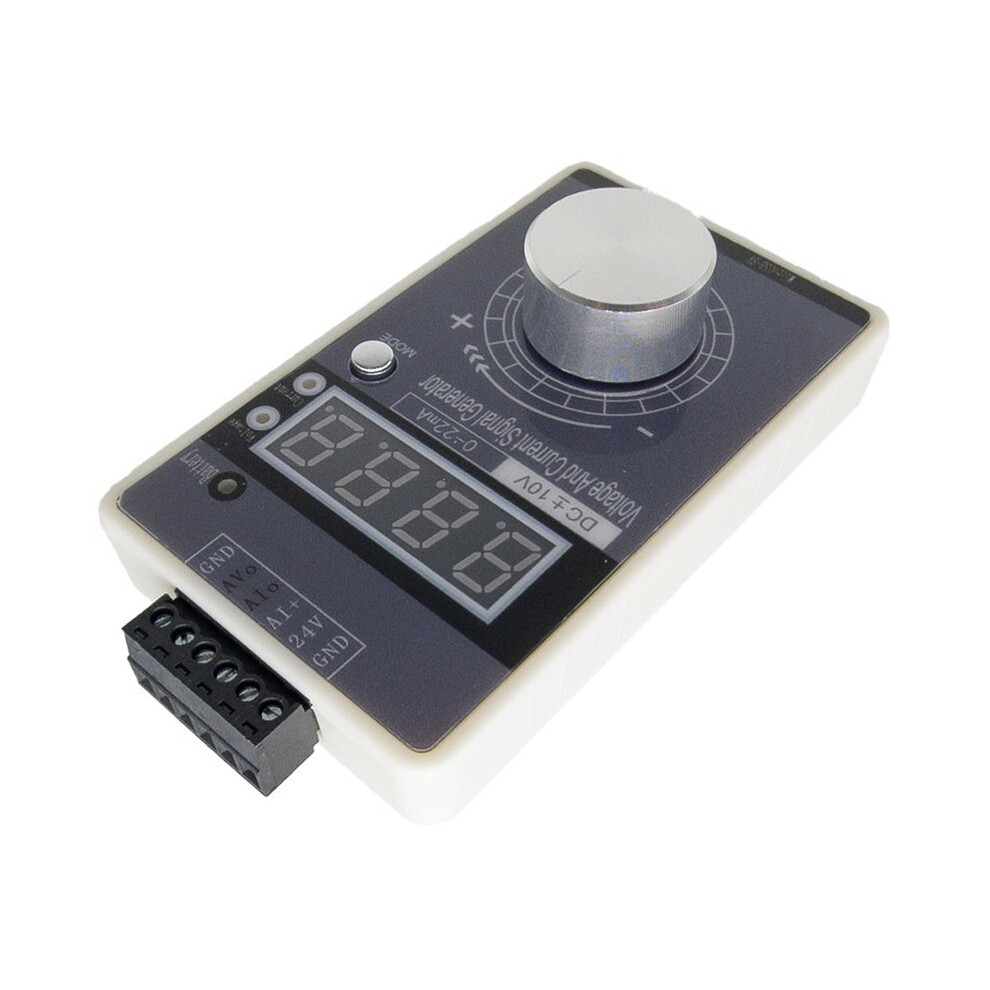

0-10V 0-22mA Handheld Signal Generator PWM Current Voltage Source Simulator Measuring Meter Calibrator

0-10V 0-22mA Handheld Signal Generator PWM Current Voltage Source Simulator Measuring Meter Calibrator Beskrivelse

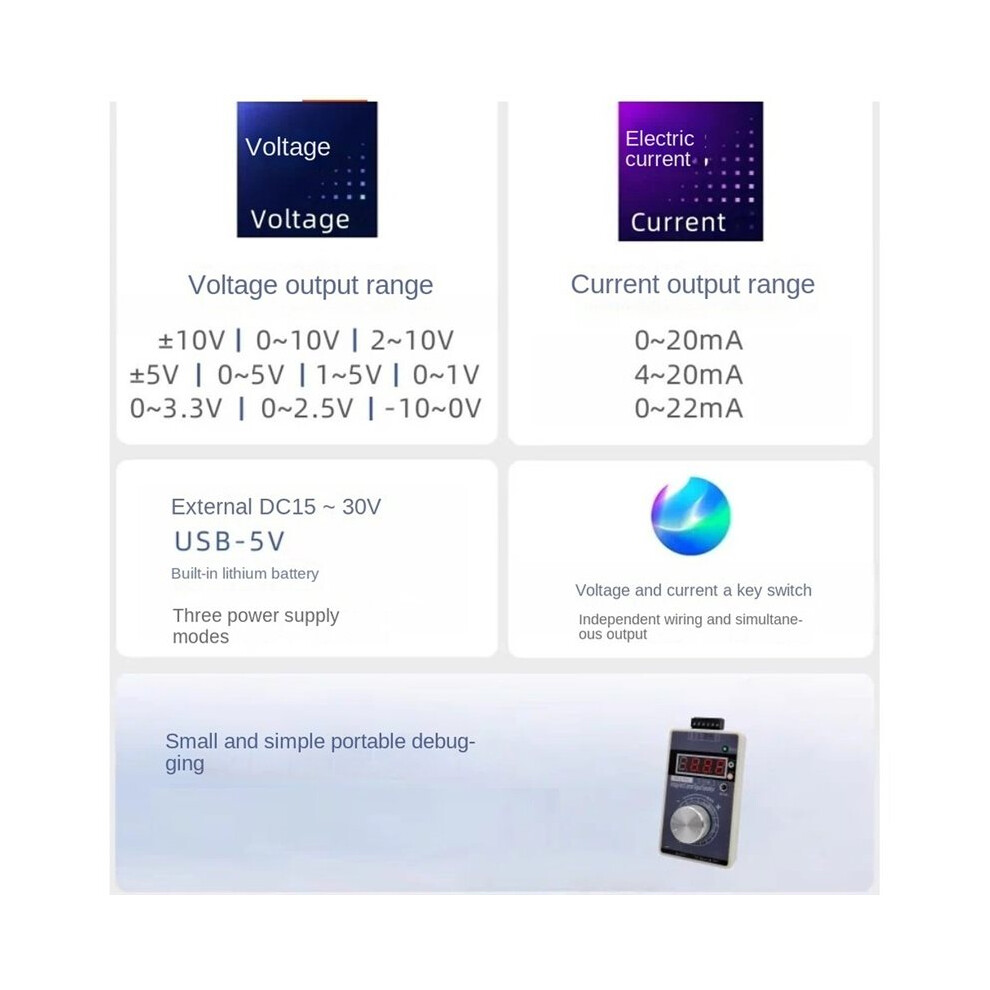

1. Three power supply methods: External 15-30V, USB 5V, or built-in lithium battery.

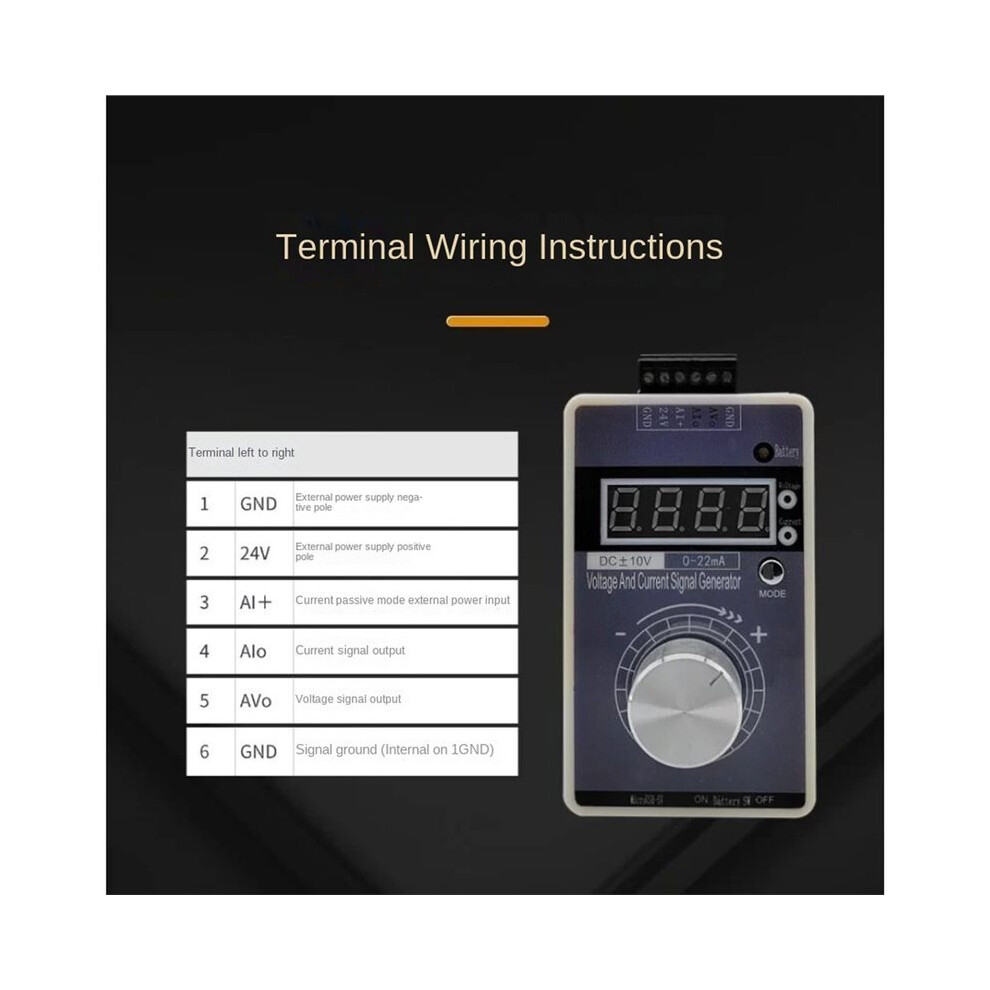

2. Current output supports 2-wire, 3-wire, and 4-wire configurations; fully compatible with both active and passive modes.

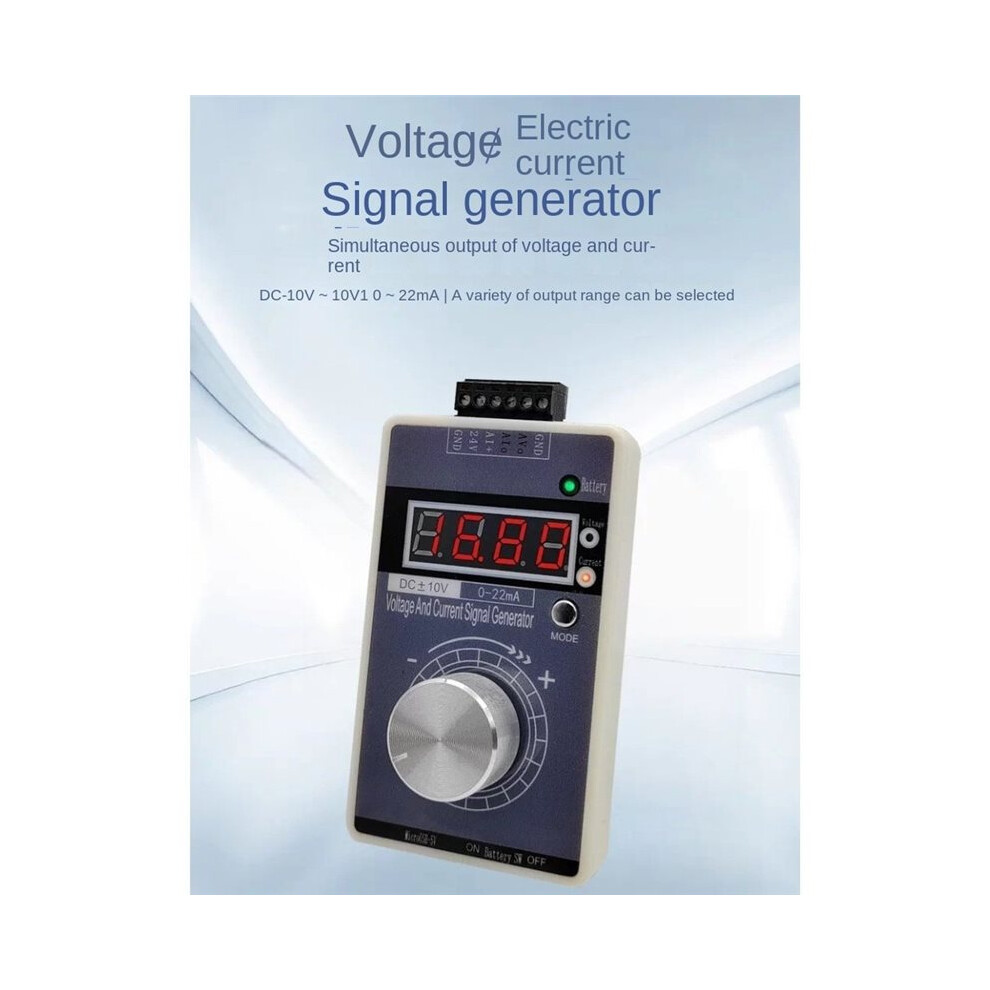

3. One-button switching between voltage and current modes; independent wiring terminals; simultaneous output capability.
4. Current output range: 0-20mA, 4-20mA, 0-22mA. (factory default 0-20mA)
5. Voltage output range: 10V, 5V, 0-10V, 2-10V, 0-5V, 1-5V, 0-3.3V, 0-2.5V, 0-1V, -10V to 0V. (factory default 0-10V)

6. Features short-circuit protection for output, non-polarized power input, and over-current protection for lithium battery charging/discharging.
7. Battery level indicator and battery voltage display.
8. Coarse and fine adjustment modes with configurable adjustment steps; 360-degree continuous adjustment via encoder knob.
9. 4-digit high-brightness digital display; adjustable precision (two decimal places); calibratable output.
10. Operating temperature: 0-50C; operating humidity: 0-80%; storage temperature: -30 to 80C.
Color: As Shown
Material: Plastic+Metal

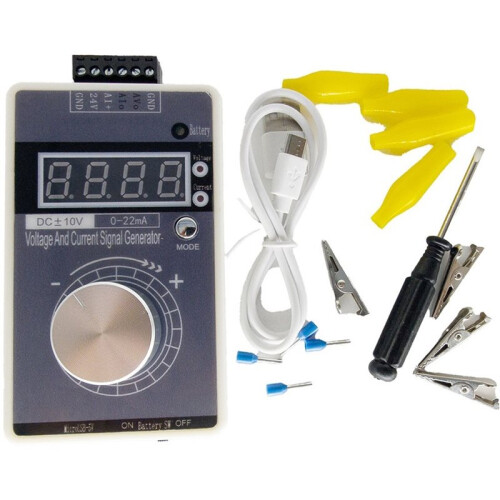

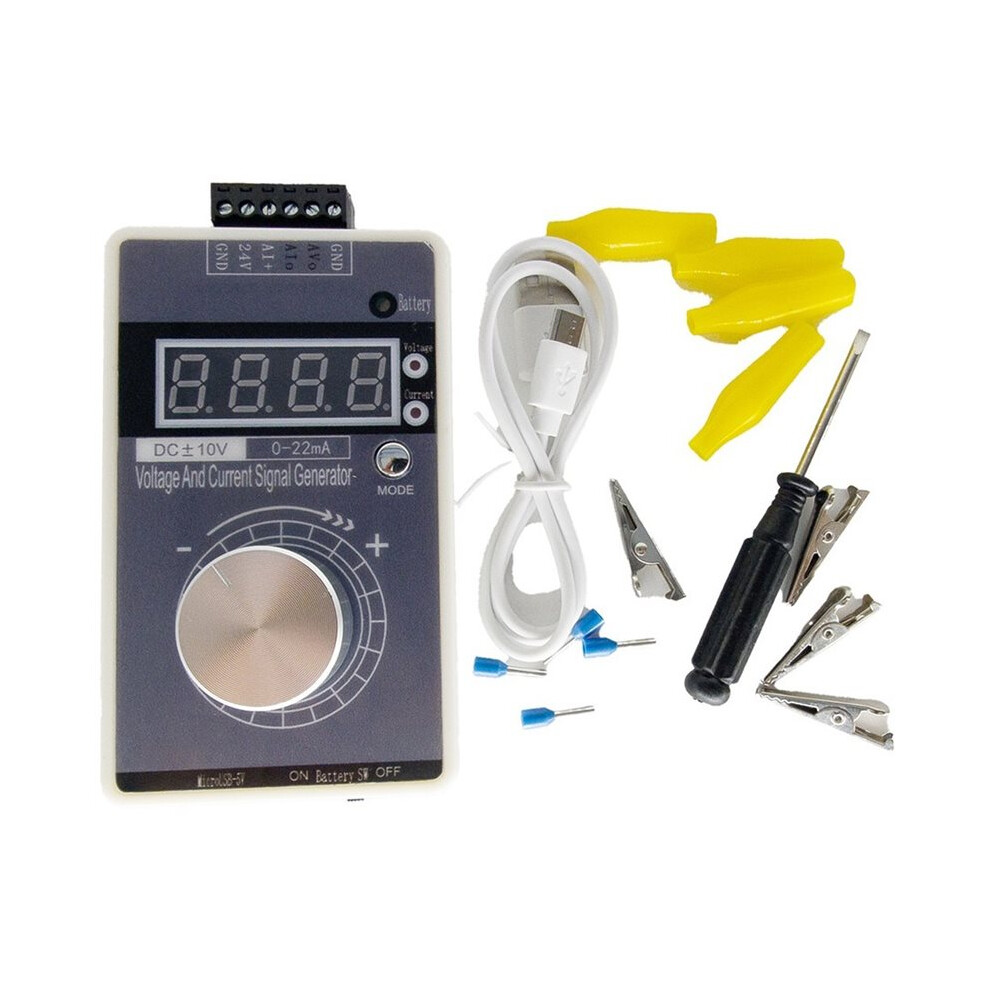

Package Contents:
1 * Signal Generator
1 set of accessories (color selected at random)
