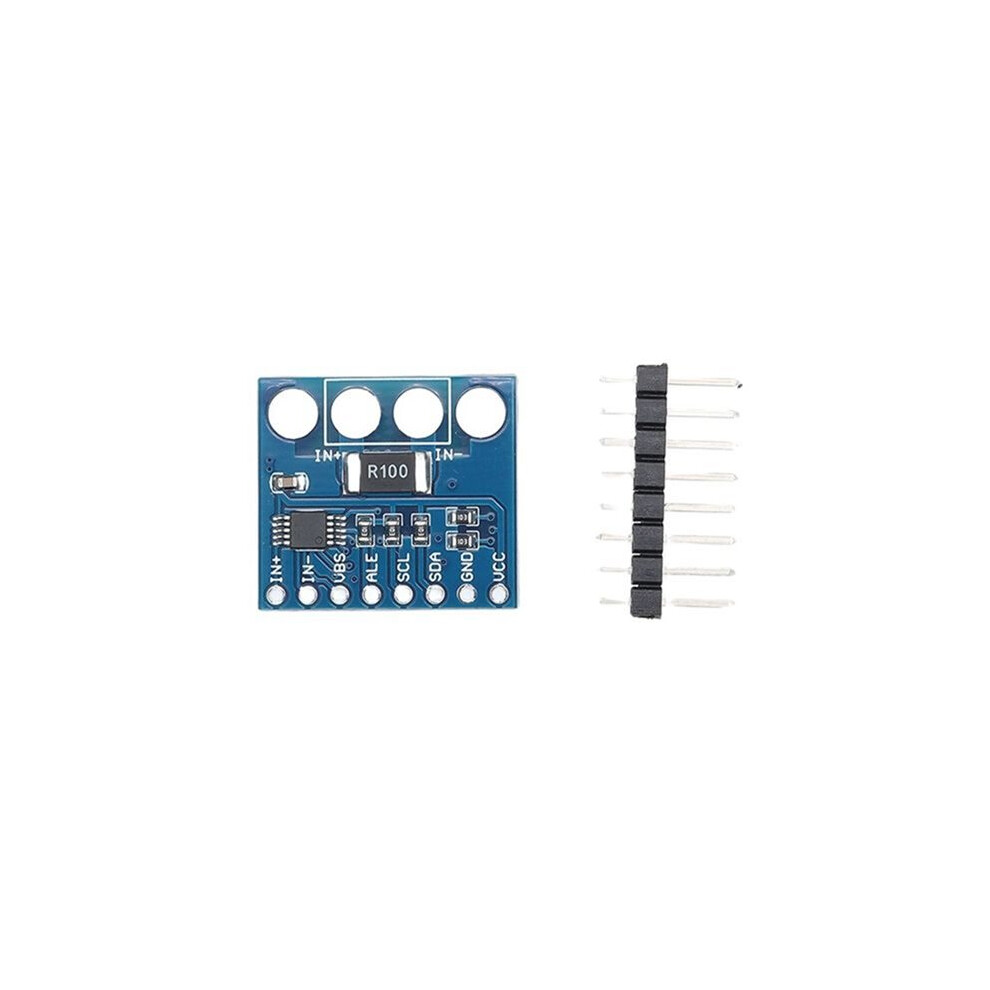

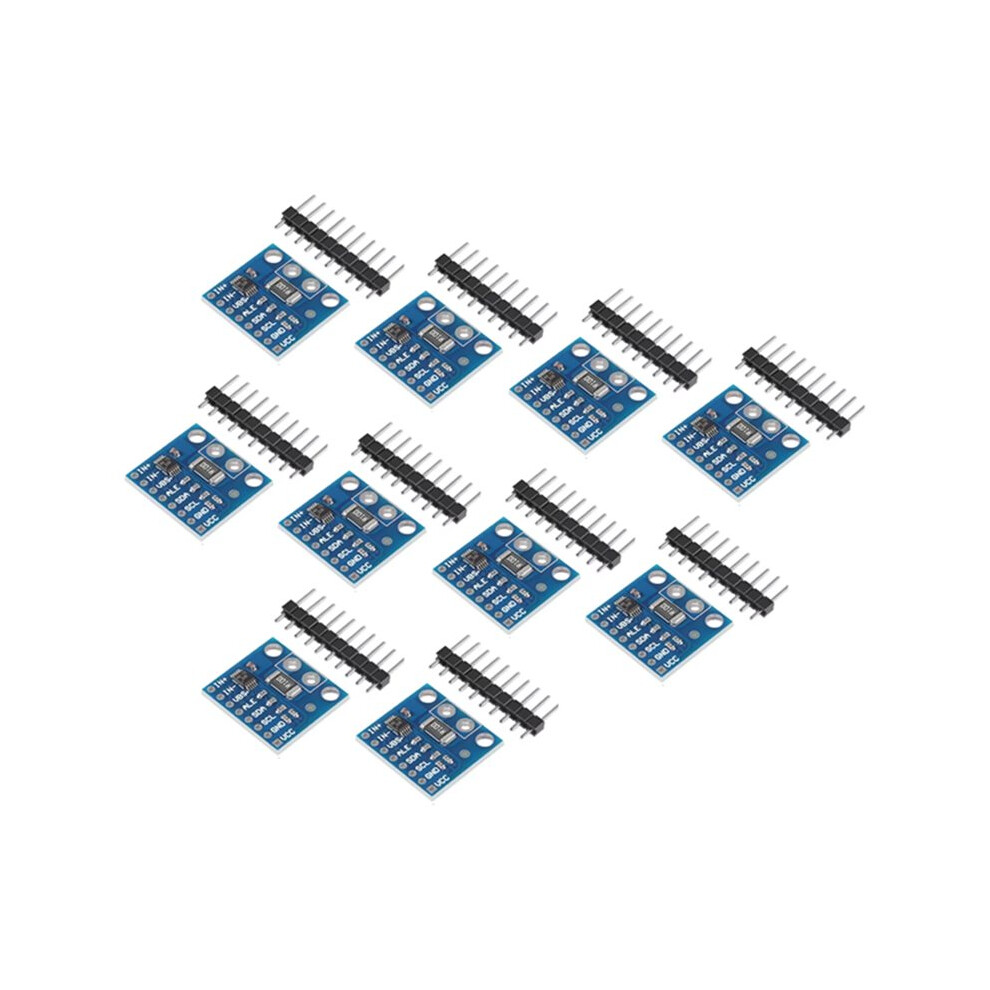

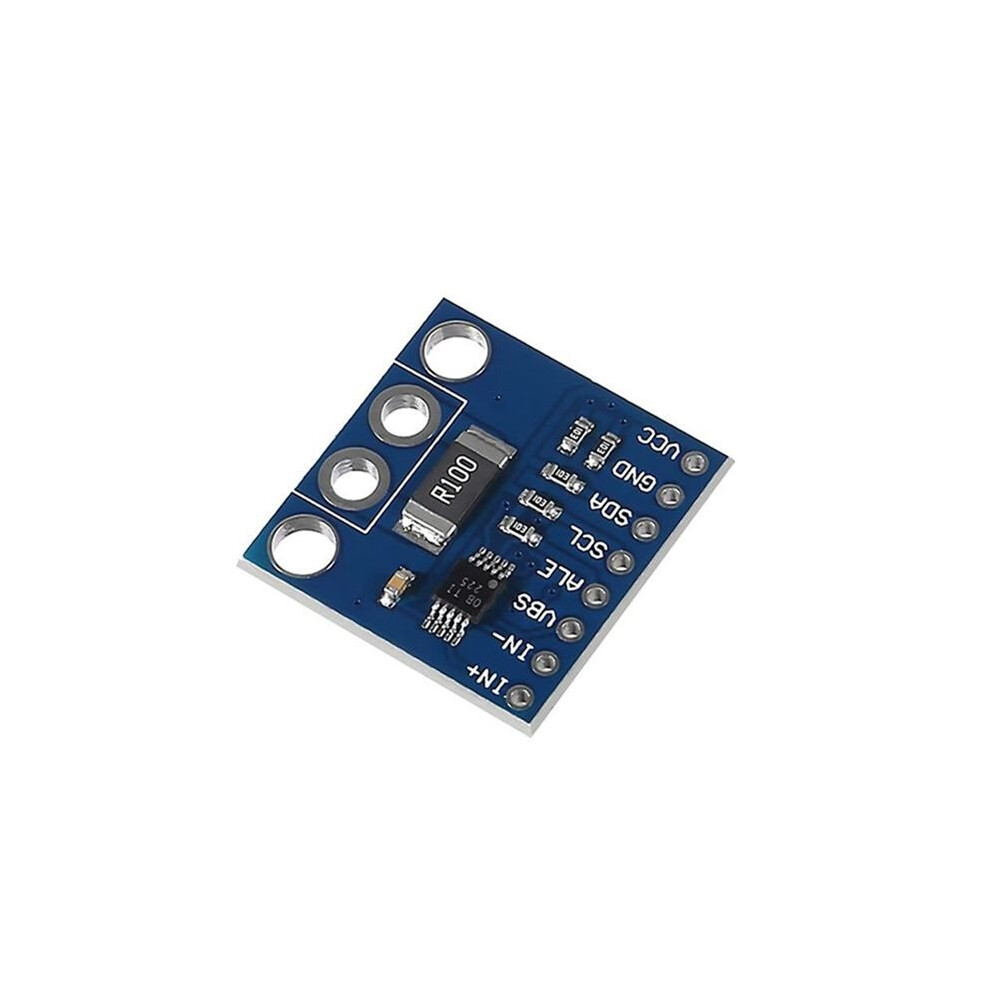

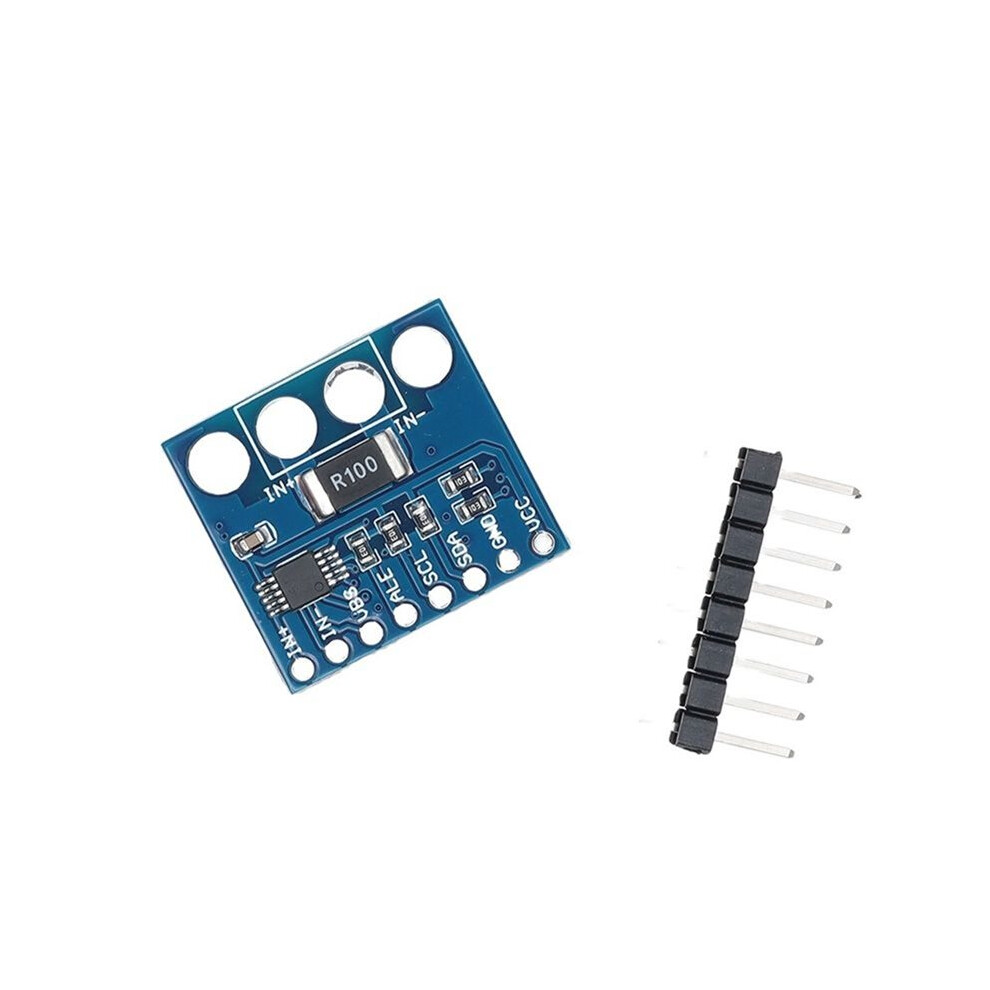

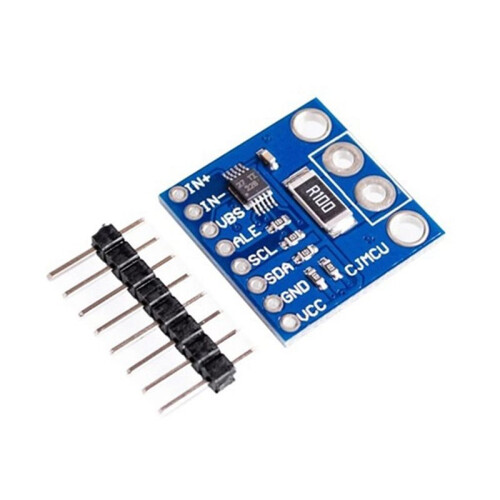

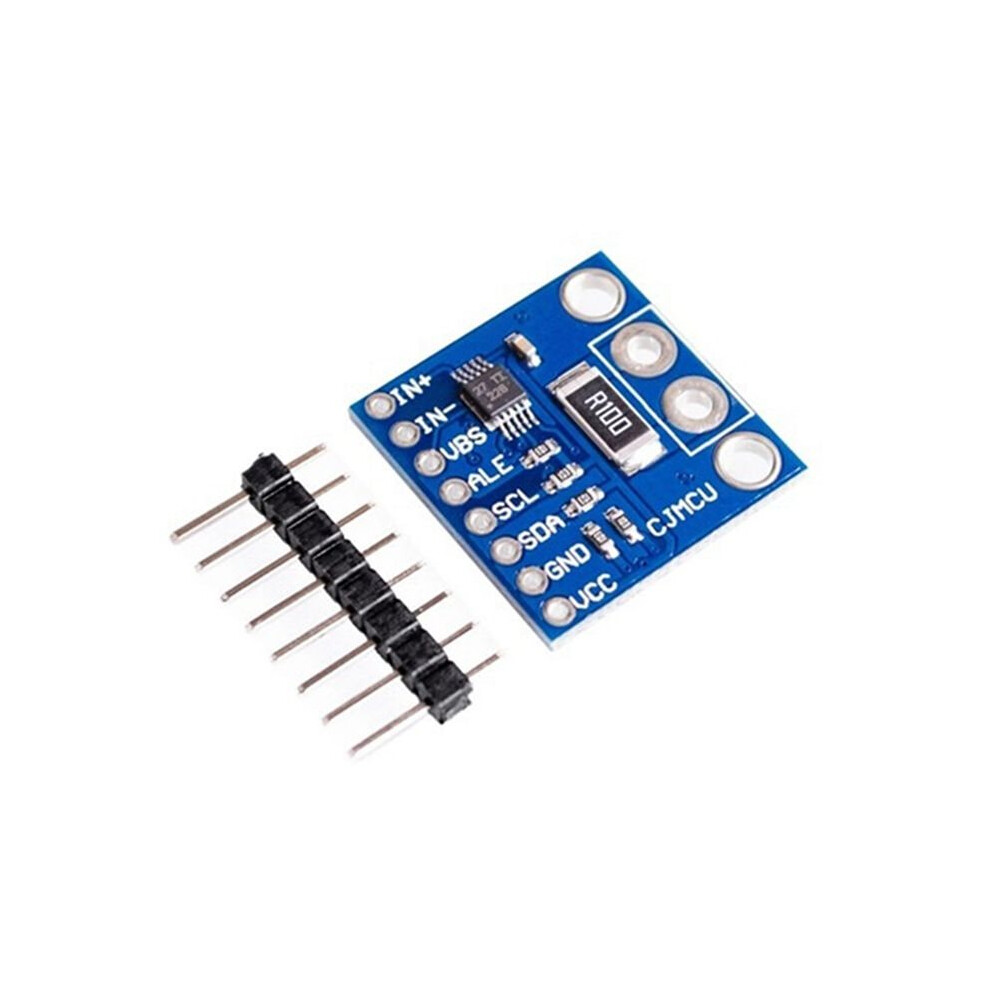

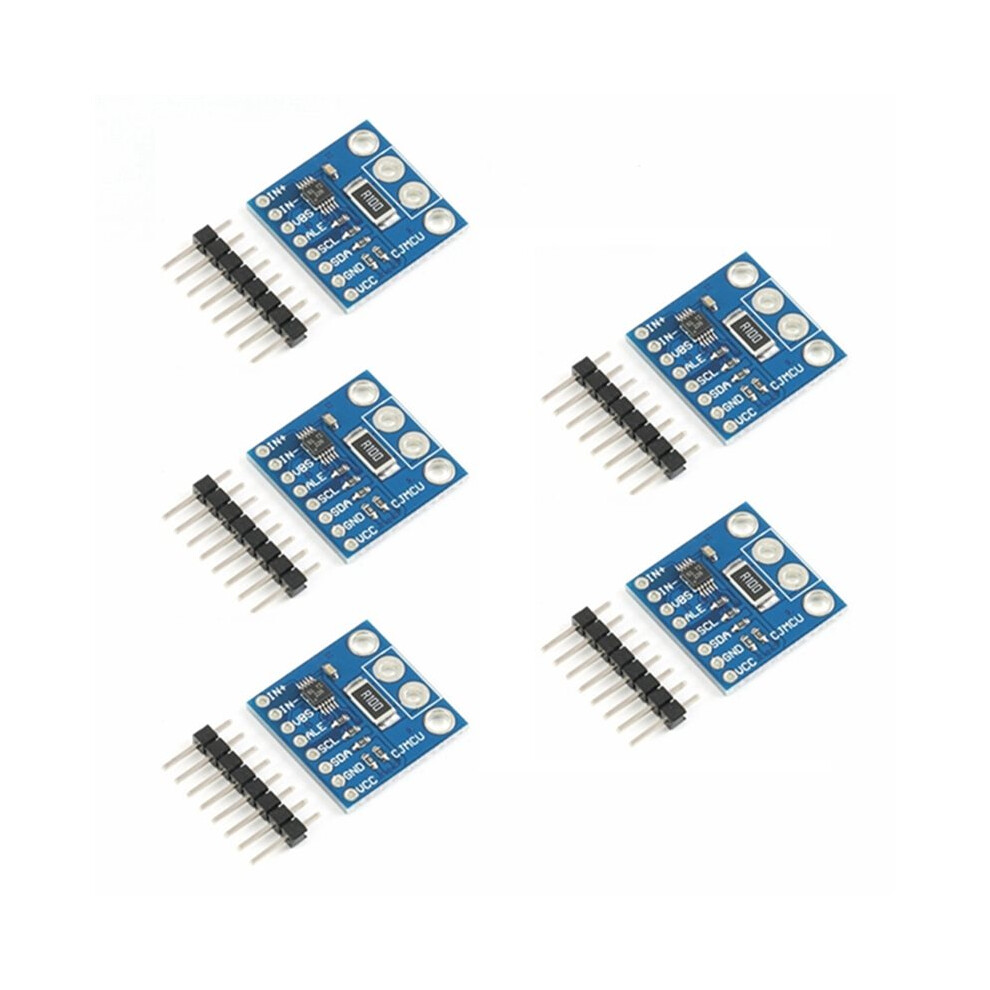

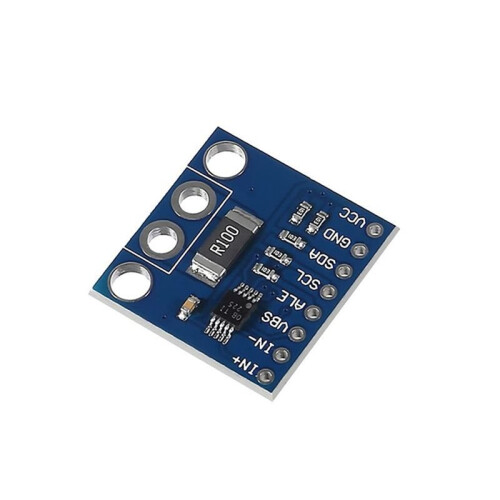

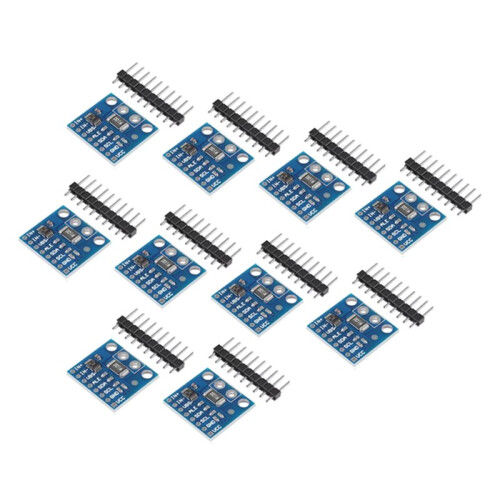

10PCS INA226 I2C Interface Bi-Directional Current/Power Monitoring Sensor Module 36V CJMCU-226
Merke Typecat
Ny
På lager
Derfor vil du elske å handle hos OnBuy:
- Tjen Cashback på hvert kjøp – bruk det umiddelbart på din neste bestilling
- Gratis levering – på millioner av varer på hele nettstedet
- Kunder elsker oss – 137,000 anmeldelser med vurderingen “Utmerket”
217,76 kr
287,45 kr
24 % rabatt!
GRATIS levering
1%
Tjen 2,18 kr med én gang
Les mer
Prisene for varer solgt av OnBuy inkluderer mva.
Rente- og gebyrfri delbetaling tilgjengelig
Se full produktbeskrivelse og detaljer
Levering: Standard (Gratis) | tir 10. - lør 14. nov
Solgt av: Papishop
Returer: 30 dager
180 dagers betalingsbeskyttelse
Beskrivelse og detaljer
Sammendrag
- The INA226 is a current shunt and power monitor with an I2C- or SMBUS-compatible interface. Thedevice monitors both a shunt voltage drop and bussupply voltage. Programmable calibration value,conversion times, and averaging, combined with aninternal multiplier, enable direct readouts of current inamperes and power in watts.
- The INA226 senses current on common-mode bus voltages that can vary from 0 V to 36 V, independent of the supply voltage. The device operates from a single 2.7-V to 5.5-V supply, drawing a typical of 330μA of supply current. The device features up to 16 programmable addresses on the I2C-compatible interface.
- The highest INA226 disturbance voltage of 10 microvolts (uV), the largest gain error is 0.1%, precision is 10 times higher than the industry leading competitive products. This device is a complete 16-bit single chip solutions, to number the I2C interface of current, voltage and power to provide comprehensive programmable measurement.
- INA226 for servers, computers, telecommunications equipment, power management equipment and test equipment design staff with great advantages, can fully meet the requirements for the precise power measurement.
- INA226 Sensor Module
10PCS INA226 I2C Interface Bi-Directional Current/Power Monitoring Sensor Module 36V CJMCU-226 Beskrivelse
The INA226 is a current shunt and power monitor with an I2C- or SMBUS-compatible interface. Thedevice monitors both a shunt voltage drop and bussupply voltage. Programmable calibration value,conversion times, and averaging, combined with aninternal multiplier, enable direct readouts of current inamperes and power in watts.
The INA226 senses current common-mode bus voltages that can vary from 0 V to 36 V, independent of the supply voltage. The device operates from a single 2.7-V to 5.5-V supply, drawing a typical of 330μA of supply current. The device features to 16 programmable addresses the I2C-compatible interface.
The highest INA226 disturbance voltage of 10 microvolts (uV), the largest gain error is 0.1%, precision is 10 times higher than the industry leading competitive products. This device is a complete 16-bit single chip solutions, to number the I2C interface of current, voltage and power to provide comprehensive programmable measurement.
INA226 for servers, computers, telecommunications equipment, power management equipment and test equipment design staff with great advantages, can fully meet the requirements for the precise power measurement.
Color: As Shown
Material: PCB
Package Contents:
10*Power Monitoring Sensor Module
Detaljer
| OPC | PYF9RKK |
|---|---|
| Merke | Typecat |
| Koder | 4713080951655 (EAN) |
| Produkt- og sikkerhetsinformasjon |
Produktdata
| Height | 5cm |
|---|---|
| Width | 6cm |
| Length | 12cm |
| Weight | 0.05kg |
| Colour | As Shown |
| Material | PCB |
