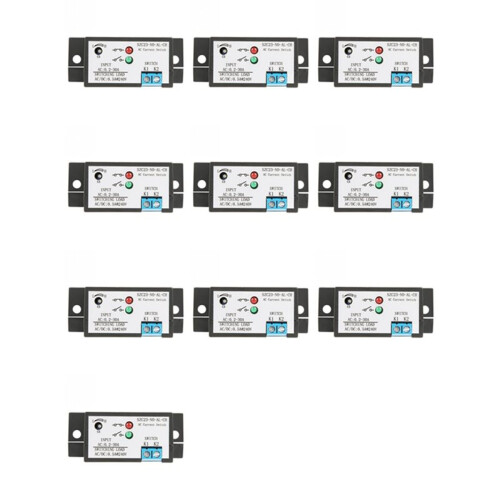

10X Current Sensing Normally Open Current Sensing Adjustable AC Current SZC23-NO-AL-CH

10X Current Sensing Normally Open Current Sensing Adjustable AC Current SZC23-NO-AL-CH Beskrivelse

1. Self-powered, no external power supply required.
2. Action current 0.2-30A AC, adjustable with a potentiometer.
3. LED indicator can conveniently and intuitively indicate the working status of the .
4. High-power MOS tube contactless electronic .
5. The has no limit the number of opening and closing, and the reaction speed reaches the ms level.

Straight-through structure design, isolation withstand voltage to 2000V.
Hysteresis is less than 1% and can be used under strong magnetic conditions.
The outer casing is made of self-extinguishing material ABS.
Suitable for AC current measurement and monitoring, AC motor overload protection, electronic of automatic control system and so .
Model: SZC23-NO-AL-CH
Power supply: Not required
Rated load: less than equal 0.5A 240V AC/
Input current: 0.2-30A AC
minimum: 0.50.2A
Maximum overload:
Leakage current: less than equal 0.1A
Accuracy: 1%
Hysteresis: less than equal 1%
Response : less than equal 200ms
Repeatability:
Working temperature: -20-60Celsius
Waterproof: IP30
Hole diameter: 10mm / 0.4in
Colour:black
Material:Metal + Plastic
Size:65 x 25 x 47mm

Package Contents:
10 x Current Sensing
