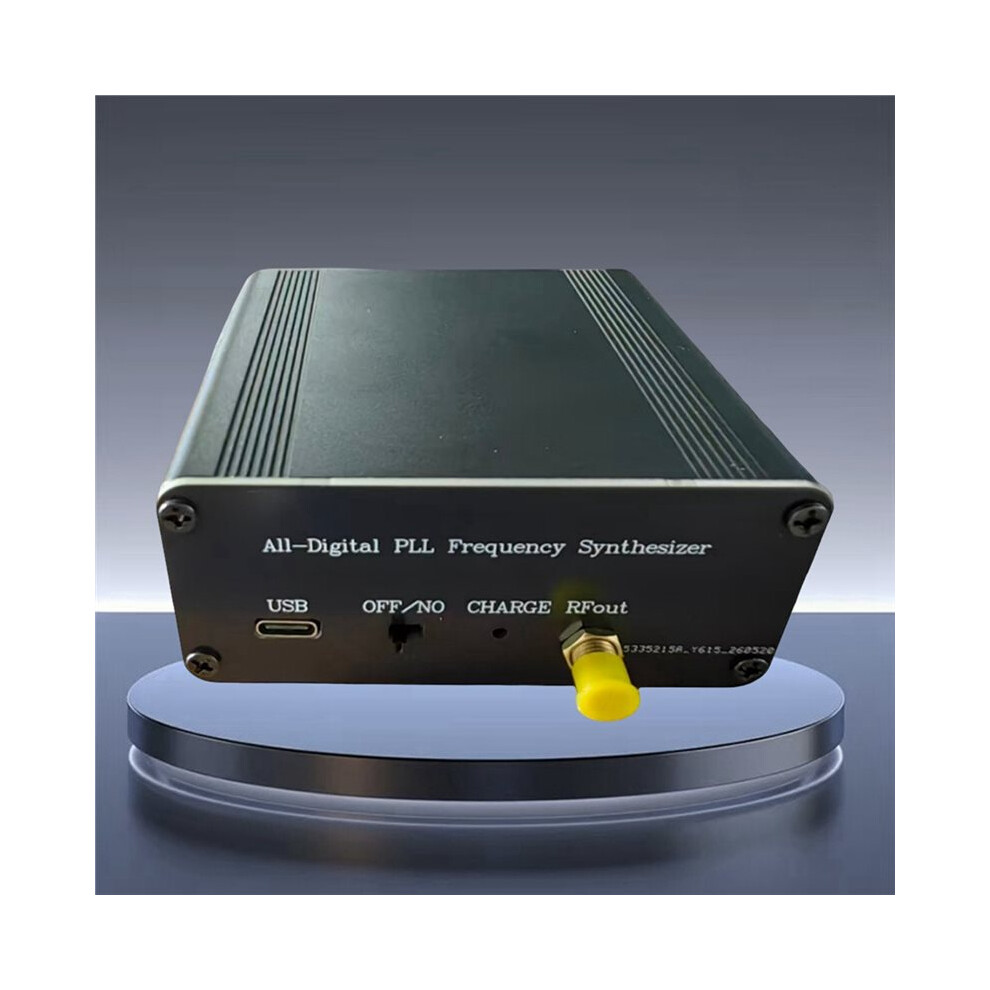

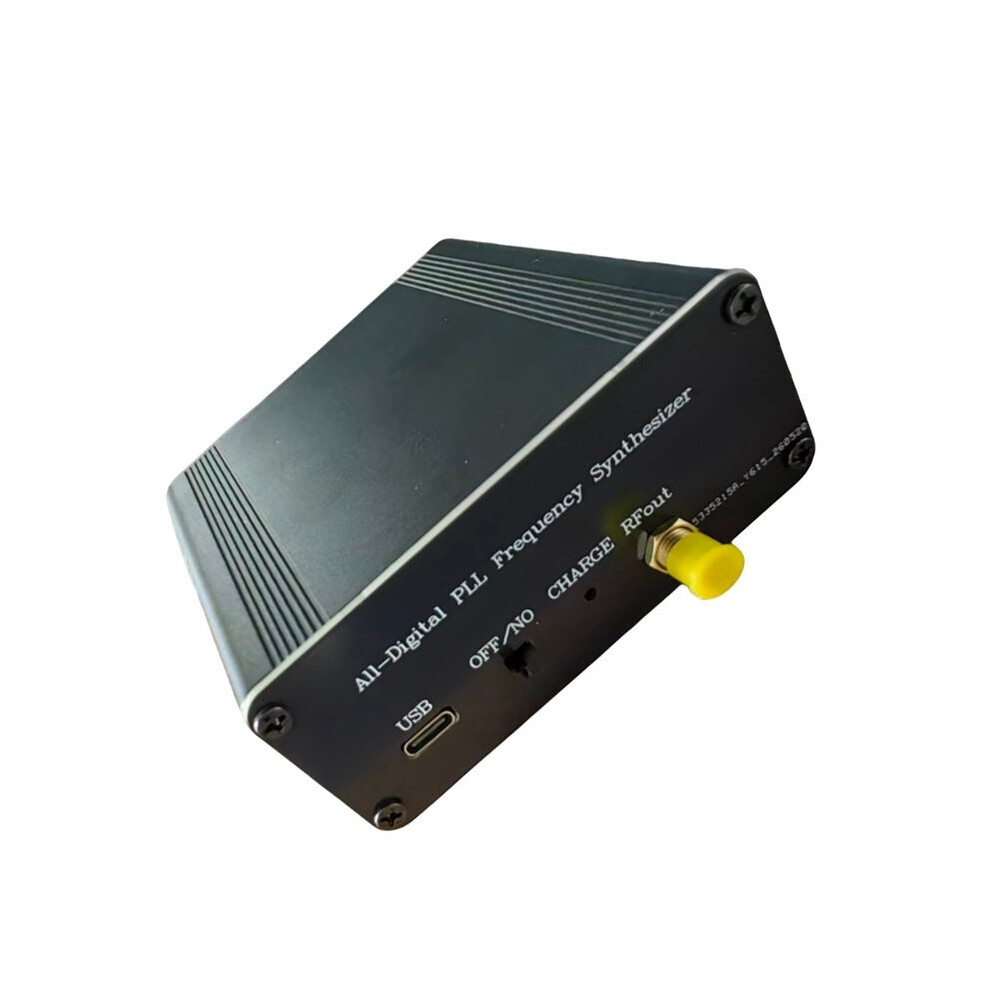

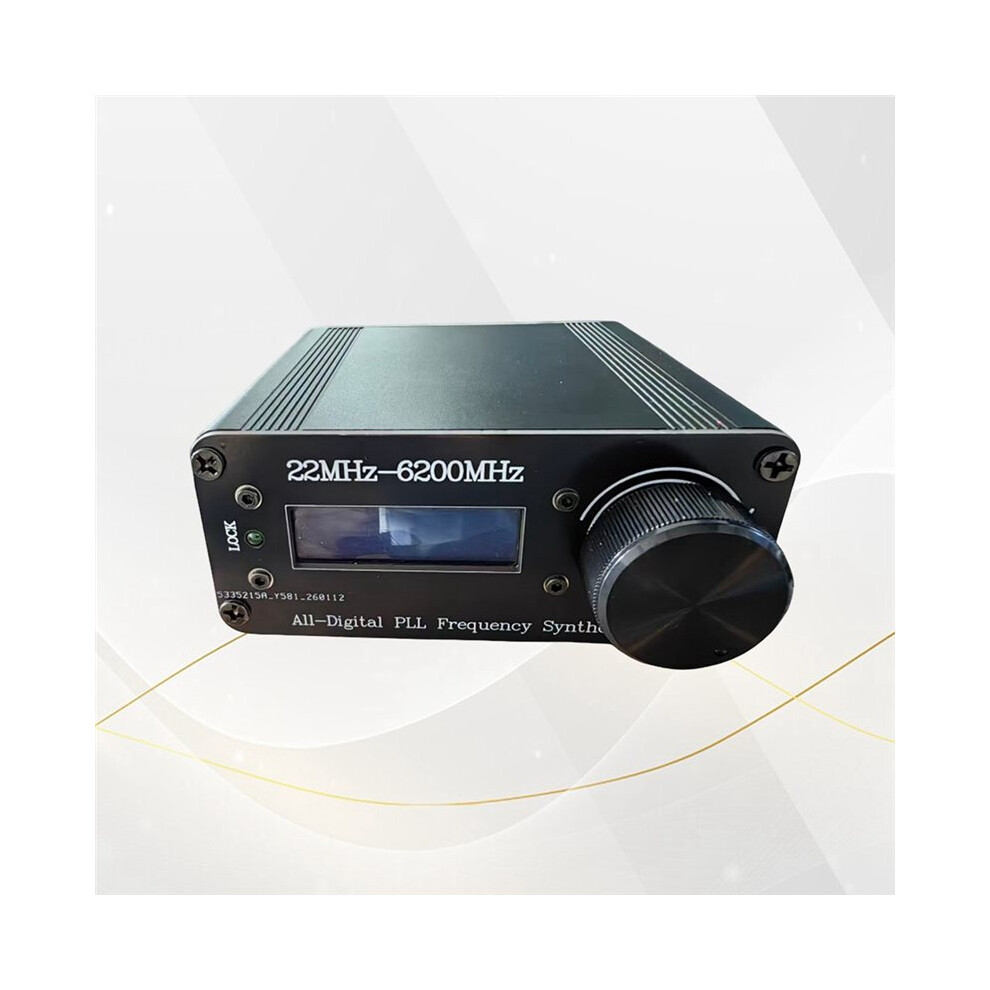

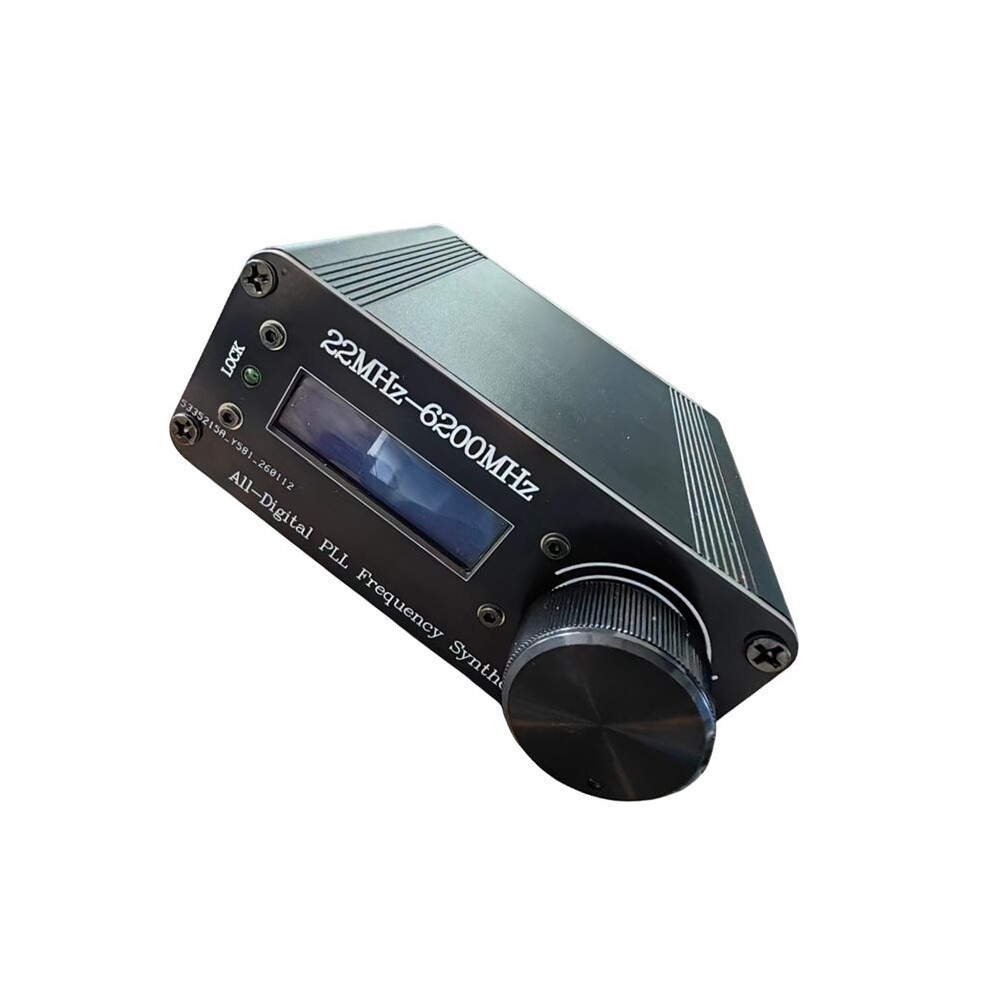

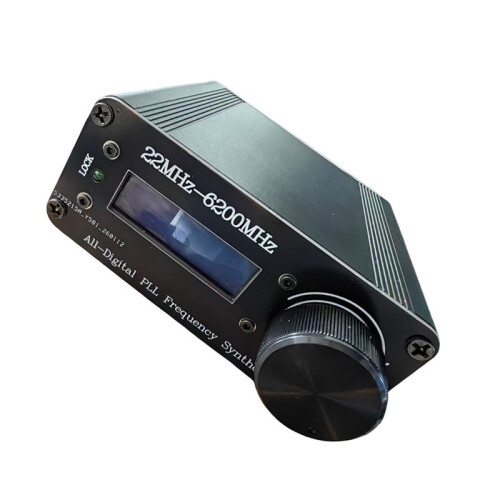

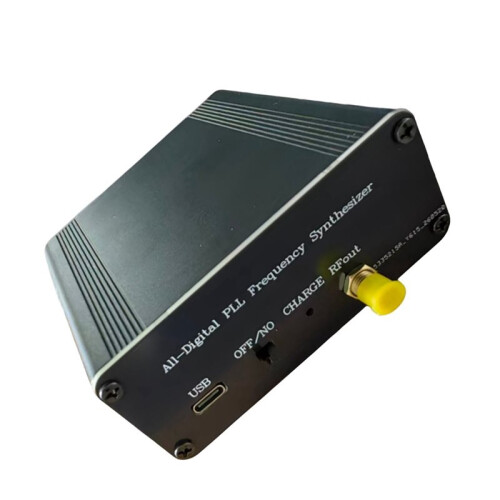

22MHz-6200MHz Frequency Generato Transceiver All-Mode PLL AM/FM Transceiver HAM Variable Frequency Oscillator

22MHz-6200MHz Frequency Generato Transceiver All-Mode PLL AM/FM Transceiver HAM Variable Frequency Oscillator Beskrivelse

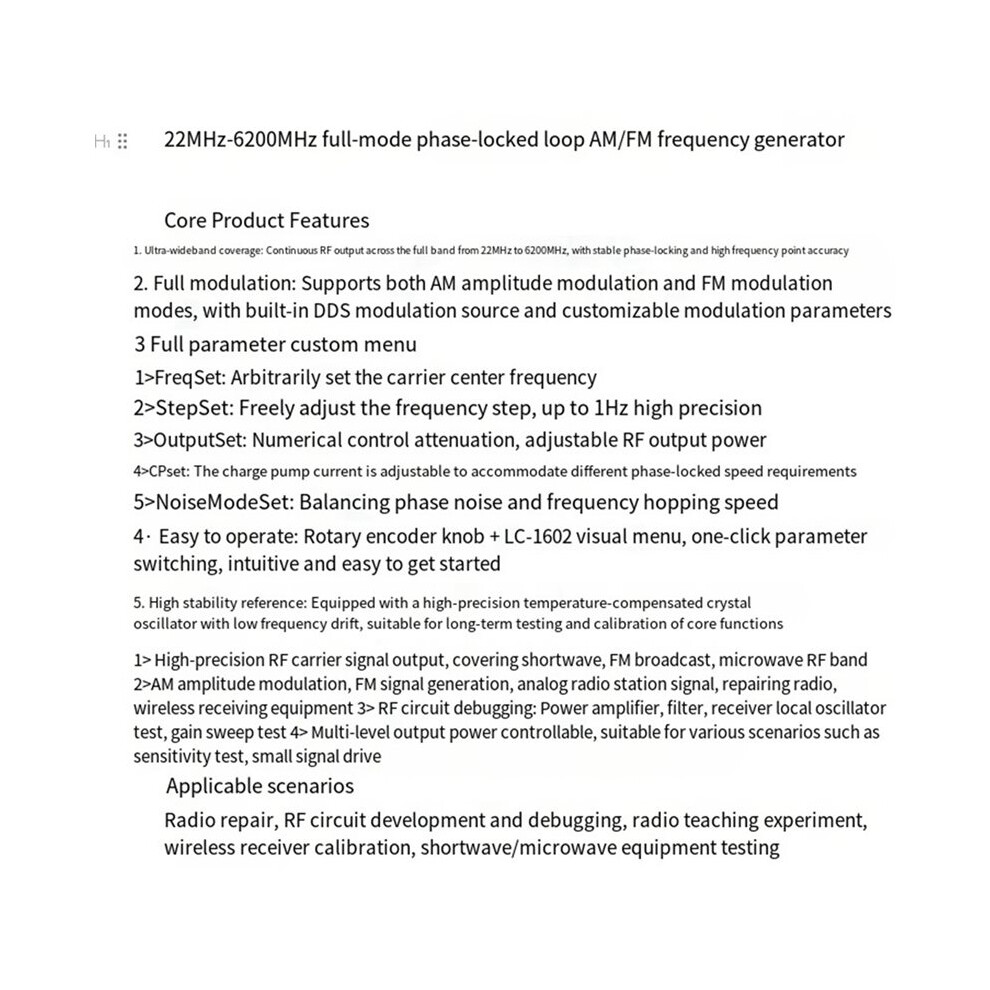

Ultra-wide frequency coverage: Continuous RF output across the 22 MHz-6200 MHz range, featuring stable phase-locked operation and high frequency precision
Comprehensive modulation: Supports both AM and FM modes; includes a built-in DDS modulation source with customizable parameters

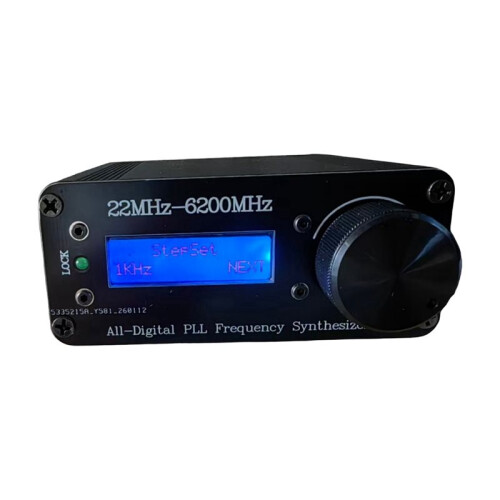

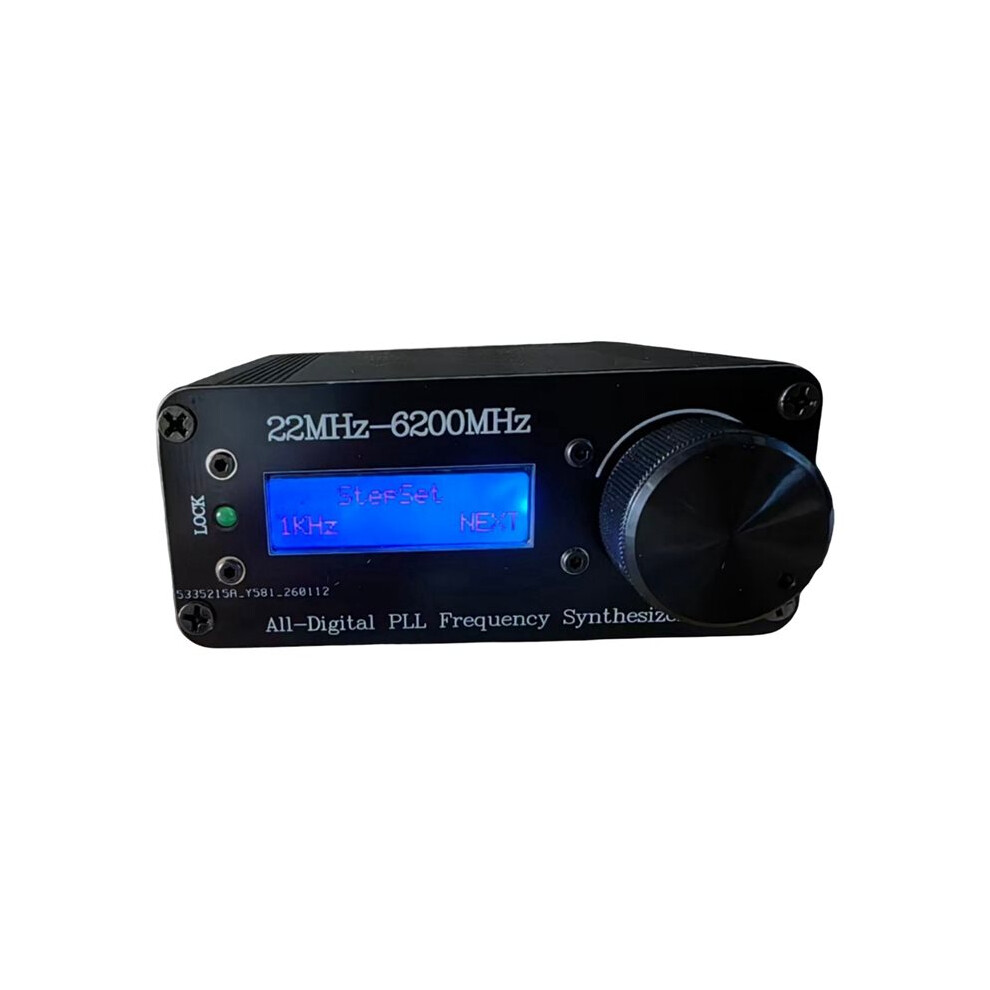

User-friendly control: Rotary encoder knob combined with an LCD-1602 visual menu; intuitive operation with one-touch parameter switching
High-stability reference: Equipped with a high-precision TCXO (Temperature Compensated Crystal Oscillator) for minimal frequency drift, suitable for long-term testing and calibration

Fully customizable parameter menu:
1> FreqSet: Arbitrary carrier center frequency setting.
2> StepSet: Adjustable frequency step size, with high precision down to 1 Hz.
3> OutputSet: Digitally controlled attenuation for adjustable RF output power.
4> CPset: Adjustable charge pump current to meet varying phase-lock speed requirements.
5> NoiseModeSet: Balances phase noise performance against frequency hopping speed.
Core Functions
1> High-precision RF carrier signal output covering shortwave, FM broadcast, and microwave RF bands.
2> AM and FM signal generation for simulating broadcast signals; ideal for servicing radios and wireless receiving equipment.
3> RF circuit debugging: Testing of power amplifiers, filters, receiver local oscillators (LO), and gain frequency sweeps.
4> Adjustable output power levels suitable for various applications, such as sensitivity testing and small-signal driving.
Color: As Shown
Material: Aluminum Alloy

Package Contents:
1*Frequency Generator
