2.8-Inch ESP32 WiFi -Compatible Development Board ST7789 Driver LCD Display Type C+Micro USB Dual Interface

2.8-Inch ESP32 WiFi -Compatible Development Board ST7789 Driver LCD Display Type C+Micro USB Dual Interface Beskrivelse

Dual-core 32-bit CPU with a clock speed of to 240MHz and computing power of 600 DMIPS, providing powerful performance.
Integrated WiFi 802.11b/g/n and 4.2 dual-mode communication for flexible and stable connectivity.

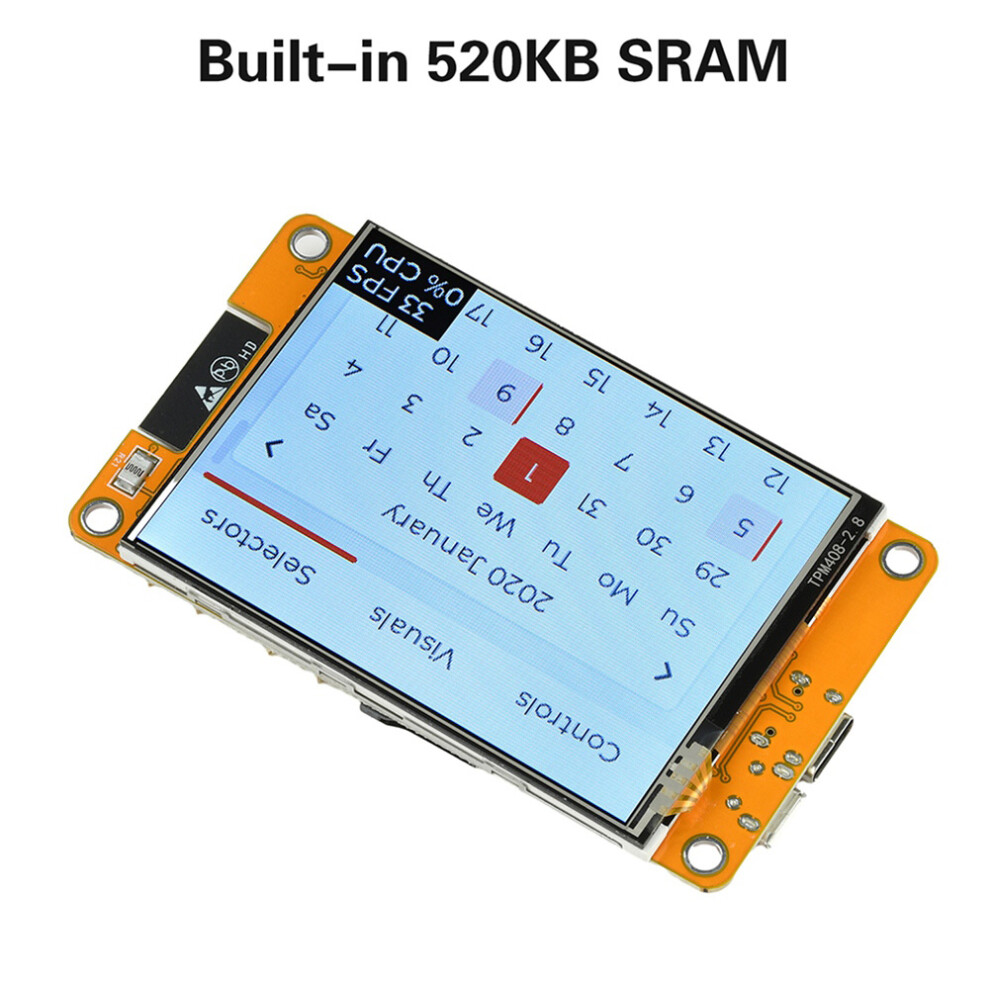

Built-in 520KB , supporting FreeRTOS multi-tasking.
Low deep sleep current and multiple power-saving modes extend battery life.
Supports FOTA remote upgrade and local serial port download, making development and debugging efficient and convenient.
Display Type: 2.8" TFT
Resolution: 240XRGBX320
Interface Type: 4SPI
Driver IC: ST7789P3
Input Voltage: 3.00.2V
Interface Connector: FPC
Backlight:
White LED (4-LED)
Vled=3.2V; ILed = 80mA (maximum)
Operating temperature: -10C to +60C
Storage temperature: -20C to +70C
Parameter Characteristics:
802.11b/g/WiFi + BT module;
Low-power dual-core 32-bit CPU, can be used as an application processor;
Clock speed to 240MHz, computing power to 600 DMIPS;
Built-in 520KB ;
Supports UART/SPI/I2C/PWM/DAC/ADC interfaces;
Supports openOCD debugging interface;
Supports multiple sleep modes, with current as low as 6.5uA in deep sleep mode;
Embedded LwIP and FreeRTOS;
Supports STA/AP/STA+AP modes;
Supports Config/AirKiss one-key network configuration;
Universal AT commands, easy to use;
Supports local serial port upgrade and remote upgrade (FOTA).
Color: As Shown
Material: plastic

Package Contents:
1*development board 1 set of accessories
