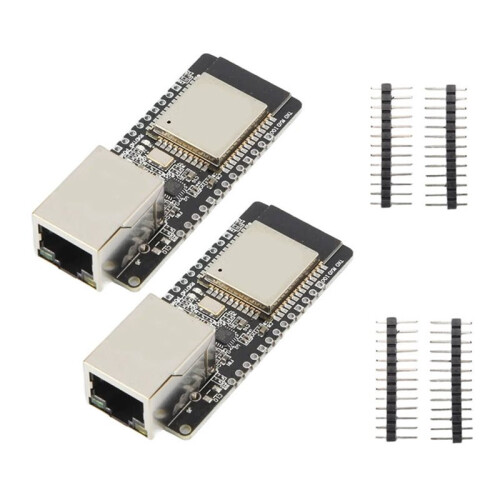

2PCS WT32-ETH01 ESP32 Wireless Module Serial Port Networking + WiFi Combo Gateway Module

2PCS WT32-ETH01 ESP32 Wireless Module Serial Port Networking + WiFi Combo Gateway Module Beskrivelse

ESP32-ETHO1 is an embedded serial-to-Ethernet module based the ESP32 series
The module integrates an optimized TCP/IP protocol stack, which makes it easy for users to complete the networking function of embedded devices, greatly reducing the development cost.
It has ultra-high RF performance, stability, versatility and reliability, as well as ultra-low power consumption
The module board width is a universal width. The module can be directly welded the board, the connector can be welded, and it can also be used the breadboard, which is convenient for users to use in different scenarios

WIFI frequency range: 2.4~2.5 GHz
Network port specifications: RJ45, 10/100Mbps, -connection and direct connection adaptive
Serial port baud rate: 80~5000000
Onboard Flash: 32Mbit
Operating voltage: 5V or 3.3V power supply (choose one)
Operating current: average: 80mA
Power supply current: minimum: 500mA
(The product appearance and printed words may vary depending the batch, but this does not affect use)
Color: As Shown
Material: PCB

Package Contents:
2*Wireless Module Kit
