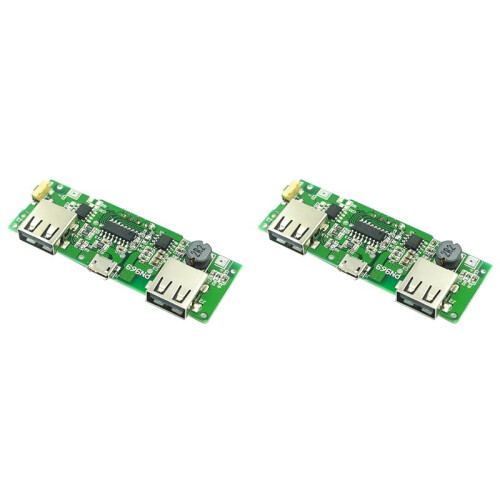

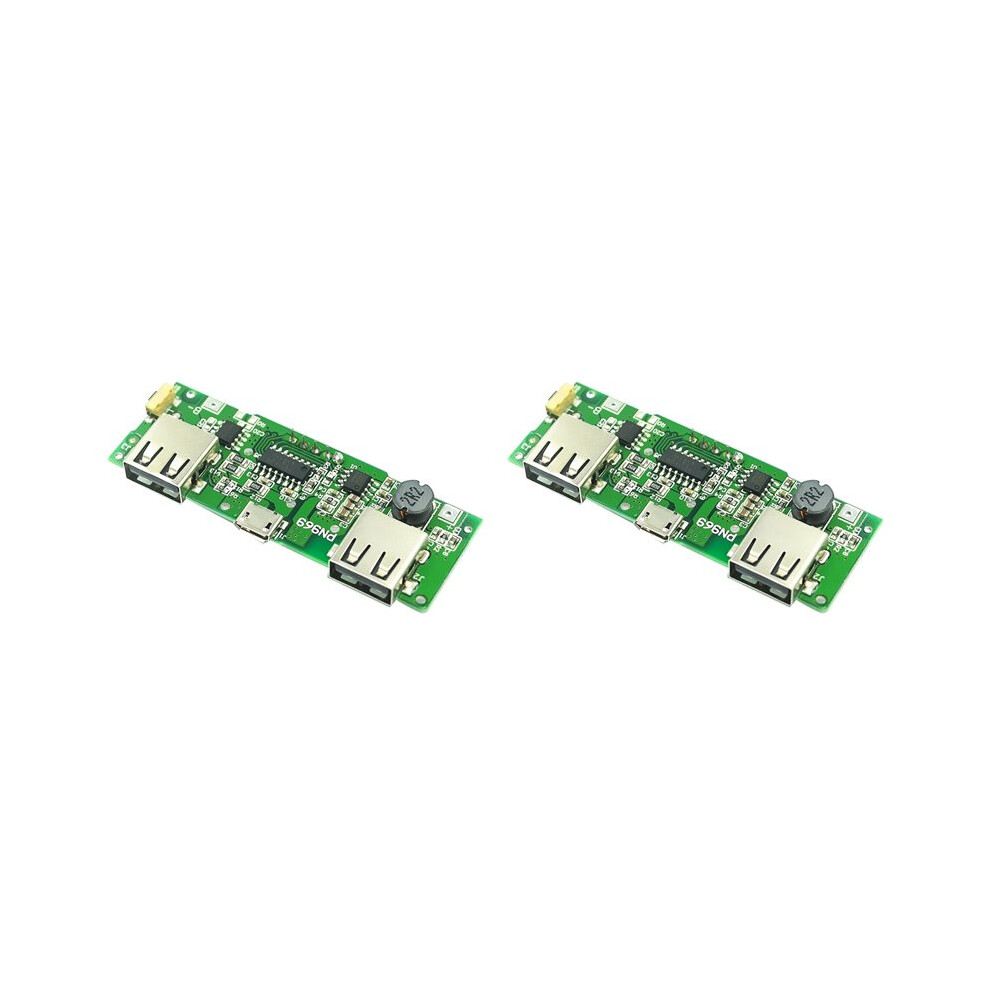

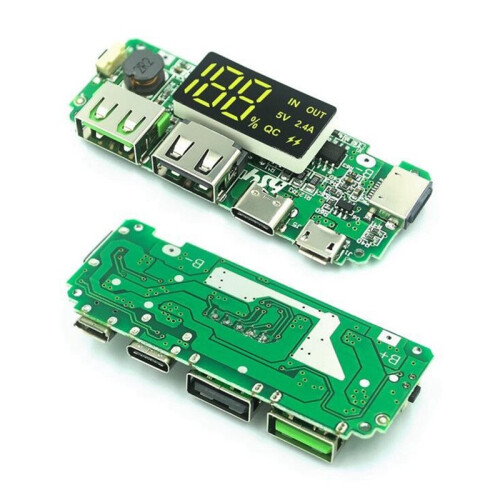

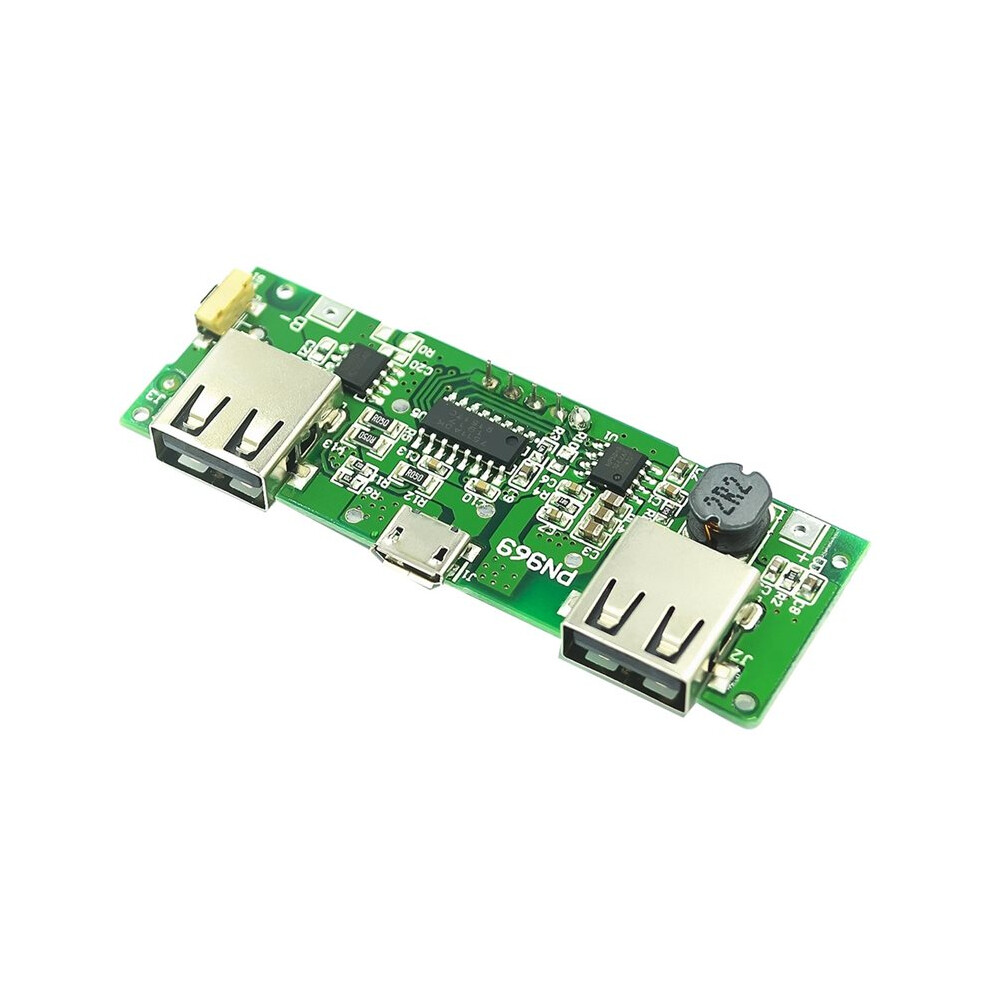

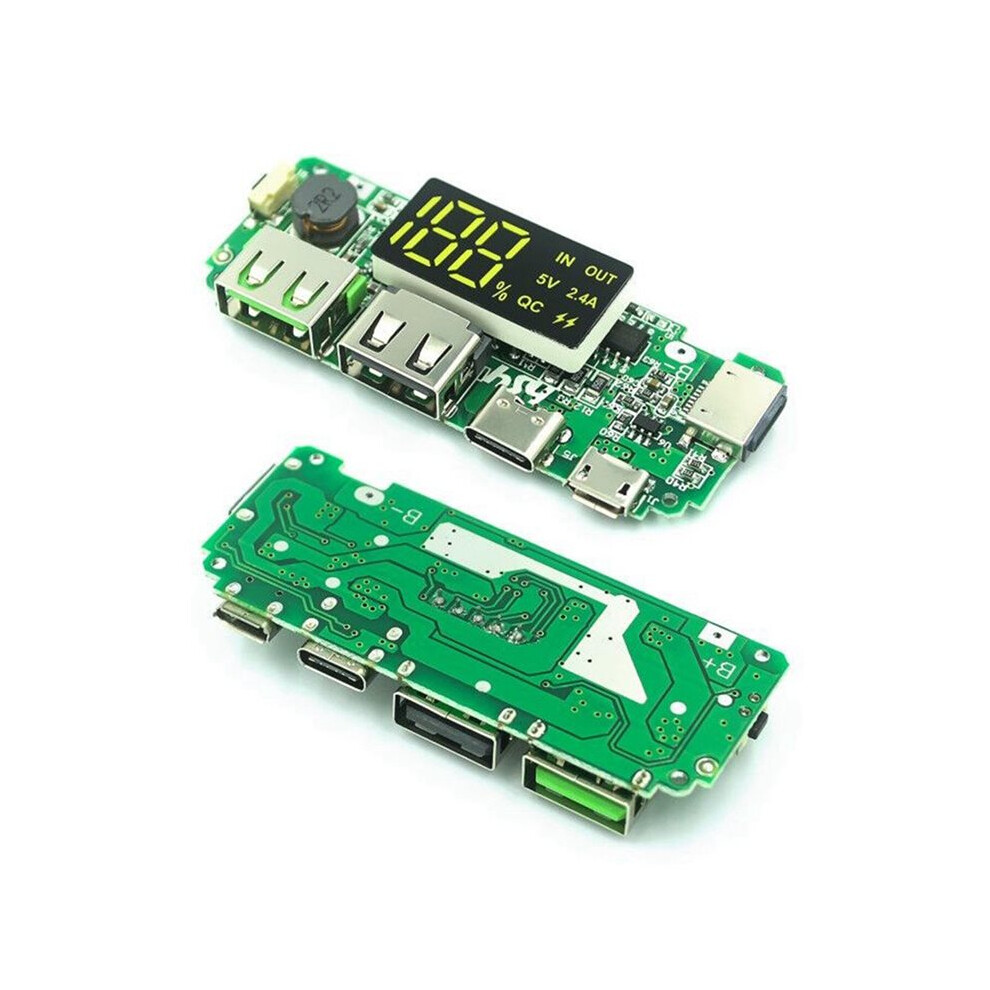

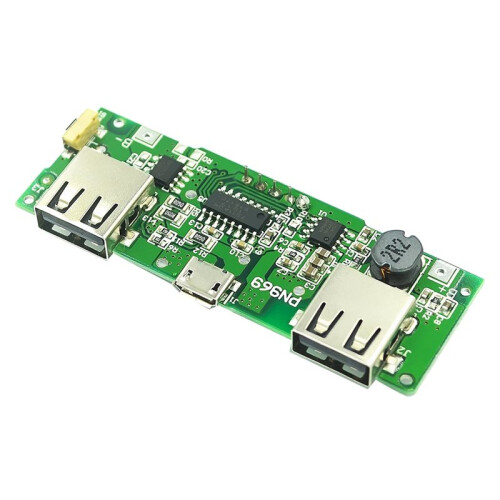

2X 18650 Lithium Battery Digital Display Charging Module 5V 2A 1A Single Charging Port Multi-Function Boost Module

2X 18650 Lithium Battery Digital Display Charging Module 5V 2A 1A Single Charging Port Multi-Function Boost Module Beskrivelse

1. Portable Mobile Power Module.
2. Supports 3 Usb Cables.
3. Press And Hold The Button After Standby To Power The Led Digital Display.
4. When Charging, The Led Digital Screen Displays The Current Battery Level.
5. When Discharging, The Led Digital Screen Displays The Current Power, Saving About 30 Seconds Of Display (Double-Click The Button To Resume The Display). After Charging And Discharging, The System Will Provide Accurate Battery Indication.

Charge Voltage: 4.5~5.5V
Input Voltage: Input Voltage B+ To B- 3.0~4.2V
Detection Voltage: 4.200.05A
Release Voltage: 4.1000.05V
Detection Delay : Less than 200 MS
Detection Voltage: 3.00.10V
Release Voltage: 3.100.10V
Detection Delay : Less than 100 MS
Constantcurrent: 2A
Short Detection Delay : Less than 50uS
Releaseconditions: Cut Off Load
Normal Current Consumption Of Pcm: Max 60ua
Stanby Current Consumption: Max 50ua
Allowed 0v Change: Y
Max Charge/Discharge Current: 1.5/2A
Suggest Working Temperature:-5~45
Ir Of Pcm:65mΩ
Size:about 65 x 25 x 5mm
Charge Voltage: 4.5~5.5V
Charge Threshold:Vbat (Th)=3.0V
type:B: 5V 2A 1A single charging port
Colour:green
Material:PCB

Package Contents:
2 x 18650 Lithium Battery Charging Module
Note:Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which Will Not Affect The Use
