2X 7-24V 200W BLDC 3 Phase Brushless Motor Driver Hallless Motor Drive Board Speed Controller Regulator

2X 7-24V 200W BLDC 3 Phase Brushless Motor Driver Hallless Motor Drive Board Speed Controller Regulator Beskrivelse

BLDC wide voltage 7-24V high-power small-volume potentiometer speed control Brushless and Hallless controller, single-button version supports single-button free switching acceleration and deceleration with power-off memory function potentiometer speed control version supports PLC 0-5V simulation Signal speed.

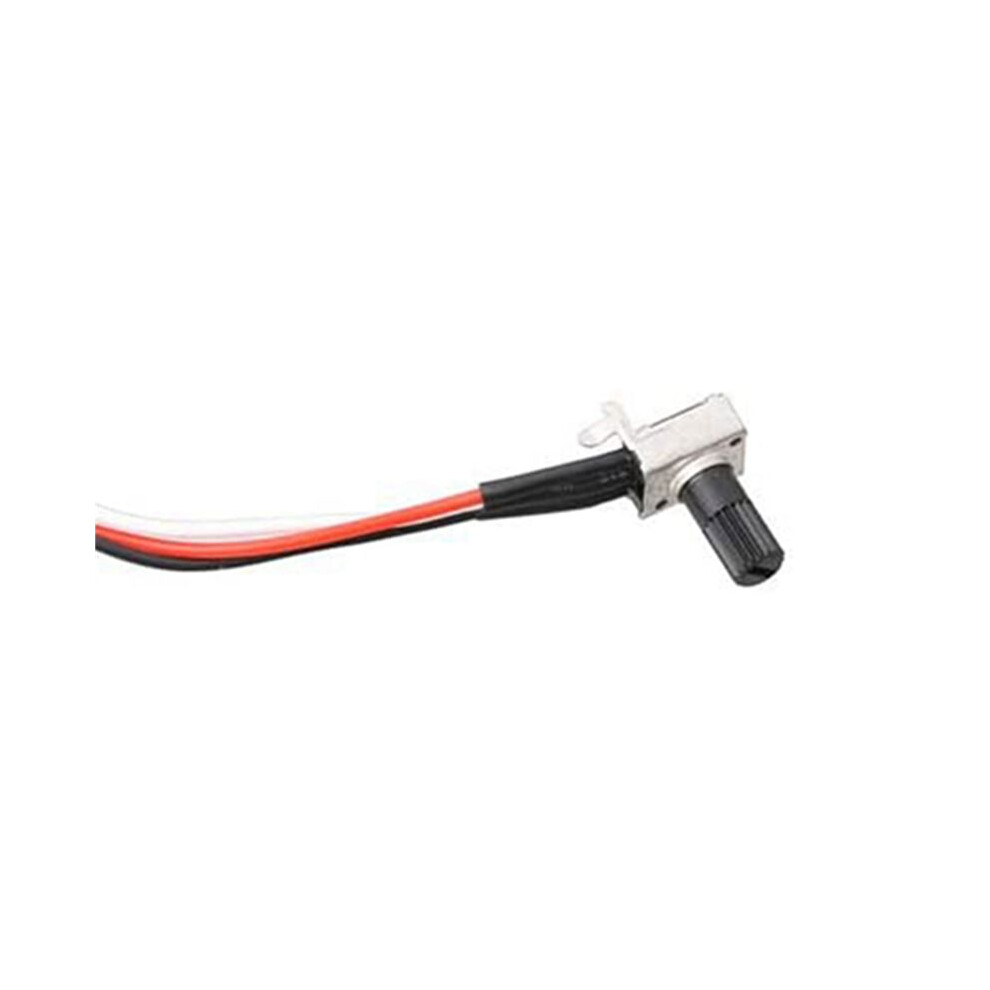

Instructions for use of potentiometer models:
The standard power distribution positioner directly regulates the speed without external control signals. It increases clockwise and decreases counterclockwise.
It is also suitable for external PLC 0-5 analog quantity control. Unplug the potentiometer cable, the external 0-5 analog quantity control signal and ground wire are respectively connected to the input signal terminal of the brushless driver board, as long as two wires are OK.

Interface Description:
1. U V W phase output is connected to the motor
2. VCC GND main power supply (external power supply)
Product parameters:

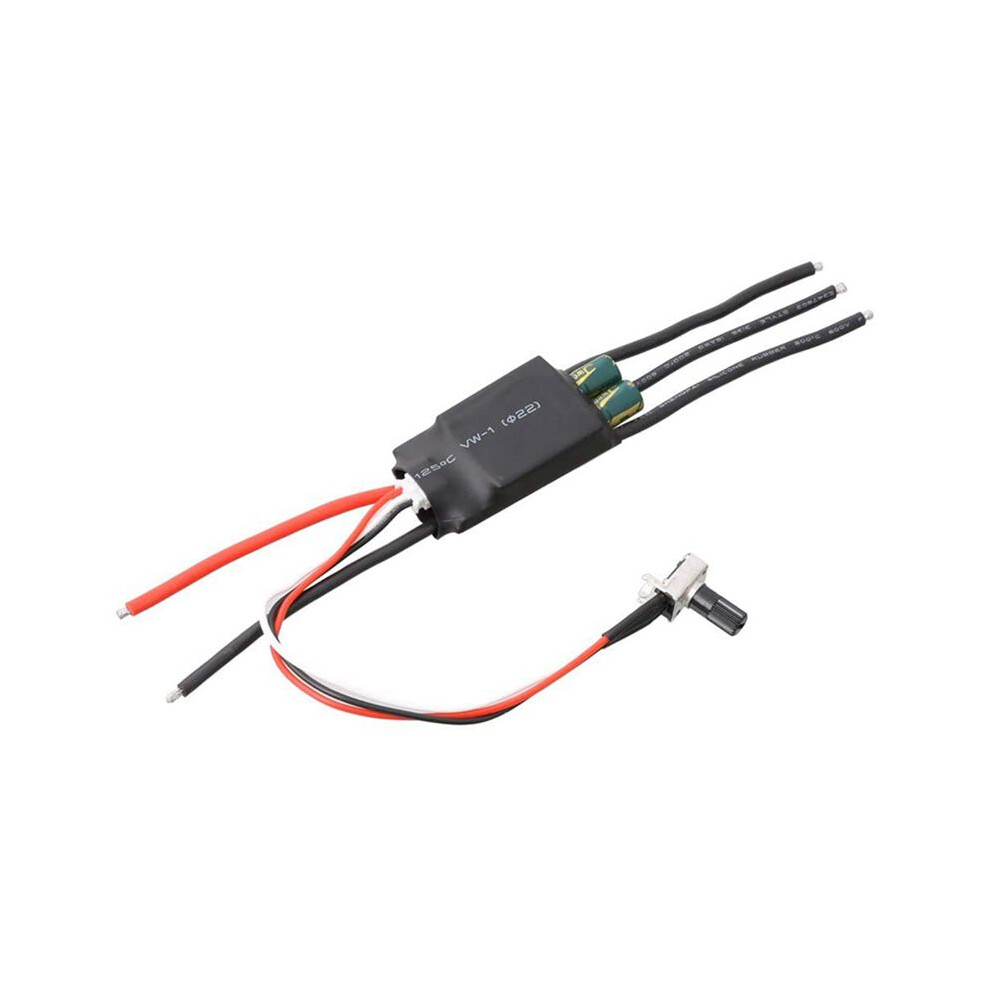

Product name: Potentiometer three-phase brushless and Hallless drive
Model: X30A (potentiometer)
Working voltage: 7-24V
Drive current: rated 15A fan cooling 20A
Maximum speed: 224000 RPM (2 pole motor), 74000 RPM (6 pole motor), 40000 RPM (12 pole motor), 35000 RPM (14 pole motor).
Product size: length 45MM x width 26MM x height 12MM (excluding wires and protruding capacitors)
Colour: as shown
Material: Plastic+metal
Please note: Due to different product batches, the appearance may be different, but the function is the same

Package Contents:
2 x 7-24V 200W BLDC 3-Phase Brushless Motor Driver
