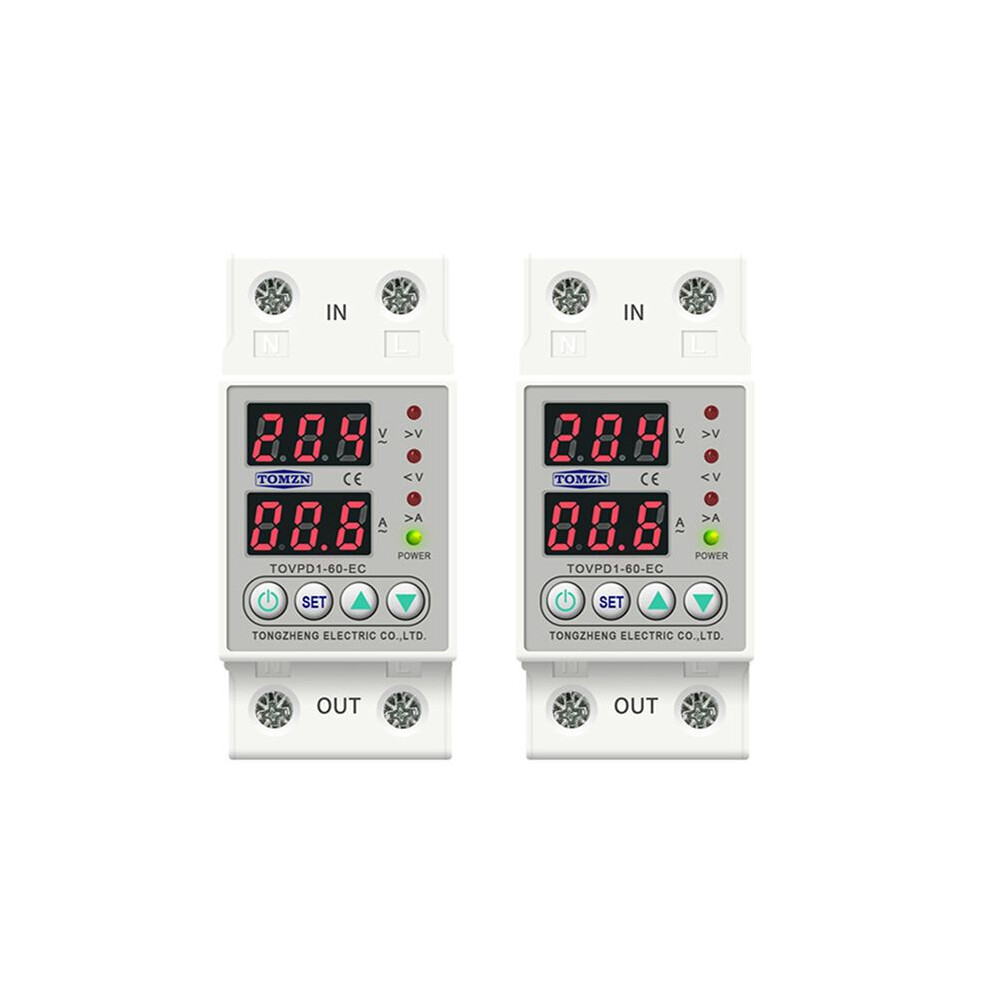

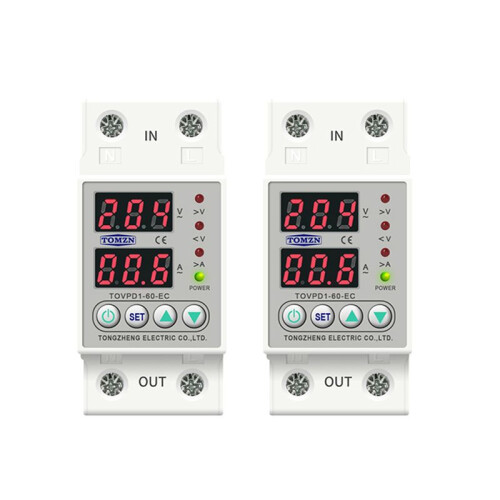

2X Din Rail Dual Display Adjustable over Voltage Current and Under Voltage Protective Device Relay 60A 220V 230V

2X Din Rail Dual Display Adjustable over Voltage Current and Under Voltage Protective Device Relay 60A 220V 230V Beskrivelse

1. Over-voltage protection; Under-voltage protection; Over-current protection; Automatic recovery
2. Voltage display(voltage measurement); Current display (current measurement)
3. Voltage calibration: Voltage +-10% adjustable.
4. Restore factory settings: press the down button for more than 12s
5. Fault inquiry: Press the button from more than 12S

Product Parameters:
1.Model number: TOVPD1-60-EC
2.Power supply: 230VAC 50/60Hz
3.Max.Loading power: 1~60A Adjustable(default: 60A)
4.Over-voltage protection value range: 230V~300~OFF(default: 270V); Over-voltage recovery voltage range: 225V--295V(default: 250V); Over-voltage protection action : 0.1s~30s(default value: 0.5s); Over-voltage recovery delay : 1s~500s(default: 30s)
5.Under-voltage protection value range: 140V--210V --OFF(default: 170V); Under-voltage recovery voltage range: 145V--215V (default: 190V); Under-voltage protection action : 0.1s~30s(default: 0.5s); Under-voltage recovery delay : 1s~500s(default: 30s)
6.Over-current adjustment range: 1-60A (default: 40A); Over-current action range: 0.1~30 second (default: 0.5s); Over-currentrecovery delay : 1s~500s(default: 30s)
7.Power- delay : 1s~500s(default: 10s)
8.Power consumption: less than 2W
9.Electric machinery life: 100,000 times
10.Installation: 35mm DIN rail
type: 60A
colour: white
Material: plastic
Size: about 85x35x65mm

Package Contents:
2 x Protective Device Protector Relay
