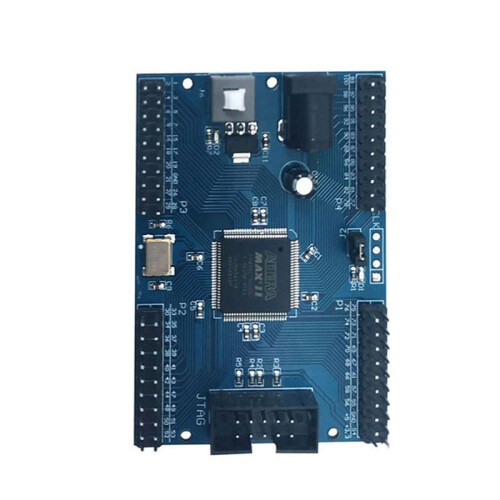

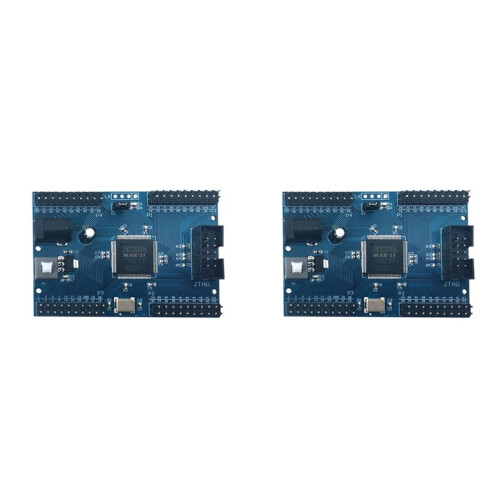

2X EPM240T100 CPLD Development Board Altera MAX II System Board Learning Board 5V -Board 50MHz

2X EPM240T100 CPLD Development Board Altera MAX II System Board Learning Board 5V -Board 50MHz Beskrivelse

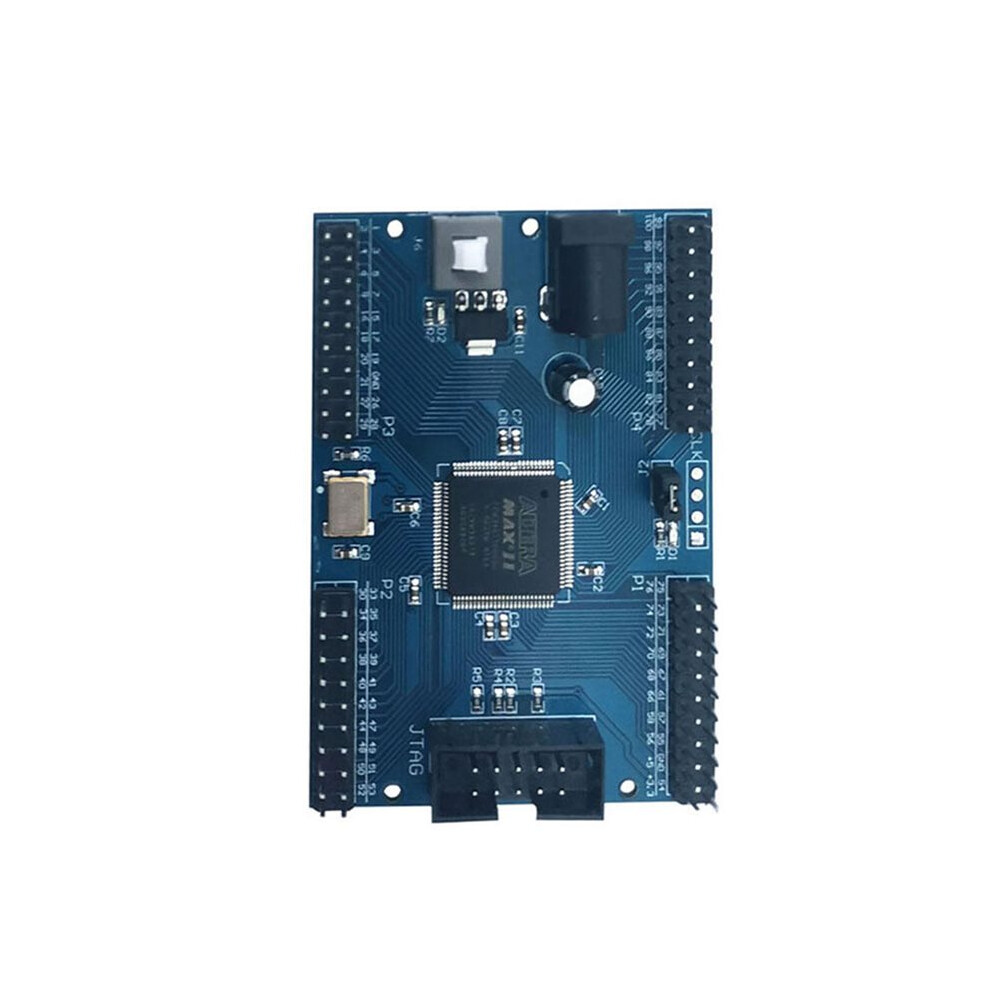

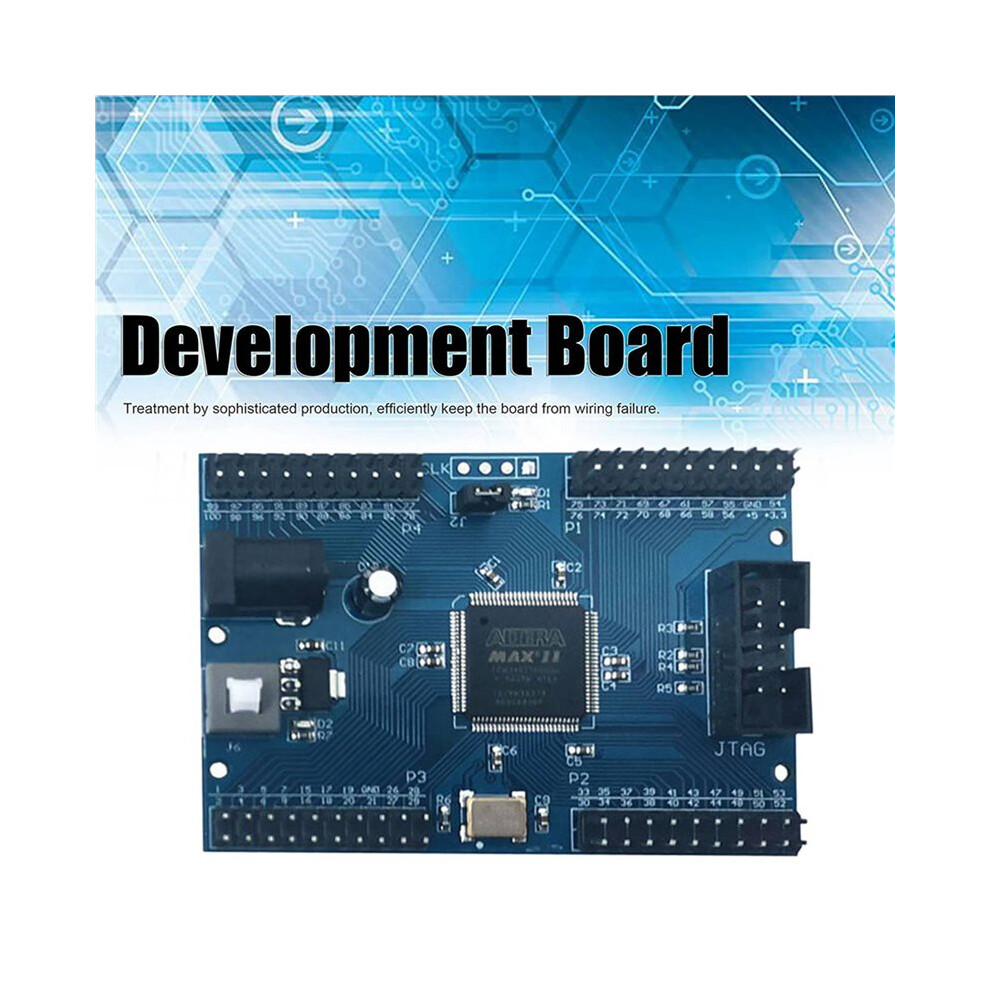

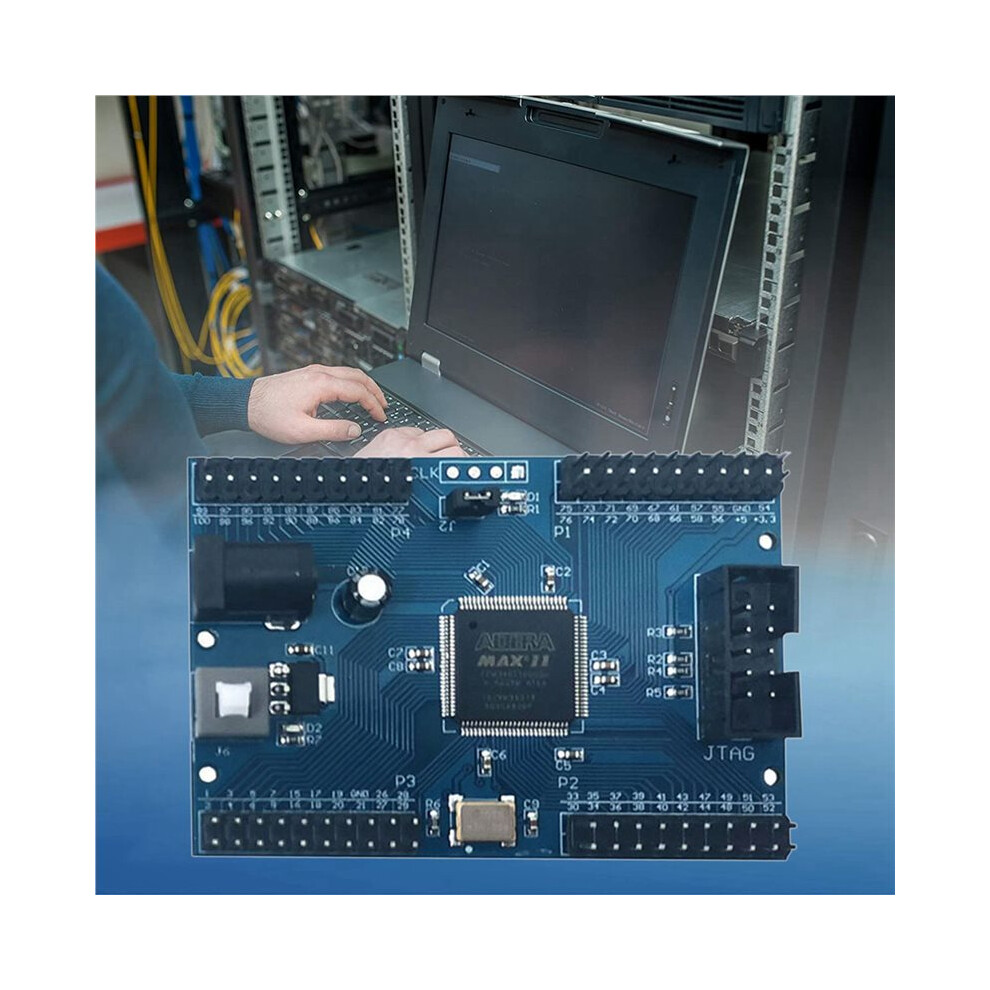

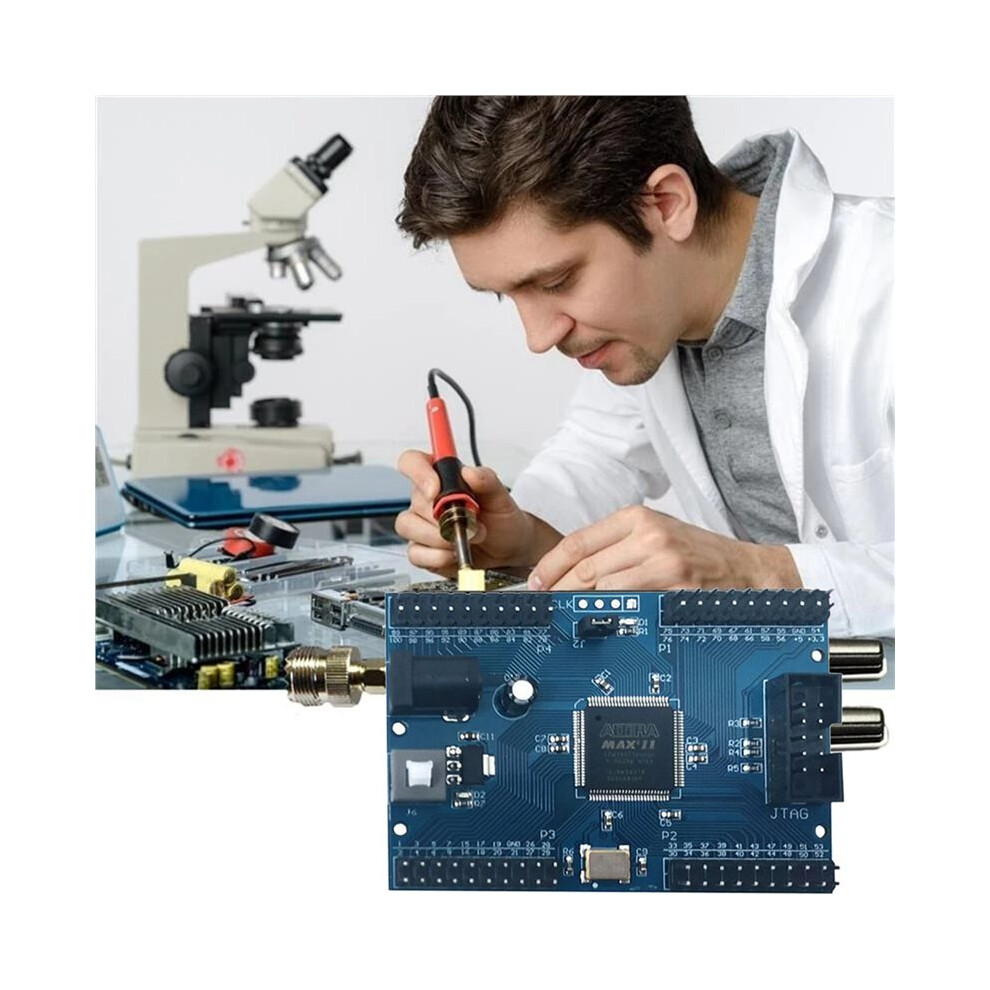

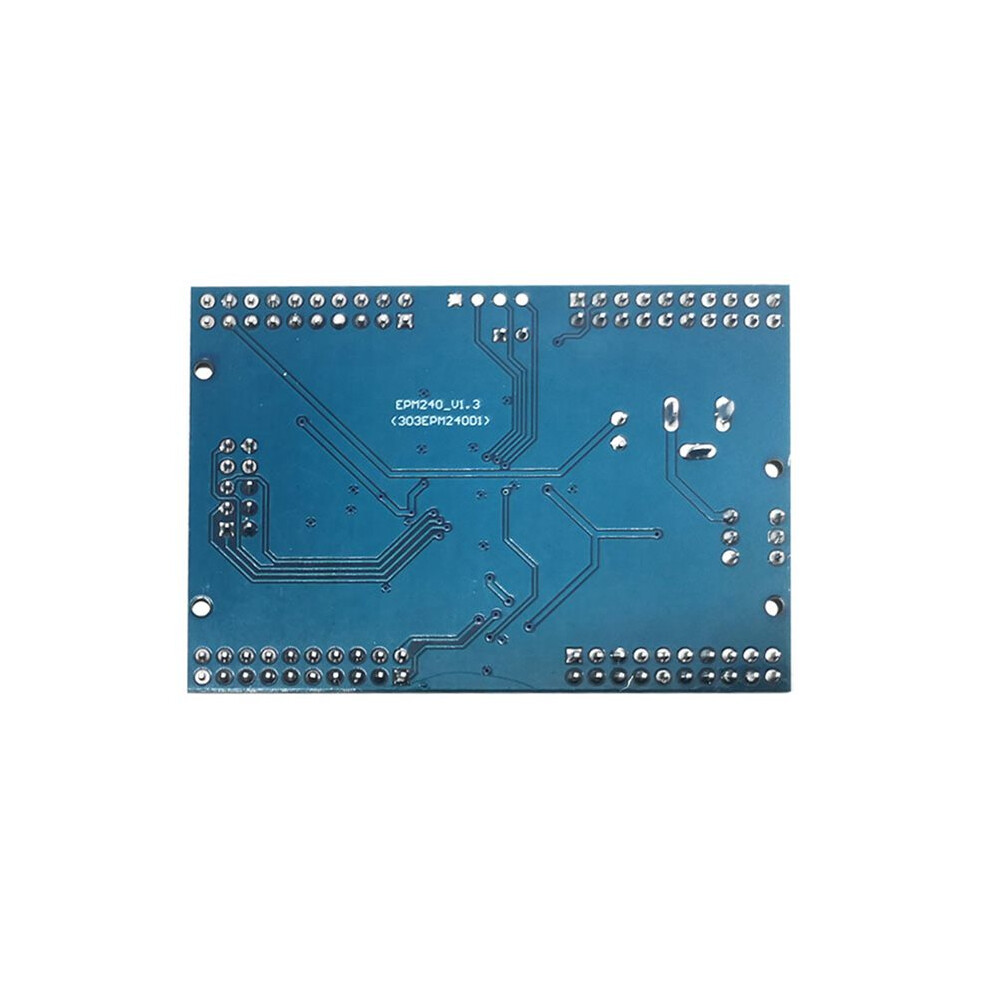

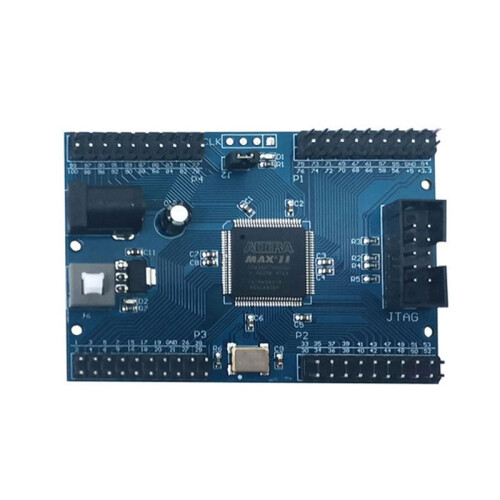

The product is MAX II family CPLD chip EPM240T100C5N minimum system board, together with a Byte-Blaster and USB-Blaster Download for product validation and development.
JTAG and power supply interface board has been set aside, and leads to all the pins, simply connect the 5V power supply can work extremely convenient to use.
The CPLD chip for the entry of low-cost CPLD / FPGA is very appropriate, the user according to the IO port of the core plate leads to expansion of the external circuitry such as: LED lights, digital tube, LCD liquid crystal, serial communications, etc.
Facilitate the users to develop their own products to maximize the learning development cost savings for the user.

Product parameters:

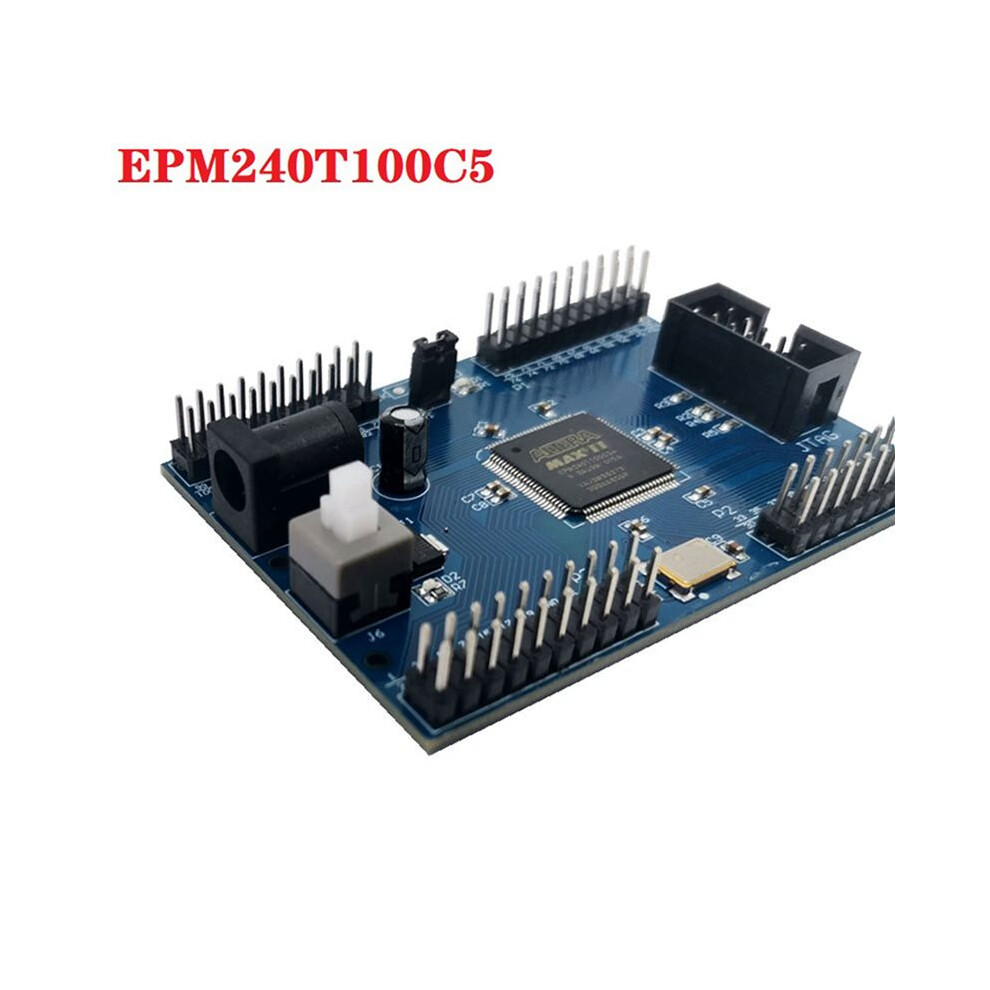

Chip board EPM240T100C5
Board JTAG interface, Active board 50MHZ crystal
With a programmable LED
With a 5V chip, 3.3V AMS1117-3.3
5V power supply with
All the leads all the IO
The board size: 5cm x 7cm
color:
Material:PCB

Package Contents:

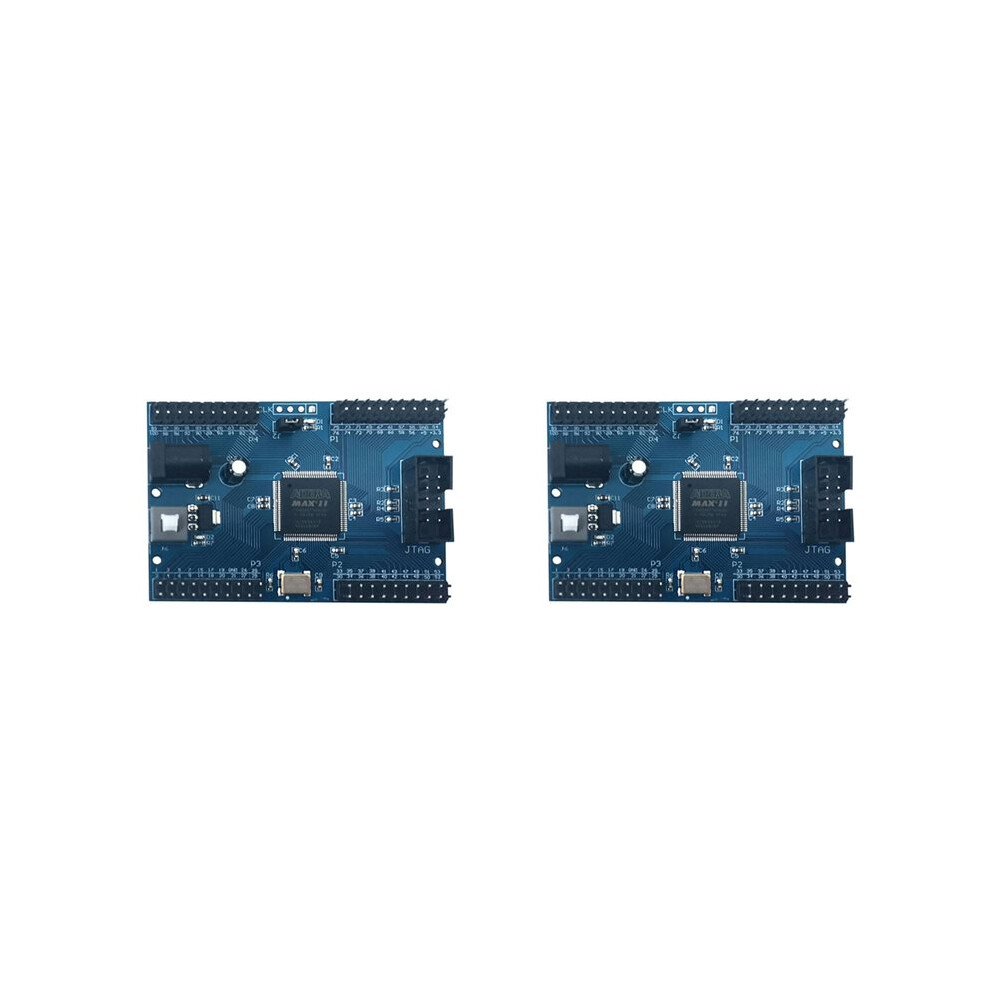

2 x EPM240T100 CPLD development board
