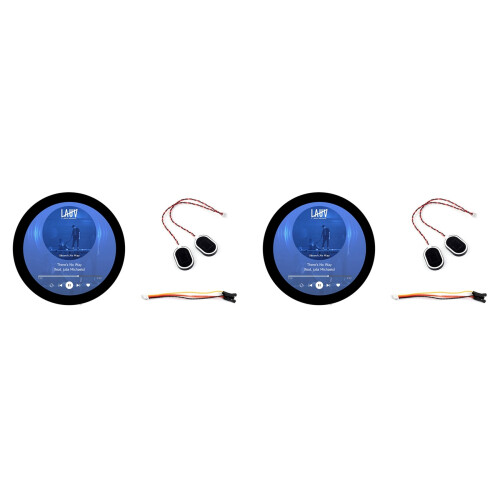

2X ESP32-S3 Development Board with 1.85inch Round LCD Touch Display Support WIFI BT5 LVGL GUI
Lignende produkter vi tror du vil like
Would you like us to let you know when it's back?
Sammendrag
- Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, main frequency up to 240 MHz
- Support 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), onboard antenna
- Built-in 512KB SRAM and 384KB ROM, 16MB Flash and 8MBPSRAM
- Onboard 1.85-inch LCD screen, 360x360 resolution, 262K color
- Onboard audio decoding chip, MIC, QMI8658 six-axis sensor, RTC clock sensor, Micro-SD card holder and battery charging management module and other resources, support flexible clock, multiple power modes and other accurate control, realize multi-scenario low power mode
2X ESP32-S3 Development Board with 1.85inch Round LCD Touch Display Support WIFI BT5 LVGL GUI Beskrivelse
Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, main frequency to 240 MHz
Support 2.4 GHz Wi-Fi (802.11 b/g/n) and 5 (LE), onboard antenna
Built-in 512KB and 384KB ROM, 16MB Flash and 8MBPSRAM
Onboard 1.85-inch LCD screen, 360x360 resolution, 262K color
Onboard audio decoding chip, MIC, QMI8658 six-axis sensor, RTC clock sensor, Micro- card holder and battery charging management module and other resources, support flexible clock, multiple power modes and other accurate control, realize multi-scenario low power mode
Interface: USB Type-C / UART Type-C
Main control chip: ESP32-S3
Screen type: TFT
Screen control chip: CST816
Posture sensor: QMI8658
RTC clock: PCF85063
Micro-, MIC, speaker, battery charging management module
(The product appearance and printed words may vary depending the batch, but this does not affect use)
Colour:As Shown
Material:plastic
Package Contents:

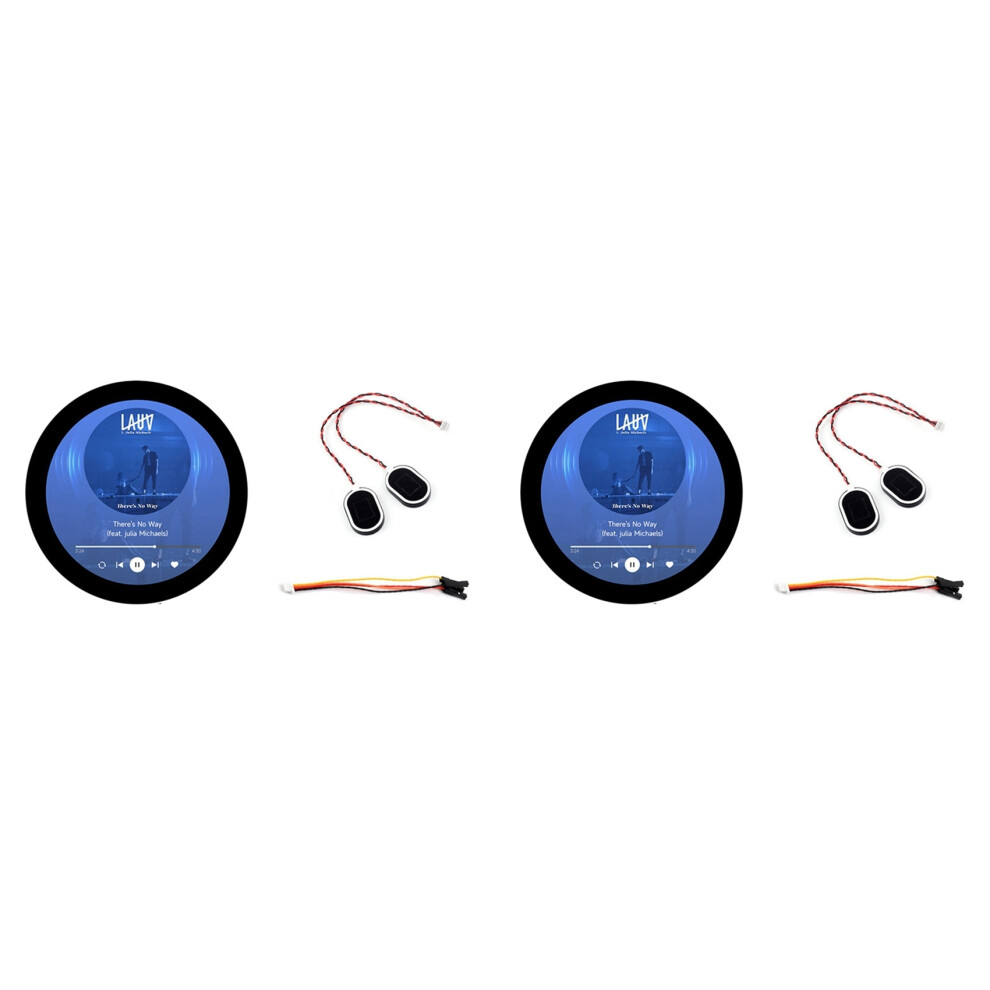

2 x ESP32-S3 Development Board Kit
Detaljer
| OPC | PTP26ZH |
|---|---|
| Merke | Typecat |
| Koder | 4711837646519 (EAN) |
| Produkt- og sikkerhetsinformasjon |
Produktdata
| Height | 8cm |
|---|---|
| Width | 6cm |
| Length | 12cm |
| Weight | 0.088kg |
| Colour | As Shown |
| Material | Plastic |
