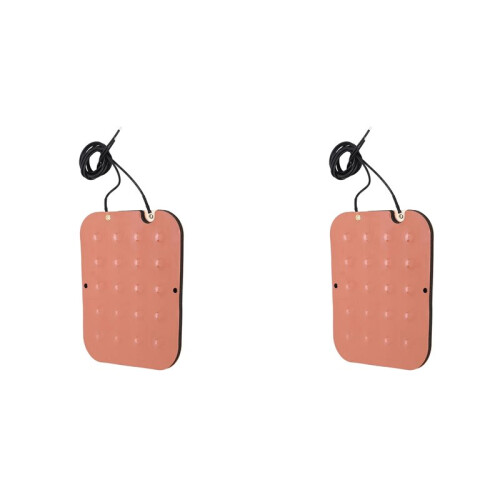

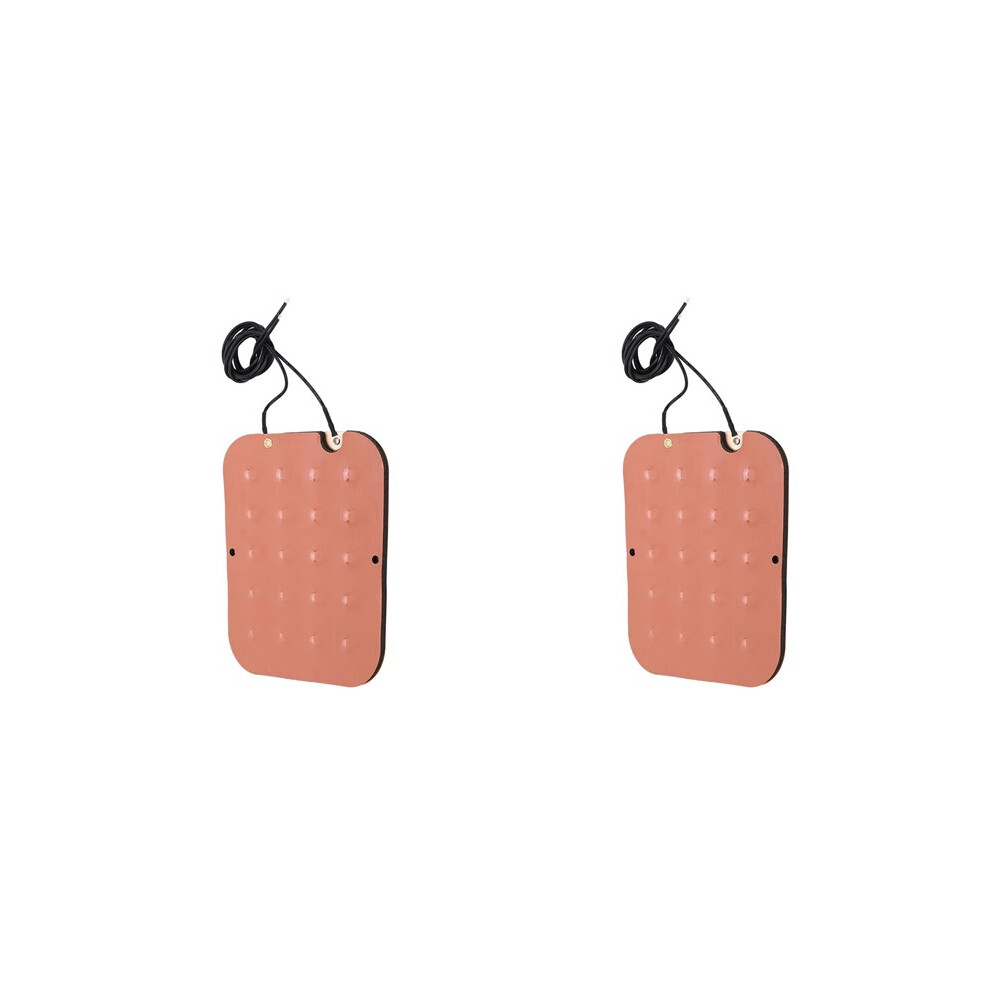

2X New Thin Film Pressure Sensor High Accuracy Force Sensor Pad for Automobile Safe Belt Detection 50V Force Sensor

2X New Thin Film Pressure Sensor High Accuracy Force Sensor Pad for Automobile Safe Belt Detection 50V Force Sensor Beskrivelse

1. MAIN PURPOSE: This thin film sensor is mainly used to detect whether passengers have fastened their seatbelts, providing maximum security.
2. WARNING ALARM: The interior safe belt reminder system triggers a warning lamp or audible bell to remind passengers to fasten their safe belts.
3. SIMPLE STRUCTURE: The thin film sensor is assembled between sponge and steel base to quickly sense pressure and trigger a reminder system.
4. WORKING PRINCIPLE: When no one is sitting the , the sensor is disconnected, and when someone is sitting, the sensor is turned .
5. APPLICABLE RANGE: The pressure sensor is suitable for passenger car seats, automobile seats, massage chairs, etc., with good compatibility.

Item Type:Pressure Sensor Pad
Maximum Driving Voltage:less than equal 50V
Working Current:less than equal 100mA
Base Material Withstand Voltage: 2kVDC
Rebounding : 6ms
Contact Resistance: 0.5-10Ω
Insulation Resistance:greater than equal 100MΩ
Key Operating Force: 15-750g
Normal Working Temperature: -40-85
Function:
1. Thin Film
2. When the is unoccupied, the sensor is disconnected, the resistance is Greater than 10MΩ
3. When the is occupied, the sensor is connected, the resistance is less than equal 150Ω
How to Use:It can be used after installation.
Color:As Shown
Material:ABS

Package Contents:
2 x Thin Film Pressure Sensor
