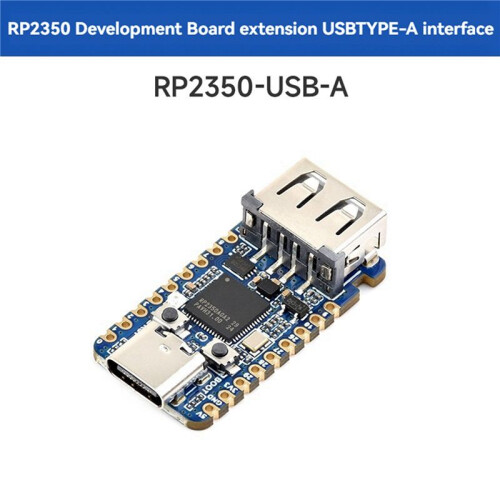

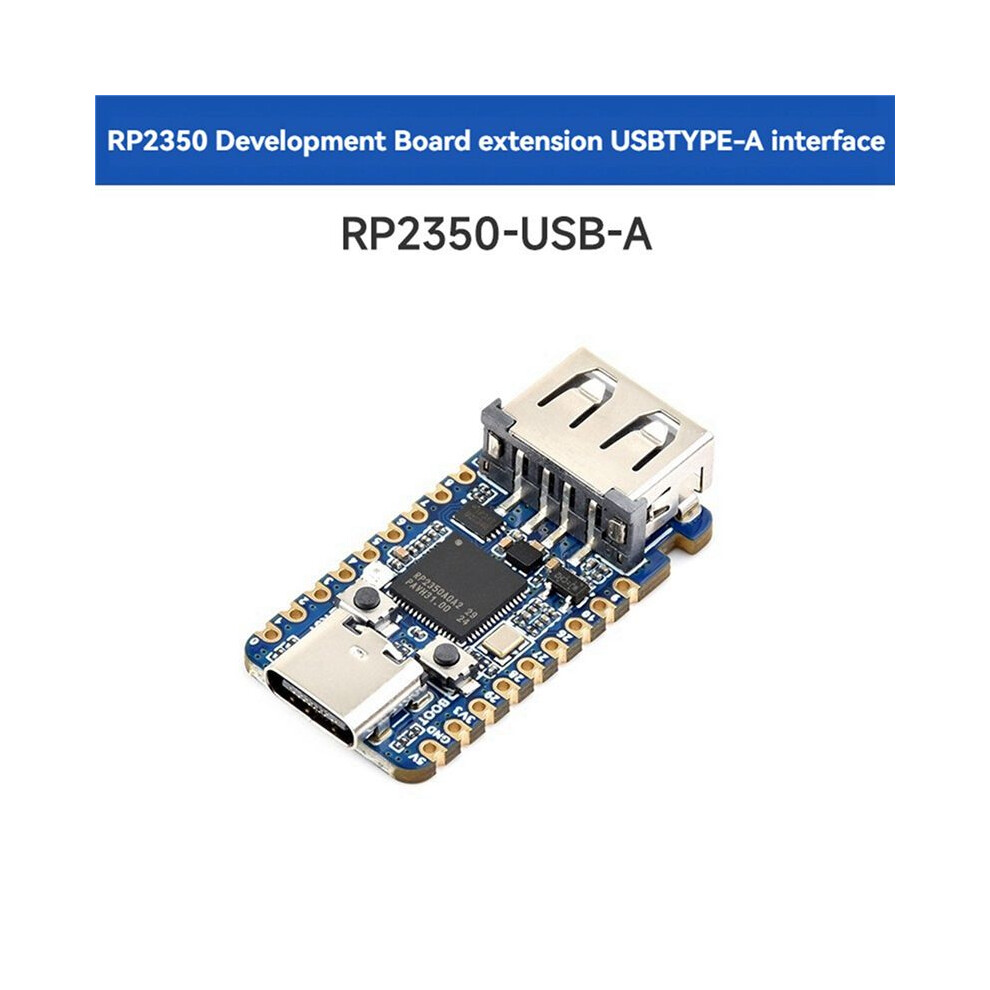

2X RP2350-USB-A RP2350A USB Development Board 2Mb Flash Core Board Programmable USB Interface Demo Board

2X RP2350-USB-A RP2350A USB Development Board 2Mb Flash Core Board Programmable USB Interface Demo Board Beskrivelse

RP2350-USB-A is a RP2350 development board with a USB expansion port board, compatible with USB2.0/1.1 transmission, 15 multi-function GPIO pins are led out in a very small board shape, and the PCB adopts a half-hole process, which can be easily and quickly integrated into the project.
It uses the RP2350 microcontroller chip officially designed by for Raspberry Pi.
Unique dual-core and dual-architecture, equipped with dual-core ARM Cortex-M33 processor and dual-core. Hazard3 RISC-V core processor, running frequency is to 150MHz flexible clock.
Built-in 520KB and 2MB -chip Flash.
Stamp hole design, can be directly soldered and integrated into the user's self-designed baseboard.

Can be identified as a large-capacity storage via USB for drag-and-drop program download.
2 SP1, 2 I2C, 2 UART, 4 12-bit ADC and 14 controllable PWM channels.
Accurate -chip clock and timer.
Built-in temperature sensor.
-chip accelerated floating-point library.
12 programmable I/O (PIO) state machines for custom peripheral support.
Colour:
Material:PCB+Metal
There may be differences in printing/appearance due to different batches, which will not affect the use; there may be color differences in the actual product due to different lighting or monitors.

Package Contents:
2 x RP2350 Development Board
