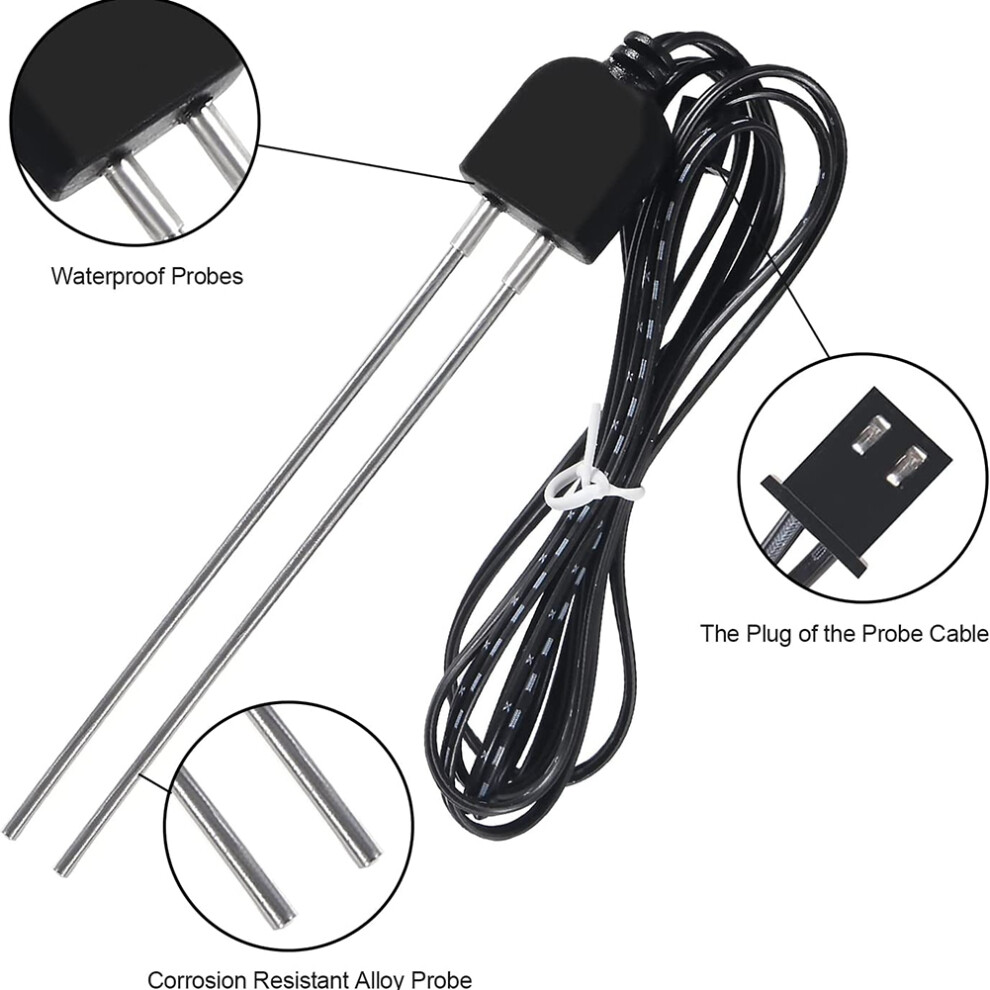

3 Sets Soil Moisture Sensor, with Corrosion Resistant Probe, Module Digital Analog Signal Output for Garden Automatic

3 Sets Soil Moisture Sensor, with Corrosion Resistant Probe, Module Digital Analog Signal Output for Garden Automatic Beskrivelse

Working Voltage: 3.3-12V
Working Current: Less than 20mA (Output Current: Less than 30mA)

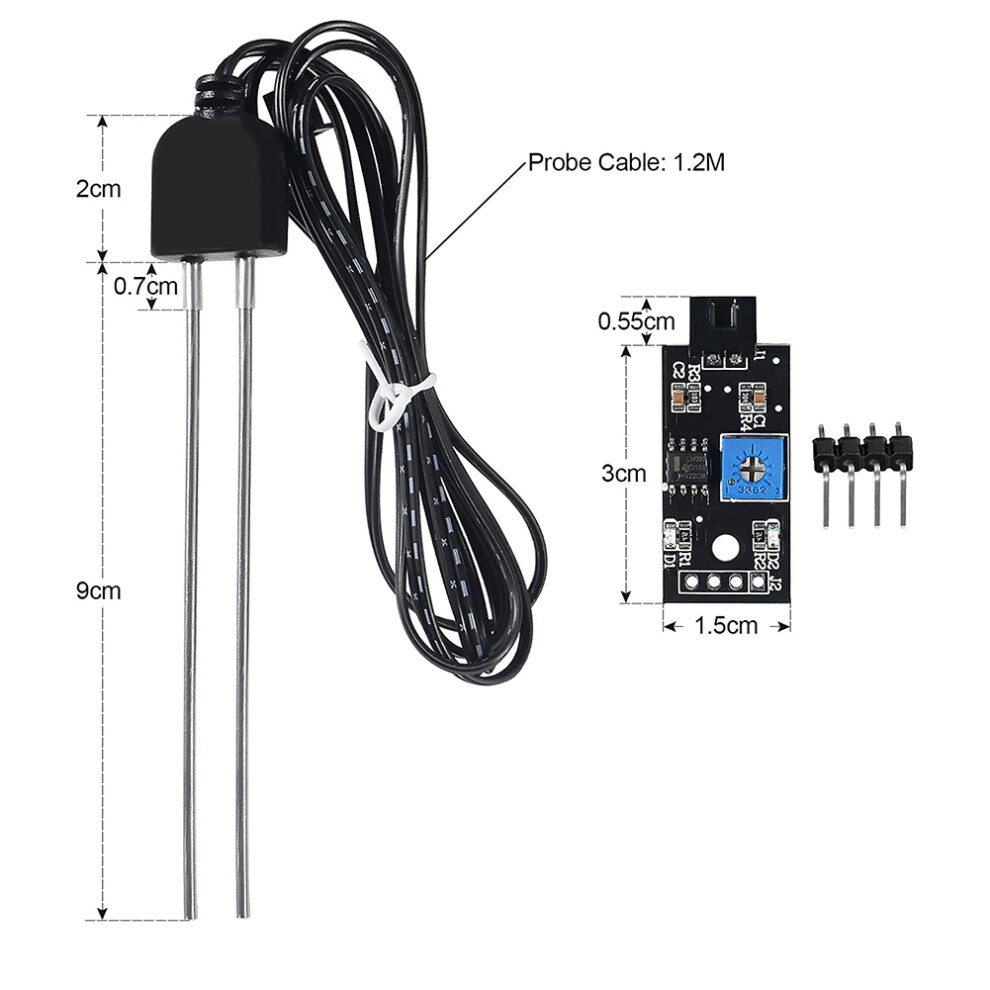

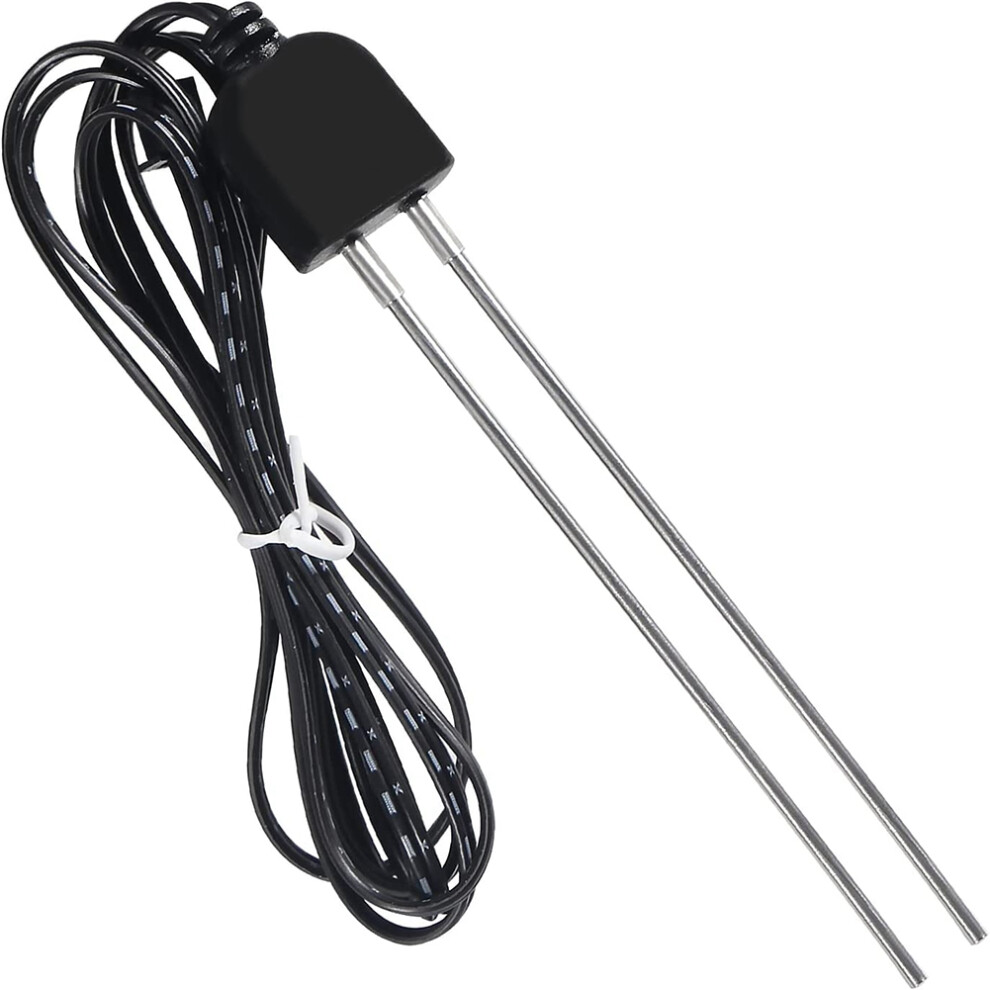

Sensor Probe Length: 8.8cm/3.46 inch
Sensor Pin Pitch: 5 mm
Sensor Cable Length: 1.2 meters /3.94ft

Sensor Connecting Port: XH2.54 2P
DO Port: digital value output (DO output current is about 10mA)
AO Port: analog value outputDigital Value Output
Instructions:

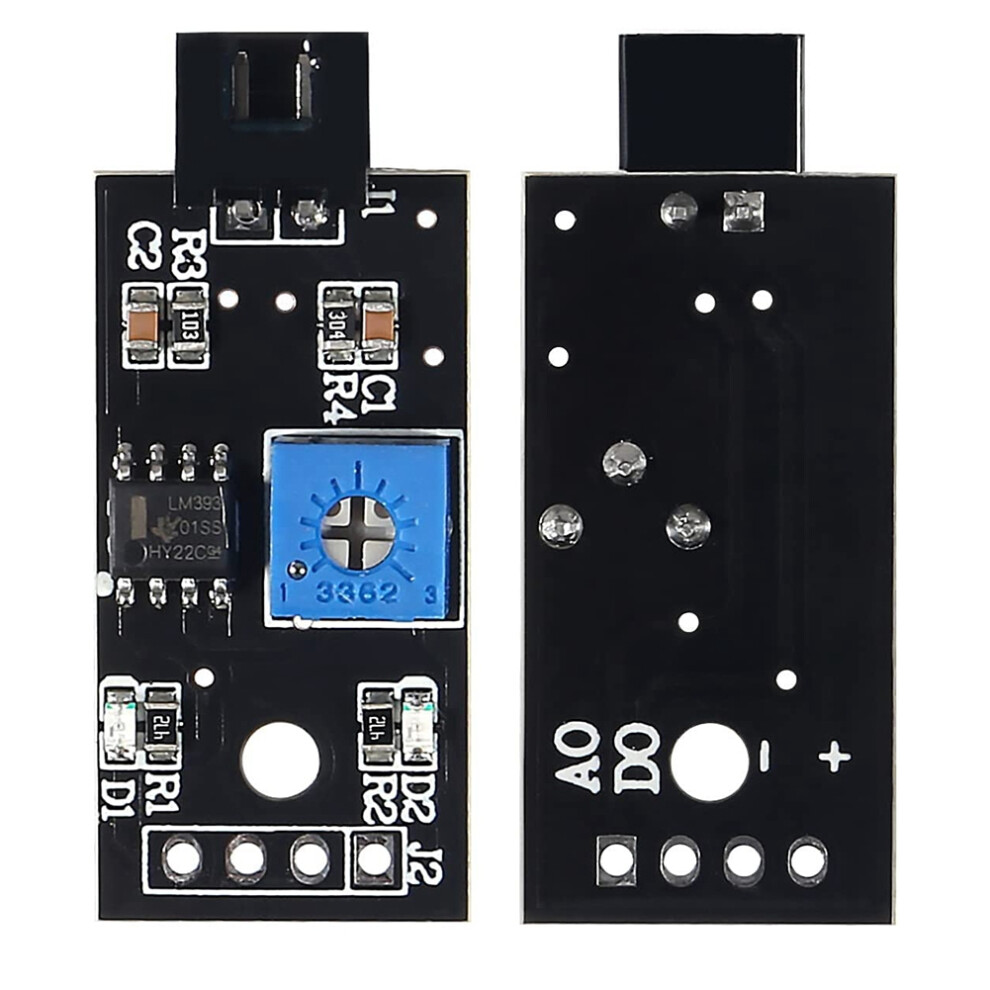

1."+" connects power positive; "-" goes to negative. Don't connect reversely or the chip will be burnt out. There is a LED power indicator at the P mark the board. It will be light if the module operates normally.
2.Clockwise/counter-clockwise rotate the potentiometer to increase/reduce the detection threshold. For example, DO outputs low level when the moisture reaches 50% now, then I clockwise rotate the potentiometer to increase the detection threshold. At this , DO outputs a low level only when the moisture reaches a point higher than 50%.
3. If you clockwise rotate the potentiometer to an extent that the LED indicator which marked "S" is light, that means the testing threshold has been surpassed. Counterclockwise rotating to the end surpasses the threshold too. The module will not work well if the detection threshold is invalid. NOTE: The threshold adjustment only works for using the DO output.
color:Black
Material:ABS

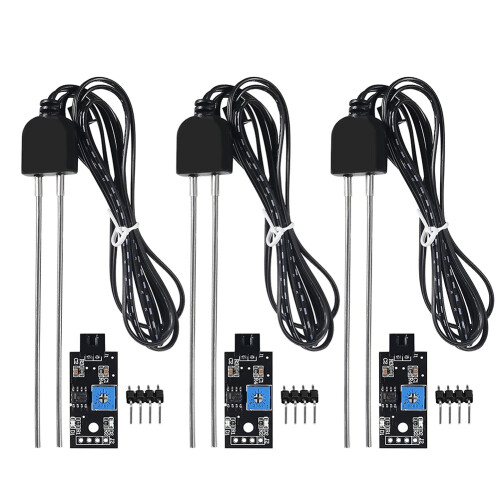

Package Contents:
3 x Soil Moisture Sensor Modules
3 x Sensor probes
