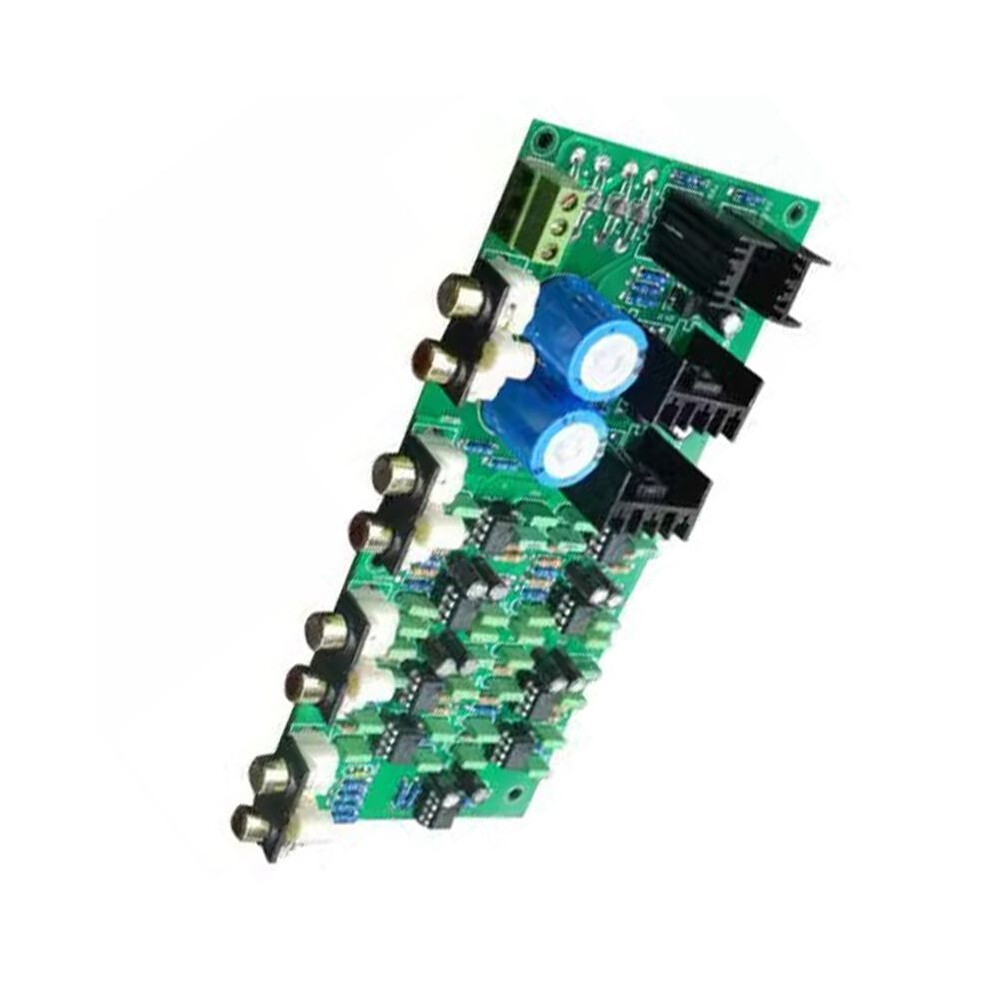

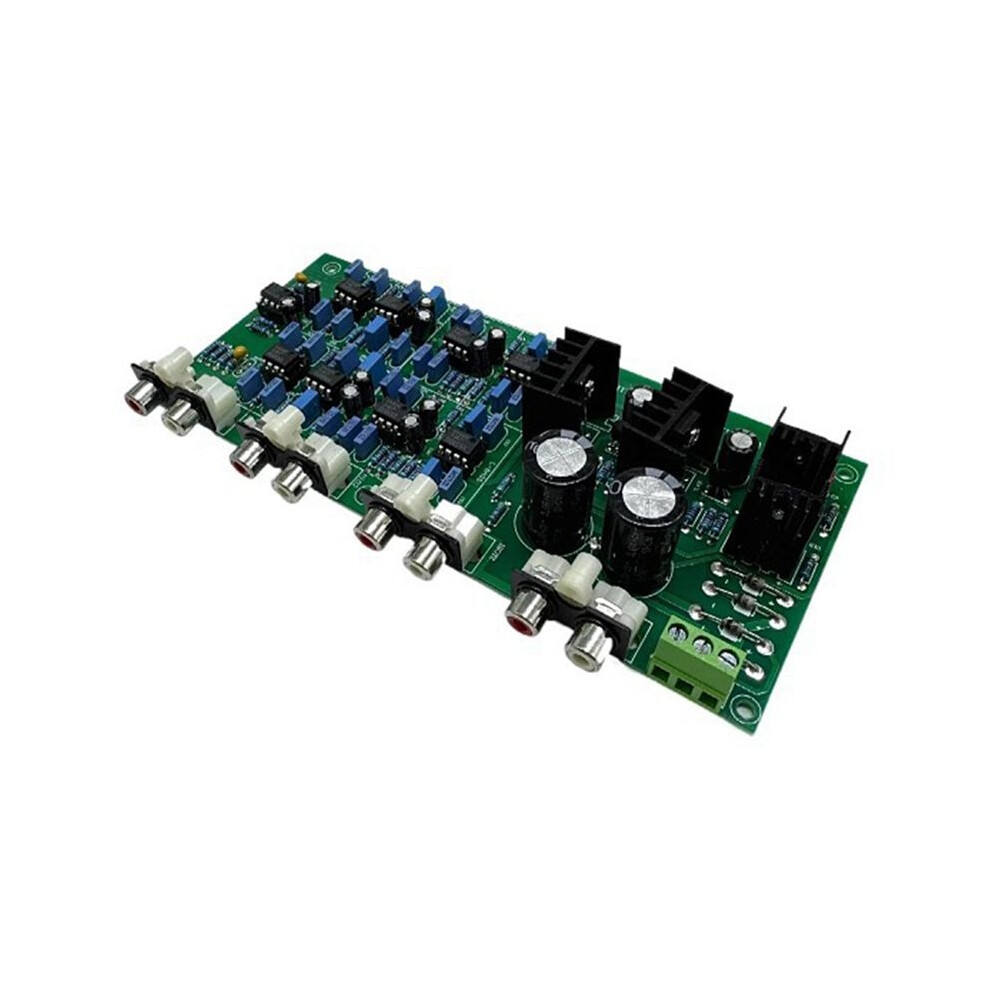

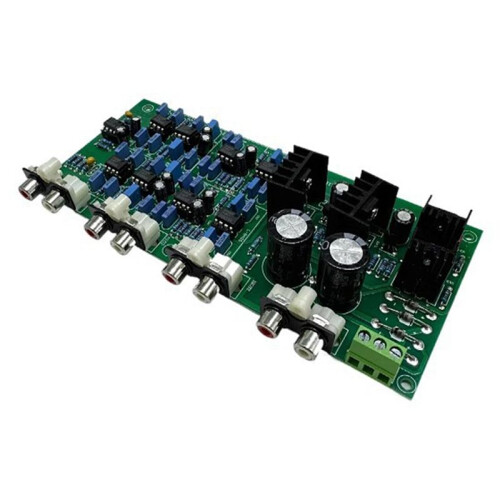

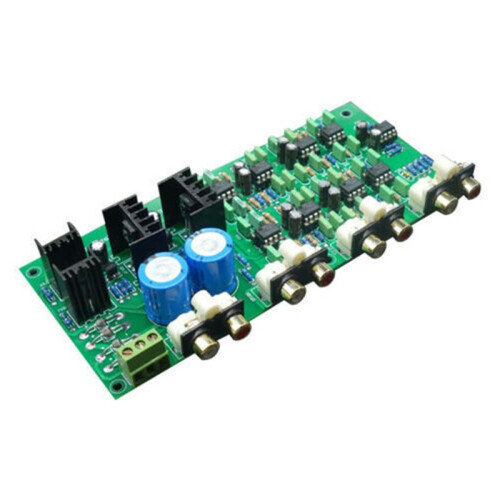

3 Way Frequency Board Front Stage Linquitz-Rayleigh Divider 3 Dividers are Interchangeable Divider Adjustment

3 Way Frequency Board Front Stage Linquitz-Rayleigh Divider 3 Dividers are Interchangeable Divider Adjustment Beskrivelse

Introduction to the three-way frequency divider circuit: This frequency divider is set to a stereo 6-channel output structure, inputs stereo left and right channel signals, and outputs 6-channel signals, which are divided into left treble, left bass and right treble, right bass, left mid-range, and right mid-range, which can directly drive the 6-channel power amplifier circuit.
Highlights of this frequency divider: Excellent frequency divider circuitNo peaks or valleys in the frequency dividerEasy to set the frequency divider pointIndependent adjustment of 6-channel outputFever-grade design and productionPerfect reproduction of the original sound tone

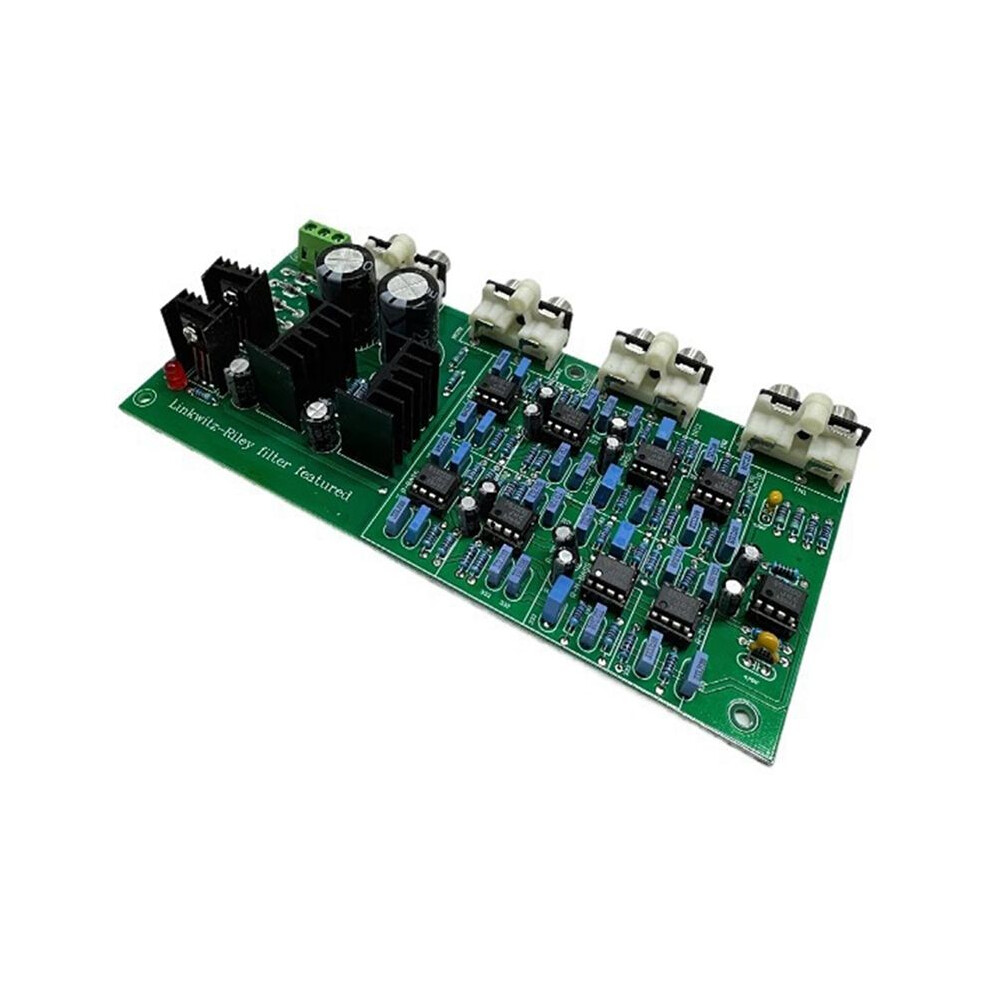

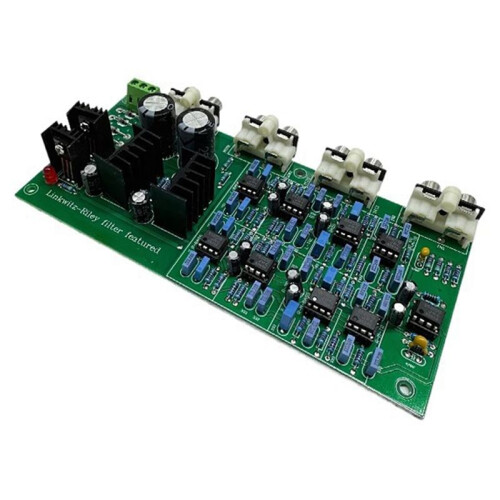

1. Wave generator type: Limkcwitz-Rilev filter
2. Crossover point: 310HZ3.1KHZ (i.e. 20HZ-310HZ for bass output, 310-3.1KHZ for midrange output, 3100-20KHZ for treble output) Crossover point can be customized to other frequencies (free customization. The best crossover points for different speakers are different. You can give me the crossover point and I will help you calculate the circuit parameters before selling it
3. Attenuation rate: -24dB/Oct
4. Board structure: 6-channel output, treble, bass, midrange
5. Op amp chip: imported double-precision NE5532 (of course, other op amps can be replaced according to customer needs, such as: OPA2604AUOP275GTL072, etc.)
6. Board dimensions: 173 x 79mm
7. AC transformer power supply range dual 14 to dual 19V

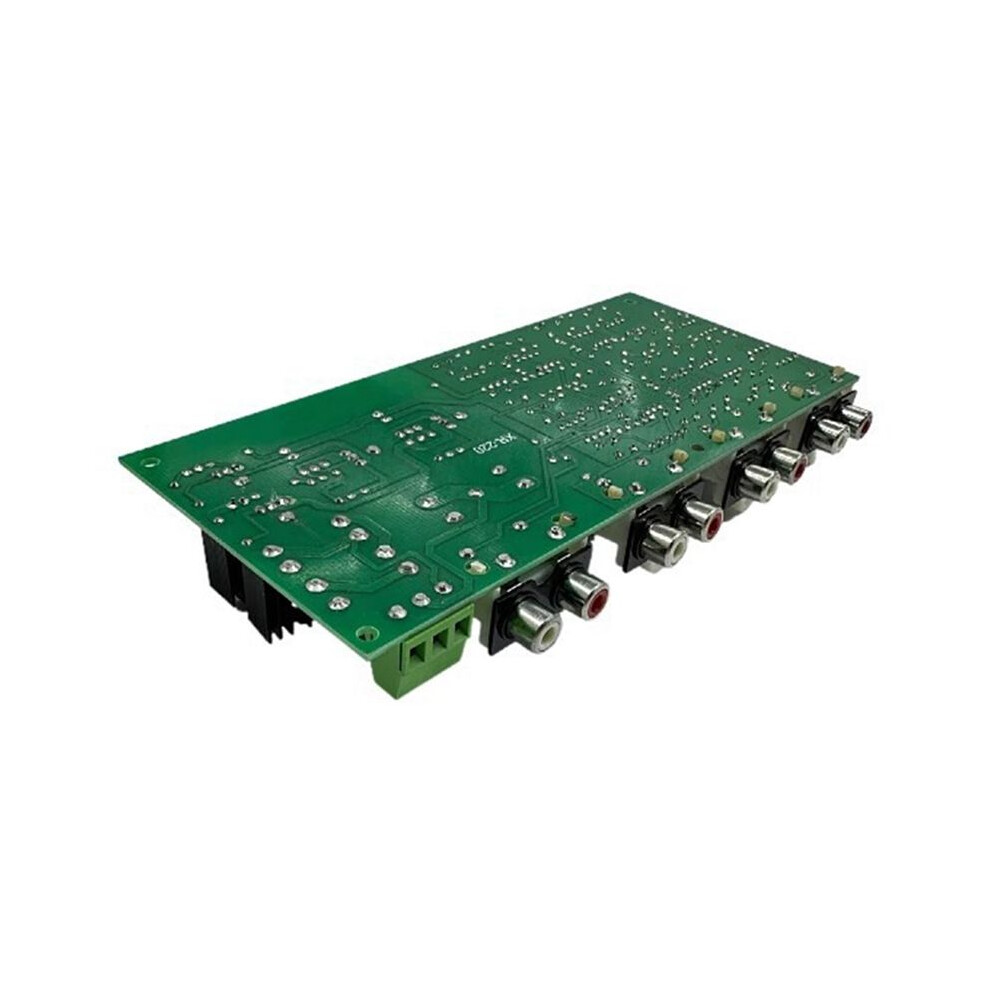

8. Connectors: audio input/frequency division output... 2-link gold-plated lotus socket x 4
Color: Green
Material: ABS

Package Contents:
1 * Divider Board

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
