3S 5A Active Battery Balancer Capacitor Equalizer for Li-Ion LiFePO4 LTO Battery Pack

3S 5A Active Battery Balancer Capacitor Equalizer for Li-Ion LiFePO4 LTO Battery Pack Beskrivelse

This series of capacitive active balancing boards is a balancing management system tailor-made for 5AH-300AH capacity series battery packs.
Patented balancing architecture Fit capacitor method (Patent No.: ZL 2019 1 1259513.3), the capacitor Fit transfers the charge for , and the entire battery pack participates in for transfer and active balancing at the same .

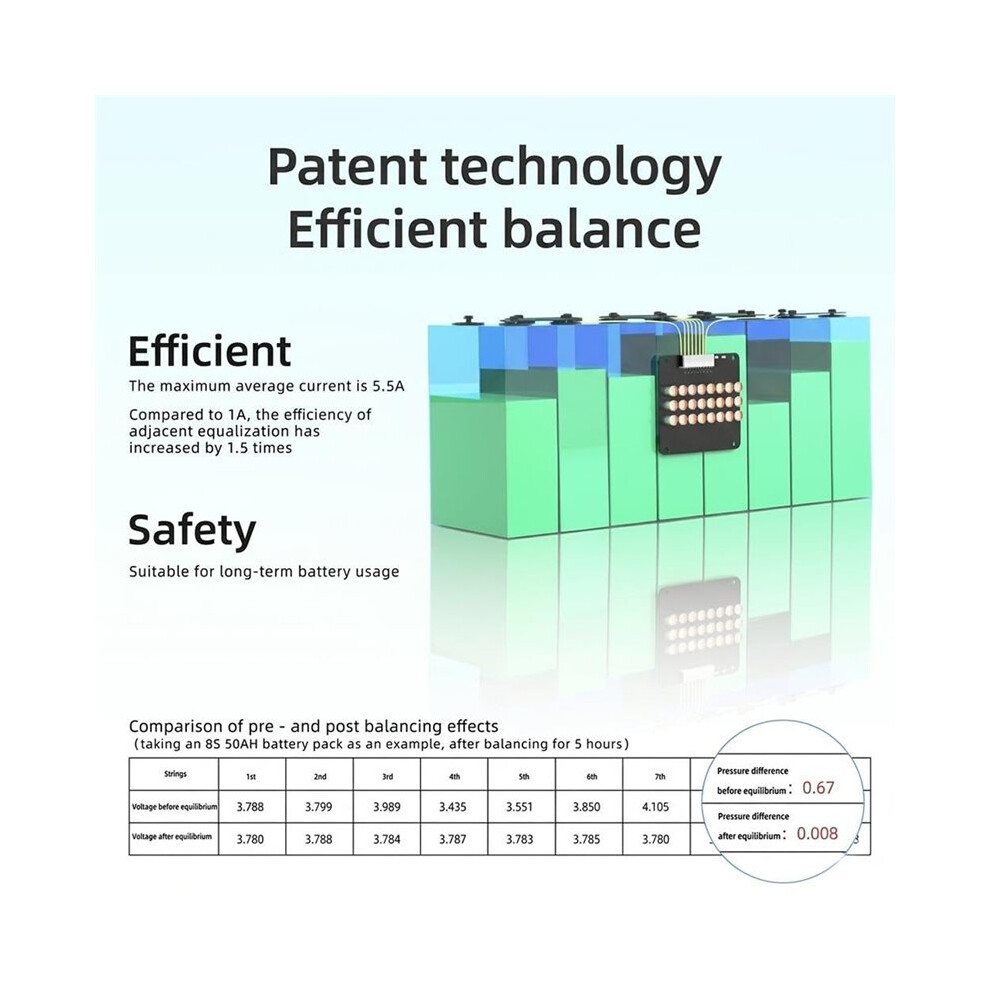

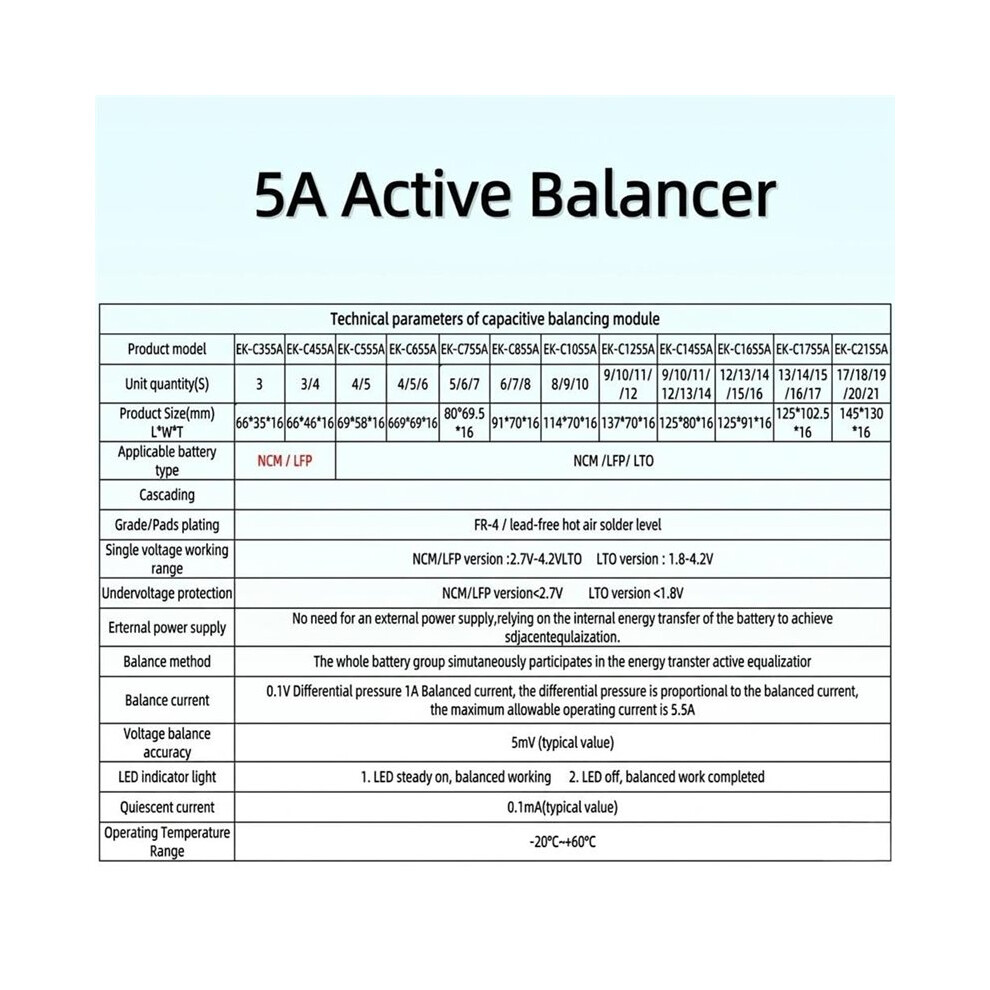

The maximum balancing current of this series of capacitive active balancing boards is 5.5A. The voltage difference is positively related to the balancing current. Suitable for mainstream ternary lithium batteries, lithium iron phosphate batteries, and lithium titanate batteries the market. Supports 3 to 21 battery strings. Supports cascade use.

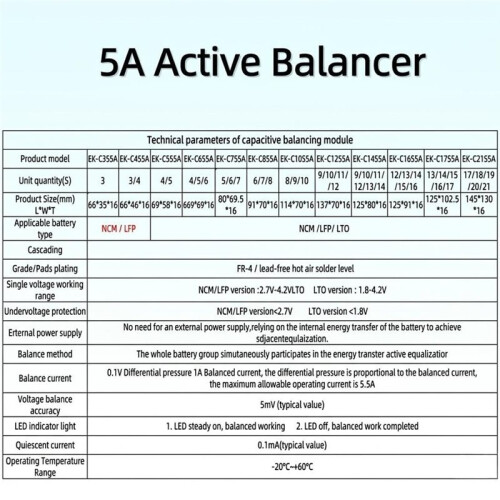

Adapt Battery Type:Ternary lithium NCM/iron lithium LFP Lithium Titanate LTO (Jumper Select) Cell Voltage Working Range: Ternary/lithium iron battery (NCM/LFP): 2.7-4.2V Lithium titanate battery (LTO): 1.8-4.2V

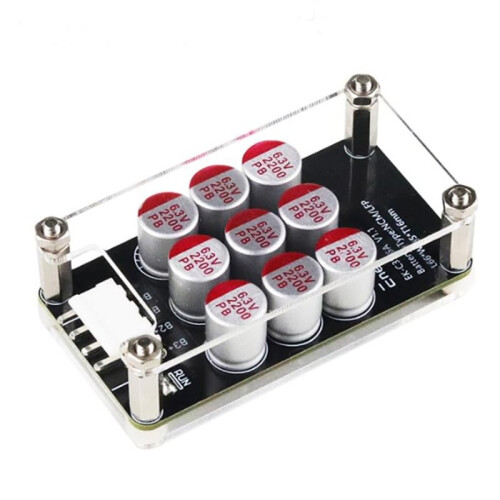

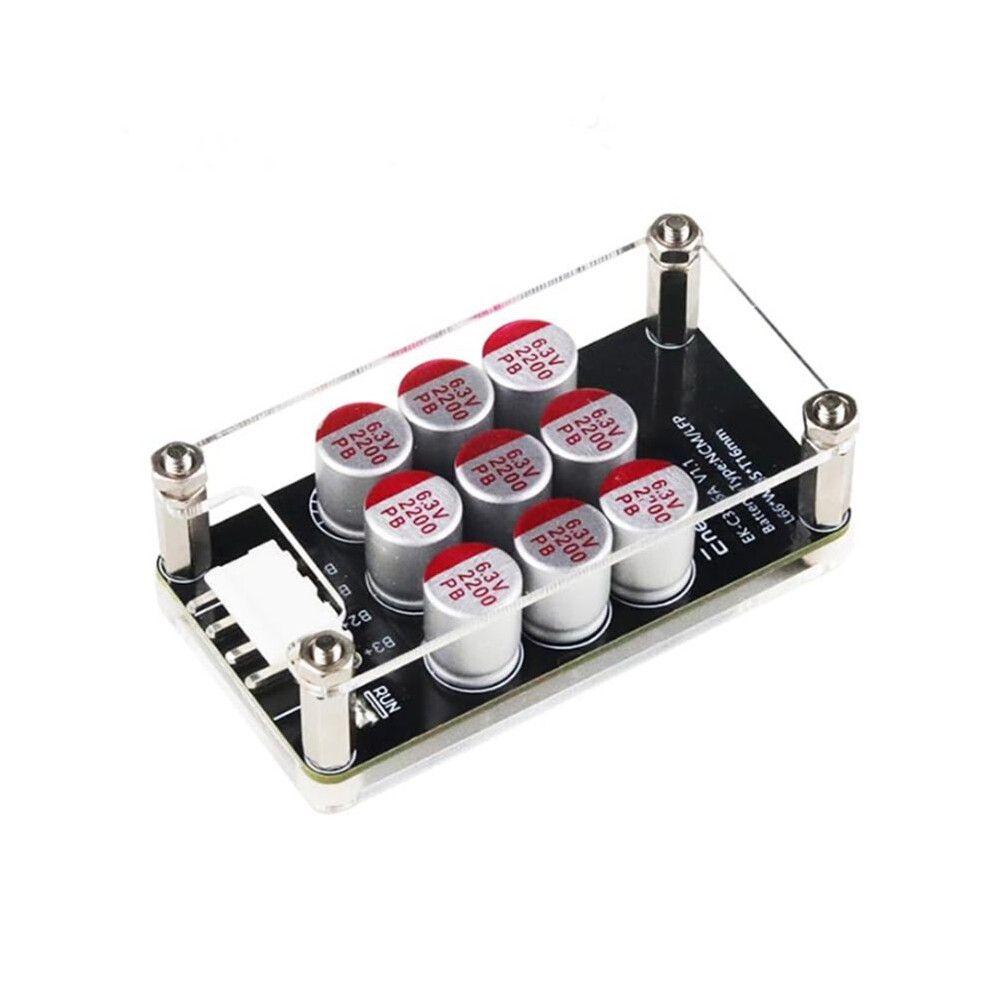

1 x 3S 5A active balancer module with acrylic housing. **Battery cells not included**.

Color: As Shown
Material: Plastic+Metal

Package Contents:
1* balancing board,
1* housing,
1* ribbon cable
