3X for ENC28J60 Ethernet Shield V1.0 for Compatible 3.0 RJ45 Network Module

3X for ENC28J60 Ethernet Shield V1.0 for Compatible 3.0 RJ45 Network Module Beskrivelse

chip board ENC28J60-I/SO.
the board 25MHZ crystal.
the network interface board HR911105A.
3.3 V power supply pin.

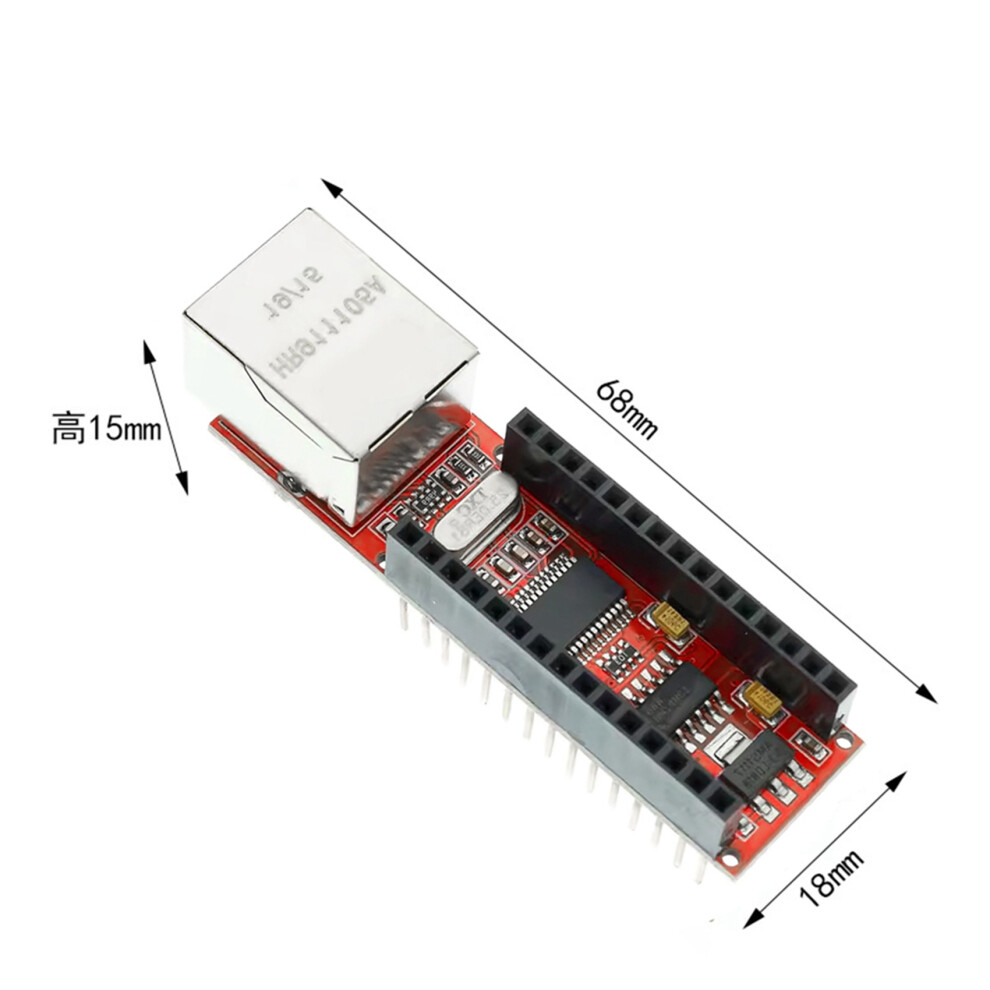

PCB size: 63x18x15mm

Positioning hole diameter: 3.1mm
Weight: about 51g
PCB with Ethernet connector: 67x18x17 mm
PCB bottom pins: 9.5mm
Compatible with Ethernet driver: Microchip ENC28J60
Colour:As Shown
Material:PCB
Debug reminder:
1, the IP address of the computer to a network segment and module such as IP module 192.168.1.2, IP computer set: 192.168.1.3; 192.168.1 is the 3 section;
2, the network cable connected to the mouth of the computer network module and mouth; (that is, the cable network 1 3,2 , and then do not understand that there are pictures Baidu);
3, the module and the MCU connection should pay attention to the connection of each is reliable (the surface is not even connected to the good);
4, and the MCU port IO to confirm that is right;
5, the program recompile, download, confirm whether to download! STM32 and 51 IO
Due to different batches, there may be differences in product appearance and printed text, which will not affect use

Package Contents:
3 x for board
