40dB 2000MHz - 2GHz Module RF Sampler Module for VHF UHF SW SHORTWAVE Non-Directional UWB Frequence Sampler Module

40dB 2000MHz - 2GHz Module RF Sampler Module for VHF UHF SW SHORTWAVE Non-Directional UWB Frequence Sampler Module Beskrivelse

Wideband Coverage: Supports ~2000MHz, compatible with shortwave/VHF/UHF bands.
High-Precision Sampling: Stable sampling rate, low frequency band fluctuation, suitable for omnidirectional signal sampling.
Low Insertion Loss and High Isolation: Insertion loss <0.3dB, port reflection better than 20dB, ensuring signal integrity.
High Power Handling: Can handle 50W RF power, suitable for high-power systems.
Compact and : Miniaturized metal housing for easy integration and installation.

Product Overview:

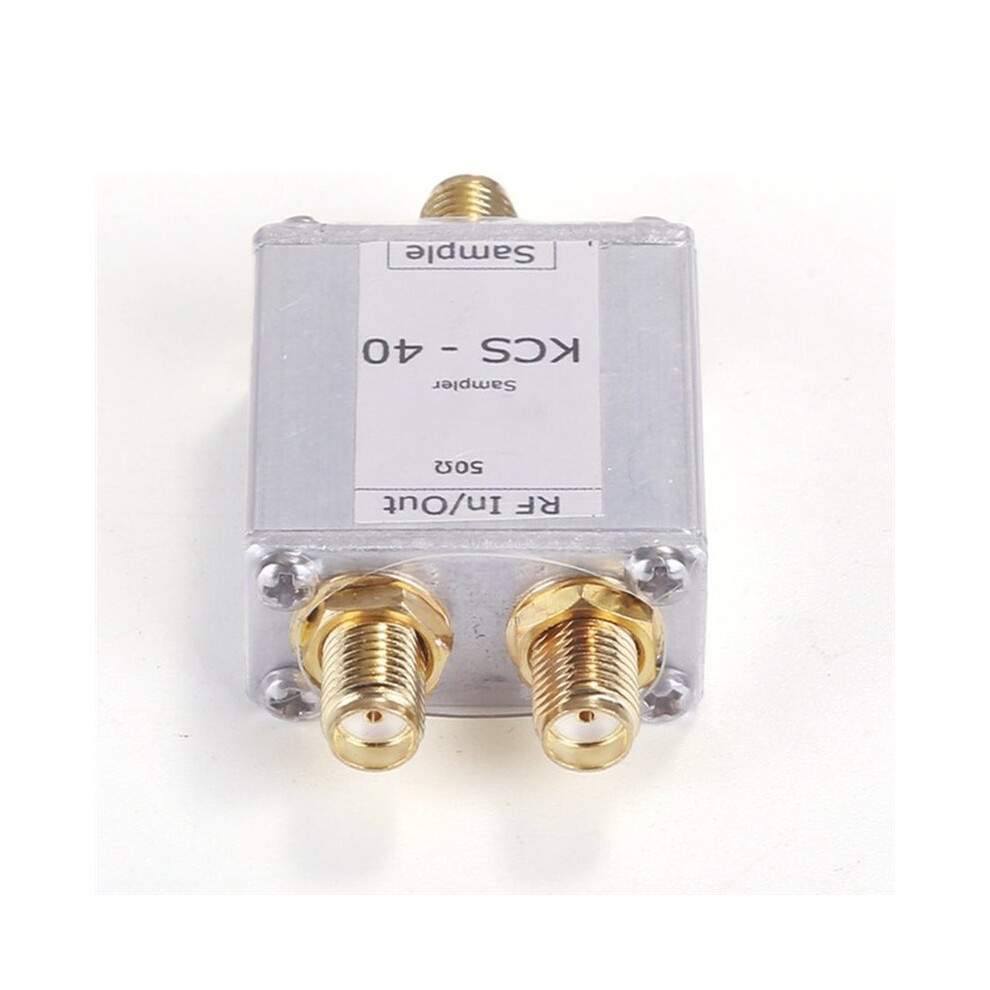

The KCS-40 is a high-performance wideband directional coupler suitable for signal sampling in shortwave, VHF, and UHF bands. It features low insertion loss, high directivity, and stable sampling characteristics, and is widely used in RF testing, signal monitoring, power detection, and other scenarios. It supports a maximum power transmission of 50W and provides a standard sampling rate of 40dB.

Parameters:

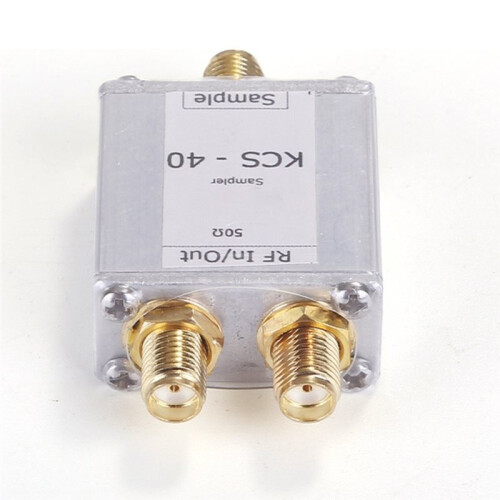

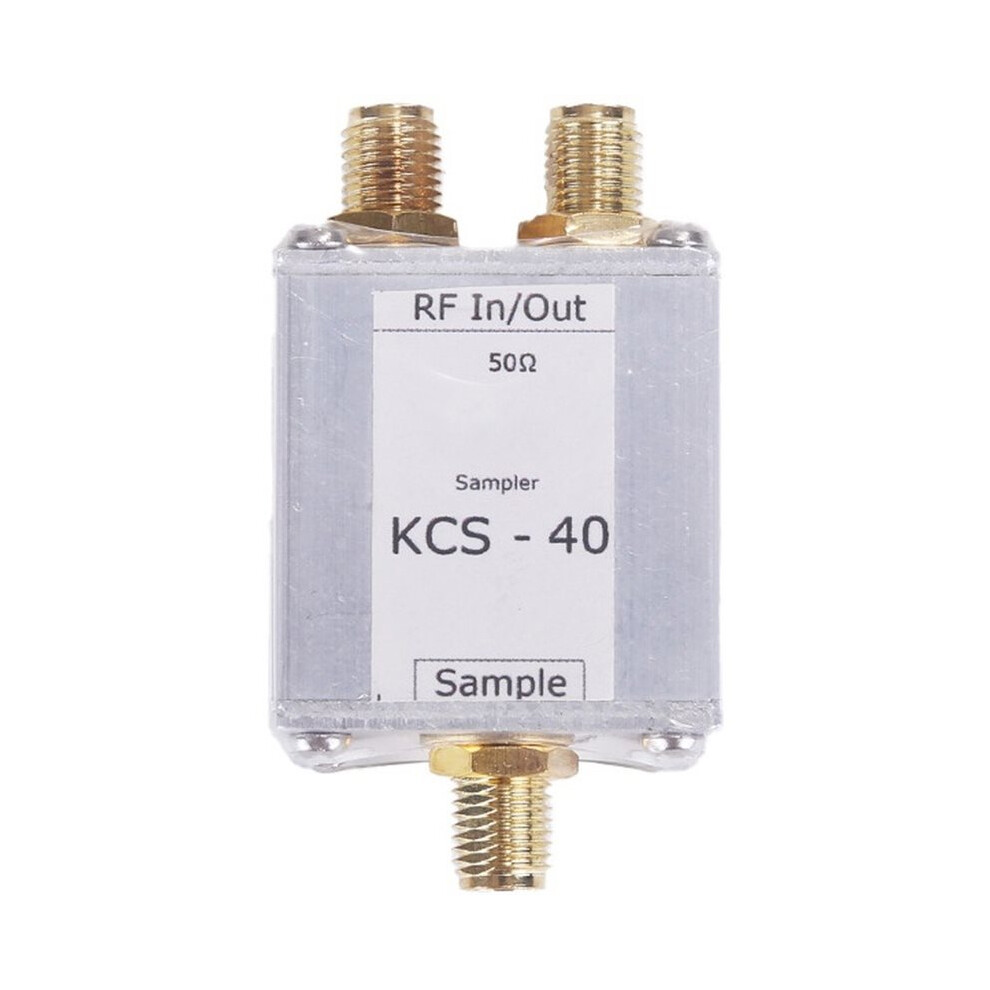

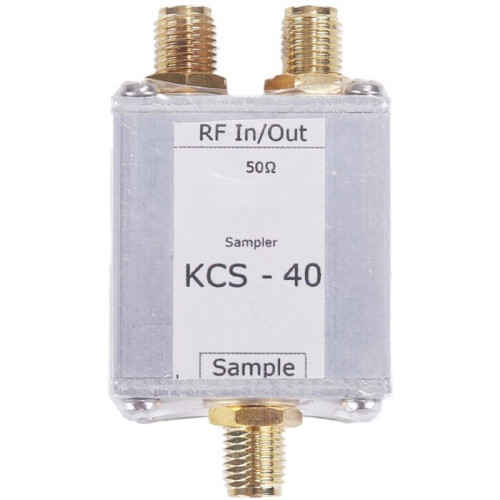

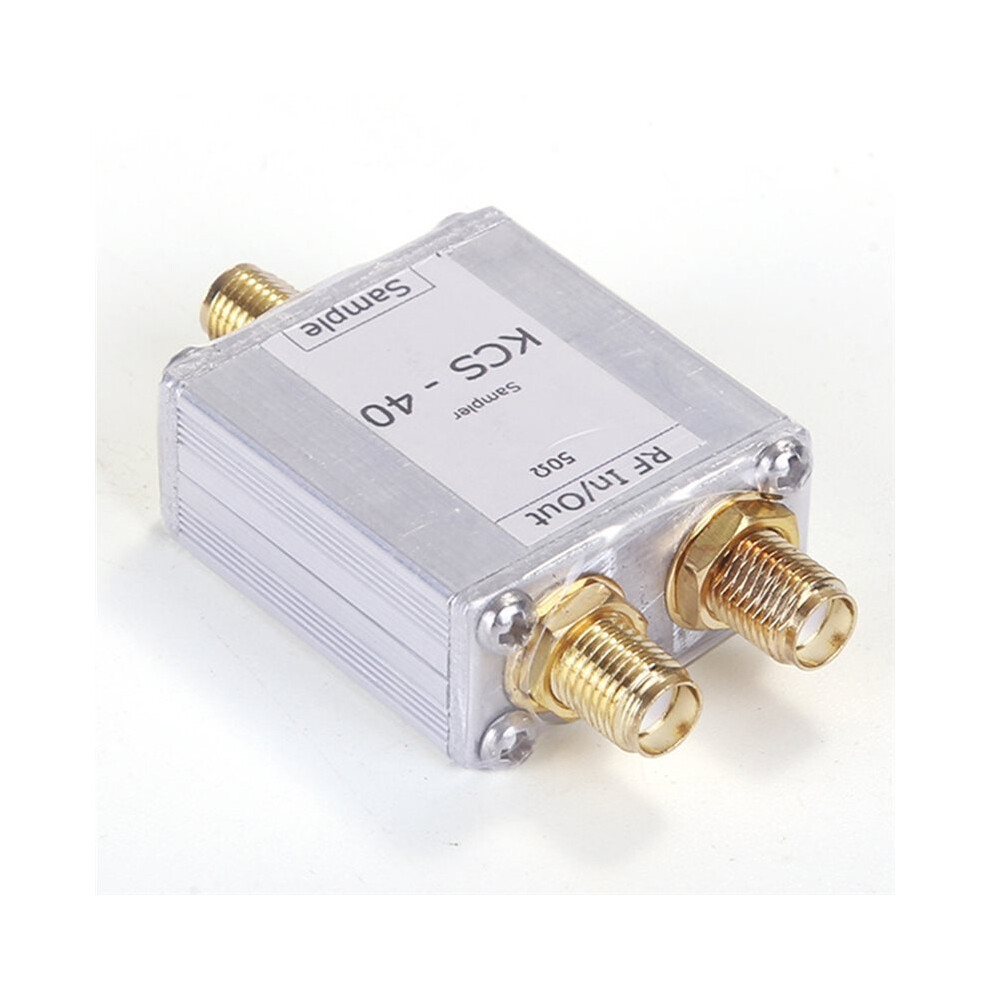

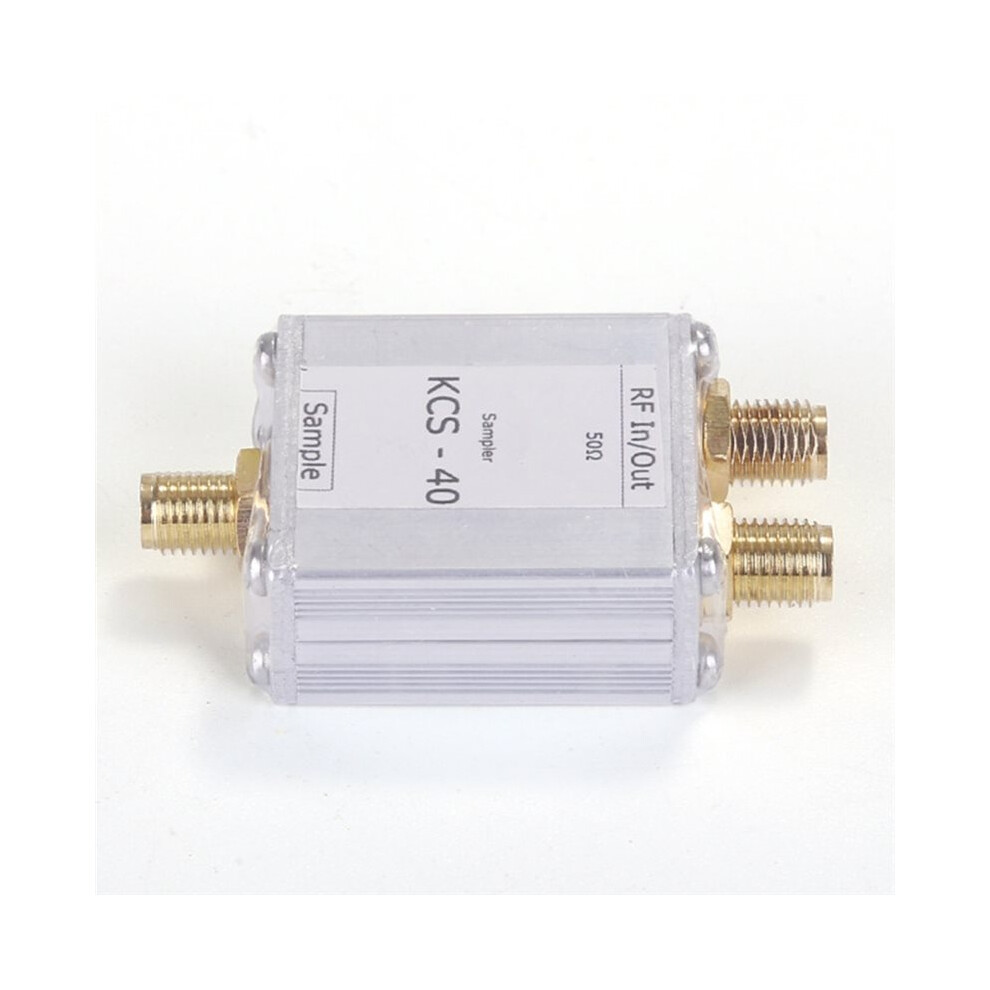

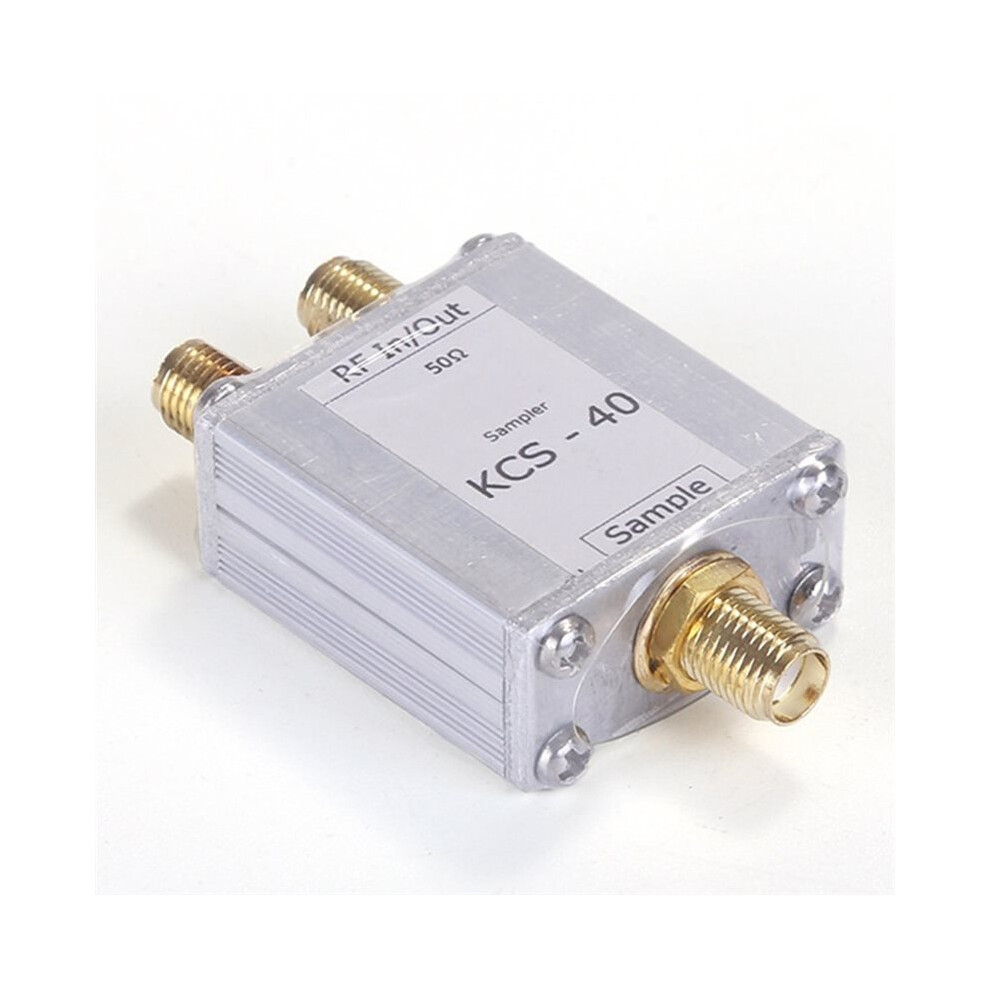

Model: KCS-40
Impedance: 50Ω
Frequency Range: ~2000 MHz
Maximum Throughput: 50W (37dBm)
Insertion Loss:
