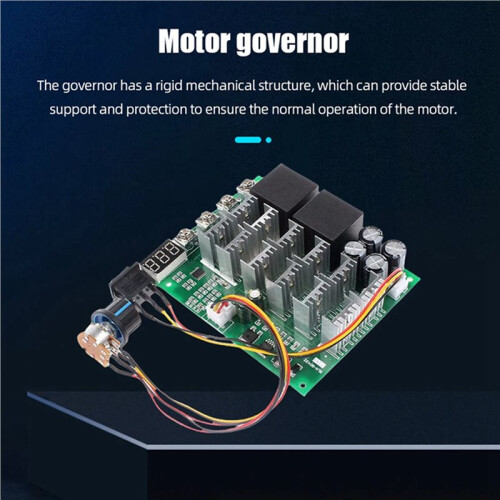

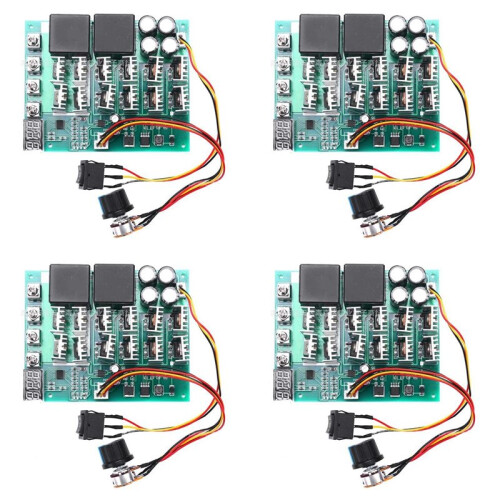

4X 10-55V 100A Motor Speed Controller PWM HHO RC Reverse Control with LED Display

4X 10-55V 100A Motor Speed Controller PWM HHO RC Reverse Control with LED Display Beskrivelse

Operating voltage: 10V-55V
Output voltage: Linear under load
Input current: Require large than the motor operating current
Output current: depend load size
Output current: 0-100A

Continuous current: 60A
Current at rest: 0.01A (standby)
Maximum power: 3000 W (power = voltage x current)
Motor Power control: 0.01-3000 W
12 V: 720 W (max), 24 V: 1440 W (max)
36 V: 2160 W (max), 48 V: 2880 W (max)
50 V: 3000 W (max).
Knob hole: 7mm
Speed type: adjustable current
Speed mode: / OFF linear potentiometer 270 degrees
Speed range: 0% -
Frequency control: 15 KHZ
Speed Control: potentiometer (with )
Knob Specifications: 100 K (with )
Speed type: flow control
Advance rotation: Support
Digital positioning screen: 0-100 (full speed percentage)
Board size: 120x96mm/4.72x3.78 inch
Note:Due to different factory batches, if some parts are slightly different, it will not affect the application.
Colour:As Shown
Material:Plastic

Package Contents:
4 x Motor Speed Controller
