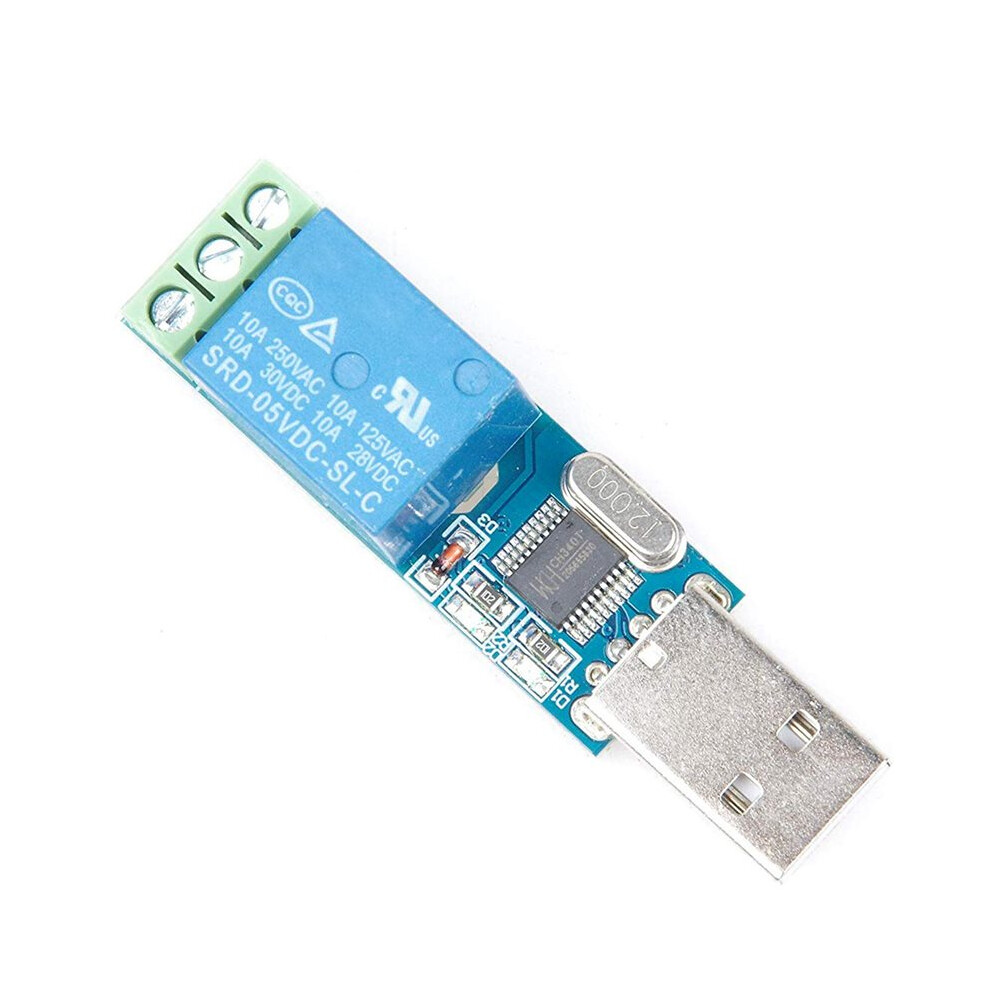

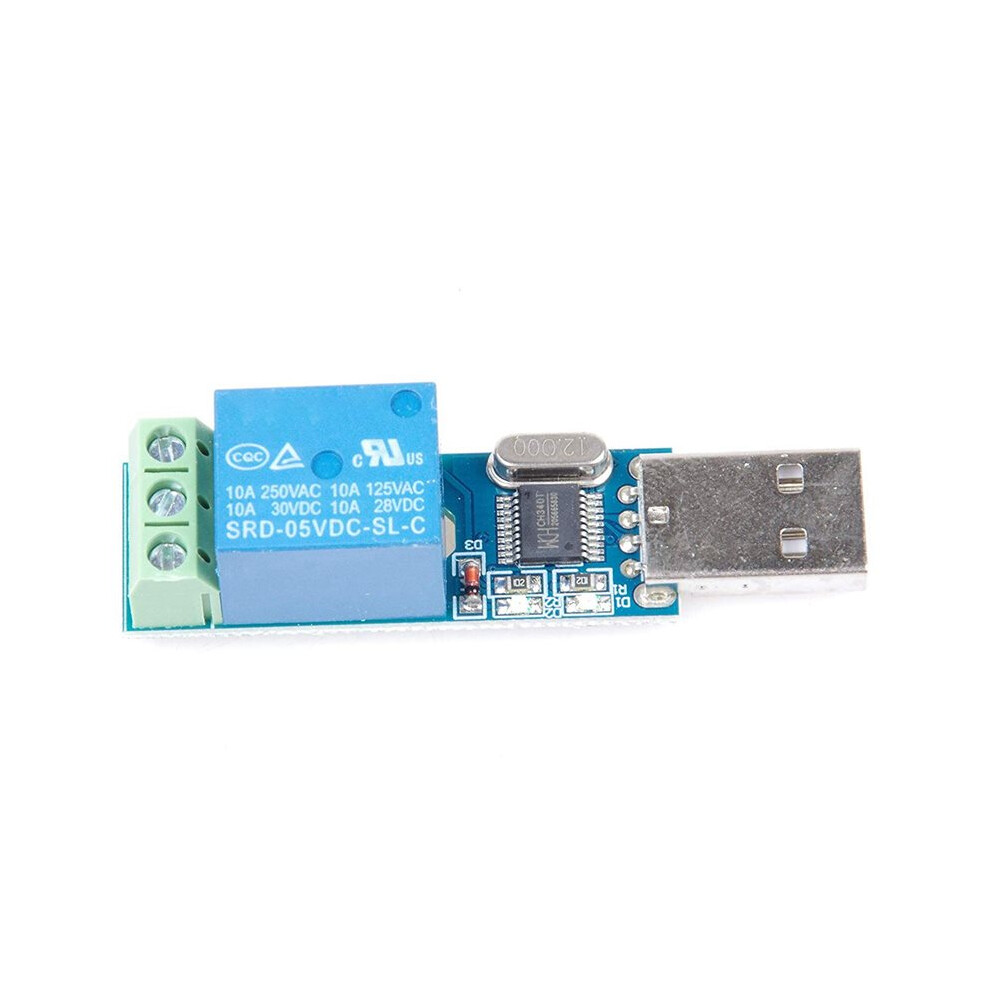

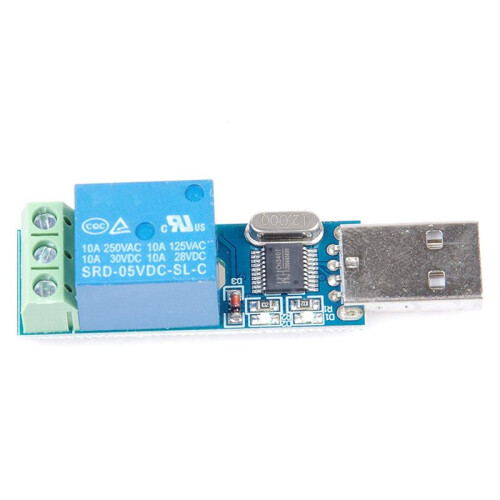

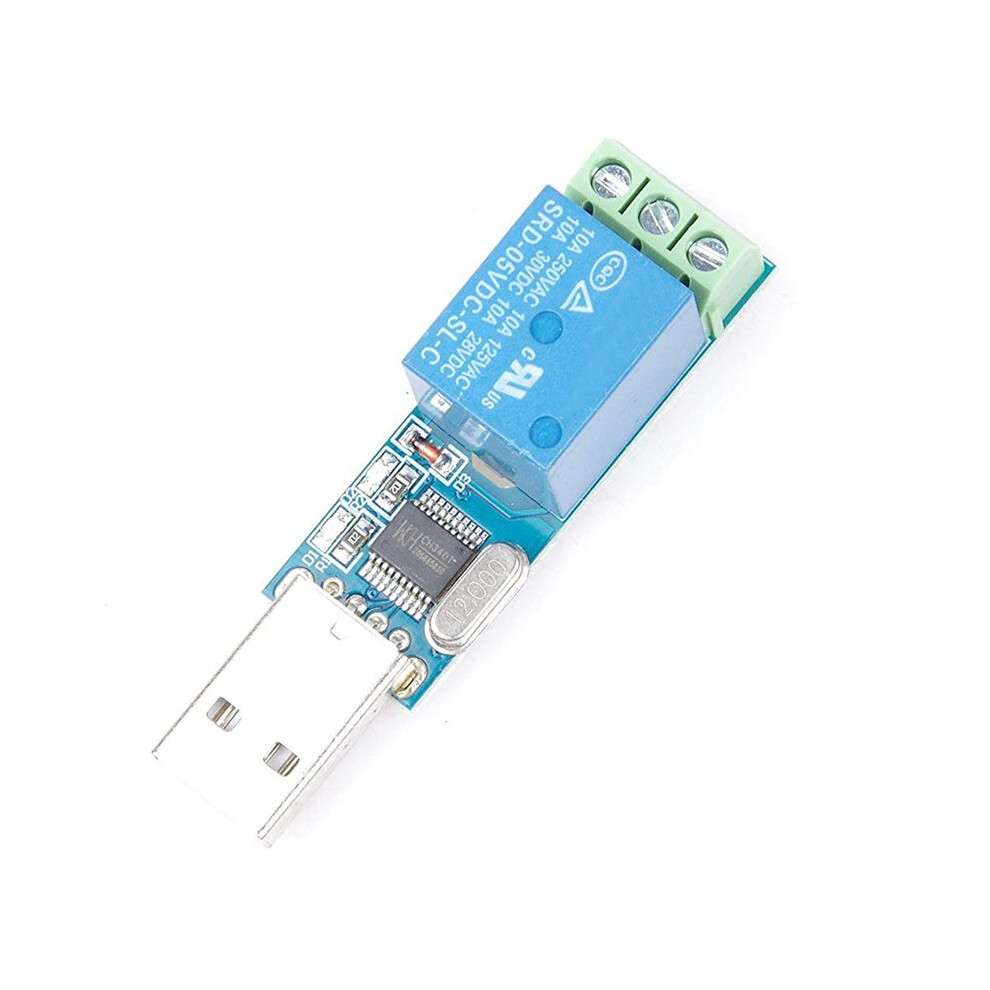

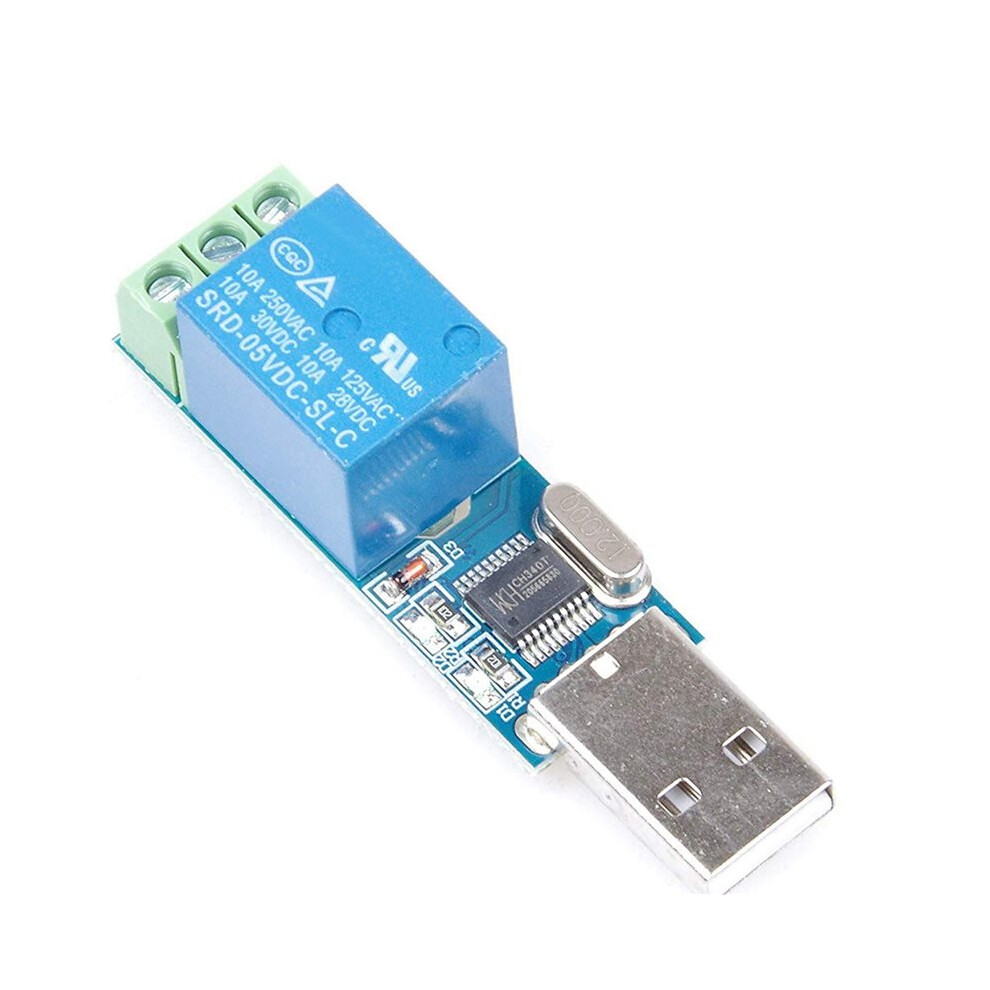

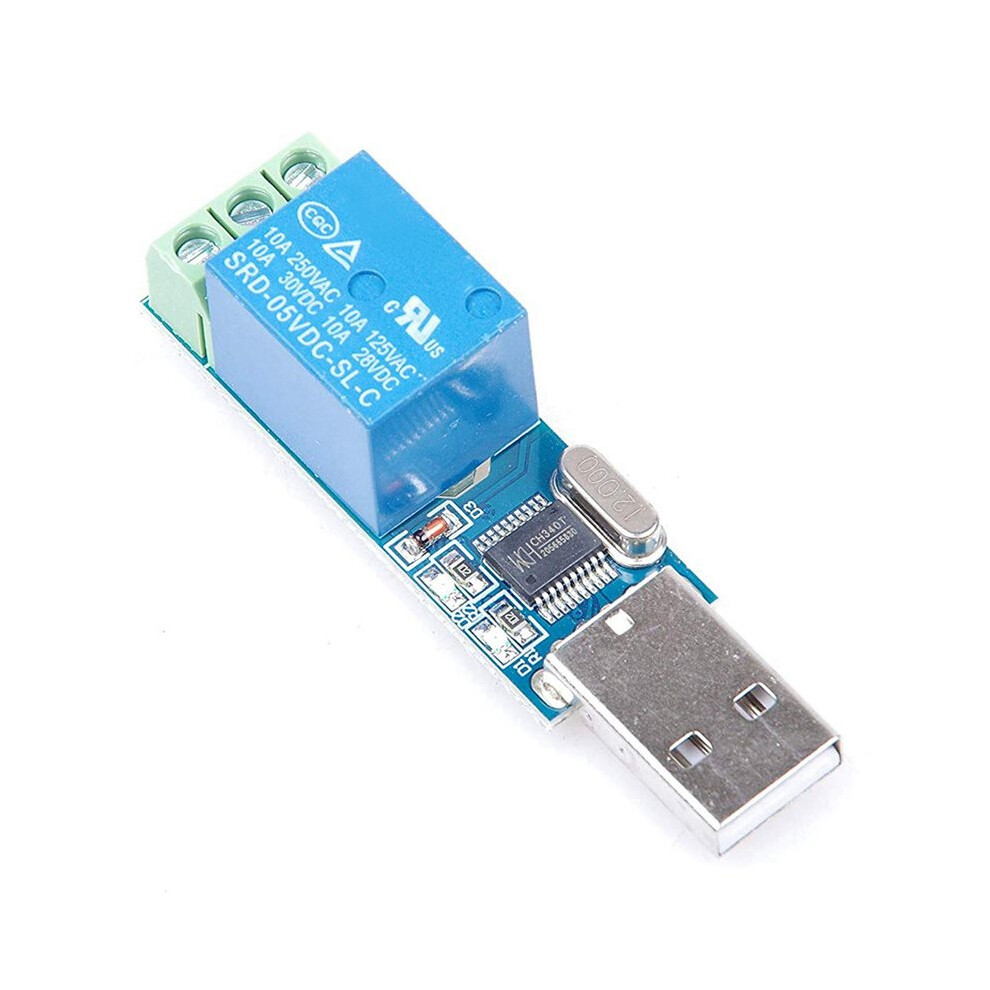

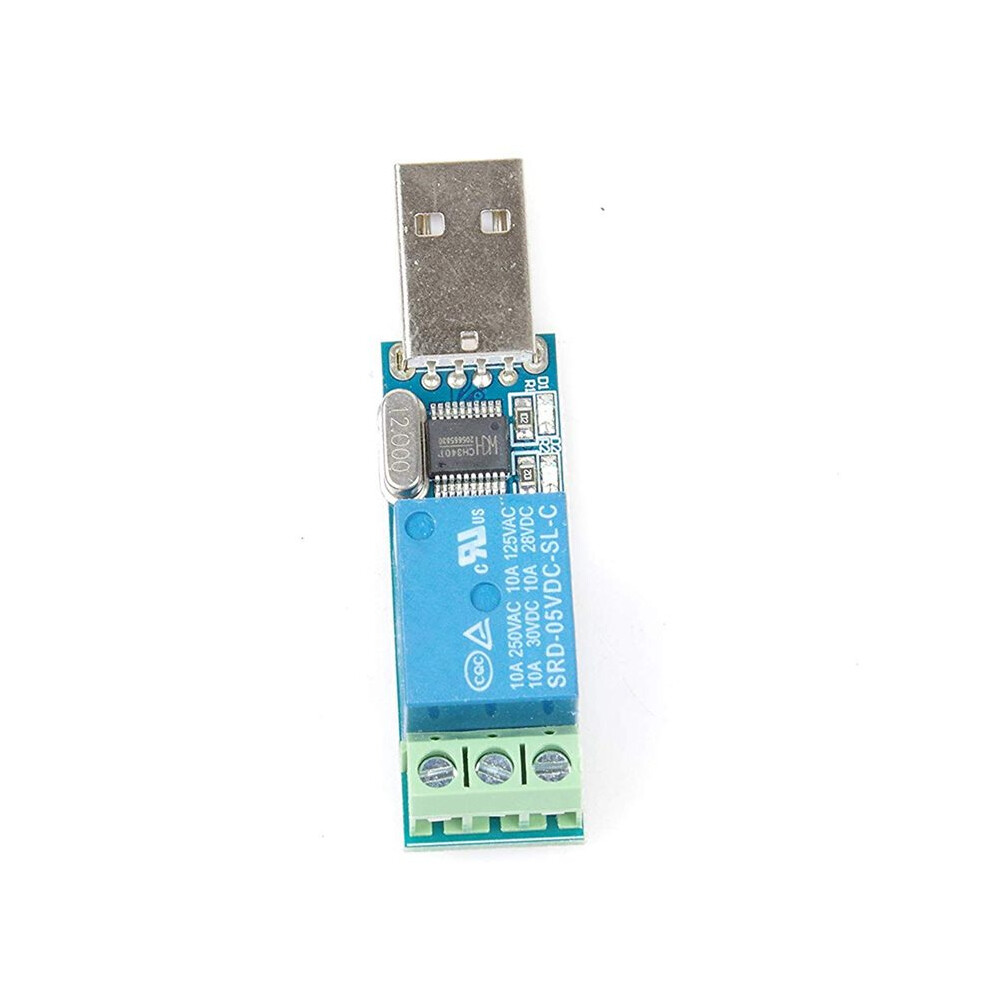

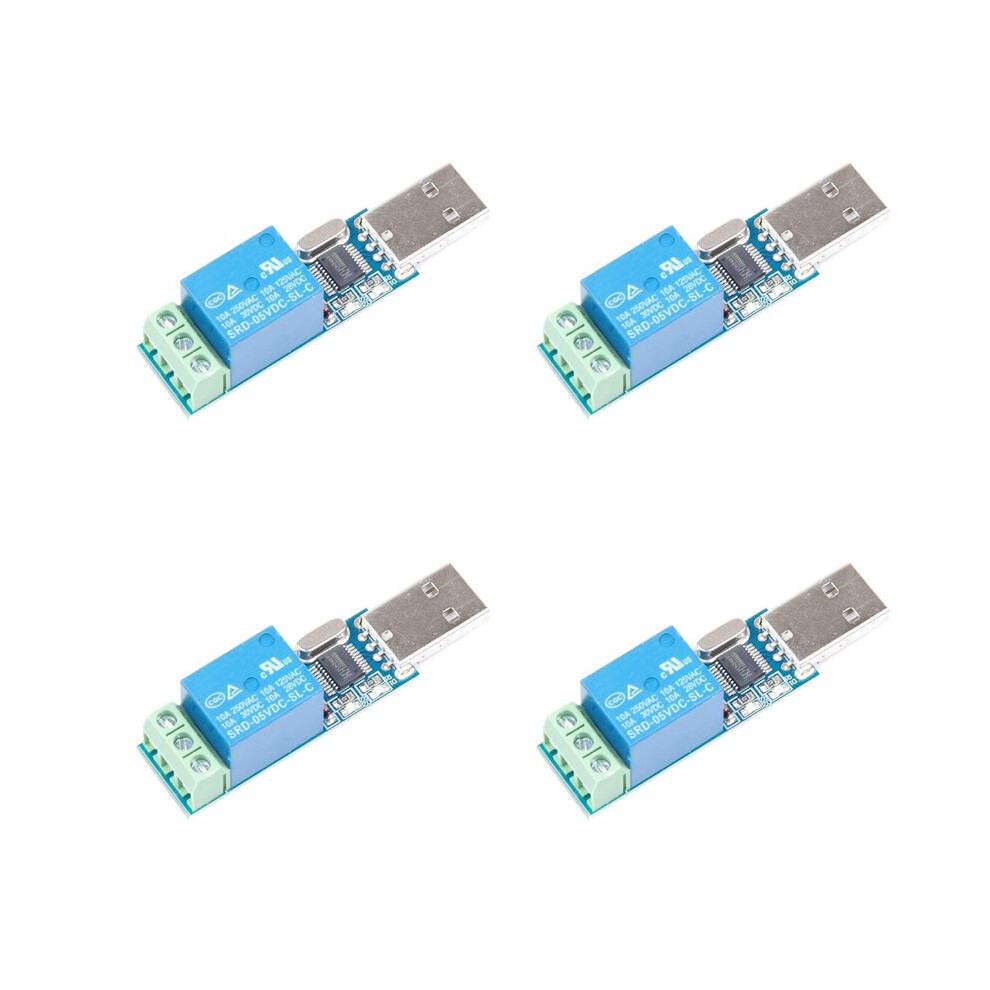

4X USB Relay Module USB Intelligent Control USB for LCUS-1 Type Electronic Converter

4X USB Relay Module USB Intelligent Control USB for LCUS-1 Type Electronic Converter Beskrivelse

Protocol:
LC USB default communication baud rate: 9600Bps;
LC USB Communication Protocol:
Data (1)----starting identifier (default: 0xA0)
Data (2)---- address code (default: 0x01, identified as the first )

Data (3)----Operation data (0x00 is "OFF", 0x01 is "")
Data (4)----check code
Example:
TURN : A0 01 01 A2
TURN OFF: A0 01 00 A1
HOW TO USE:
1, plug the USB relay into the computer, install the CH340 to serial port chip driver;
2, open STC-ISP, SSCOM32 and other serial debugging software, select the baud rate of 9600, send "A0 01 01 A2" turn relay in hexadecimal (hex) form; send "A0 01" in decimal (hex) 00 AZ" TURN OFF relay;
USB intelligent control .
Onboard high-performance micro-controller chip.
Board CH340 USB controller chip.
Onboard Power LED and relay status LED.
Onboard 5V, 10A / 250VAC, 10A / 30VDC relay, relay life long continuous pull 100,000 times.
Relay modules with overcurrent protection and freewheeling diode protection.
colour:
Material:PCB
size:49.6 x 16mm

Package Contents:

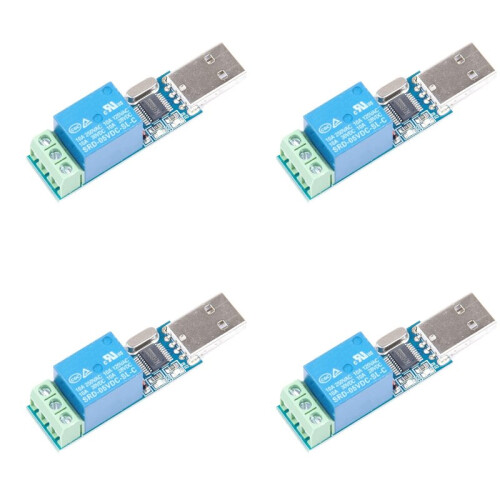

4 x USB relay module
