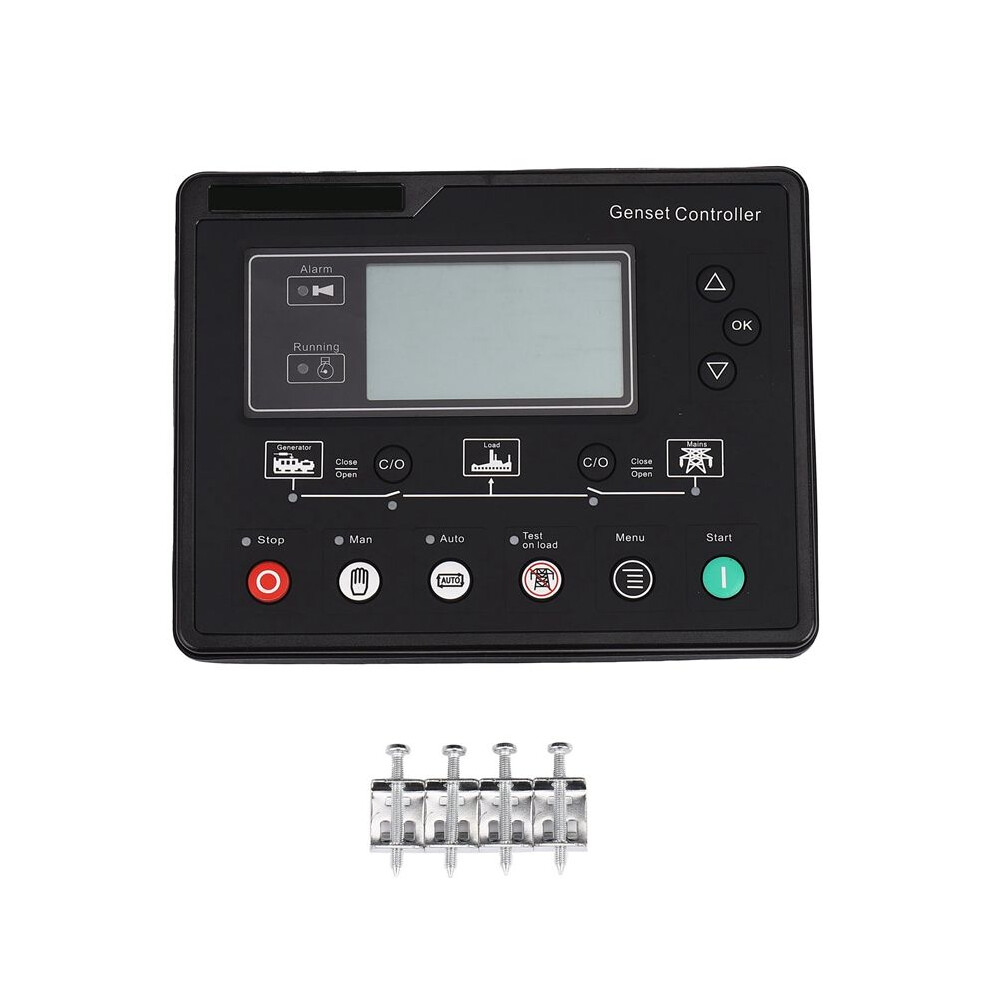

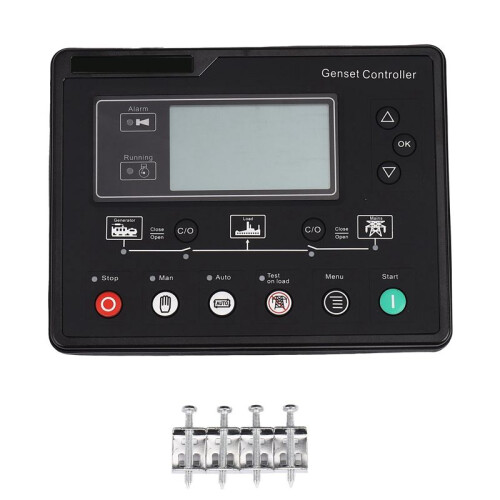

6120U AMF Generator Set Controller LCD Automatic Start Genset Ats Control Box Terminal Charge Panel Alternator Part 6120

6120U AMF Generator Set Controller LCD Automatic Start Genset Ats Control Box Terminal Charge Panel Alternator Part 6120 Beskrivelse

6100U series power station automation controller integrated digital, intelligent, networked technology, for single generating set automation and monitoring system, realize the generator automatic start / stop, measurement data, alarm protection and "three remote" function. Controller adopts the large screen liquid crystal display (LCD), a Chinese, English, Spanish and Russian optional interface, simple operation, reliable operation.
6100U series power station automation controller using microprocessor technology, the various parameters of the precision measurement, fixed value adjustment, timing, threshold setting and other functions, all the parameters of the controller can be from the controller front panel adjustment, or the use of PC through the adjustment of programming interface, also can use the PC through RS485 interface adjustment and monitoring.
The utility system has the advantages of compact structure, simple connection and high reliability, and can be widely used in the automatic system of various types of generating units. Has the power down, idle speed control, pre heating control, speed control function, and all of the relay output;
Parameter setting function allows the user to change the setting of its parameters. At the same , memory in the internal flash memory, isn't lost in the system is out of power, all the parameters of the controller can from controller front panel adjustment, or the use of PC through the programming interface to adjust (using SG72 adapter), use the PC through RS485 interface to adjust;
A variety of temperature, pressure, level sensor can be used directly, and can customize the parameters; A variety of starting conditions (speed sensor, oil pressure, power generation) can be selected; Wide power supply range (8~35) VDC, can adapt to different starting battery voltage environment; All parameters are digitally adjusted, and the simulation adjustment method of the conventional potentiometer is abandoned,
