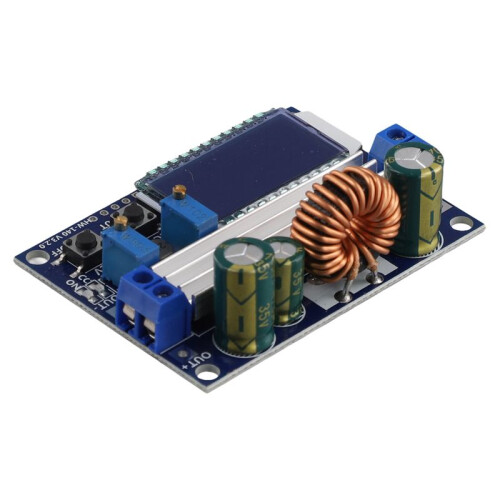

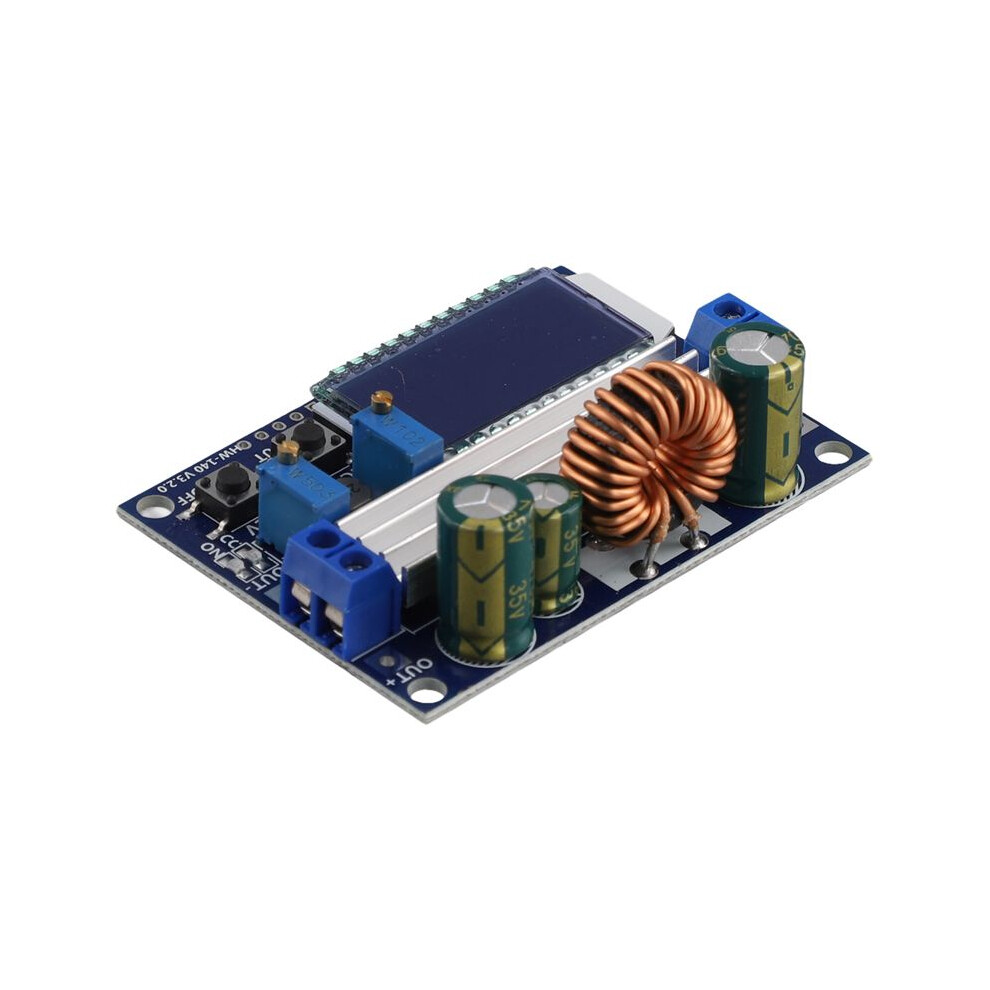

Adjustable Voltage Regulator Module with LCD Display, Versatile Step-/Down Voltage Control Perfect for DIY Electronics
På lager
Derfor vil du elske å handle hos OnBuy:
- Tjen Cashback på hvert kjøp – bruk det umiddelbart på din neste bestilling
- Gratis levering – på millioner av varer på hele nettstedet
- Kunder elsker oss – 126,000 anmeldelser med vurderingen “Utmerket”
Prisene for varer solgt av OnBuy inkluderer mva.
Rente- og gebyrfri delbetaling tilgjengelig
Se full produktbeskrivelse og detaljer
Levering: Standard (Gratis) | fre 19. - ons 24. jun
Solgt av: Kulemip
Returer: 30 dager
180 dagers betalingsbeskyttelse
Mest populære i Elektriske spenningsomformere
Sammendrag
- Input voltage: 5.5-30VDC (When the input voltage is 5V, voltage rise and fall can also be achieved, but the measurement of voltage and current is not accurate; when it is below 4.7V, undervoltage protection is applied)
- Output voltage: 0.5-30VDC adjustable
- Output current: 0.2-3A adjustable, with enhanced heat dissipation up to 4A (please enhance heat dissipation when the module temperature exceeds 65 degrees). Equipped with a constant current indicator light, the output power should not exceed 35W or the current should not exceed 4A when outputting at low voltage. Overloading and burning are not guaranteed!
- Voltage display resolution: 0.05V
- Current display resolution: 0.005A
Adjustable Voltage Regulator Module with LCD Display, Versatile Step-/Down Voltage Control Perfect for DIY Electronics Beskrivelse
Input voltage: 5.5-30VDC (When the input voltage is 5V, voltage rise and fall can also be achieved, but the measurement of voltage and current is not accurate; when it is below 4.7V, undervoltage protection is applied)
Output voltage: 0.5-30VDC adjustable
Output current: 0.2-3A adjustable, with enhanced heat dissipation to 4A (please enhance heat dissipation when the module temperature exceeds 65 degrees). Equipped with a constant current indicator light, the output power should not exceed 35W or the current should not exceed 4A when outputting at low voltage. Overloading and burning are not guaranteed!
Voltage display resolution: 0.05V
Current display resolution: 0.005A
Conversion efficiency:around 88%
Soft start:Yes (there is a possibility of failure during the startup of modules with high power and load)
Input reverse protection:Yes
Output end anti backflow:Yes
Short circuit protection:Yes
Working frequency:180KHZ
Due to different batches, there may be differences in product appearance and printed text, which will not affect use.
Colour:Black
Material:ABS
Package Contents:
1 * Voltage Regulator Module
Detaljer
| OPC | PVDRTP2 |
|---|---|
| Merke | Wella Elements |
| Koder | 4713025515188 (EAN) |
Produktdata
| Height | 3cm |
|---|---|
| Width | 6cm |
| Length | 8cm |
| Weight | 0.0455kg |
| Colour | Black |
| Material | ABS |
