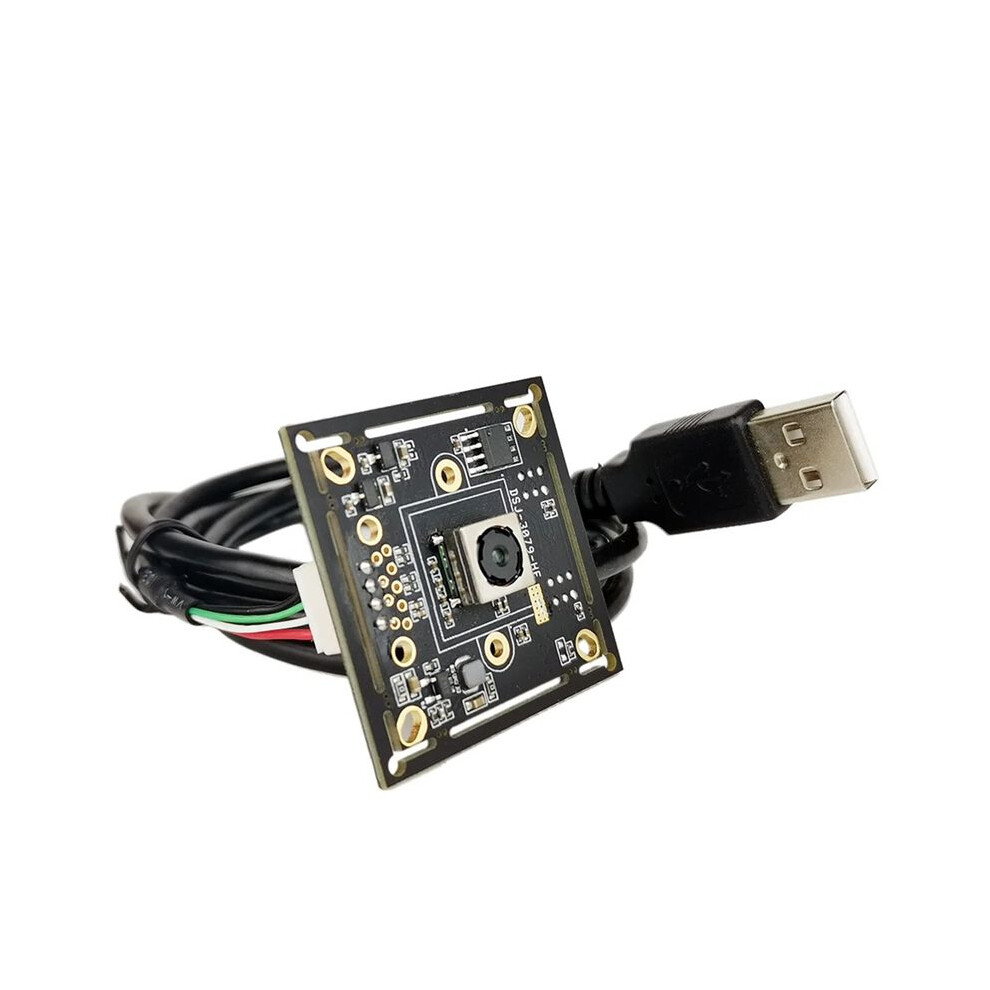

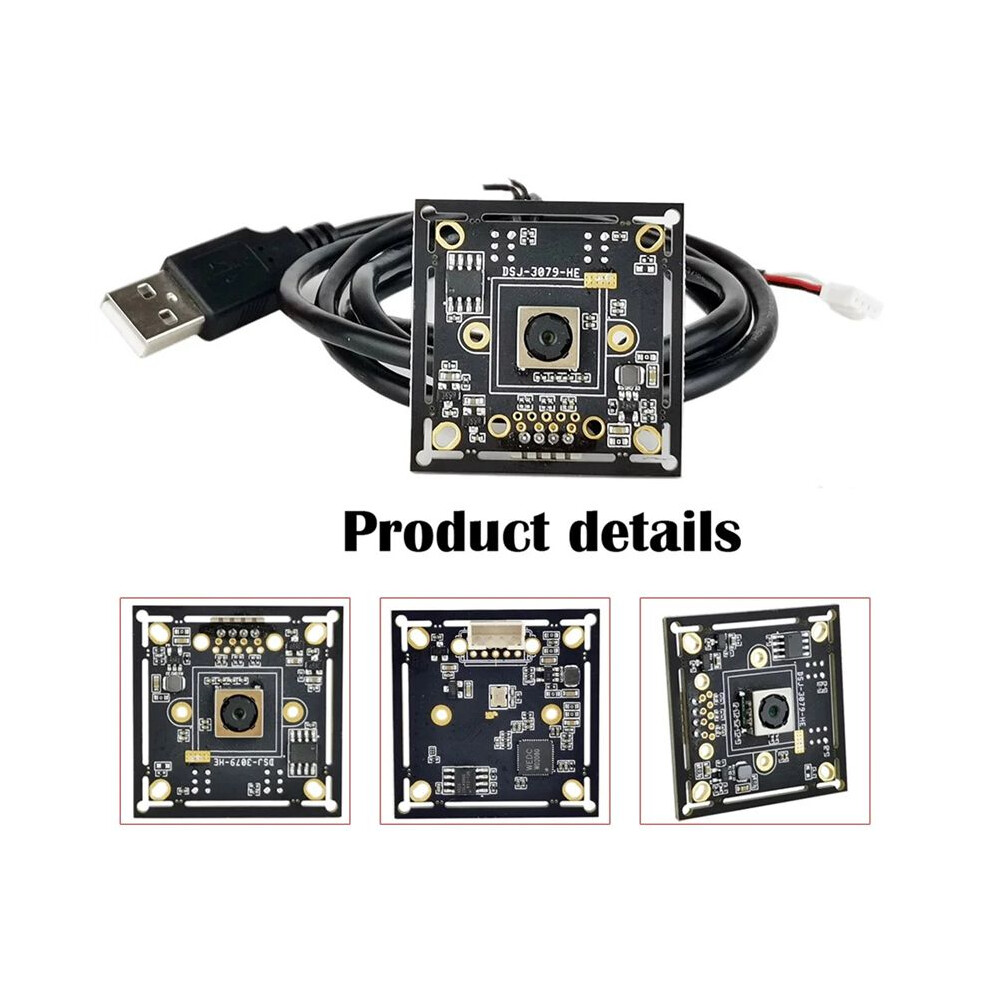

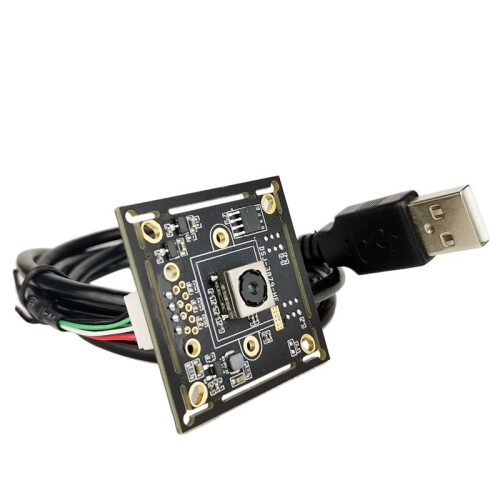

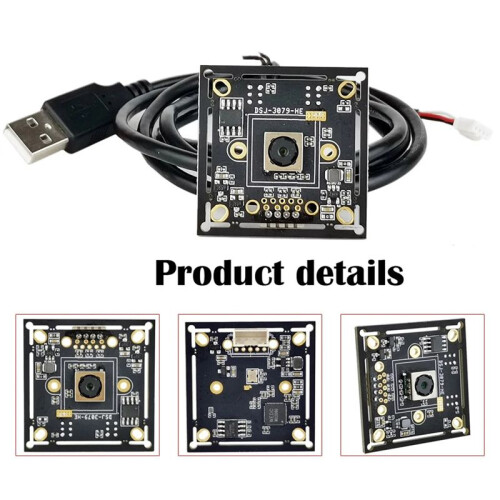

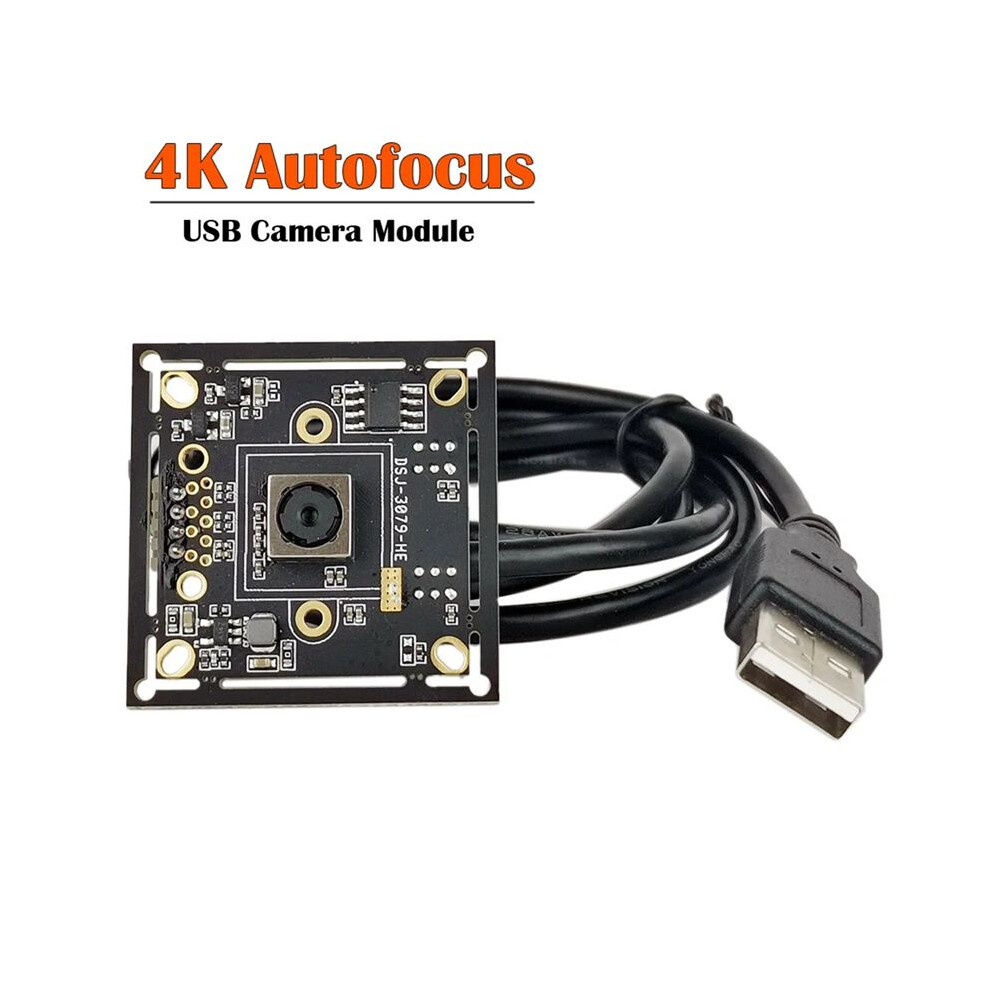

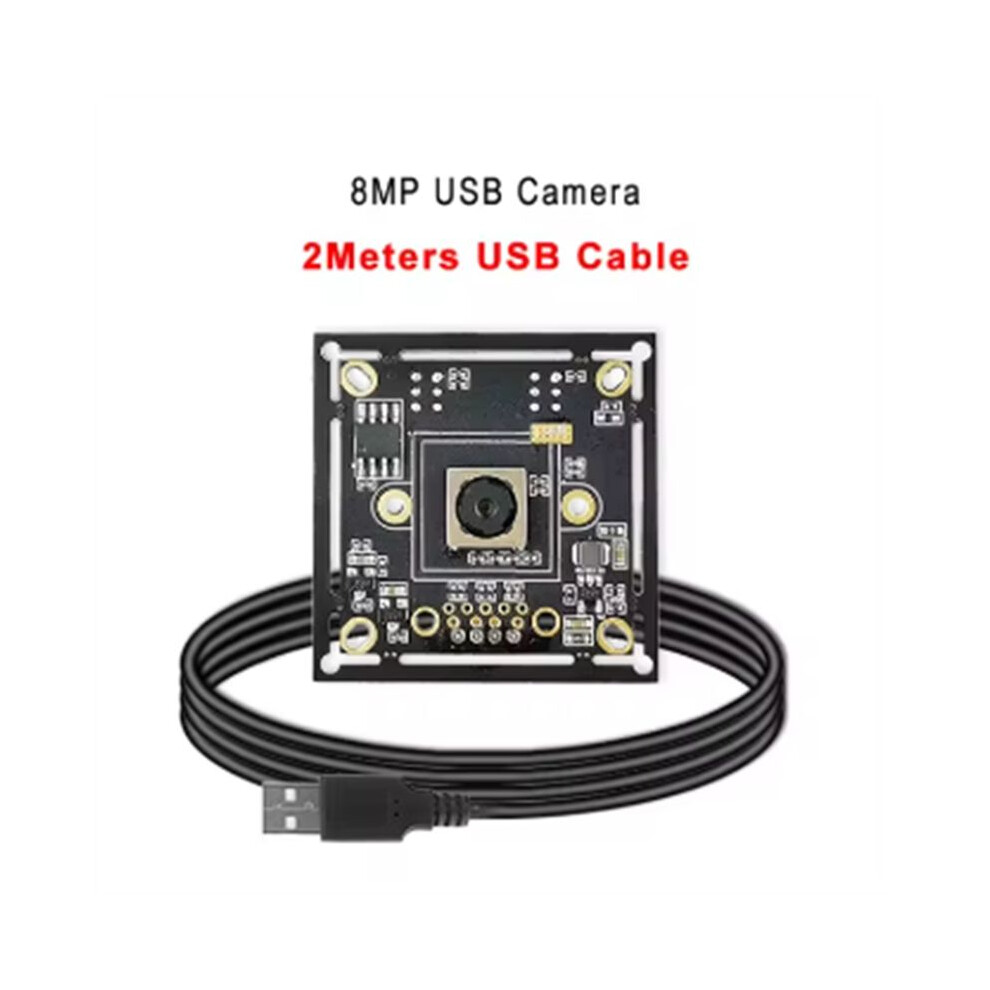

Autofocus Camera Module 8MP CMOS IMX179 Sensor HD 4K 3264 X 2448 Mjpeg USB2.0 Webcam Board for Linux, Windows

Autofocus Camera Module 8MP CMOS IMX179 Sensor HD 4K 3264 X 2448 Mjpeg USB2.0 Webcam Board for Linux, Windows Beskrivelse

Sensor: CMOS IMX179

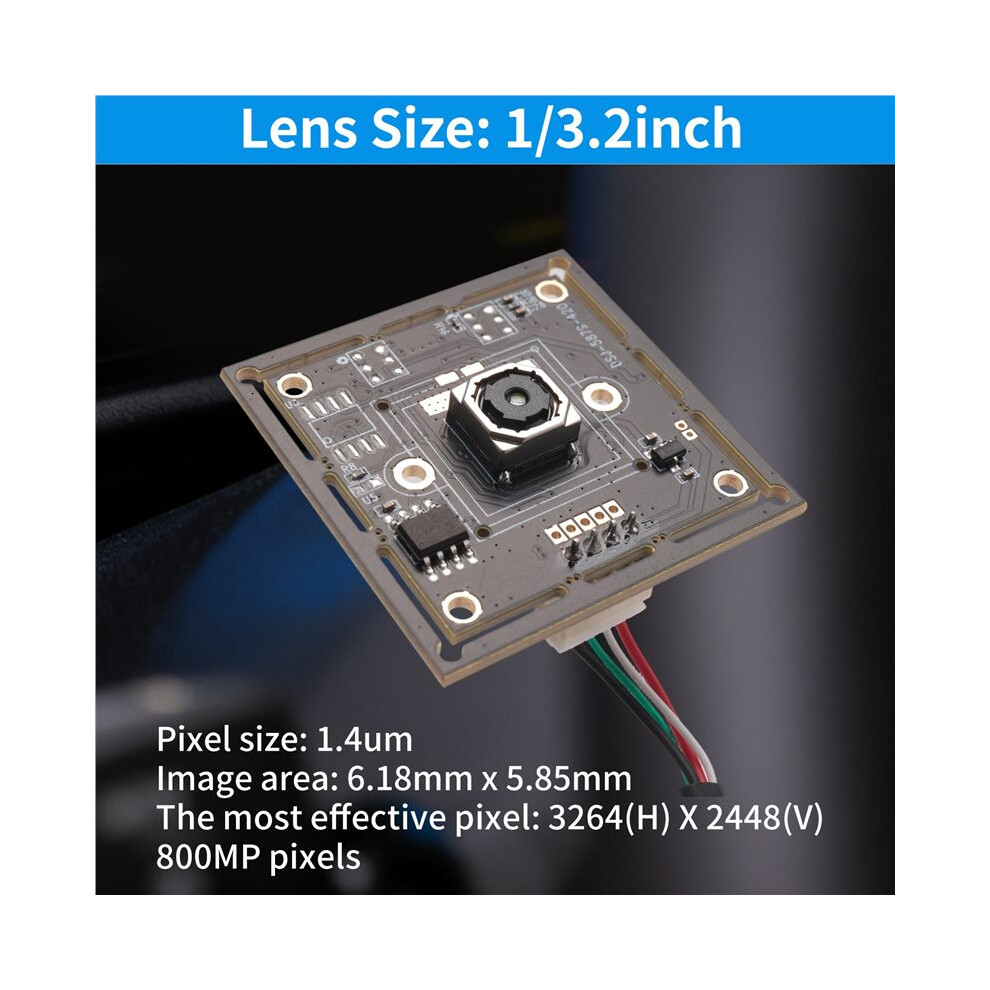

Lens Size: 1/3.2inch
Pixel size: 1.4um
Image area: 6.18mm x 5.85mm
The most effective pixel: 3264(H) X 2448(V) 800MP pixels

Output image format: MJPEG
Supported resolution and frame rate:
3264x2448 @ 15fps / 2592X1944@ 20fps
2048x1536 @ 20fps
1920x1080 @ 30fps / 1600X1200@ 30fps
1280x720 @ 30fps / 960X540@ 30fps
800x600 @ 30fps / 640X480@ 30fps
Signal to noise ratio: 34dB
Dynamic range: 72.5dB
Sensitivity: 0.65V/lux-sec@550nm
Minimum illumination: 0.5lux
Shutter type: Electronic rolling shutter / Frame exposure
Interface type: USB2.0 High Speed
Support free drive protocol: USB Video Class (UVC)
Support OTG protocol: USB2.0 OTG

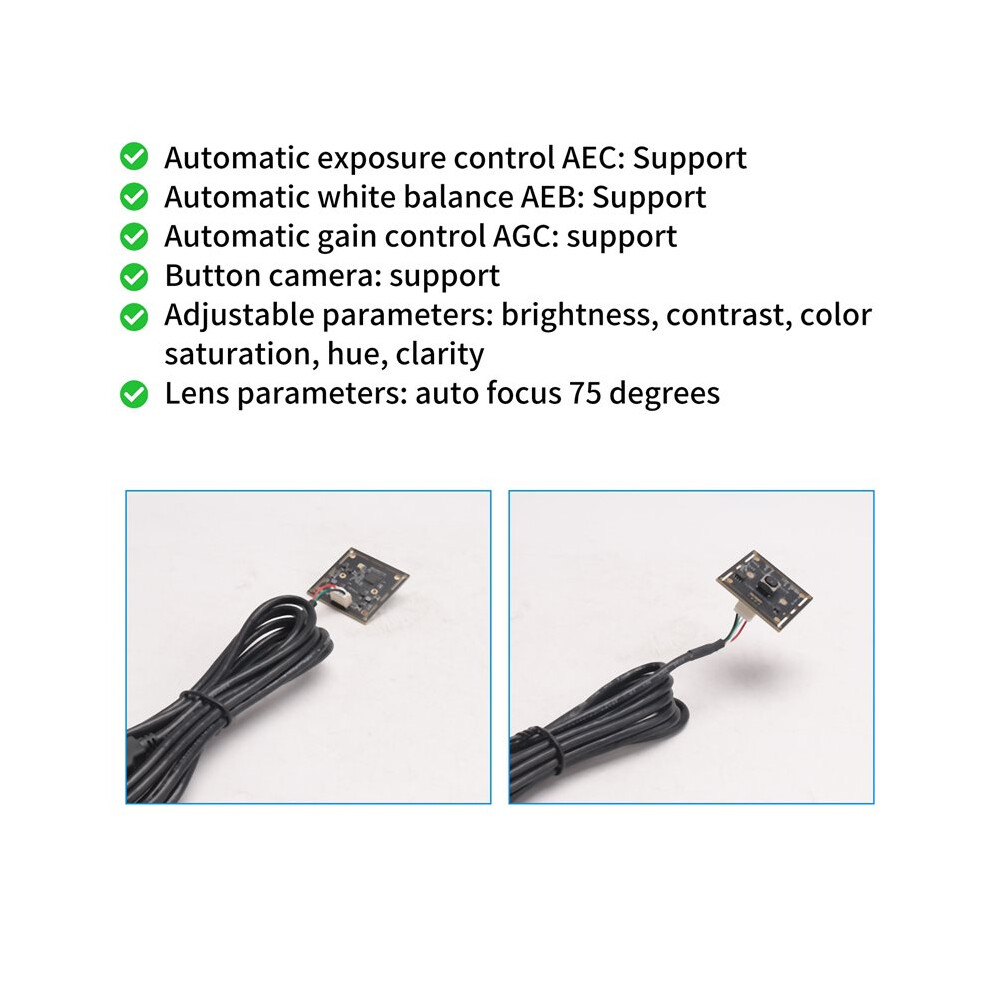

Automatic exposure control AEC: Support
Automatic white balance AEB: Support
Automatic gain control AGC: support
Button camera: support
Adjustable parameters: brightness, contrast, color saturation, hue, clarity
Lens parameters: auto focus 75 degrees
Power supply mode: USB BUS POWER 4P-2.0mm socket
Working voltage: 5V
Working current: 160mA-260mA
Working temperature: -10-70
Supported systems:
for WinXP/Vista/Win7/Win8
for Linux with UVC (above linux-2.6.26)
for -OS X 10.4.8 or later
for Wince with UVC
for Android 4.0 or above with UVC
Colour:As Shown
Material:PC

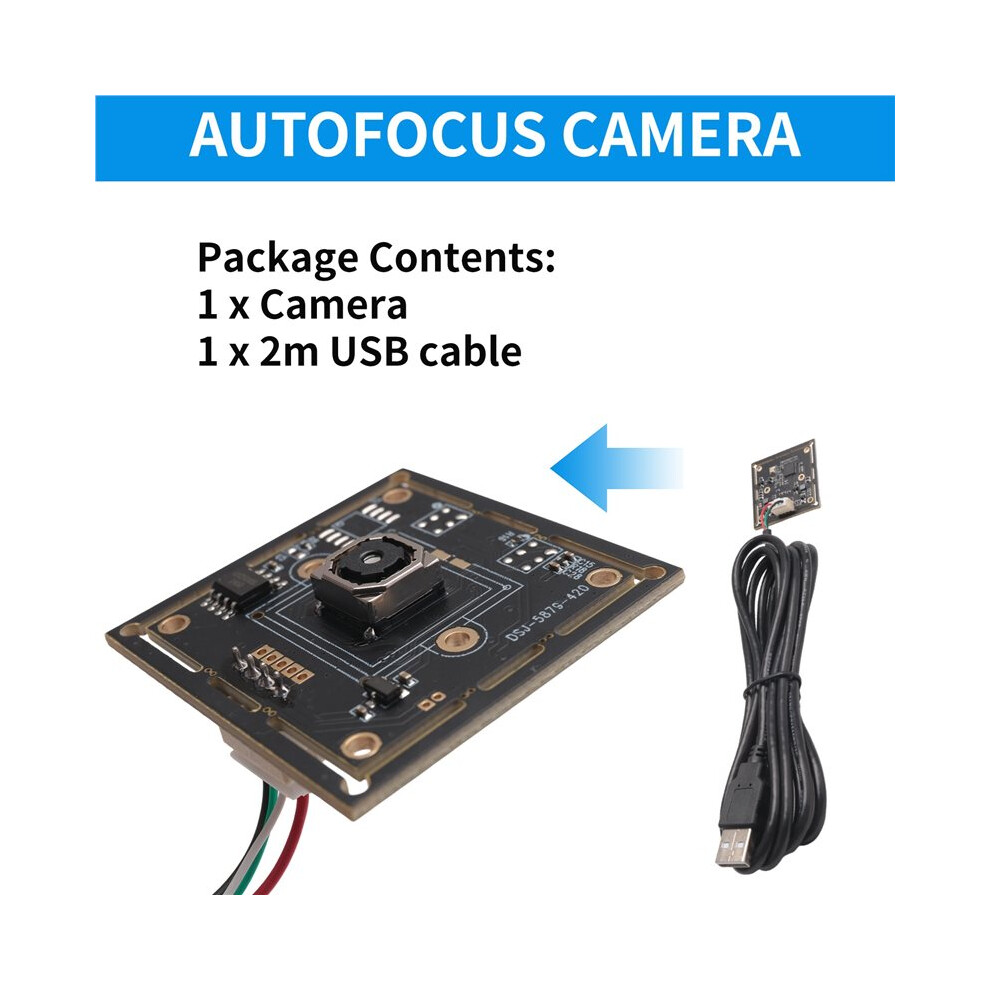

Package Contents:
1 x Camera
1 x 2m USB cable
