Chameleon X5 Motherboard ERCF QuattroBox MMU System Board Hot Air Drying Support Support with USB/CANBUS Communication

Chameleon X5 Motherboard ERCF QuattroBox MMU System Board Hot Air Drying Support Support with USB/CANBUS Communication Beskrivelse

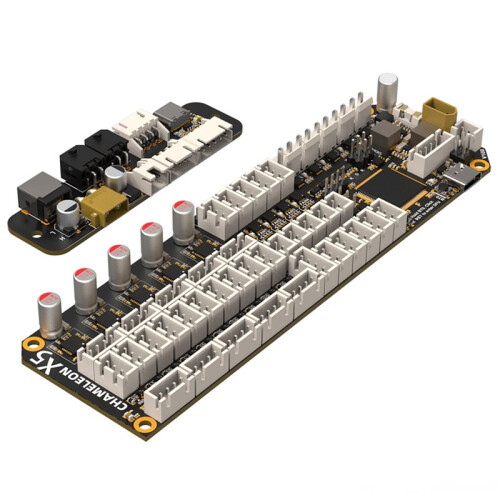

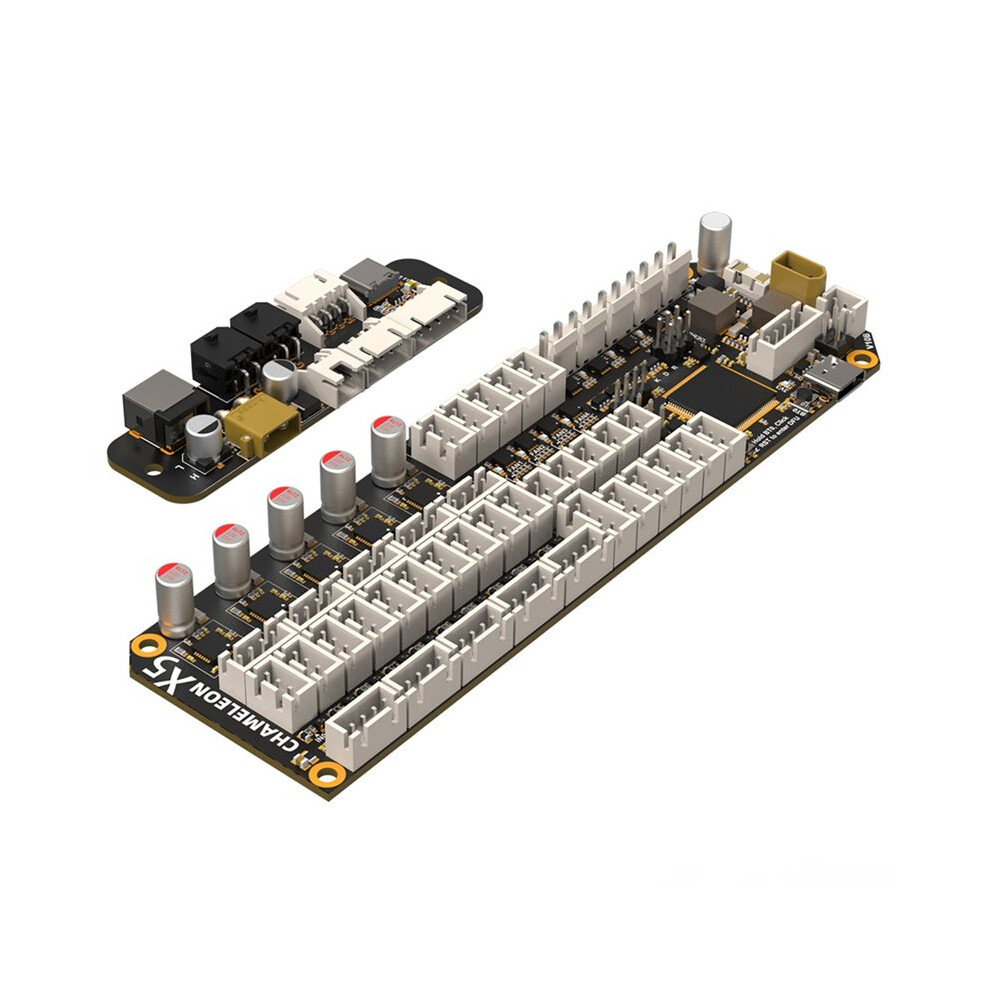

The Chameleon X5 can be used in various multi-color applications requiring multiple motors to work together, such as Type-A, Type-B, and Type-C systems. It also includes the necessary fan/heating control and temperature detection circuits for heating and drying functions.
It is based the STM32F407VET6 microcontroller and TMC2209 stepper motor driver chip, with each channel equipped with the necessary I/O interfaces for filament input/output monitoring and status indication (buttons and LEDs) to ensure stable feeding.
The optional 5-channel heating and drying function includes dedicated interfaces for fan control and heating elements, as well as NTC temperature measurement, and also supports I2C sensors, such as temperature and humidity sensors.

Features:
Based STM32F407VET6 (168MHz Cortex-M4)
Supports CANBUS & USB communication

* Onboard Power Supply:
Input: 24V @ 15A max
Onboard - power supply: 12V @ 3A, 5V @ 3A, 3.3V @ 0.8A

*5-channel Material Feeding Support:
5 onboard TMC2209 drivers, supporting 5 stepper motors
10 general-purpose I/O pins for material insertion/extrusion monitoring
5 dual I/O connectors for buttons and LED indicators (with level shifting)

* 5-channel Hot Air Drying Support:
5x fans, support 2/3 fans, 12V/24V selectable, 2A Max
5x heating interfaces, 5A Max
5x NTC temperature sensor interfaces for temperature detection
1x I2C interface for temperature and humidity sensors

4x general-purpose I/O pins, use for external buffers
2x Neopixel RGB interfaces for indication or lighting
Onboard BOOT0 and RST buttons
Independent input interface board

Note: Please contact customer service if you would like to learn more.
Color: Black
Material: PCB

Package Contents:
1 * Motherboar
