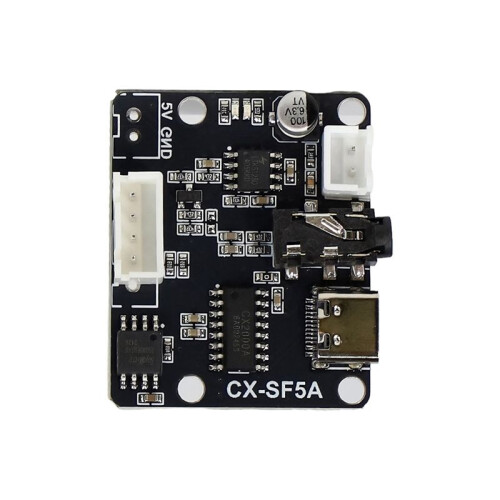

CX-SF5A Serial Port Control Voice Playback Module Board MP3 Music Player 5W MP3 Playback Serial Control Voice Module B

CX-SF5A Serial Port Control Voice Playback Module Board MP3 Music Player 5W MP3 Playback Serial Control Voice Module B Beskrivelse

1. 3.3-5.2VDC power supply, 3.7V and above is recommended
2. Support MP3, WAV decoding format, support audio file sampling rate to 48KHz

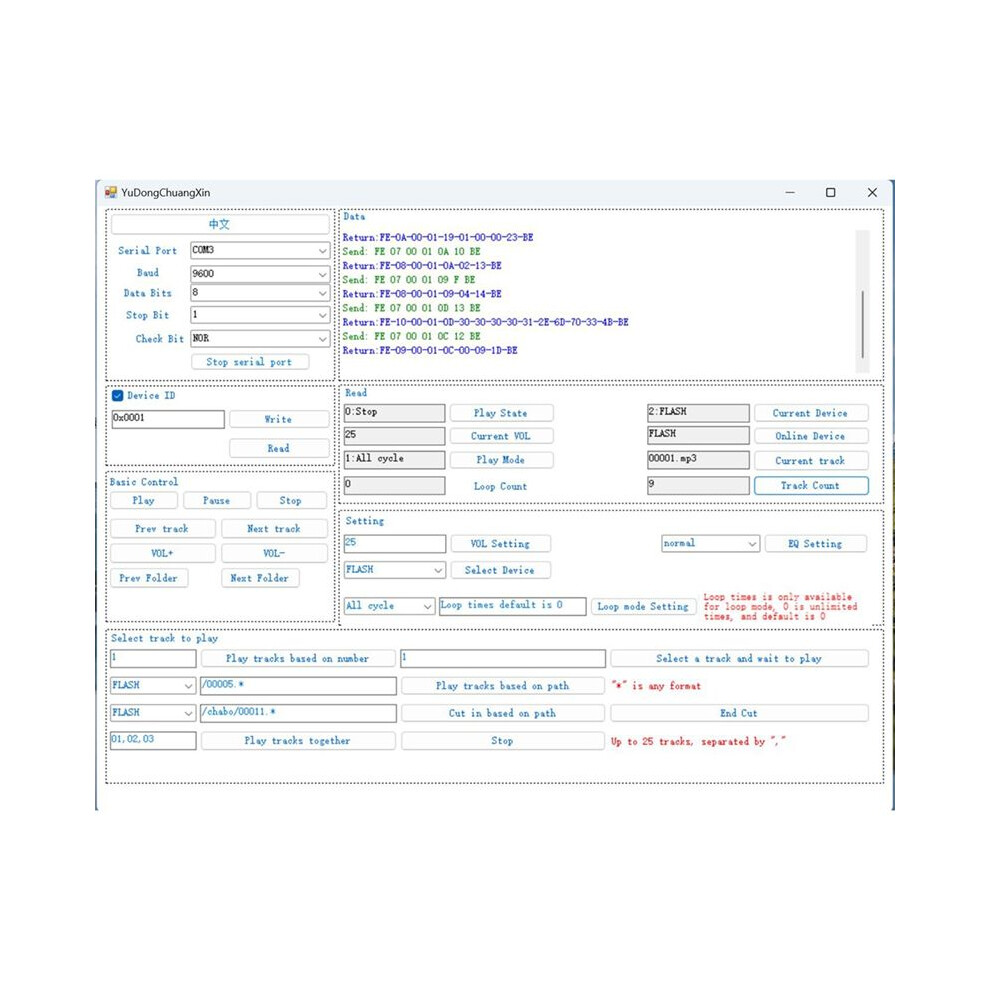

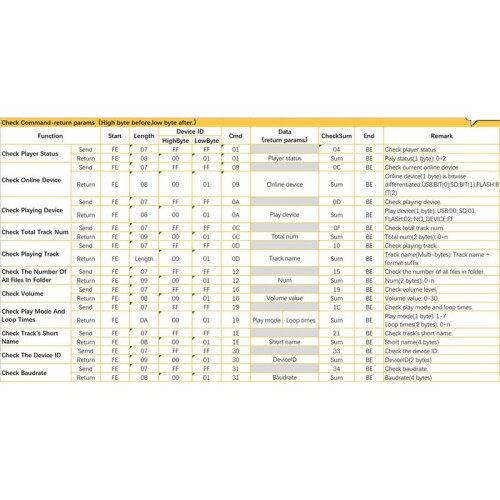

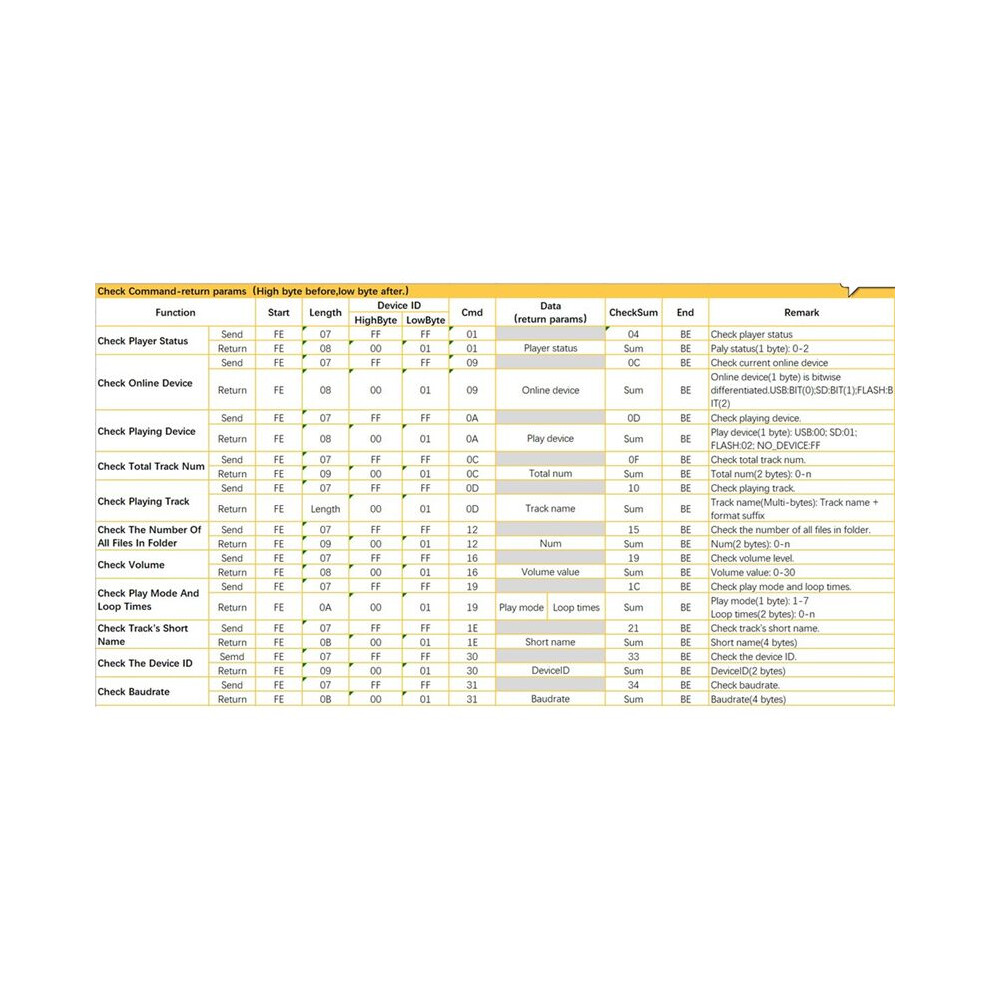

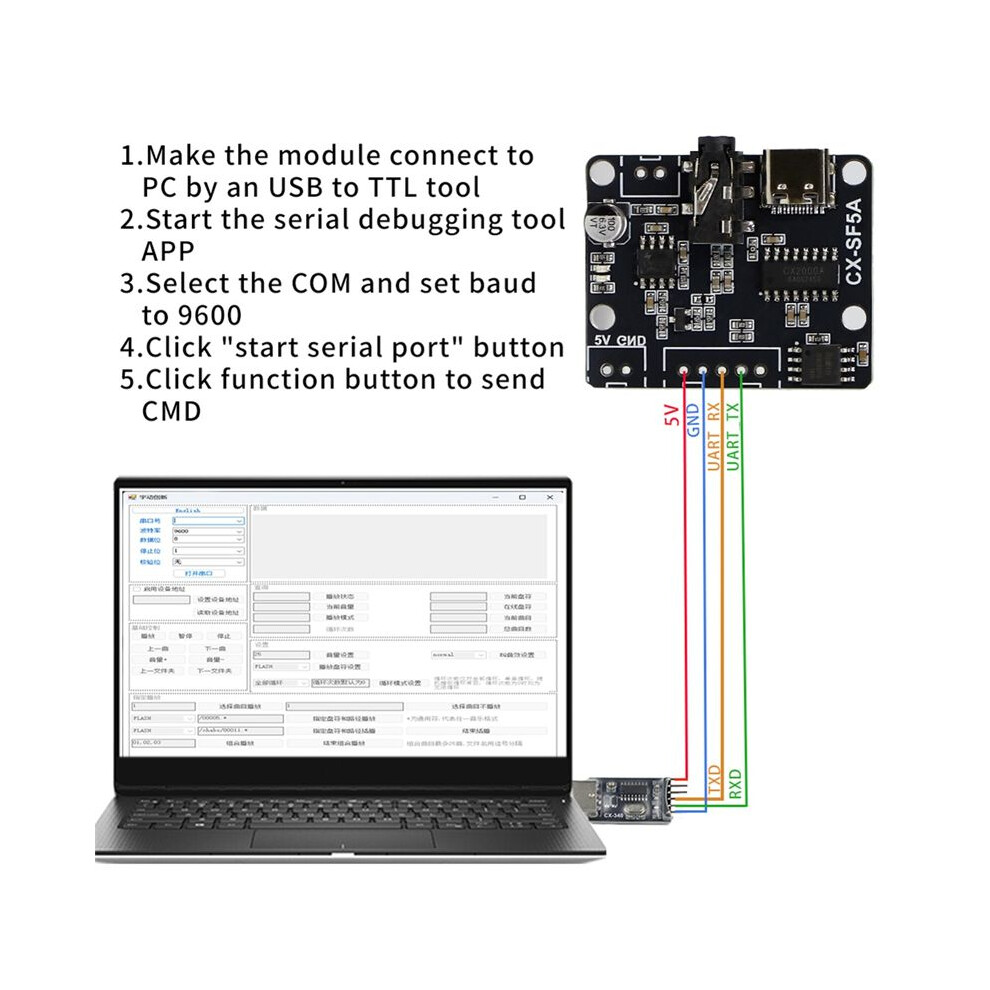

3. Support UART asynchronous serial port control, support , pause, and down songs, volume increase and decrease, EQ mode , song selection, specified path , specified path insert and other functions
4. Comes with 5W Class D amplifier, can directly drive 3W-5W speakers
5. Comes with 32Mbits (4MBytes) storage

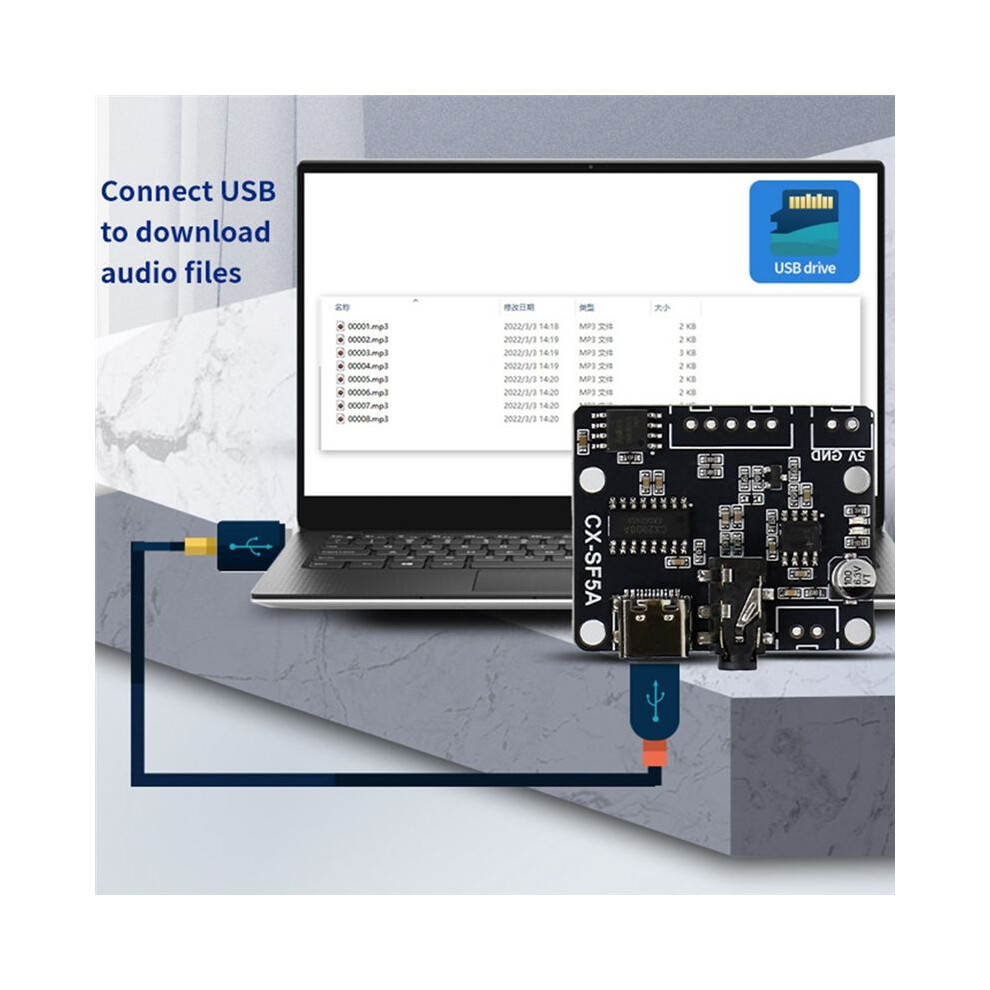

6. Can connect to the computer via USB data cable to change audio files

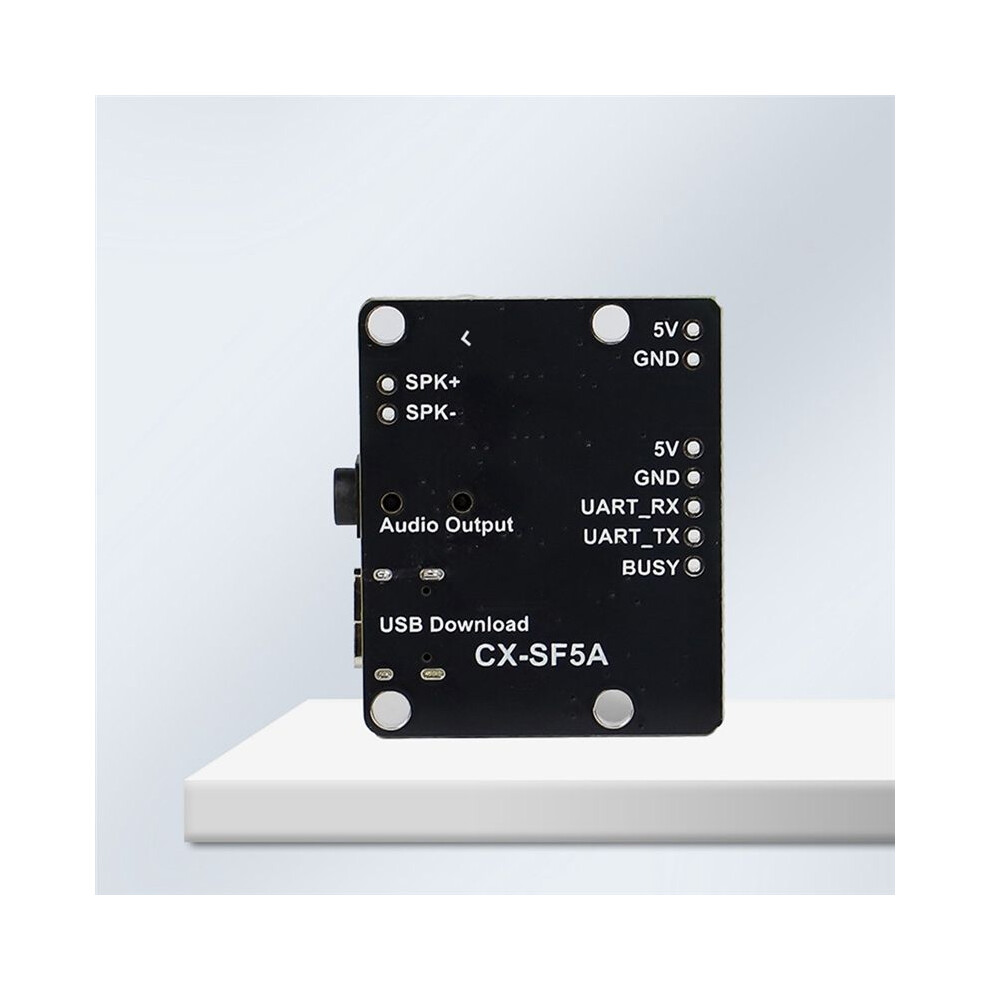

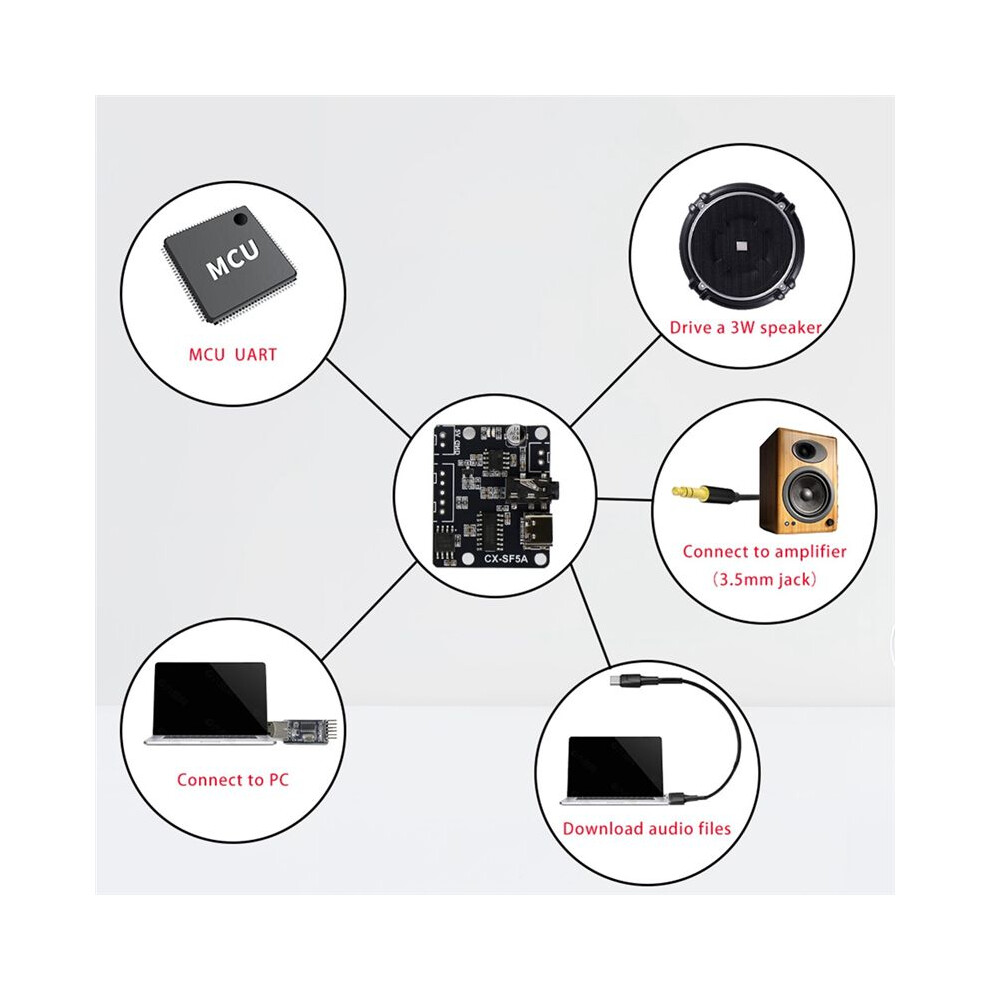

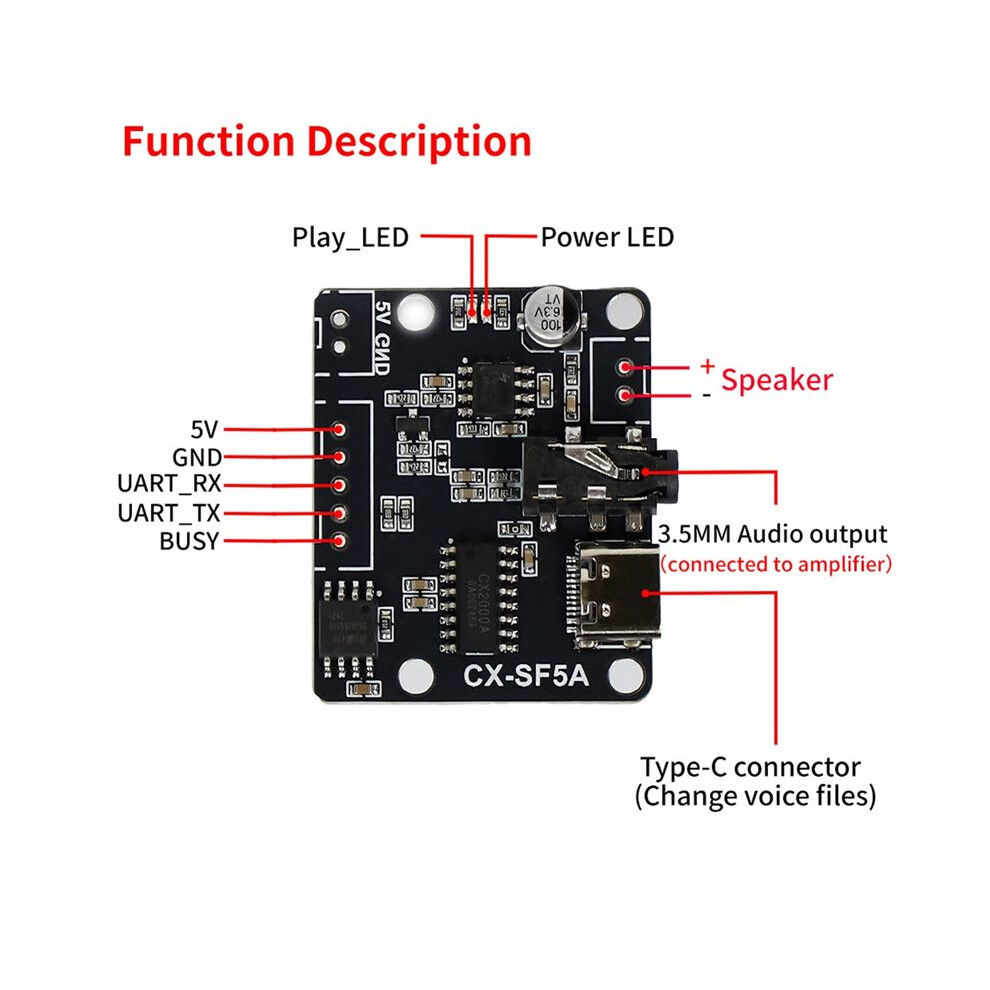

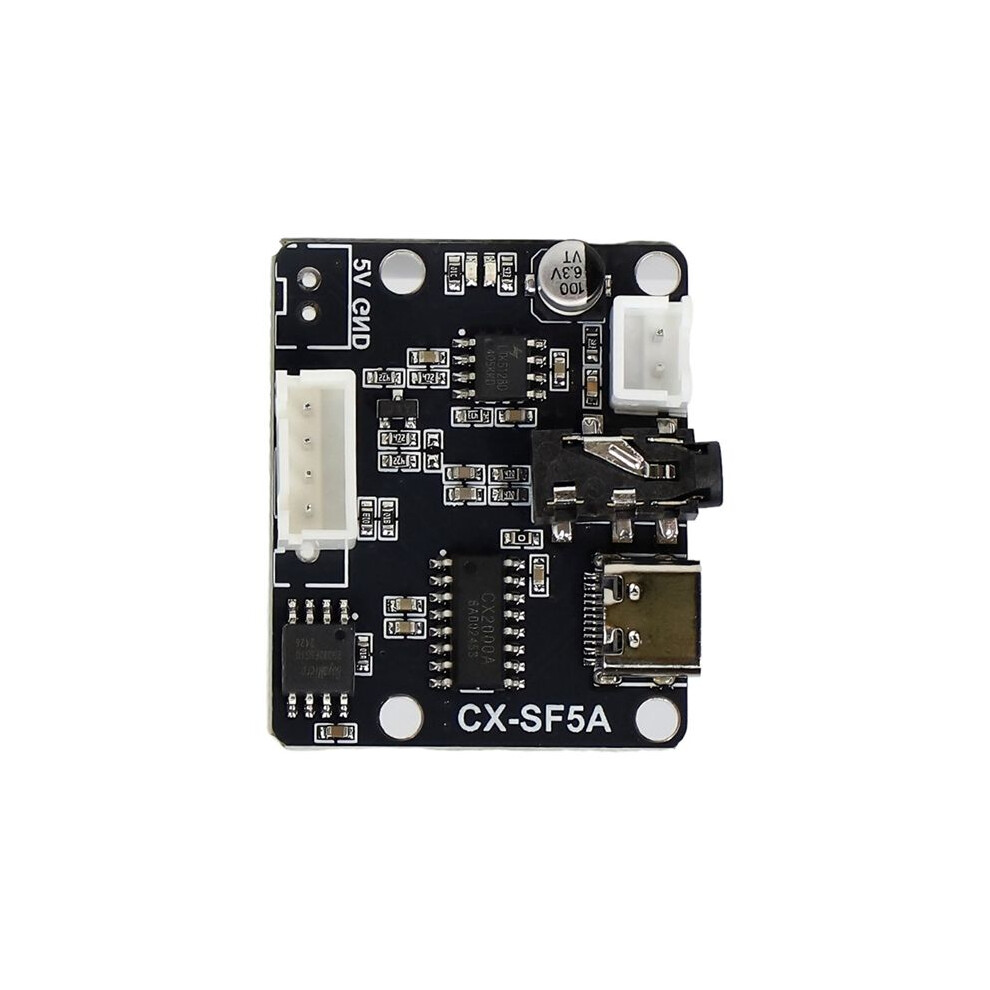

CX-SF5A is a compact serial port controlled voice playback module that supports MP3 and WAV decoding formats.
3.3-5.2VDC wide voltage power supply, direct drive 4-8Ω speakers, maximum output power 5W.
Onboard 32Mbits (4MBytes) flash storage, connected to the computer via a USB data cable to change audio files, suitable for many scenarios.
Colour:black
Material:PCB
style:B Welding terminal board
Tips: The product may be updated constantly ,Due To Different Batches, The Actual Product May Have Slight Differences Or Color Differences, Which Does Not Affect Use

Package Contents:
1 * Voice Playback Module Board
