DC3.5-12V Relay Remote Control 433Mhz Small Contact NO COM NC Learning Button Wireless Remote Control

DC3.5-12V Relay Remote Control 433Mhz Small Contact NO COM NC Learning Button Wireless Remote Control Beskrivelse

Working Voltage: DC3.5V-DC12V (Wide Range Working Voltage DC3.7V 4.5V 5V 6V 9V 12V all is ok) (it can work with Power / Rechargeable lithium battery / Rechargeable Pal)
Max Load: 1A (have better Load less than 700ma)
Quiescent Current: 4ma
Relay Working Current: 20-30ma
Working Mode: Momentary Toggle Latched 5s10s15s Momentary delay off

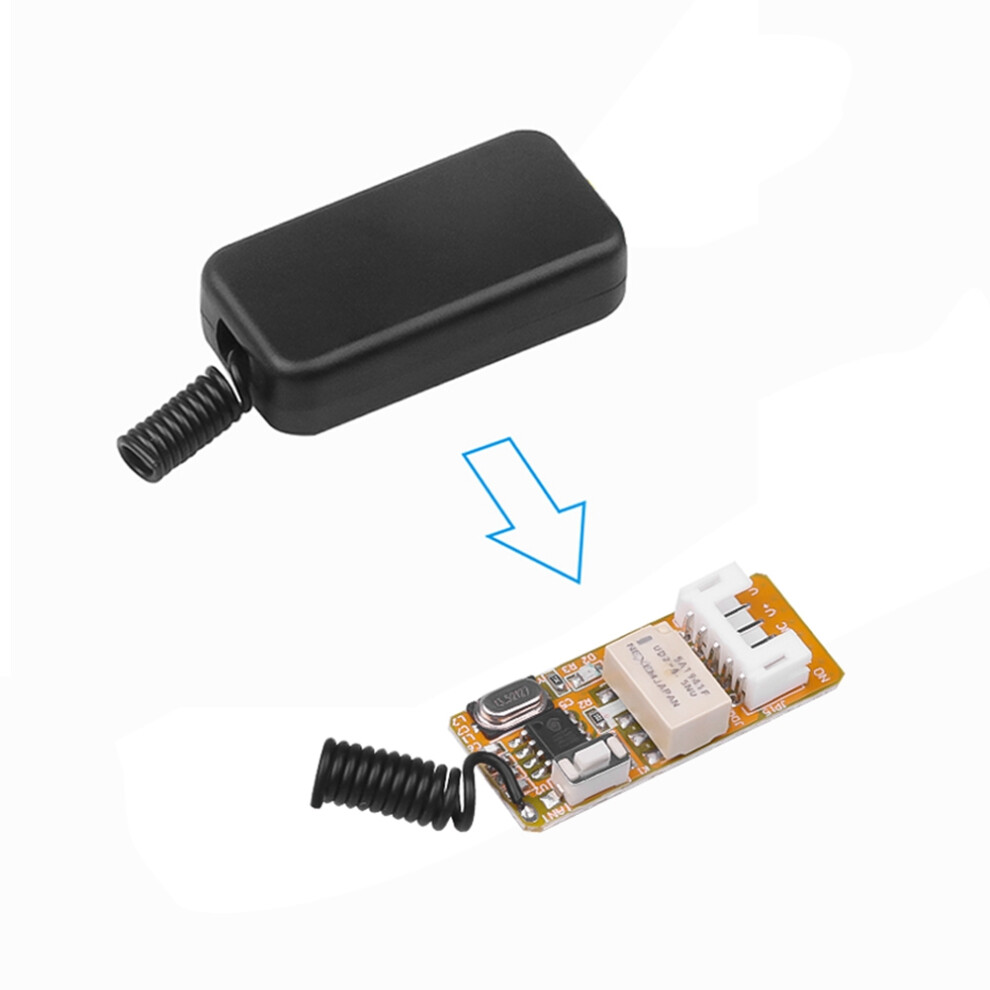

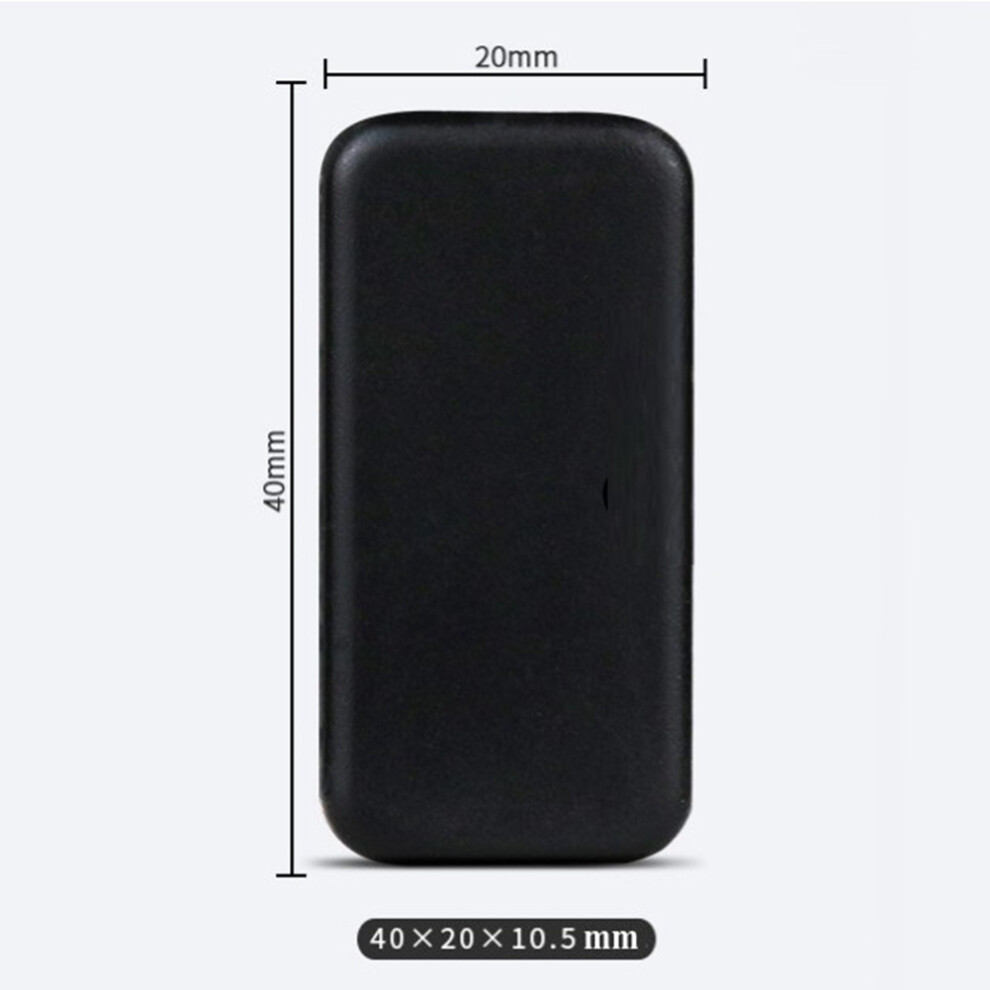

PCB : 34 x 14 x 7.4mm Case:39.5 x 20 x 10.5mm
Encoding Type: Learning Dot to add Transmitter.Learning dot to change Momentary Toggle Latched Momentary delay off
Normally Open Port (NO) Common Port (COM) Normally Close Port (NC)
Input DC3.5V-DC12V Output 0V Switching Value use Relay NO COM NC
Momentary----- Press and Hold---, Release----OFF
Toggle-------Press one ----. Press it again ----OFF
Latched--------Press A ----, Press B-----OFF
Momentary 5s Delay OFF----- Press and Hold---, Release----5s laterOFF
Momentary 10s Delay OFF----- Press and Hold---, Release----10s laterOFF
Momentary 15s Delay OFF----- Press and Hold---, Release----15s laterOFF

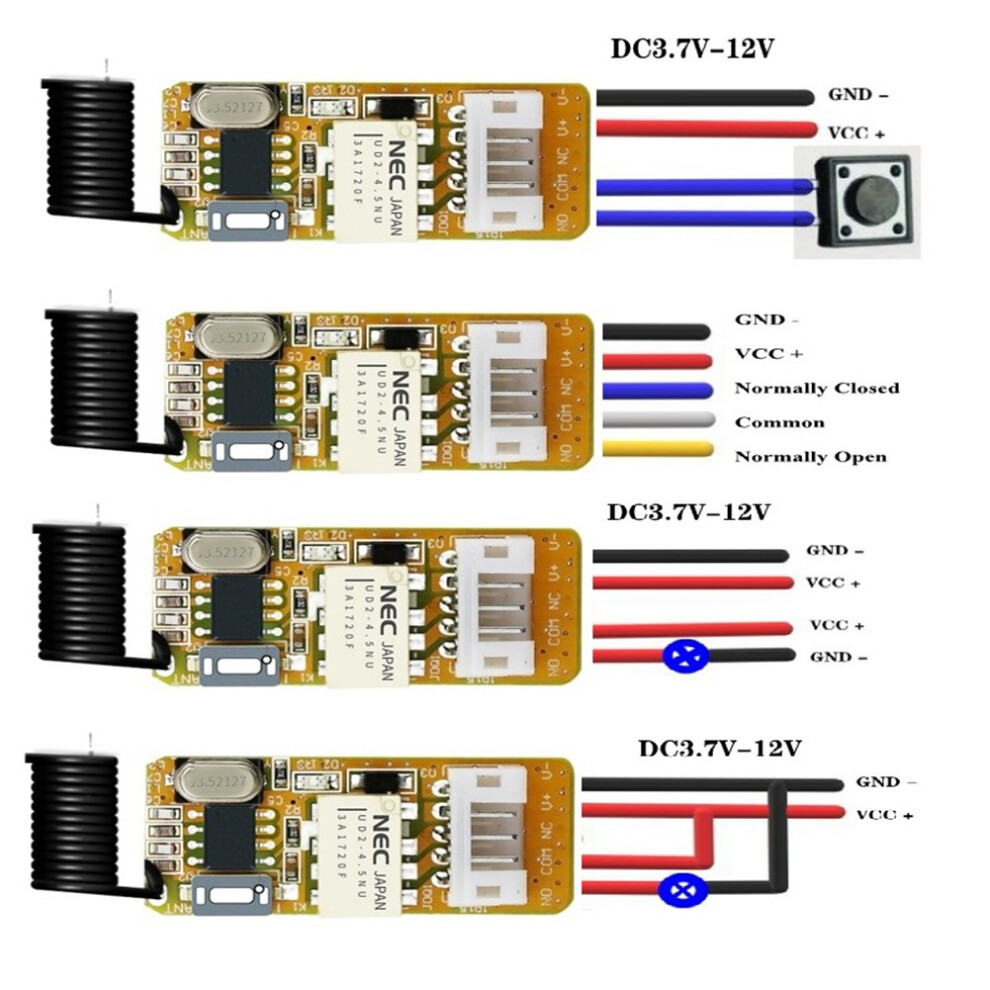

V- -------------------Input GND -
V+ -------------------Input VCC +
NC---------------------Normally Close
COM------------------Common
NO---------------------Normally Open
Latched---------Press the learning button for 3 , LED indicator , then Press the transmitter. LED indicator flash
Momentary Toggle Latched adjusted by learning Button

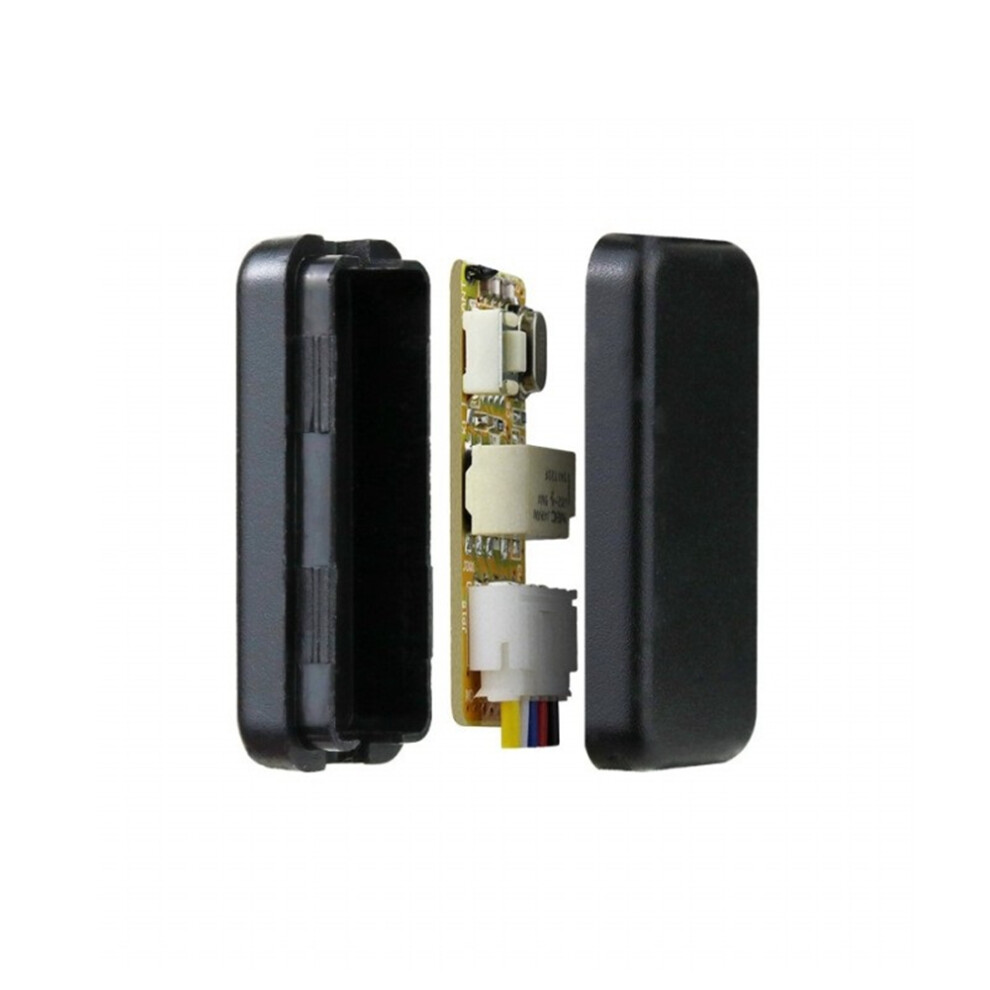

Material: PCB+plastic
colour: black

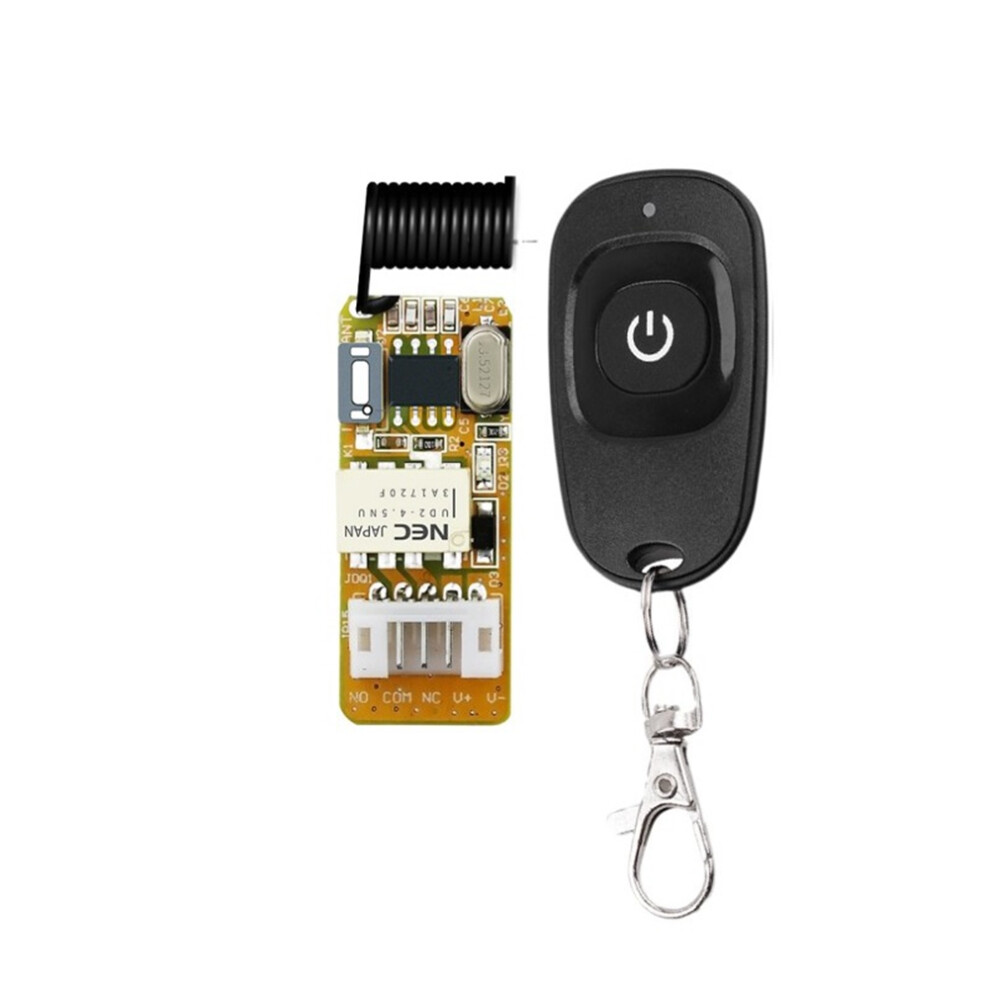

Package Contents:
1 x Receiver
1 x Remote(2 CR2016 button batteries not included)
