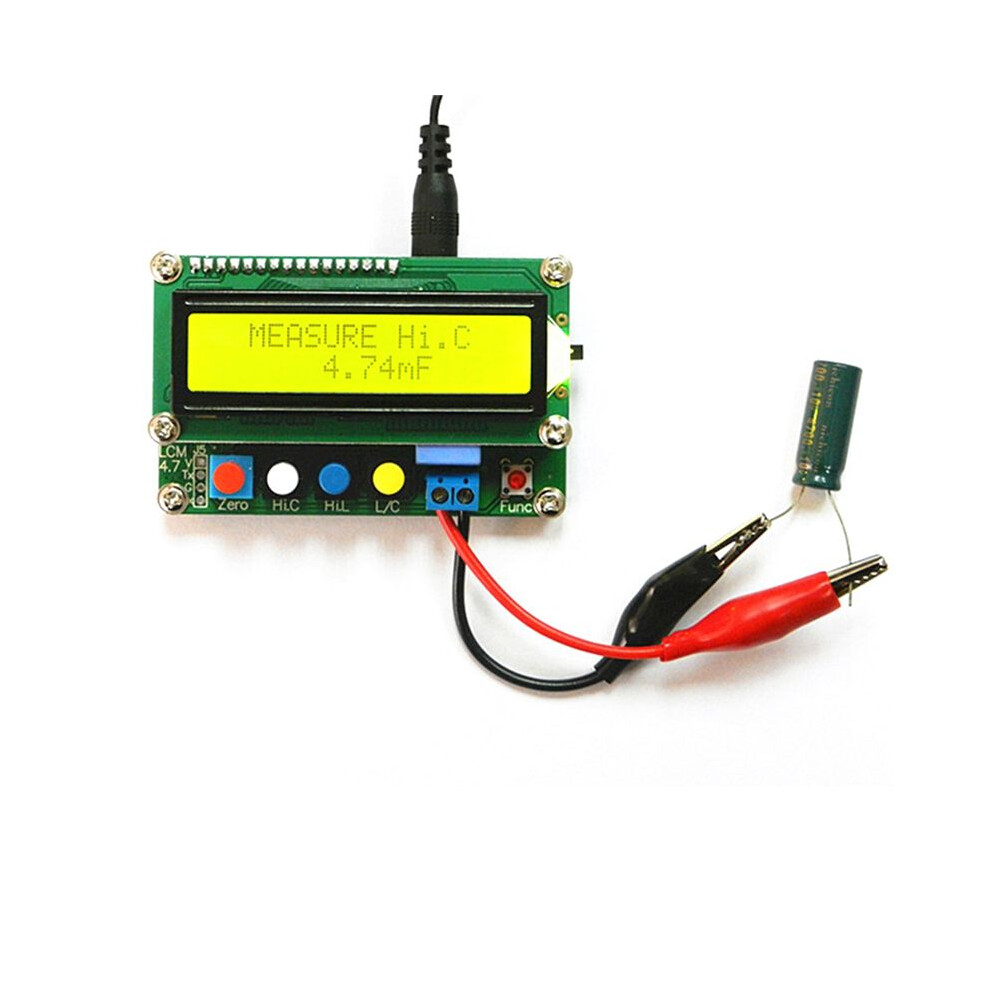

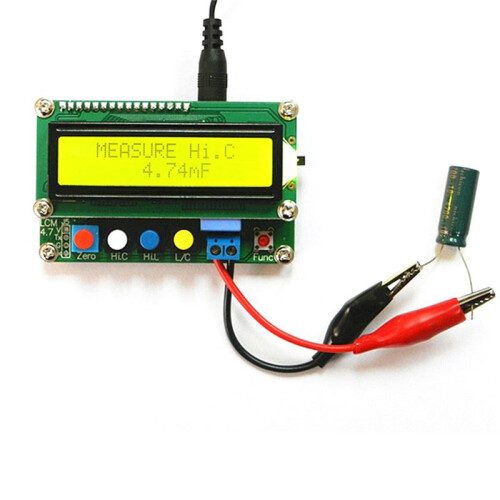

Digital Capacitor Meter Inductance Capacitance L/C Meter LCD Capacitance Meter Tester USB Interface with USB Cable
På lager
Derfor vil du elske å handle hos OnBuy:
- Tjen Cashback på hvert kjøp – bruk det umiddelbart på din neste bestilling
- Gratis levering – på millioner av varer på hele nettstedet
- Kunder elsker oss – 126,000 anmeldelser med vurderingen “Utmerket”
Prisene for varer solgt av OnBuy inkluderer mva.
Rente- og gebyrfri delbetaling tilgjengelig
Se full produktbeskrivelse og detaljer
Levering: Standard (Gratis) | fre 12. - man 15. jun
Solgt av: CNNOTEPAD
Returer: 30 dager
180 dagers betalingsbeskyttelse
Mest populære i Kretskortinduktorer
Sammendrag
- This meter, on the base of LC resonance principle, adds precise measurement of high-speed micro-controller so that it can measure small inductance and small capacitance precisely
- It can measure capacitance(1pF-100mF) and inductance(1uH-100H)
- It has an advantage over small value testing with precision and minimum resolution
- Flexible online calibration can always maintain measurement accuracy
- The calibrated parameters are completely stored in the FLASH inside of micro-controller, wouldn't lost when power-off
Digital Capacitor Meter Inductance Capacitance L/C Meter LCD Capacitance Meter Tester USB Interface with USB Cable Beskrivelse
This meter, the base of LC resonance principle, adds precise measurement of high-speed micro-controller so that it can measure small inductance and small capacitance precisely
It can measure capacitance(1pF-100mF) and inductance(1uH-100H)
It has an advantage over small value testing with precision and minimum resolution
Flexible online calibration can always maintain measurement accuracy
The calibrated parameters are completely stored in the FLASH inside of micro-controller, wouldn't lost when power-off
Capacitance Measurement(C): Accuracy: 1pF~1uF 1%; 1uF~10uF 5%.
Resolution: 0.01pF.
Inductance Measurement(L): Accuracy: 1uH~100mH 1%.
Resolution: 0.001uH.
Large Inductance Measurement(Hi.L): Accuracy: 100mH~1H 1%; 1H~100H 5%.
Resolution: 0.001mH.
Large Capacitance Measurement(Hi.C): Accuracy: 1uF~100mF 5%.
Resolution: 0.01uF.
Test Frequency: L/C: 500KHz; Hi.L: 500Hz~50KHz.
Measurement Mode of Inductance/Capacitance/Large Inductance: LC Resonance.
Measurement Mode of Large Capacitance: Charging and Discharging.
Display: 1602 LCD.
Effective Display Digits: 4.
Power Supply: USB Interface and Dia. 5.5 Plug.
Power Voltage: 5V.
color:Photo color
Material:PCB
Package Contents:
1 x High Precision L/C Meter
1 x USB Cable
Detaljer
| OPC | PV885MS |
|---|---|
| Merke | Tlily |
| Koder | 4713935074454 (EAN) |
Produktdata
| Height | 4cm |
|---|---|
| Width | 12cm |
| Length | 20cm |
| Weight | 0.127kg |
| Colour | Photo color |
| Material | PCB |
