Digital Voltage Current Meter High Voltage LED Dual Display Meter 7V-100V 100A Meter with Shunt
På lager
Derfor vil du elske å handle hos OnBuy:
- Tjen Cashback på hvert kjøp – bruk det umiddelbart på din neste bestilling
- Gratis levering – på millioner av varer på hele nettstedet
- Kunder elsker oss – 131,000 anmeldelser med vurderingen “Utmerket”
Prisene for varer solgt av OnBuy inkluderer mva.
Rente- og gebyrfri delbetaling tilgjengelig
Se full produktbeskrivelse og detaljer
Levering: Standard (Gratis) | lør 22. - fre 28. aug
Solgt av: CNNOTEPAD
Returer: 30 dager
180 dagers betalingsbeskyttelse
Du vil kanskje også like
Sammendrag
- 1. Electric vehicle dual display voltage and current meter head VC288HV(High voltage version 100A red and blue + shunt)
- 2. Note: For meters above 50A, 100A (including 50A), the current can only be measured after the shunt is correctly connected, otherwise it will burn out.
- 3. High voltage version, DC 7-100V can be tested directly without external power supply.
- 4. High precision, high reliability, suitable for high-end applications
- 5. It has reverse connection protection and will not burn if it is connected reversely.
Digital Voltage Current Meter High Voltage LED Dual Display Meter 7V-100V 100A Meter with Shunt Beskrivelse
1. Electric vehicle dual display voltage and current meter VC288HV(High voltage version 100A red and + shunt)
2. Note: For meters above 50A, 100A (including 50A), the current can only be measured after the shunt is correctly connected, otherwise it will burn out.
3. High voltage version, 7-100V can be tested directly without external power supply.
4. High precision, high reliability, suitable for high-end applications
5. It has reverse connection protection and will not burn if it is connected reversely.
Voltage measurement range: DC7.0V-100V
Current test range: 0-100A
Power supply range: DC7.0V-100V
Voltage error: 0.1%
Current error: 1%
External shunt specifications: 75 milliohms
Working current: Less than 20mA
Refresh speed: about 300mS once
Display mode: double three-digit 0.28inch LED digital tube
Display color: Red +
Lead length: 15cm
Overall dimensions: approximately 48x29x22 mm (lengthxwidthxthickness);
Installation hole: about 46x27 mm
Working temperature: -10-65
Colour:As Shown
Material:ABS

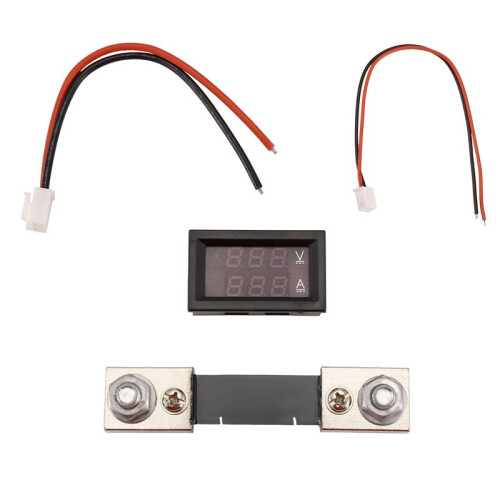

Package Contents:
1x Digital Voltage And Current Meter (With Wire)
1x Shunt
Detaljer
| OPC | PTQ6KK5 |
|---|---|
| Merke | Tlily |
| Koder | 6033987309273 (EAN) |
| Produkt- og sikkerhetsinformasjon |
Produktdata
| Height | 2cm |
|---|---|
| Width | 9cm |
| Length | 13cm |
| Weight | 0.15kg |
| Colour | As Shown |
| Material | ABS |
