DT3 Data Cable Detection Board USB Cable Tester USB Type-C Data Cable Inspection Board USB Cable Checker

DT3 Data Cable Detection Board USB Cable Tester USB Type-C Data Cable Inspection Board USB Cable Checker Beskrivelse

Support for Multiple Data Interfaces: The DT3 data cable test PCB board supports various common data interfaces, including USB, Type-C, Micro-USB, and more. It offers versatility and compatibility with a wide range of data cables.
DIY Supplies: ELECTRICAL
Application: Measuring Set
Product size: 50.00x50.00x9.00mm/1.97x1.97x0.35inch

Description:

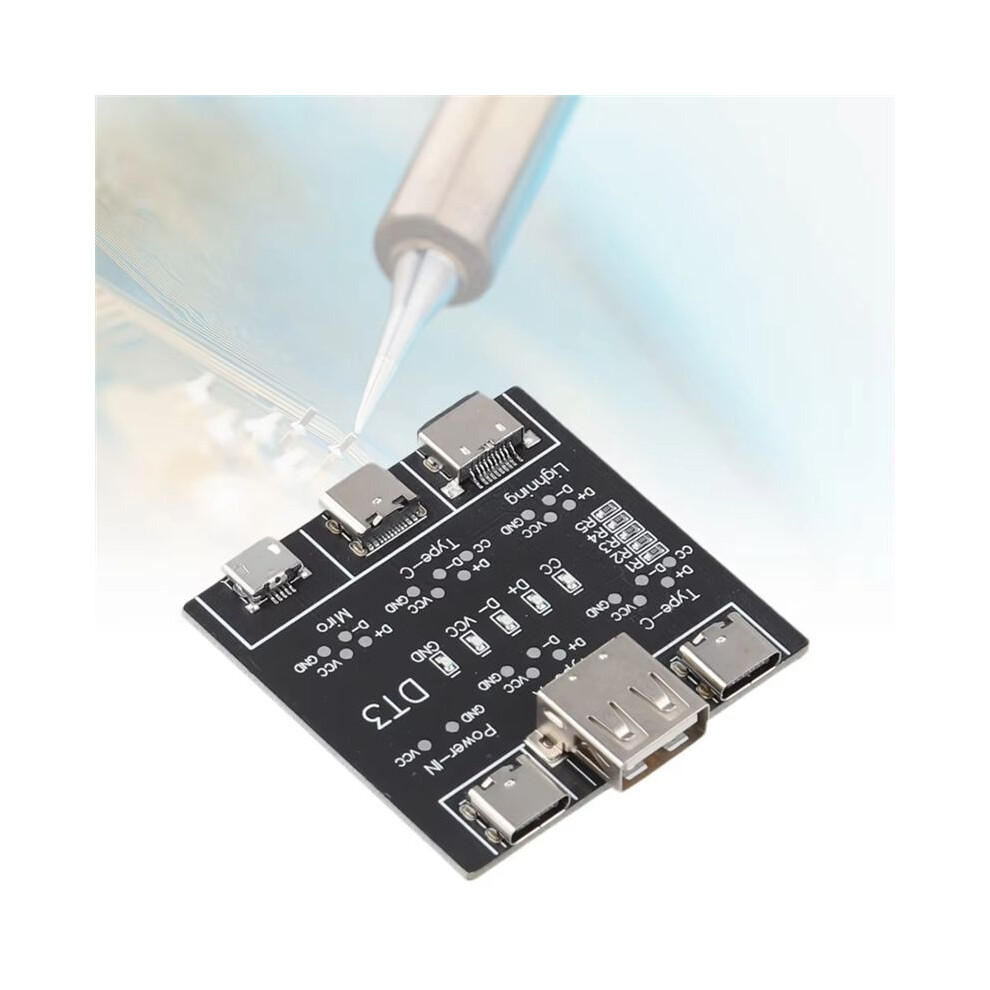

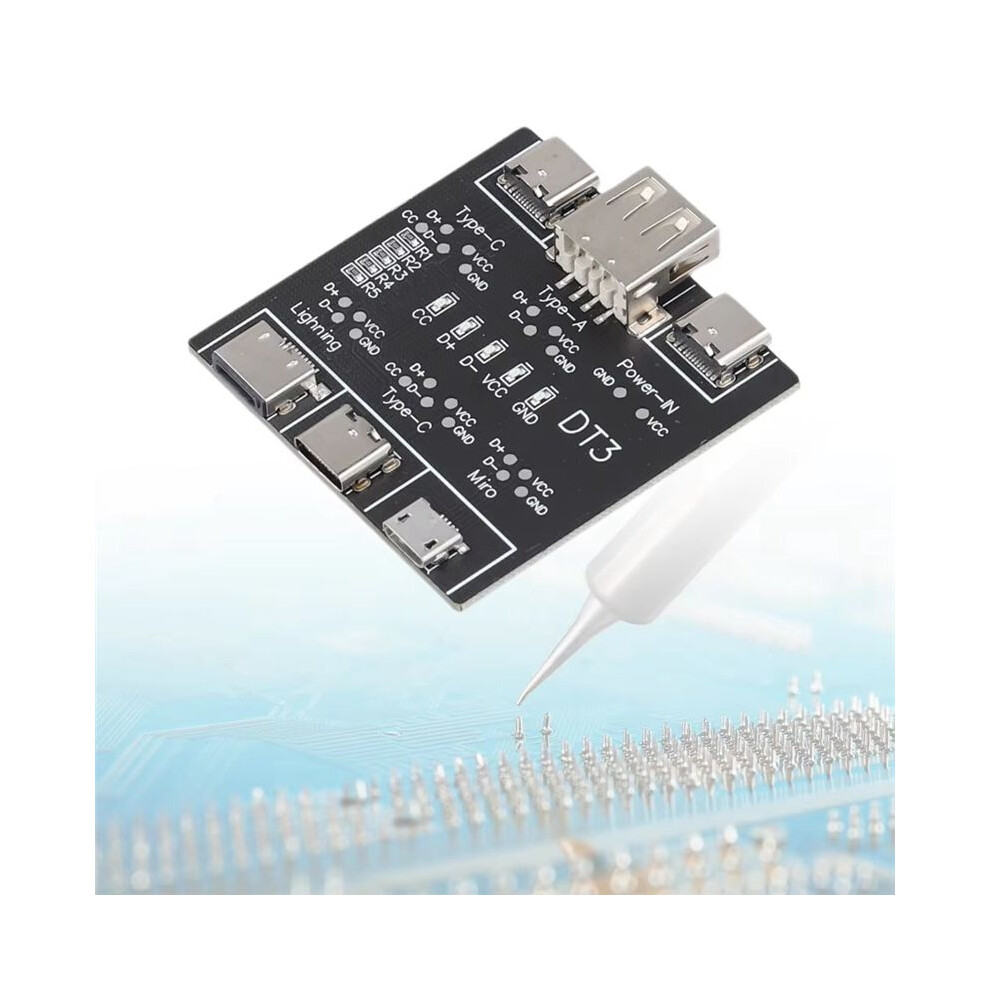

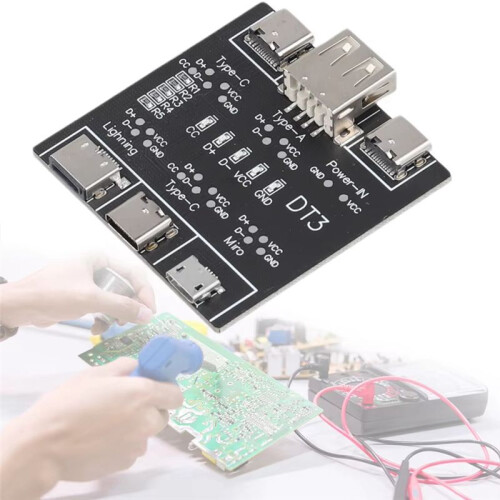

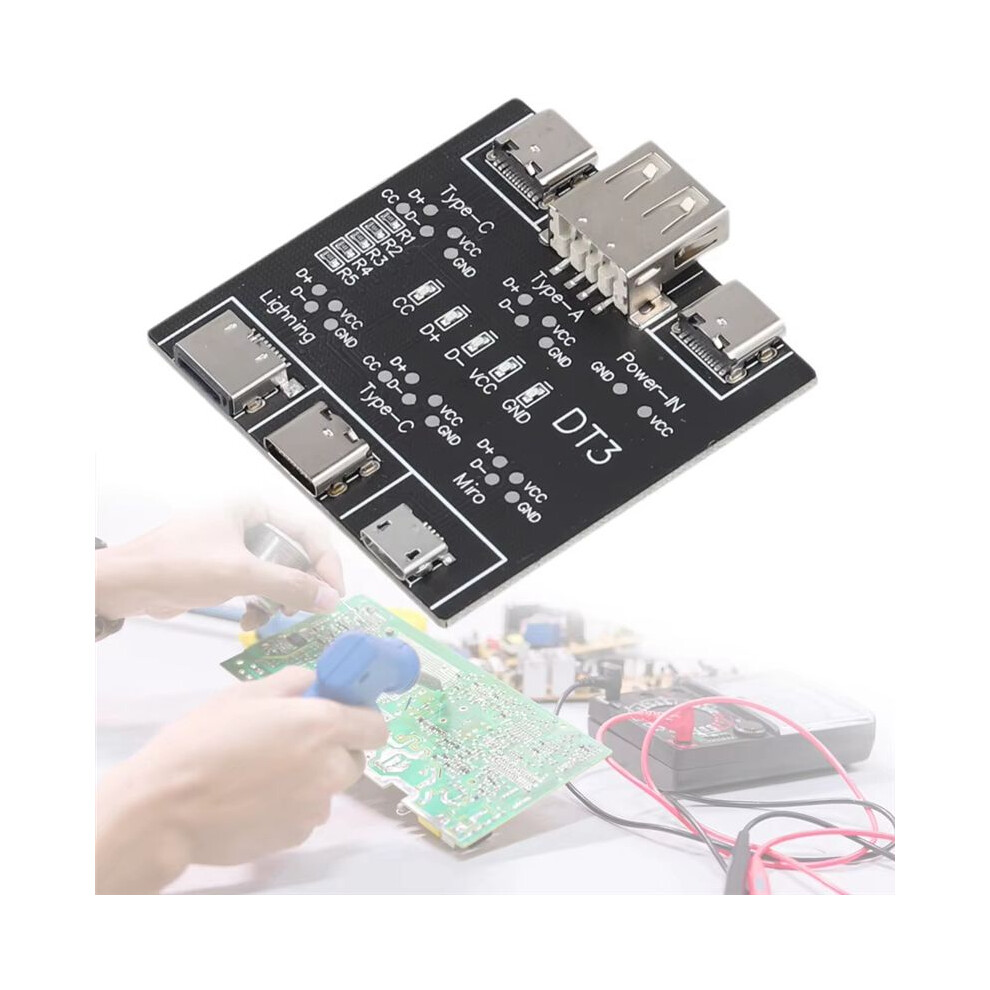

DT3 Data Cable Detection Board
Quick detection of data anomalies
If all indicator lights are , the data cable is normal. If one indicator light is not , it indicates that the data cable is abnormal.
Indicator light description:
If all four indicator lights are , the data cable is normal (dual headed type-c data cables require all five indicator lights to be ).
If VCC or GND is not lit, it indicates that the data cable charging function is abnormal.
D+or D - off indicates abnormal data transmission function.
CC is specifically designed for dual type-c data detection. When testing other data cables, the light does not turn .
Test scope:
Type-c to Type-c
Type-c to for interface
USB to for interface
USB to Type-c
USB to

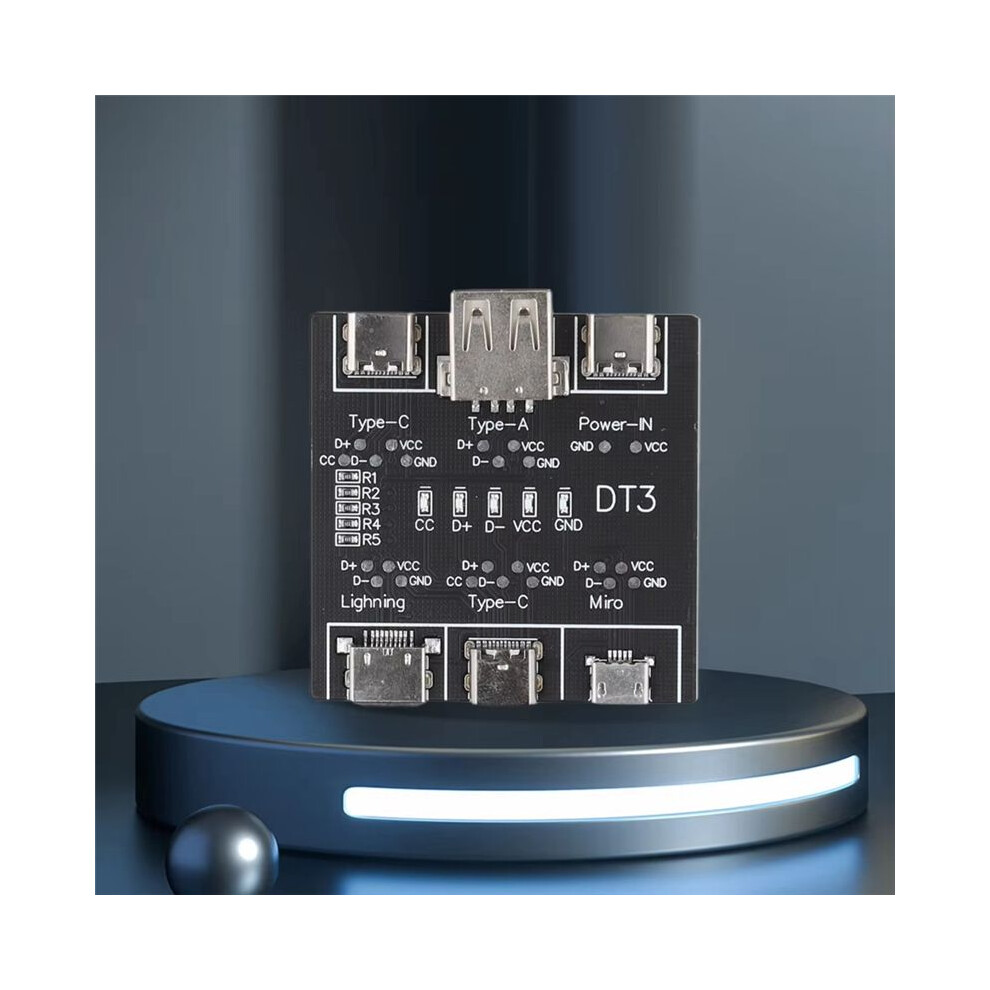

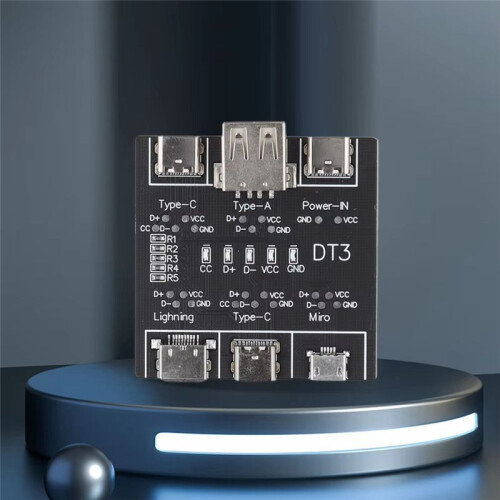

Interface distribution
The operation is simple, the detection is convenient, and the detection efficiency of the data is improved.
Instructions for using the tester:
1. Use a type-c charging cable to plug into the power port to power the product.
2. Insert one end of the data cable to be tested into the corresponding port.
3. Insert the other end of the data cable into the corresponding port.
4. Observe the indicator light.
Colour:Black
Material:ABS

Package Contents:

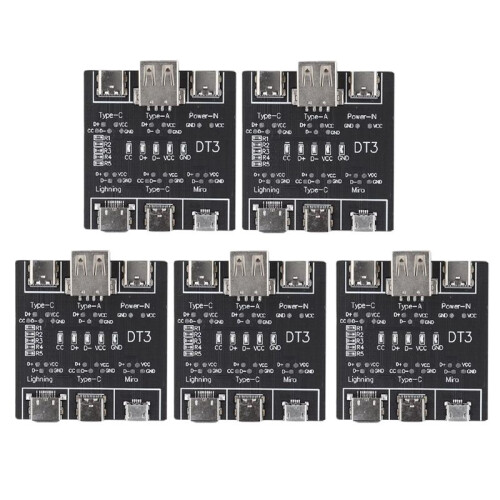

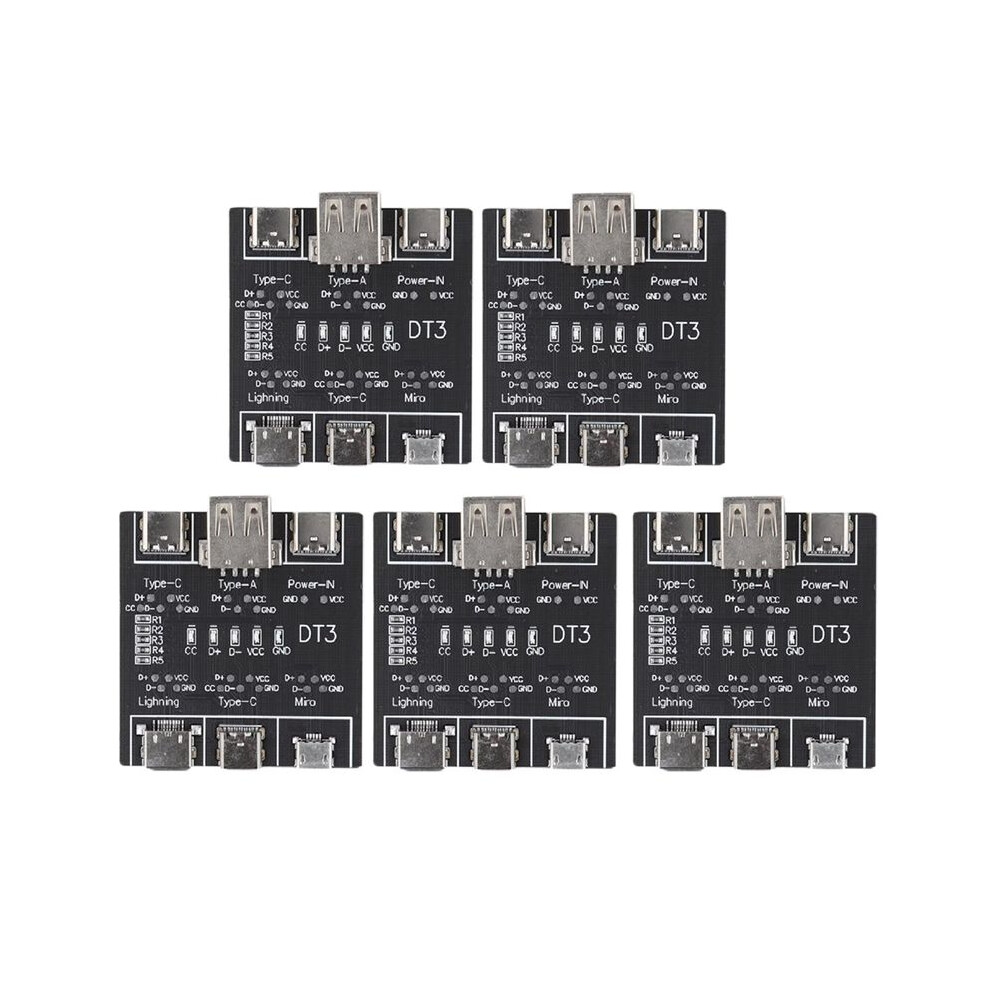

5 * Type-C Data Cable Tester
