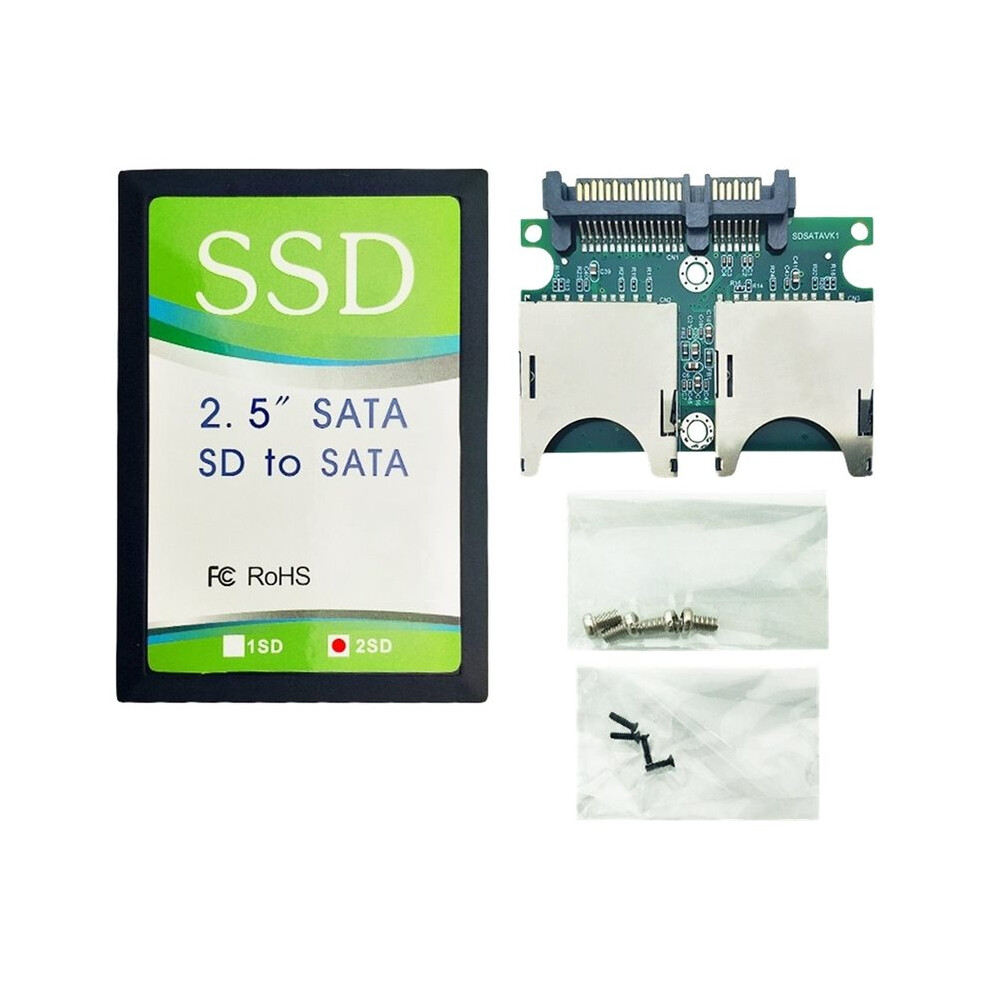

Dual Memory Card to 15Pin+7Pin SSD Card Adapter Converter with Enclosure Self-Made SSD Solid State Drive

Dual Memory Card to 15Pin+7Pin SSD Card Adapter Converter with Enclosure Self-Made SSD Solid State Drive Beskrivelse

This adapter card converts two cards into an SSD with a 15-pin + 7-pin interface. supports high-speed cards. It utilizes the FC1307A and JM20330 chipsets. Compatible with DOS, WinCE, Win98/XP/Vista/NT, Win7/8/10, and Linux operating systems. ( card not included).
Functions as an industrial-grade, hot-swappable SSD, allowing cards to serve as portable storage drives for flexible data mobility. Once converted, the drive can function as either a system boot drive or a data storage drive.
Supports 0 configuration with two cards (combining their capacities); using identical cards with matching performance specifications is recommended. Single-card operation in the first slot is also supported.
The maximum supported capacity for a single card is currently 128GB (2 cards = 256GB), theoretically with no upper limit. Please test a large-capacity card before purchasing. Supports GEN1 and GEN2, with maximum data transfer rates of 150MB/s and 300MB/s respectively.
Supports -mounted openings for a compact size. Simply cut a slot in the user's device chassis opposite the card slot to achieve card mobile storage. Especially suitable for embedded applications and industrial control fields.

NOTE: card not included.
Working in conjunction with the BIOS and operating system, this device supports and card hot-swapping, offering plug-and- functionality without requiring any drivers. When hot-swapping the card, ensure the BIOS, operating system, and applications are compatible.
Avoid hot-swapping while reading or writing data to prevent data loss. Cold-swapping is generally recommended for data transfer.
Precautions:
① Before using this product, insert the card into the corresponding slot, then connect the power and data cables to the host device. After
