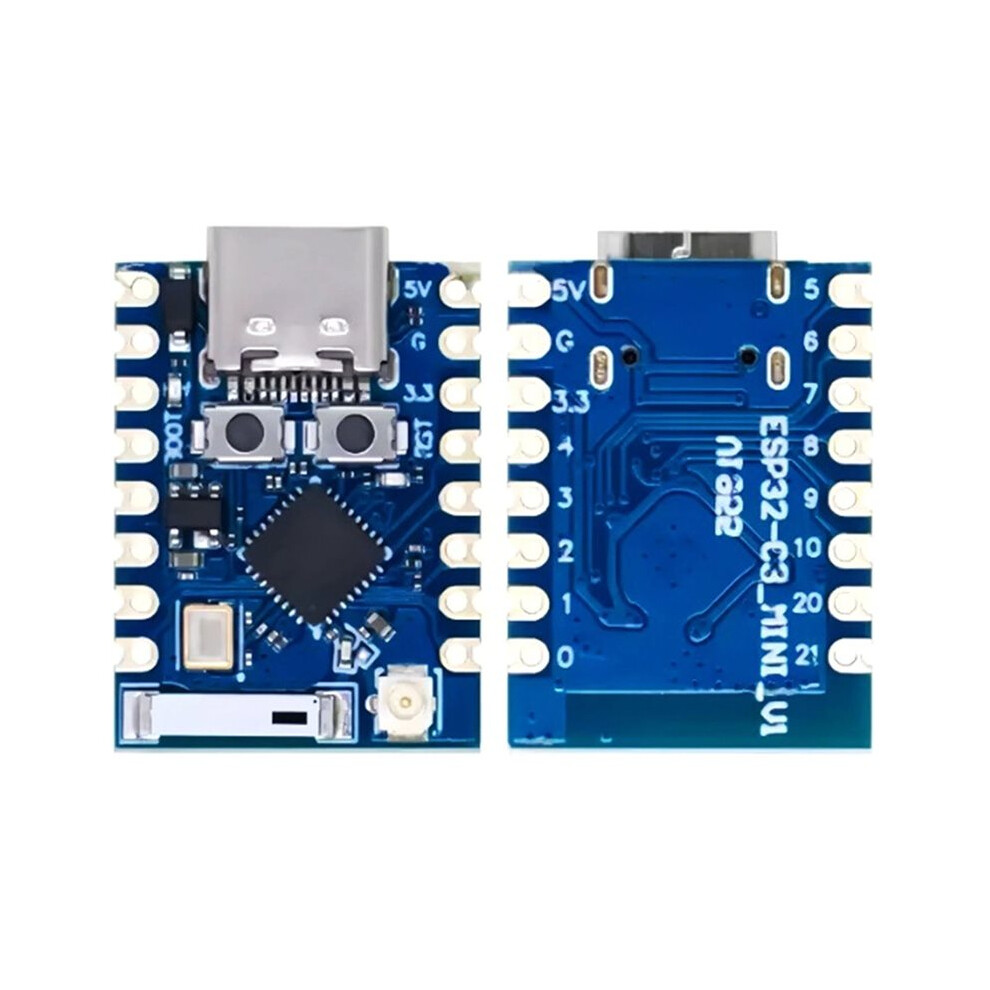

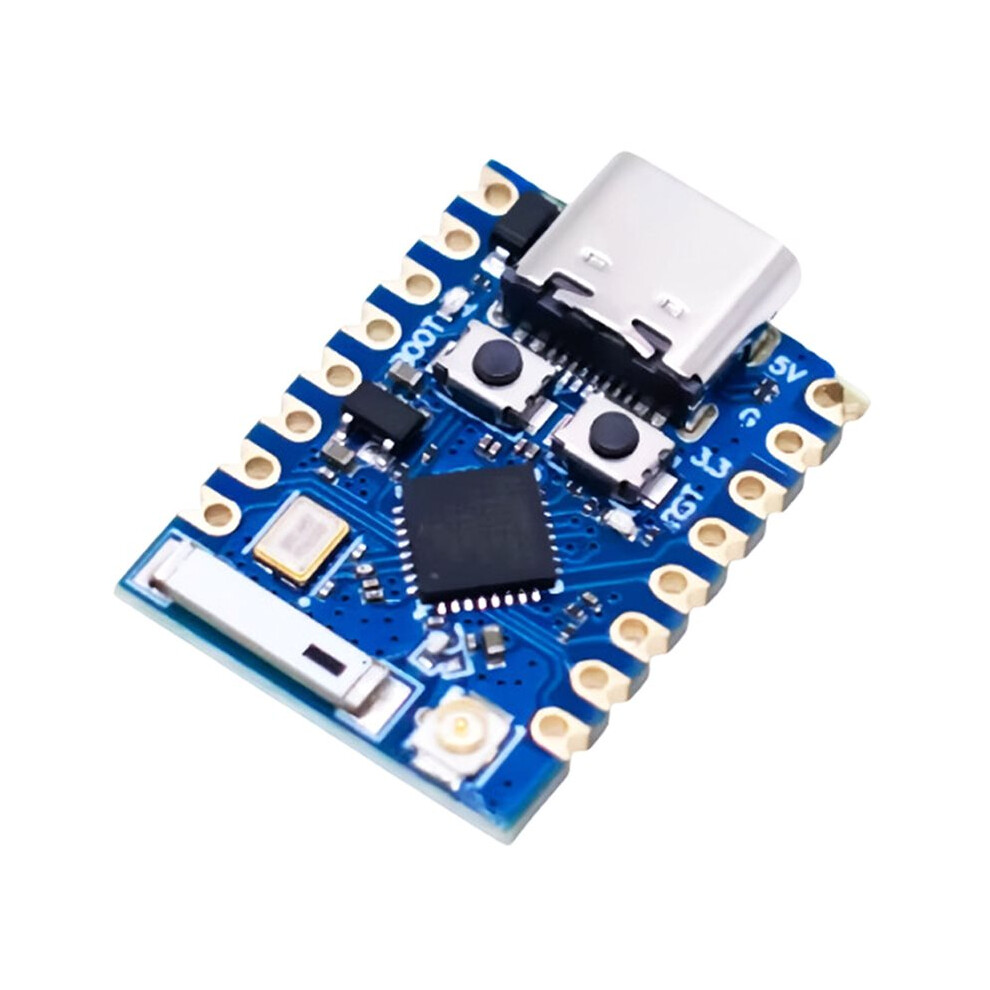

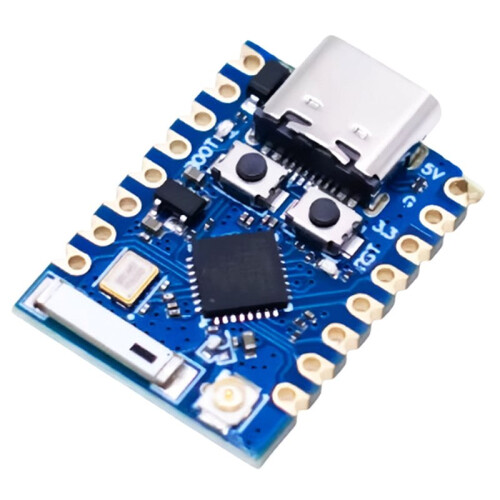

ESP32-C3 PRO Development Board Onboard ESP32-C3FH4 Chip Module WiFi Development Board Module

ESP32-C3 PRO Development Board Onboard ESP32-C3FH4 Chip Module WiFi Development Board Module Beskrivelse

Powerful CPU: ESP32-C3, 32-bit RISC-V single-core processor, running to 160 MHz; WiFi: 802.11b/g/n protocol, 2.4GhHz, support Station mode, SoftAP mode, SoftAP+Station mode, hybrid mode : 5.0; Ultra-low power consumption: deep sleep power consumption of about 43μA Rich board resources: 400KB , 384KB ROM built-in 4Mflash.
Chip model: ESP32C3FN4 Ultra-small size: As small as the thumb (22.52x18mm) classic shape, suitable for wearables and small projects;

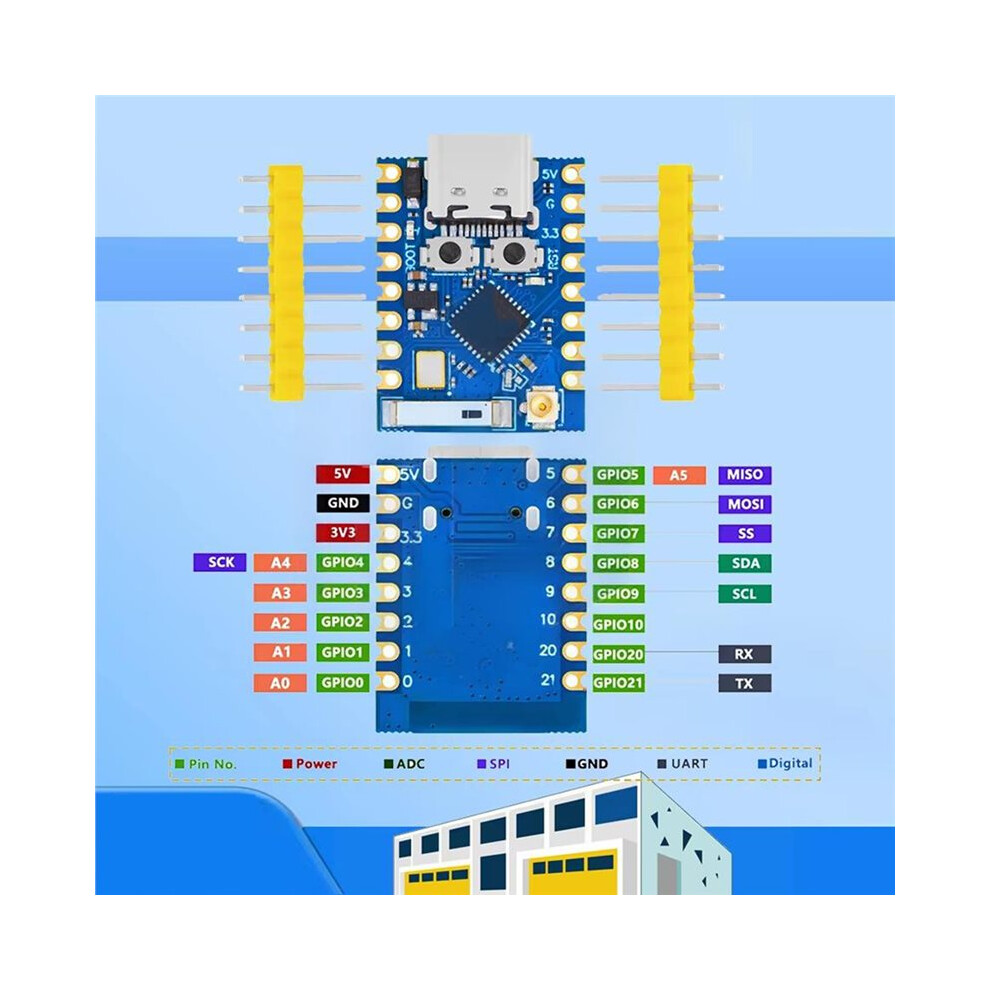

Reliable security features: Encryption hardware accelerators that support AES-128/256, hashing, RSA, HMAC, digital signatures, and secure startup Rich interface: 1xI2C, 1xSPI, 2xUART, 11xGPIO(PWM), 4xADC Single-sided components, surface mount design Onboard LED light: GPIO8 pin
It comes with a ceramic antenna and IPEX antenna base to enhance signal strength for wireless applications. It also has a small and delicate form factor combined with a single-sided surface mount design. It is equipped with a wealth of interfaces, with 11 digital I/ OS that can be used as PWM pins and 4 analog I/ OS that can be used as ADC pins.
It supports four serial interfaces: UART, I2C and SPI. The board also has a small reset button and a boot loader mode button. Combined with the above features, the ESP32C3SuperMini is positioned as a high-performance, low-power, cost-effective iot development board for low-power iot applications and wireless wearable applications.

Color:
Material: plastic

Package Contents:
1*development board
