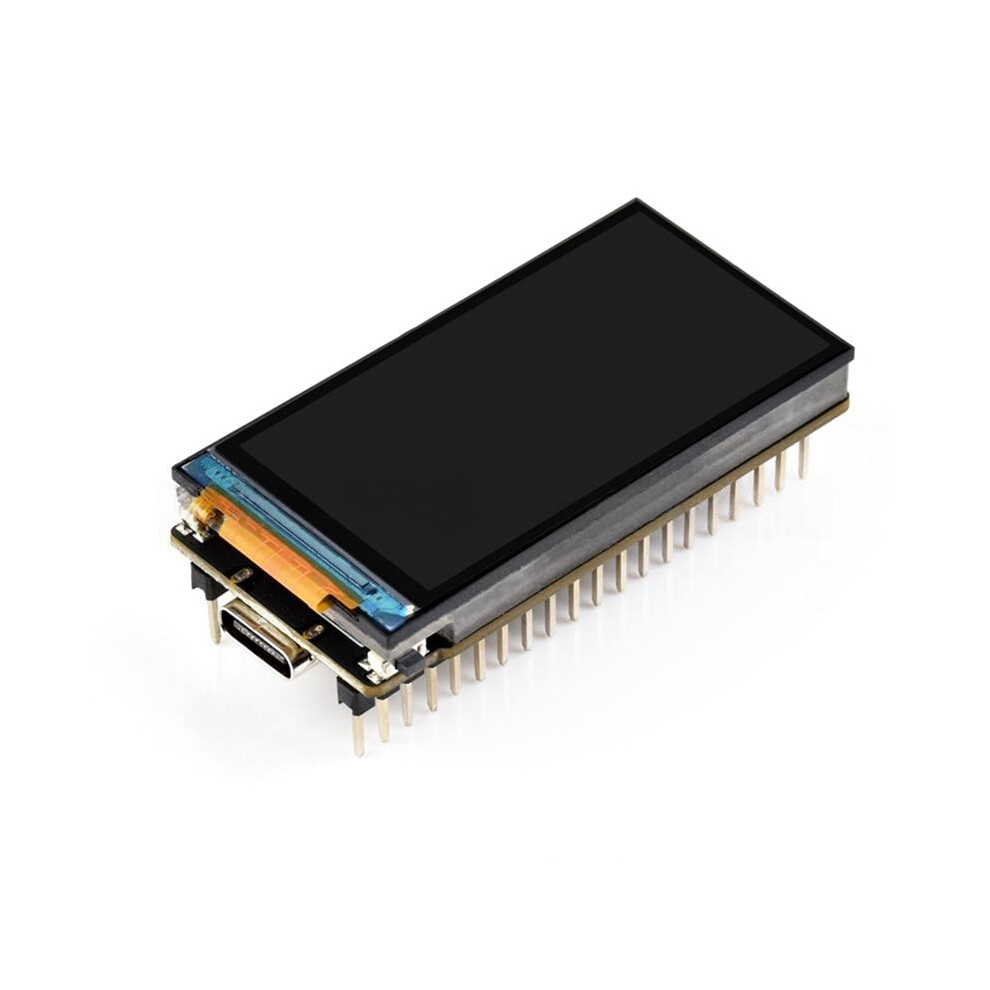

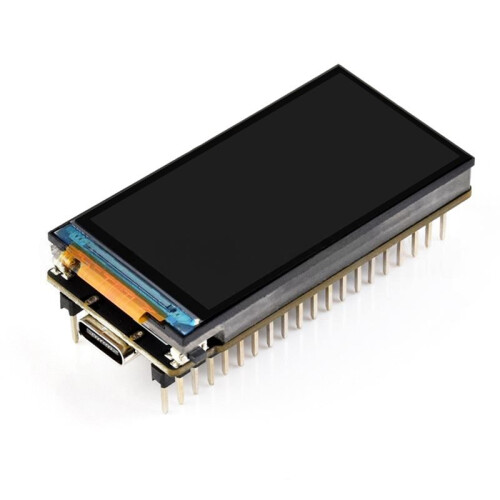

ESP32-S6-LCD 1.9-Inch LCD Screen WiFi Development Board IoT Display Module for DIY Projects ESP32-C6-LCD

ESP32-S6-LCD 1.9-Inch LCD Screen WiFi Development Board IoT Display Module for DIY Projects ESP32-C6-LCD Beskrivelse

Powered by the ESP32-C6 high-performance 32-bit RISC-V processor, with a clock frequency of to 160 MHz

Supports 2.4 GHz Wi-Fi 6 (802.11 ax/b/g/n) and 5 (LE), featuring an onboard antenna
Includes built-in 512 KB , 16 KB LP , and 320 KB ROM, along with an external 8 MB Flash memory
Features an onboard 1.9-inch LCD screen with a resolution of 170 x 320 pixels and 262K colors, capable of clearly displaying color images
Equipped with an onboard QM18658 6-axis Inertial Measurement Unit (3-axis accelerometer and 3-axis gyroscope), enabling motion attitude detection for expanded application possibilities
Includes an onboard USB Type-C port, which serves for both power supply and firmware uploading/debugging, facilitating convenient development
Features an onboard MX1.25 connector for 3.7V lithium battery charging and discharging

Specifications
Due to different batches, there may be differences in product appearance and printed text, which will not affect use
Color: As Shown
Material: LCD
Specification: Non-Touch

Package Contents:
1*ESP32-C6 Development Board
