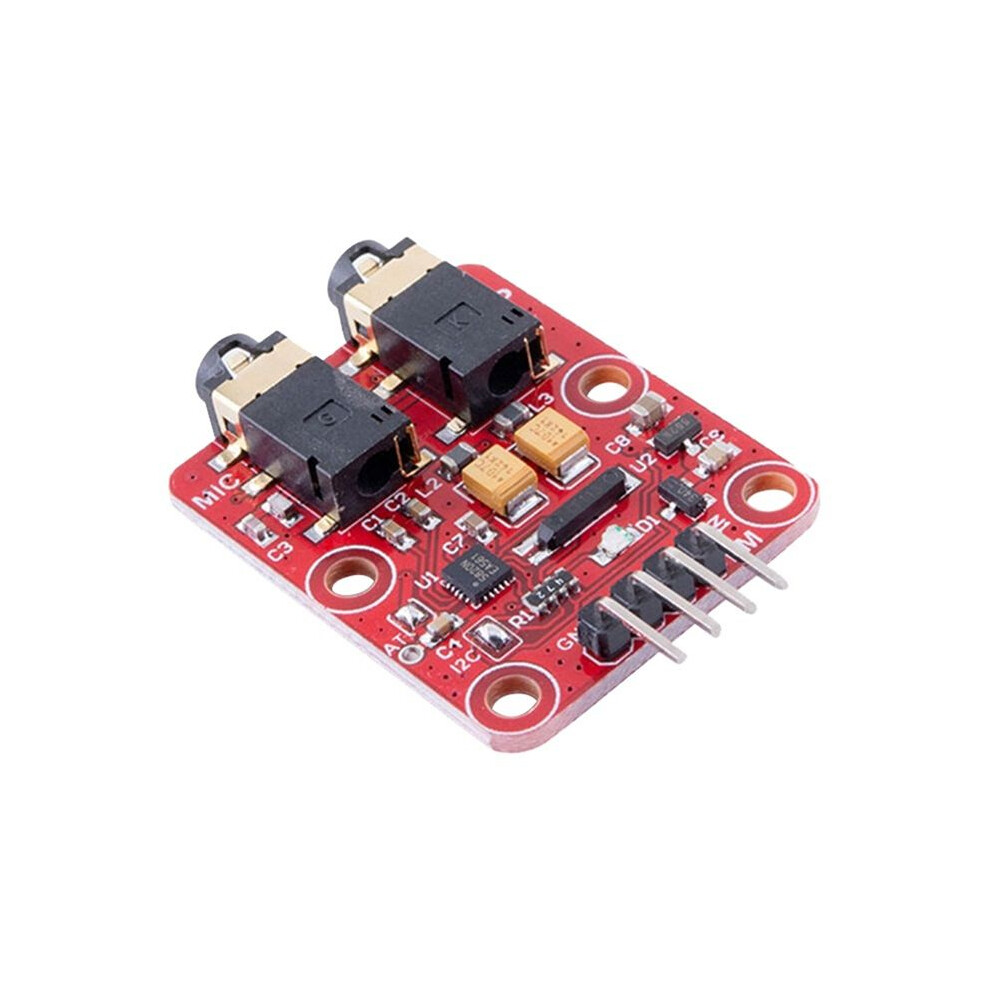

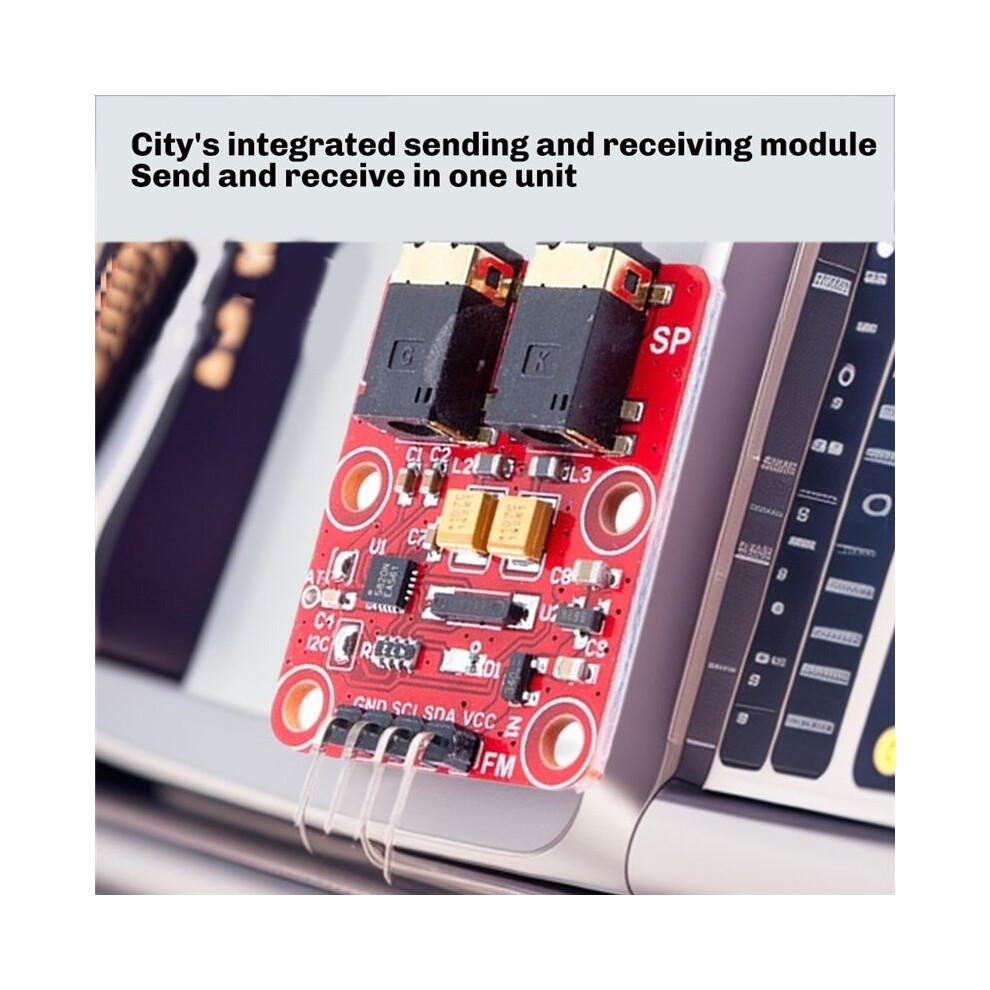

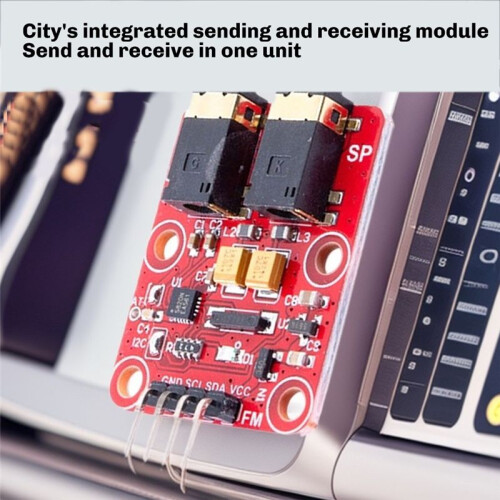

FM Frequency Modulation Transceiver Module 76-108.0MHz FM Broadcast Transmitter Receiver FM Radio Transceiver Module
Merke Torribaly
Ny
På lager
Derfor vil du elske å handle hos OnBuy:
- Tjen Cashback på hvert kjøp – bruk det umiddelbart på din neste bestilling
- Gratis levering – på millioner av varer på hele nettstedet
- Kunder elsker oss – 128,000 anmeldelser med vurderingen “Utmerket”
158,53 kr
188,70 kr
16 % rabatt!
GRATIS levering
1%
Tjen 1,59 kr med én gang
Les mer
Prisene for varer solgt av OnBuy inkluderer mva.
Rente- og gebyrfri delbetaling tilgjengelig
Se full produktbeskrivelse og detaljer
Levering: Standard (Gratis) | ons 15. - man 20. jul
Solgt av: JJBRDZ
Returer: 30 dager
180 dagers betalingsbeskyttelse
Mest populære i Tilbehør til teleskop
Beskrivelse og detaljer
Sammendrag
- RDA5820N FM Frequency Modulation Transceiver Module 76-108.0MHz FM Broadcast Transmitter Receiver FM Radio Transceiver Module
- The RDA5820NS is a new generation single-chip broadcast FM receive/transmit tuner with integrated synthesizer, IF selectivity and MPX decoder
- RDA5820NS adopts CMOS process and supports multi-interface. RDA5820NS has powerful low-IF digital audio processor, which makes it have good sound and high quality in various receiving conditions.
- RDA5820NS uses RDA double synthesizer, all-digital transmission structure, so that it has good transmission performance
- RDA5820NS supports 115M band FM and RDS/RBDS transceiver, supports power supply range of 1.8-5.5V
FM Frequency Modulation Transceiver Module 76-108.0MHz FM Broadcast Transmitter Receiver FM Radio Transceiver Module Beskrivelse
RDA5820N FM Frequency Modulation Transceiver Module 76-108.0MHz FM Broadcast Transmitter Receiver FM Radio Transceiver Module
The RDA5820NS is a new generation single-chip broadcast FM receive/transmit tuner with integrated synthesizer, IF selectivity and MPX decoder
RDA5820NS adopts CMOS process and supports multi-interface. RDA5820NS has powerful low-IF digital audio processor, which makes it have good sound and high quality in various receiving conditions.
RDA5820NS uses RDA double synthesizer, all-digital transmission structure, so that it has good transmission performance
RDA5820NS supports 115M band FM and RDS/RBDS transceiver, supports power supply range of 1.8-5.5V
Digital Automatic Gain Control (AGC) Digital Low-IF Tuner Digital Adaptive Noise Cancellation Image Suppression Downconverter Mono/Stereo
Voltage: 3.3-5V
Interface: I2C
Output: can be directly plugged into headphones
Antenna: The earphone cable is used as the antenna by default
Fixing hole: 3mm
Frequency: 76-108.0MHZ
No-load current: 0.23mA
Color: Red
Material: PCB
Package Contents:
1 * FM Module
Detaljer
| OPC | PVXYPZZ |
|---|---|
| Merke | Torribaly |
| Koder | 4711095202380 (EAN) |
Produktdata

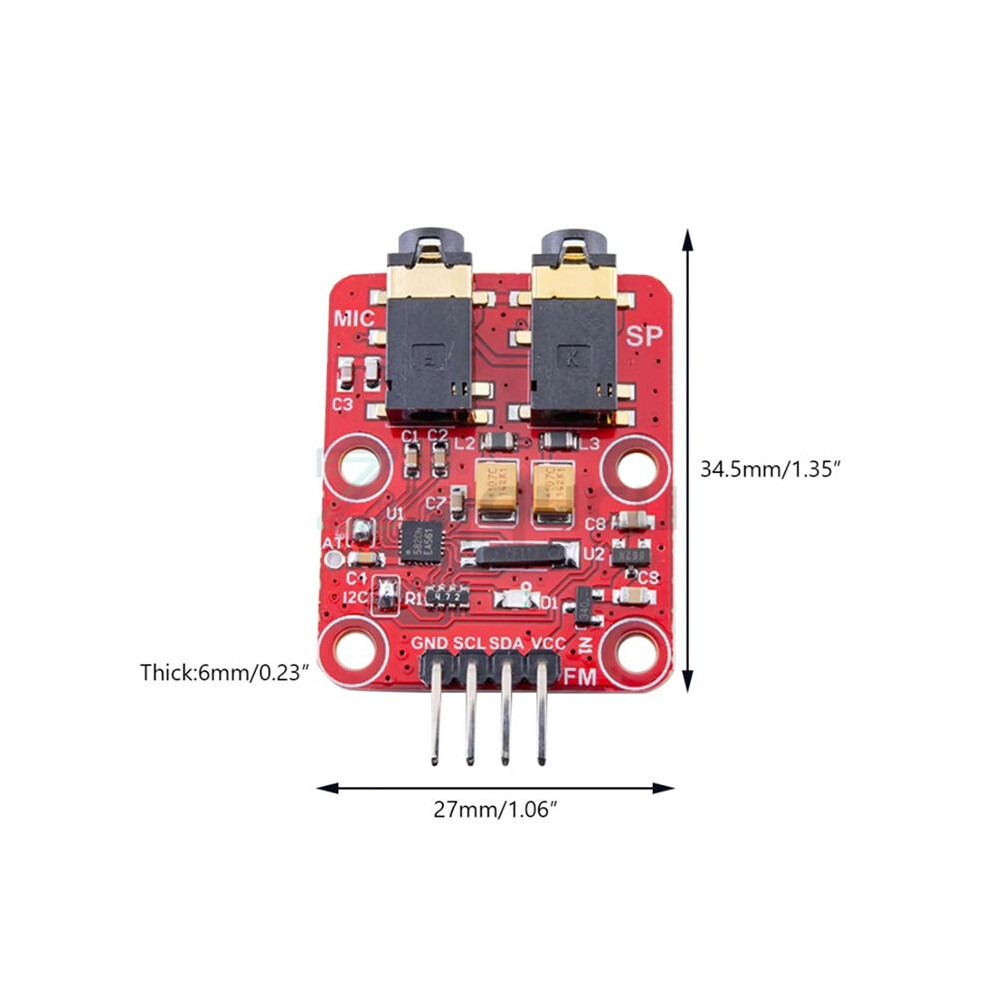

| Height | 1cm |
|---|---|
| Width | 5cm |
| Length | 7cm |
| Weight | 0.005kg |
| Colour | Red |
| Material | PCB |
