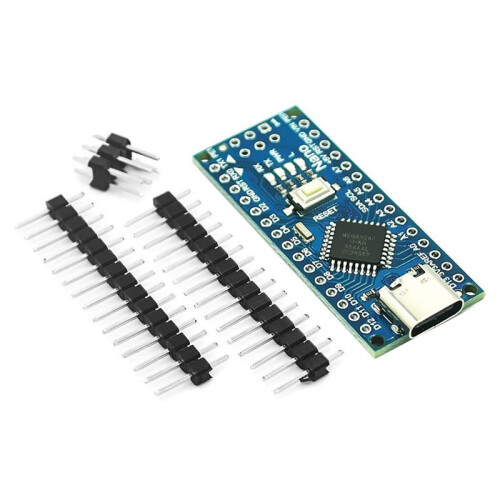

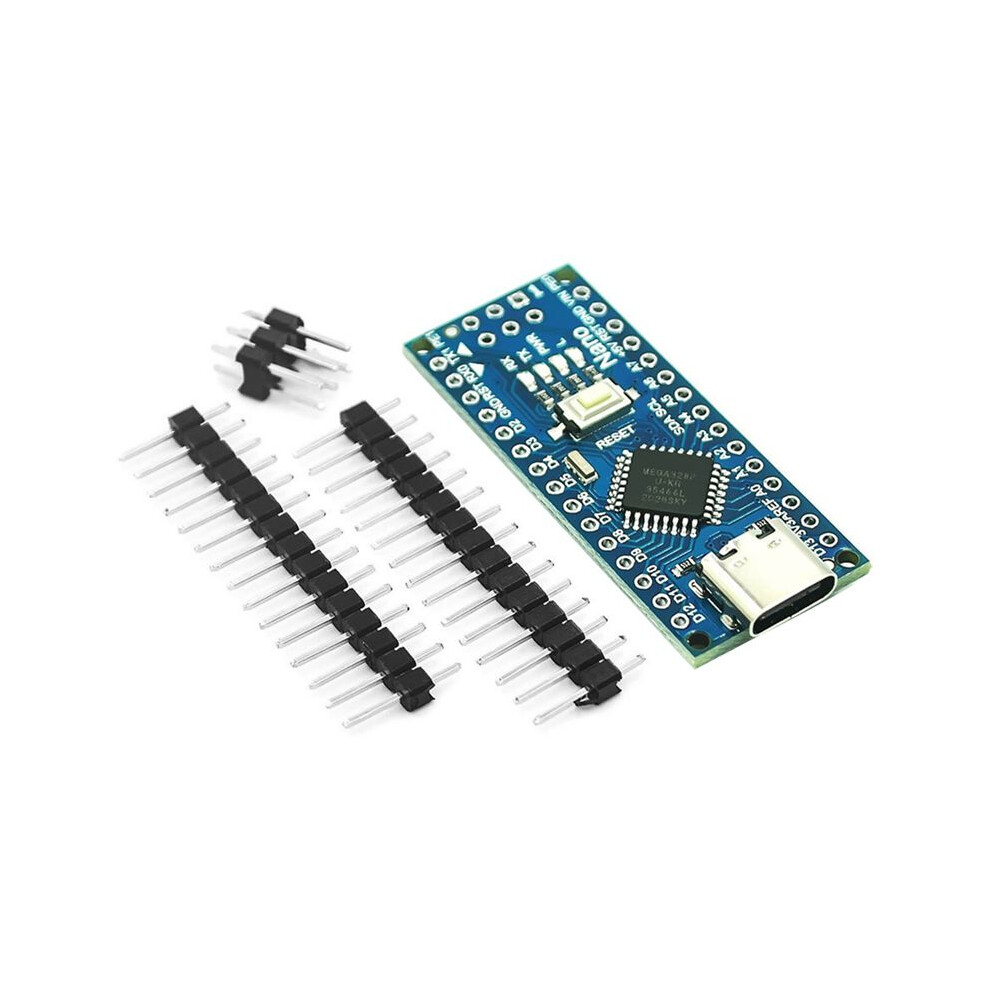

For V3.0 Development Board ATMEGA328P Controller Module PCB Development Board TYPE-C-Port

For V3.0 Development Board ATMEGA328P Controller Module PCB Development Board TYPE-C-Port Beskrivelse

CH340 USB Driver,atmega328P main IC,bootload has been written to the board.CH340G Replace FT232RL 8 analog inputs :A0~A7 14 Digital input/output :TX,RX,D2~D13 6 PWM :D3,D5,D6,D9,D10,D11 1pairs TTL level serial transceiver RX/TX Using Atmega328 MU/Atmega328 AU There is bootloader installed in it Support USB download and for external 5~12V power supply Support power supply by 9V battery Support ISP download Atmega328P-AU and Atmega328P-MU Chip is same function
Note: This model uses CH340C serial port chip, LGT8F328P external 16M crystal oscillator version! ! !Note that the driver chip needs to be installed, WIN10 or above comes with its own driver! ! !
the premise of ensuring that the performance of and the main control chip ATMEGA328P-AU remain unchanged, we replaced the USB chip to improve the download speed and increase the stability in win7 and win8.

Instructions:
1. Download the IDE

2. Download USB chip driver

3. Plug in the development board and the driver will be installed automatically.

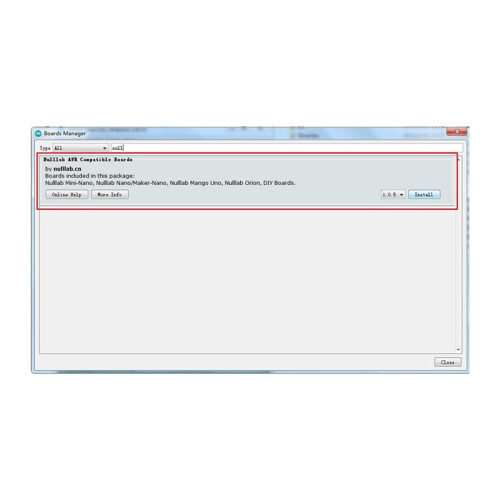

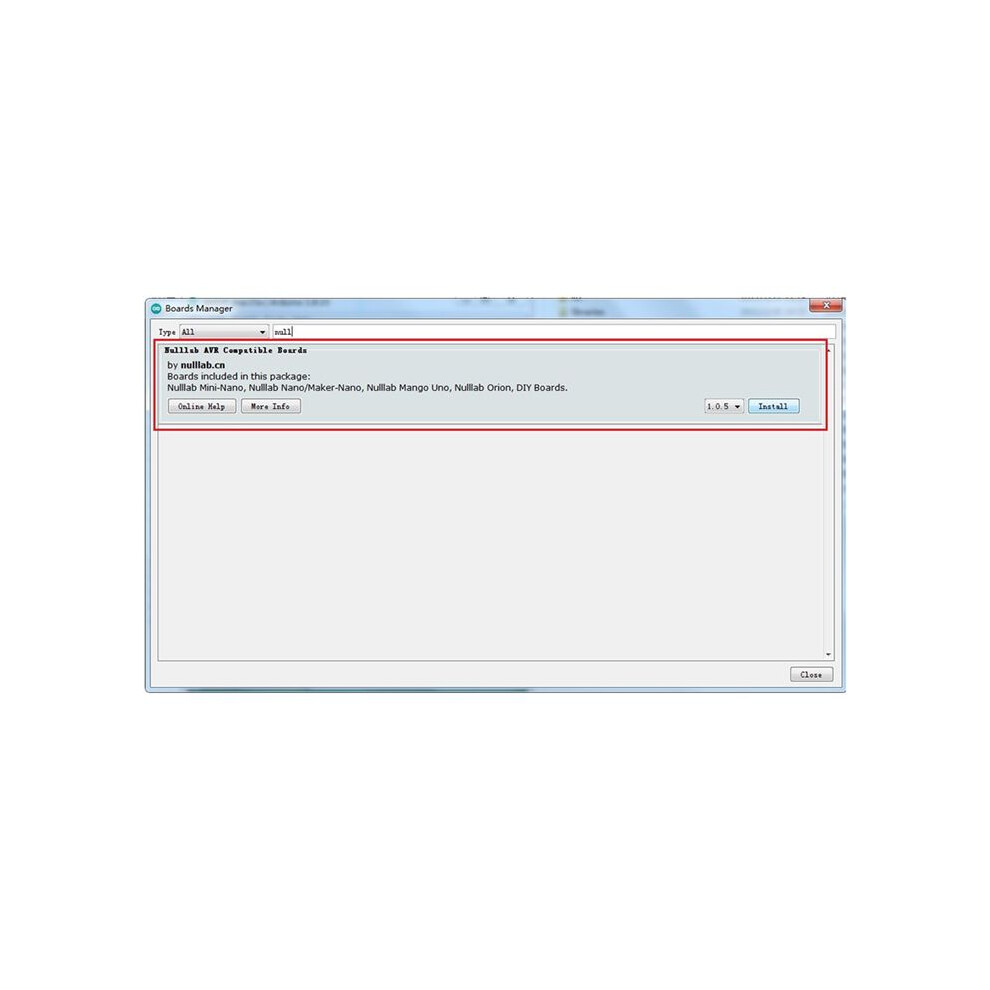

4. Select the board in the die
5. Select the COM port. You can check this in My Computer. The port for your development board just now
6. It is best to select the built-in routine program first and burn it into it.

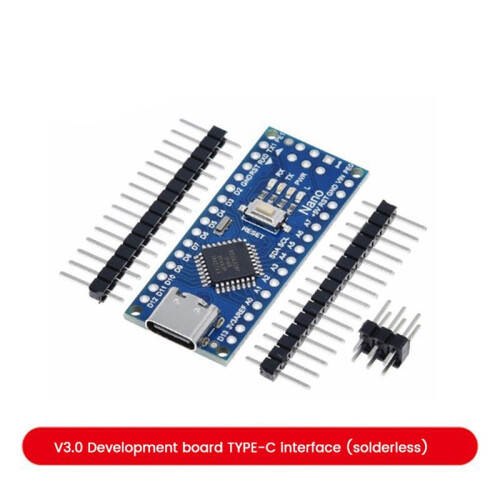

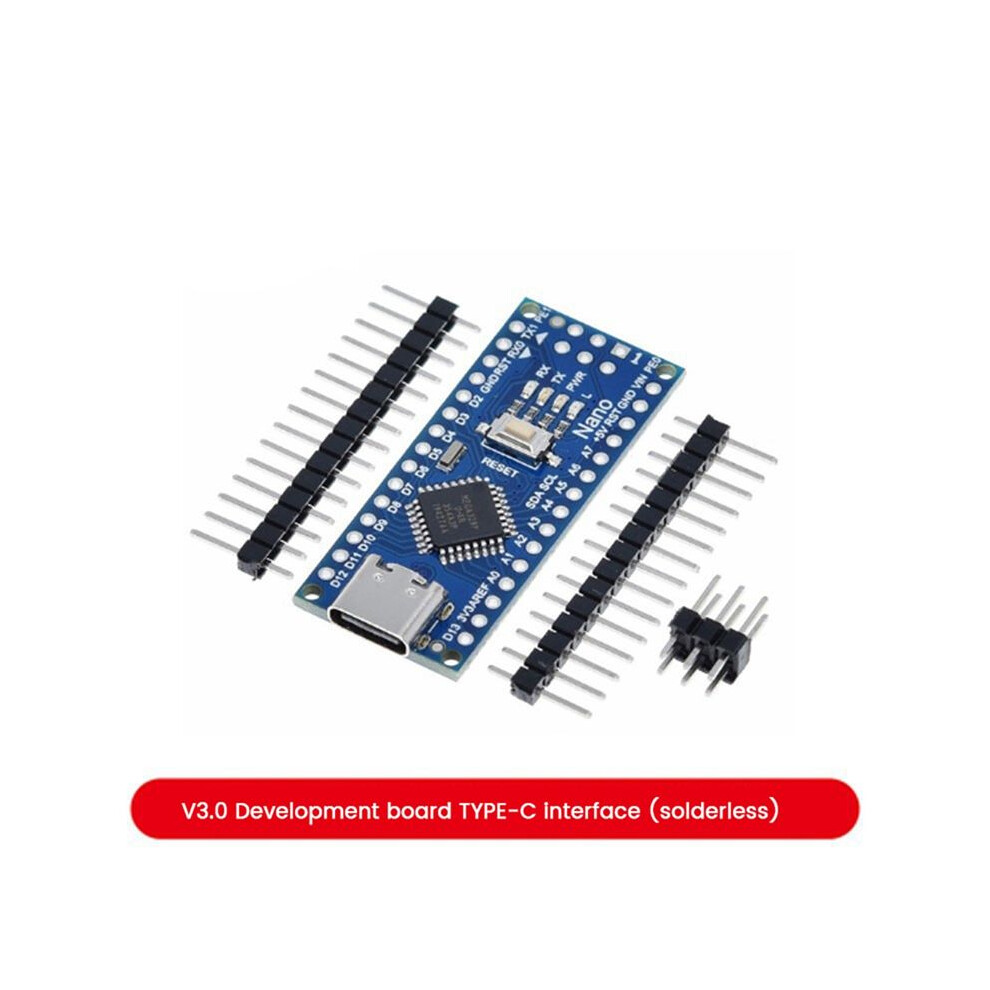

V3.0 ATMEGA328P CH340G improved electronic building block interactive media components without welding
interface: TYPE-C-Port
Due to different batches, the appearance, color of the product may be different, which does not affect the use.
Material: PCB
colour:

Package Contents:
1 x Development Board

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
