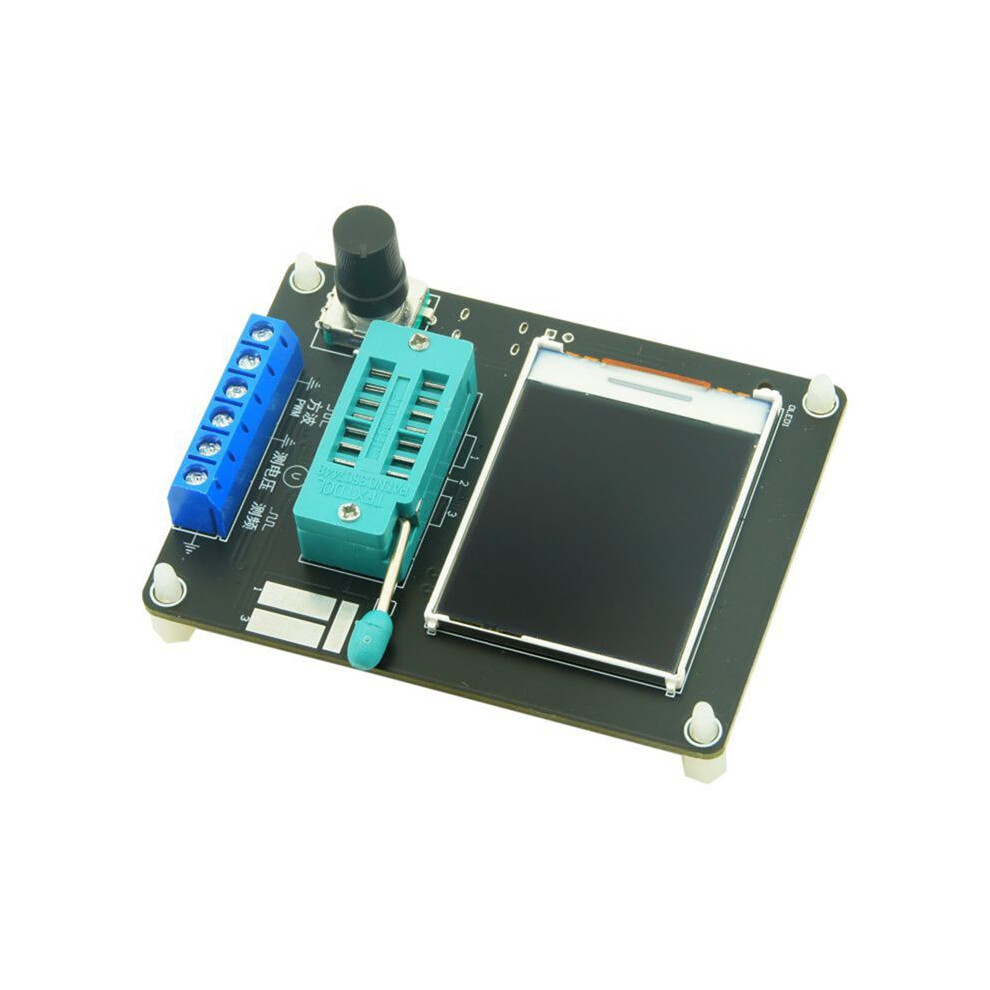

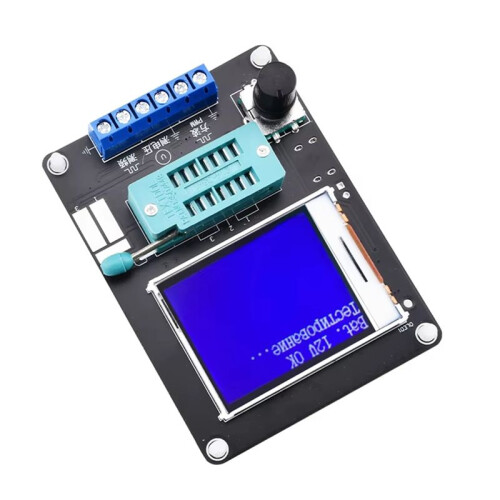

GM328A Transistor Tester Diode Capacitance ESR Voltage Frequency Meter PWM Square Wave Signal Generator Russian Version

GM328A Transistor Tester Diode Capacitance ESR Voltage Frequency Meter PWM Square Wave Signal Generator Russian Version Beskrivelse

1.Digital LCD display for easy reading, measurement data and graphs can be displayed
2.Rotary control, button measurement is easy to use
3.Press and hold the test button to exit the frequency measurement function. The frequency measurement range is from 1Hz to 1MHz or more, and when the measured frequency is lower than 25KHz, the period is displayed
4.Square wave generator, there are multiple levels of square wave frequency optional, left or right hand test button to different square wave frequencies, long press the test button to exit the square wave generator
5.Pulse signal generator, left-hand or right-hand test button adjusts the duty cycle of the pulse from 1% - 99%. Press and hold the test button to exit the pulse signal generator

The power supply is powered by the 5V Type-c power supply interface, and customers can also solder the 9V battery interface for power supply
Automatic shutdown, shutdown current is only about 20nA
Note: Before testing the capacitor, discharge the capacitor and then insert the test stand for measurement, otherwise it may damage the microcontroller of the tester.
Input voltage: DC5V
Working voltage: about 30mA,
Transistor tester control
The tester is controlled by a rotary encoder ,
The rotary encoder can have a total of 6 operations, short press, long press, left hand, right hand, hold left hand, hold right hand.
Press once in the shutdown state to turn the power and start the test.
After a test is complete, if no device is detected. Long press the or left and right rotary to enter the function menu, after entering the function menu, the left or right rotary can be selected above and below the menu item, to enter a function item, then short press the . When you need to exit from a function, press and hold
