LGA1155 Socket Tester 1155 CPU Socket Tester Dummy Load Fake Load with LED Indicator

LGA1155 Socket Tester 1155 CPU Socket Tester Dummy Load Fake Load with LED Indicator Beskrivelse

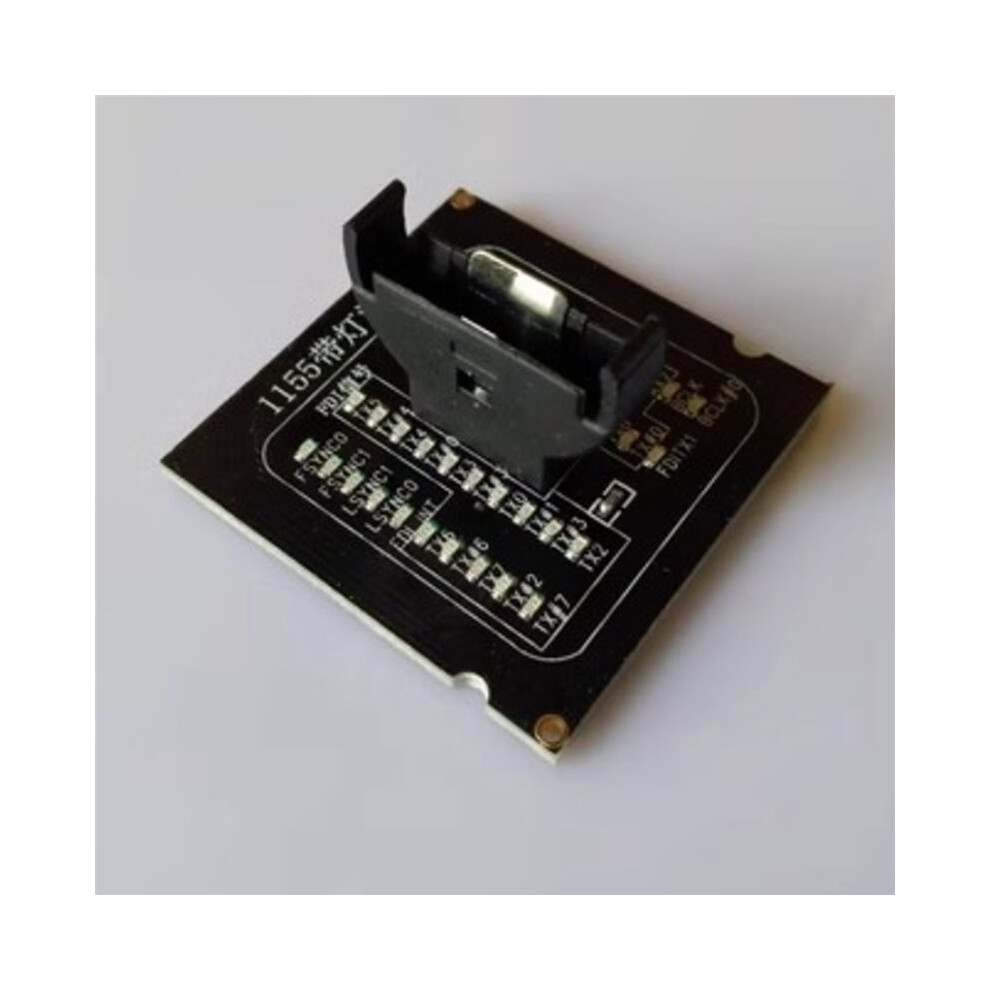

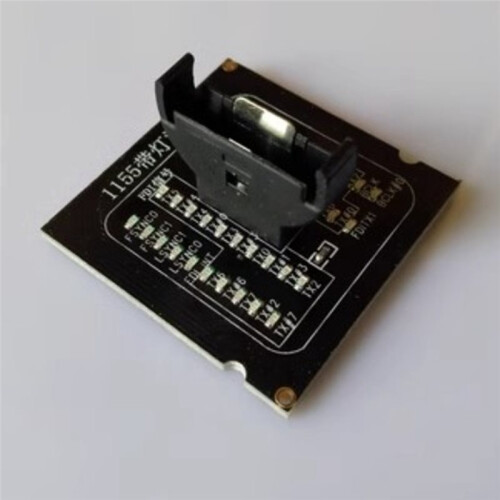

The 1155 LED tester is used to test for open and short circuits in the bus signals connecting the CPU socket and the Northbridge the motherboard.
It uses LED indicators to replace the traditional method of manual measurement with a multimeter, preventing damage to the CPU during repair or debugging. It is an essential tool for repairing and debugging computer motherboards.
Only Supports testing LGA1155 CPU Socket.

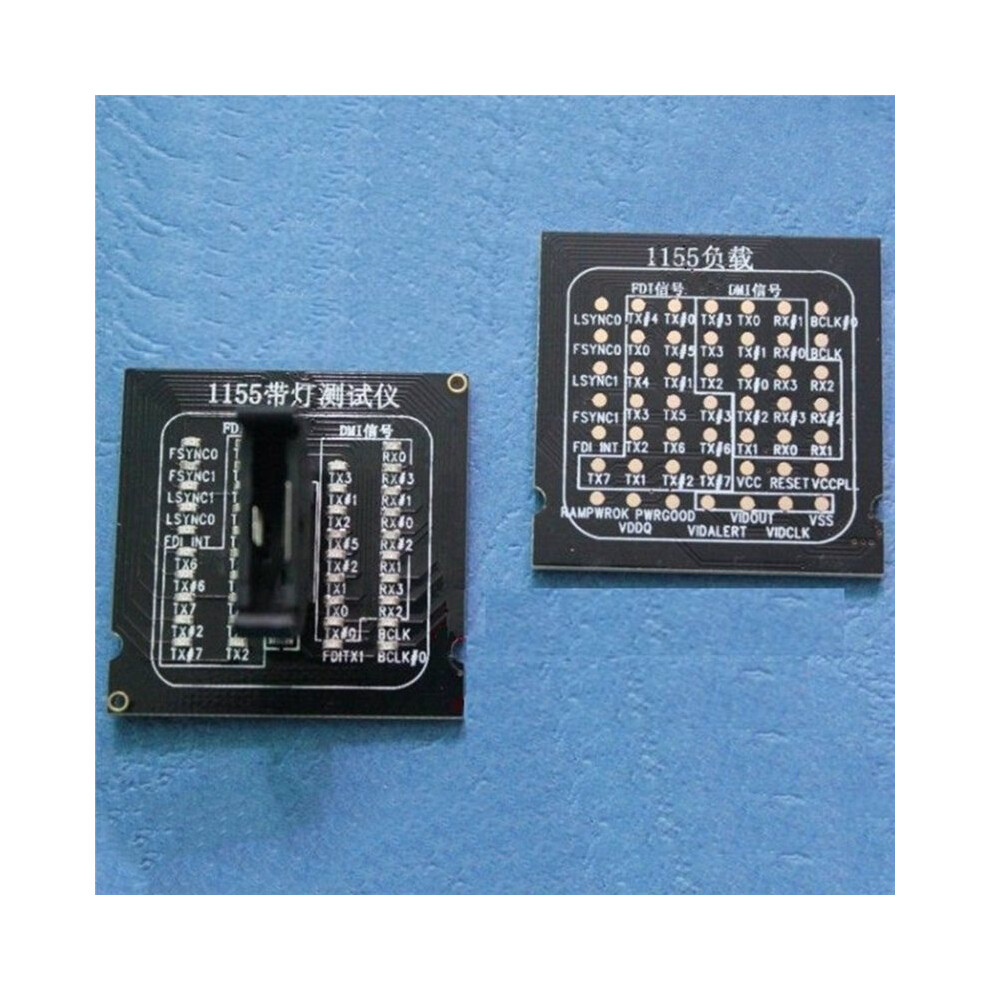

When the 1155 test LED is placed in the CPU socket and the CPU socket cover is pressed down (note that the motherboard should not be powered ), the DMI, FDI, synchronization, and clock signal indicator lights the test LED will all light . These signals are connected to the Northbridge chipset. If any light does not light , it indicates an open or short circuit fault in that signal. The CPU lever can be moved to further pinpoint the fault location using a multimeter.

Precautions:
The motherboard must not be powered during testing.
After multiple uses, the test LED brightness may decrease because the battery voltage is insufficient. Please replace the battery yourself.
Due to differences in motherboard design and chipset among manufacturers, some signals displayed by this tester may vary. Please have troubleshooting and repair personnel use the same motherboard to compare and diagnose the fault.
Color: Black
Material: PCB

Package Contents:
1 * CPU Socket Tester
