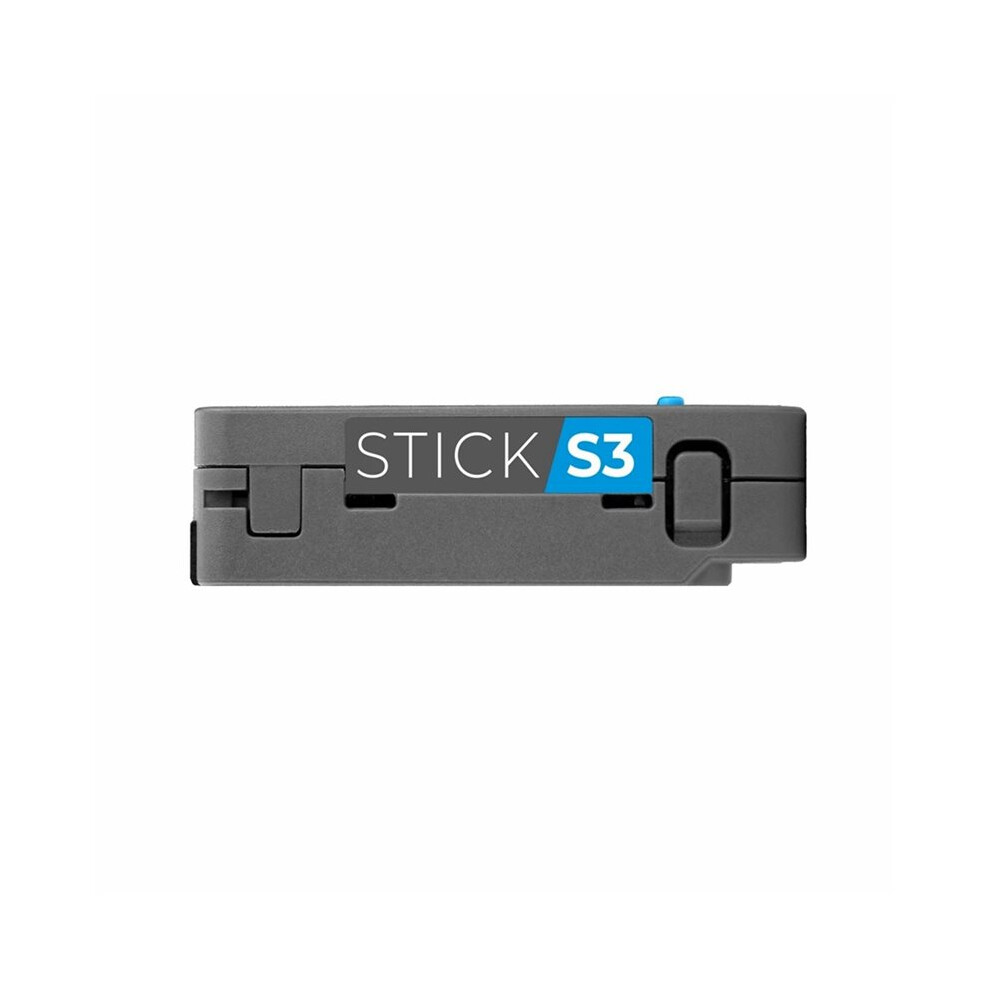

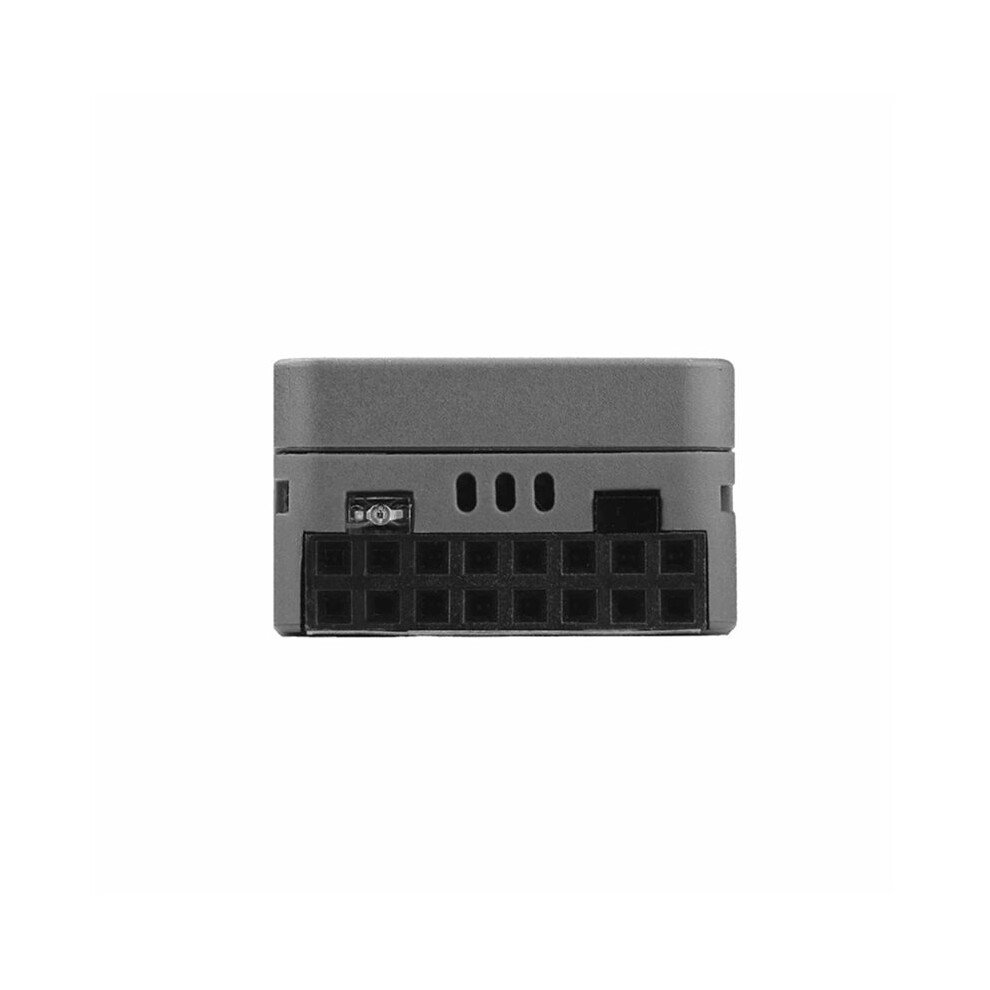

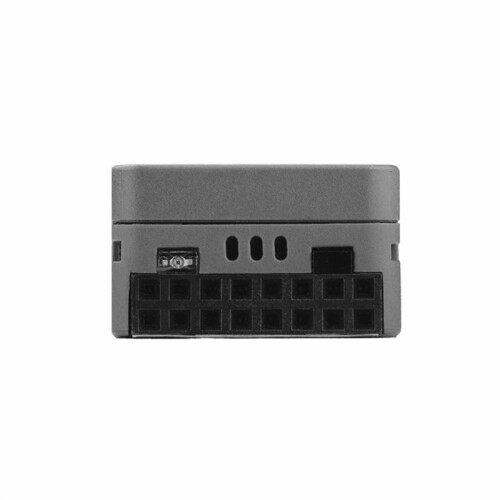

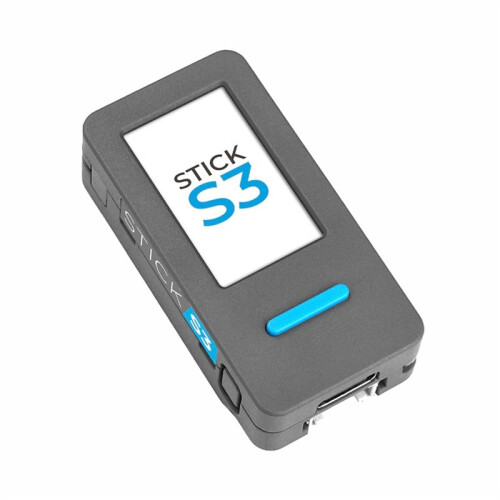

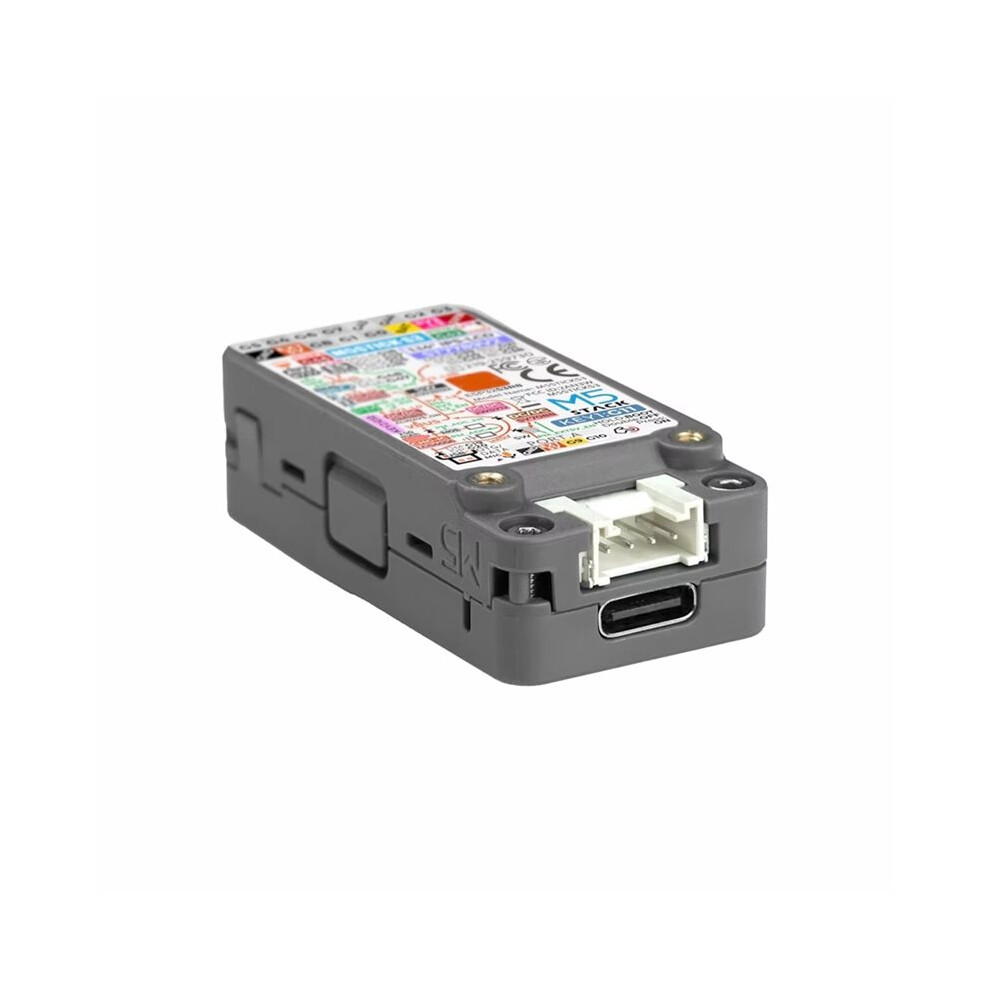

M5StickS3 ESP32S3 LoT Development Kit StickS3 ESP32 S3 High-Performance Compact IoT Development Kit

M5StickS3 ESP32S3 LoT Development Kit StickS3 ESP32 S3 High-Performance Compact IoT Development Kit Beskrivelse

The StickS3 is a compact and high-performance programmable controller designed for remote control and IoT applications. It features an ESP32-S3--1-N8R8 main control chip, supports 2.4 GHz Wi-Fi wireless communication, and has 8MB Flash and 8MB PSRAM to meet diverse application development needs, providing excellent performance and scalability.

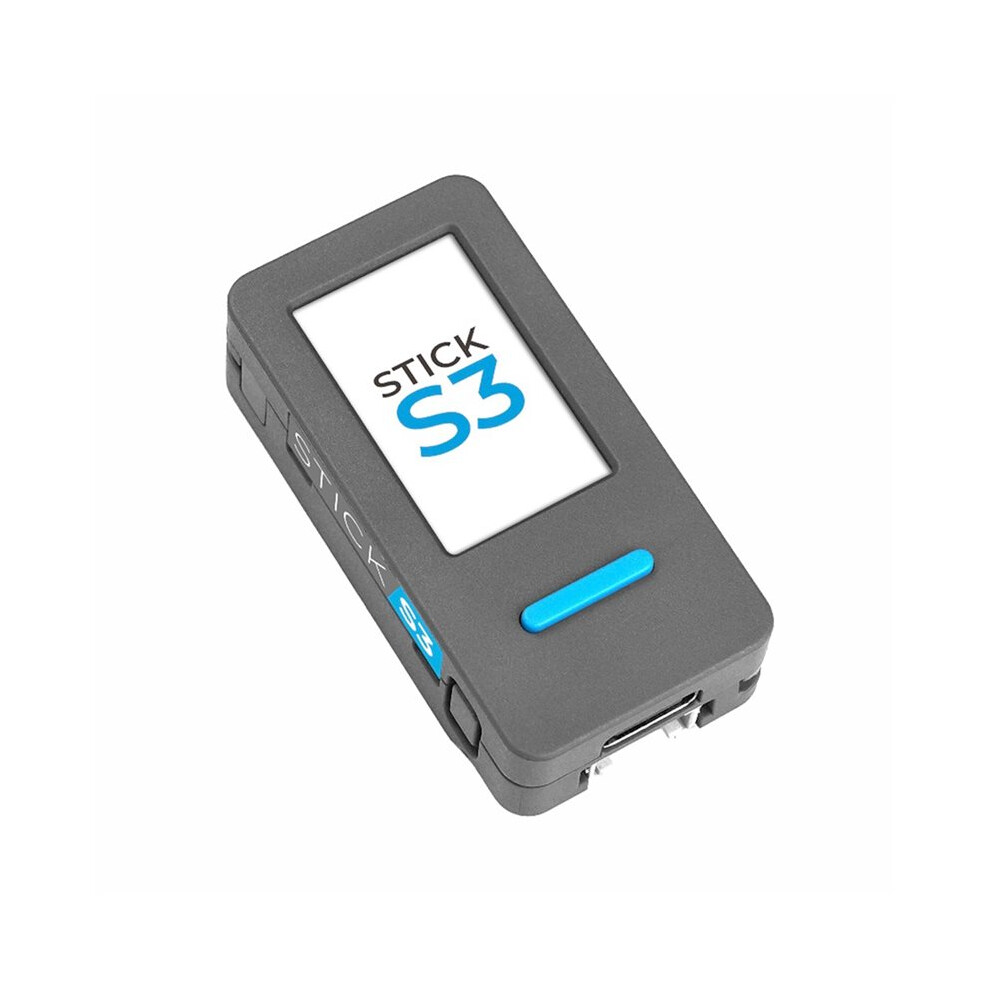

It features a 1.14" LCD display, a 6-axis IMU sensor, and programmable buttons. The audio system uses an ES8311 mono codec, combined with a high-sensitivity MEMS microphone and an AW8737 power amplifier, achieving clear sound pickup and high-fidelity audio output to enhance voice recognition and interactive experiences.

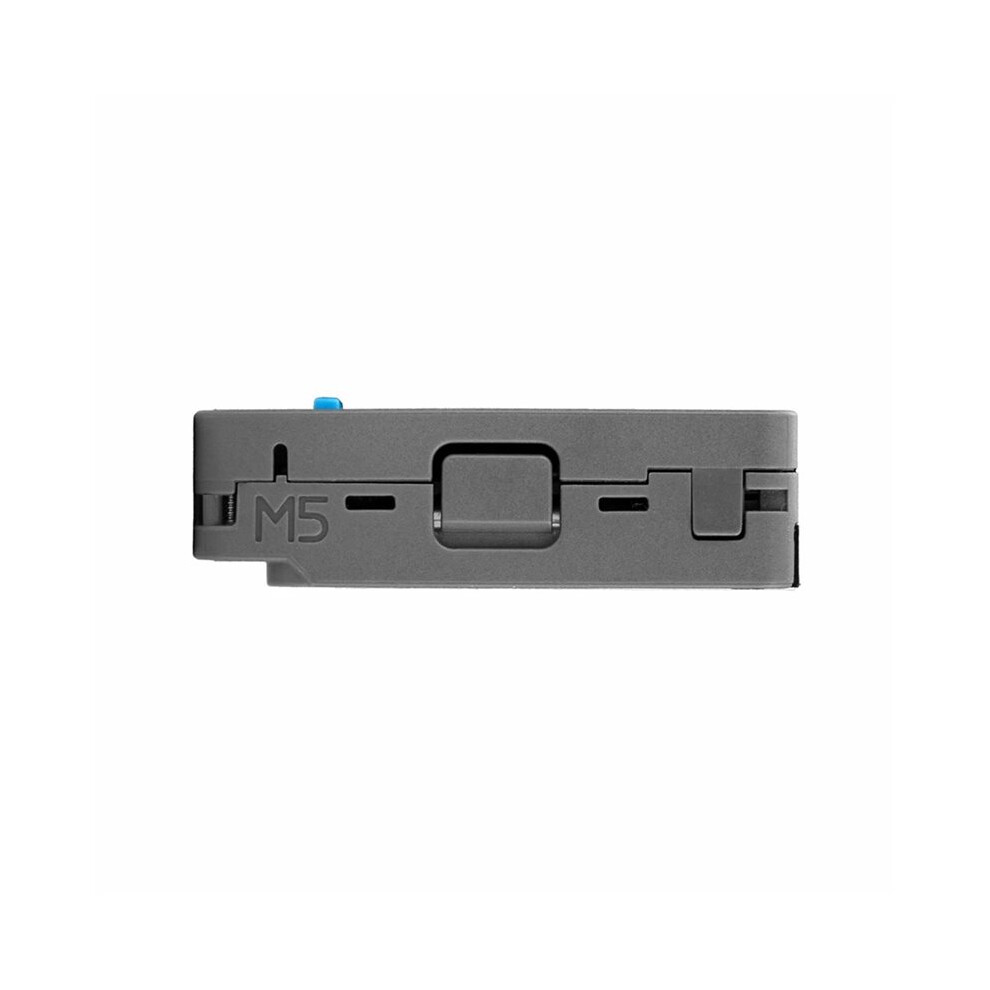

It also integrates IR transmitter and receiver tubes, features a magnetic design the back, and has a built-in 250mAh lithium battery, making it suitable for home control, AI voice assistants, IoT project development, and other application scenarios.

Specifications:
SoC: ESP32-53-PI00-1-N8R8 @ Dual-core Xtensa Lx7 processor, to 240MHz
Flash: 8MB
PSRAM: 8MB
Wi-Fi: 2.4 GHz Wi-Fi
Screen Model: ST7789P3
Screen Resolution: 135x240

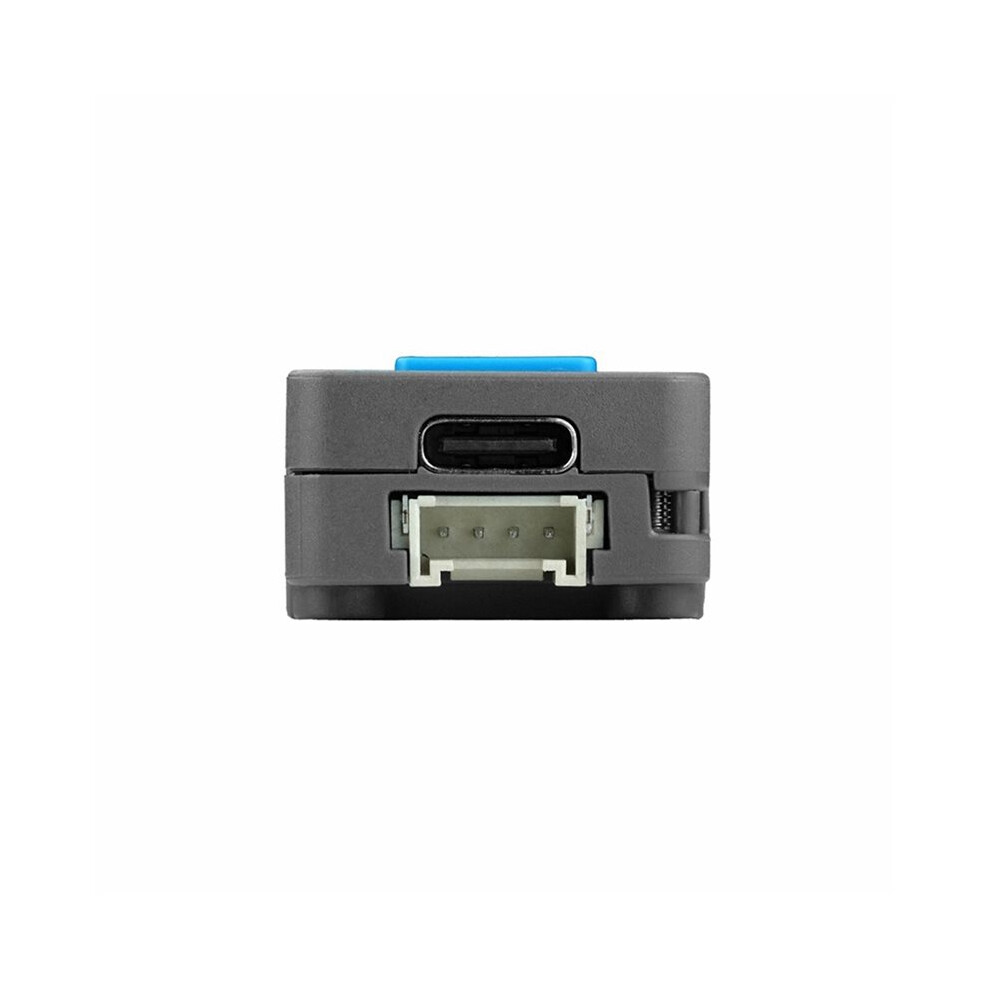

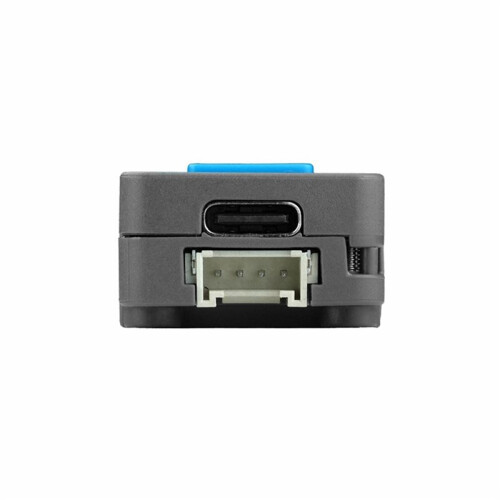

Input Power: USB Type-C 5V
Audio Codec: ES8311: 24-bit resolution, using I2S protocol
Microphone: MEMS microphone, Signal-to-Noise Ratio (SNR): 65 dB
Speaker: AWV8737 amplifier chip + 8Ω@1W 2011 type cavity speaker
Operating Temperature: 0~40
Battery Capacity: 250mAh

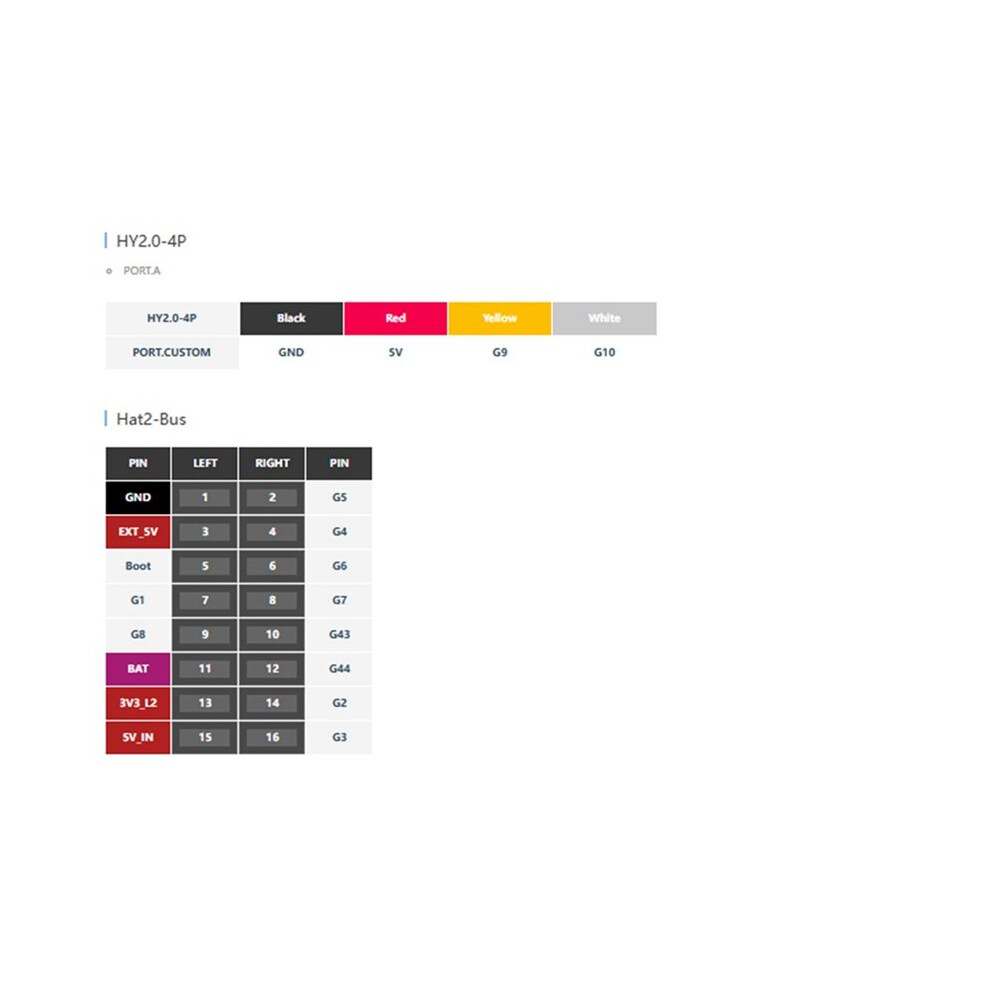

Grove Interface Load Capacity: No-load: 5V, Maximum: [email protected]
Power Consumption: Power Off: [email protected]
L1 L2 Status: [email protected]
L3A Status: [email protected]
L3A Status: [email protected]
Full Load Status
