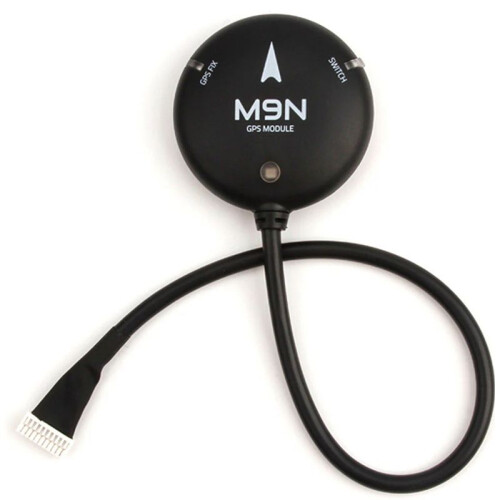

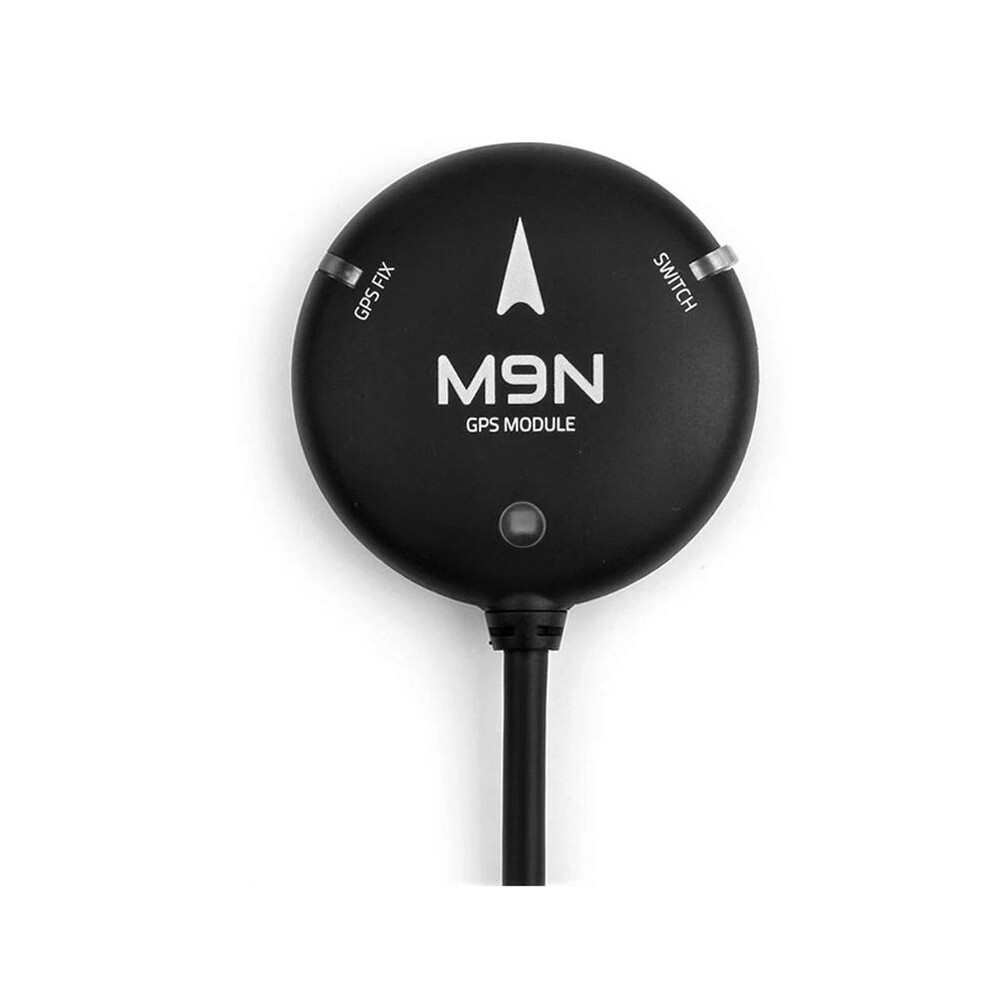

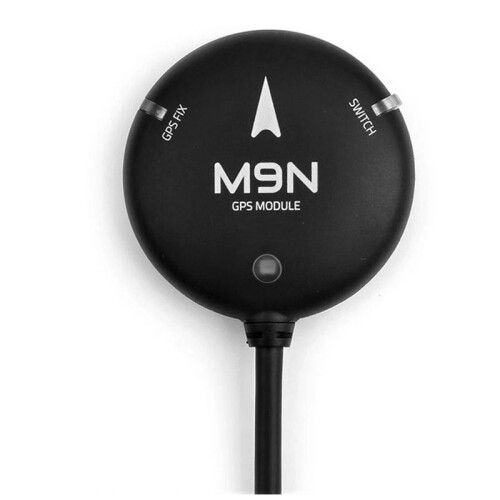

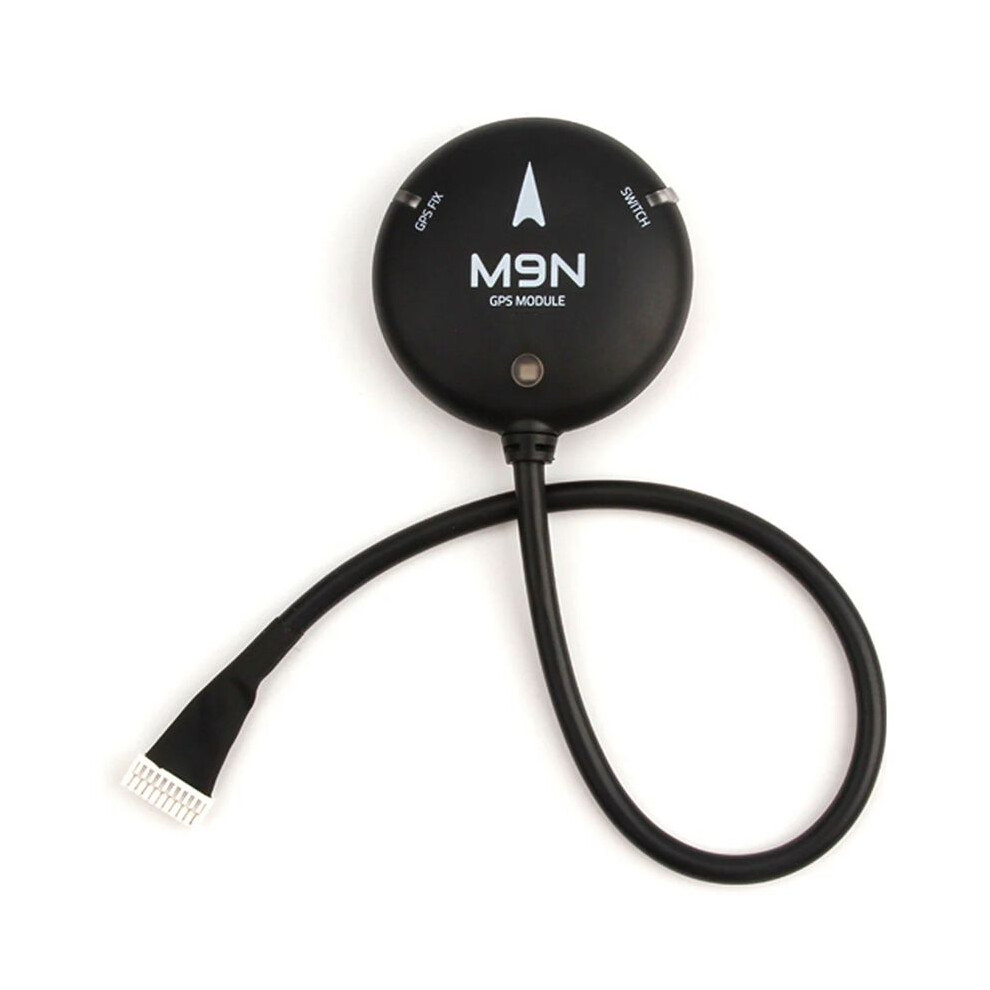

M9N GPS Module Built-in Buzzer Compass LED Indicator for Pix32 Pixhawk 6C Flight Controller B

M9N GPS Module Built-in Buzzer Compass LED Indicator for Pix32 Pixhawk 6C Flight Controller B Beskrivelse

The M9N GPS uses a multi- GNSS powered by u-blox M9N, a parallel GNSS receiver that can receive and track multiple GNSS systems.
All four major GNSS constellations (GPS, Galileo, GLONASS and BeiDou) can be received simultaneously thanks to the multi-band RF front-end architecture.
It also comes with an IST8310 compass, a tri-color LED indicator, a buzzer and a safety . There are 3 different connectors to choose from for different uses. The module has a baud rate of 115200 (previously 38400).
It has an active circuit for the ceramic patch antenna, a rechargeable backup battery for hot start.
The high-gain 25 x 25 mm2 patch antenna provides excellent performance, and the omnidirectional antenna radiation pattern increases the flexibility of device installation.

GNSS Receiver:Ublox M9N
Number of Concurrent GNSS: to 4 GNSS,BeiDou,Galileo,GLONASS,GPS,QZSS
Frequency Band:GPS L1,Galileo E1,GLONASS L1,BeiDou B1,SBAS L1,QZSS L1
Compass:IST8310
Output Protocol:UBX(U-blox),NMEA
Accuracy:1.5m CEP
Nav. Update Rate: to 25 Hz (4 concerrent GNSS)
GNSS Augmentation System:EGNOS, GAGAN, MSAS and WAAS,QZSS: L1S
Default Baud Rate:115200
Input Voltage:4.7-5.2V
Port Type:JST-GH-10P
Antenna:25 x25 x4 mm ceramic patch antenna
Power consumption:Less than 200mA @ 5V
Operating Temperature:-40-80
Cable Length:26cm (42cm cable purchase separately)
Other:Tri-color LED
Onboard Buzzer
Safety
LNA MAX2659ELT+ RF Amplifer
Rechargeable Farah capacitance
Low noise 3.3V regulator
Due to different batches, the printed words the product will be different, which does not affect use.
Type:B:for Pix32
Colour:Black
Material:ABS

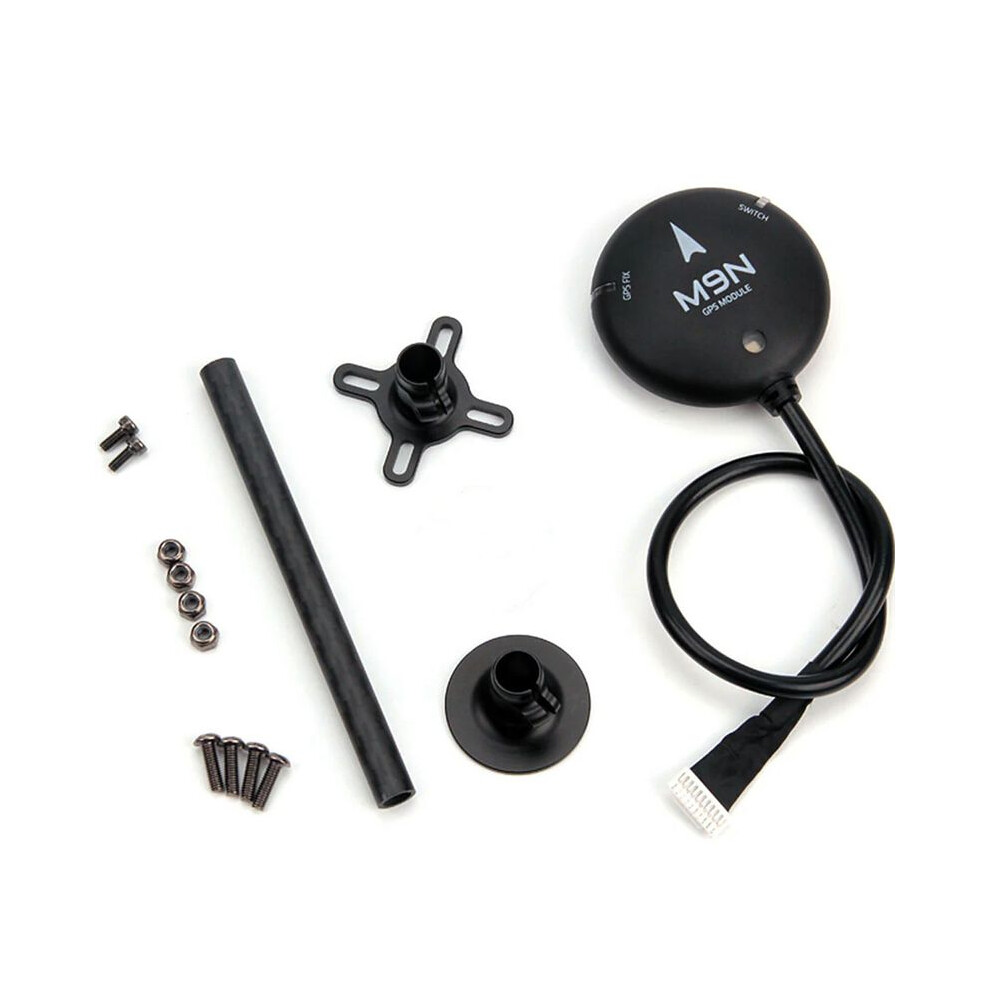

Package Contents:
1 * GPS Module
1 * Carbon Fiber Stick
2 * Bases
1 Set * Mounting Screws

Only the above package content, other products are not included.
