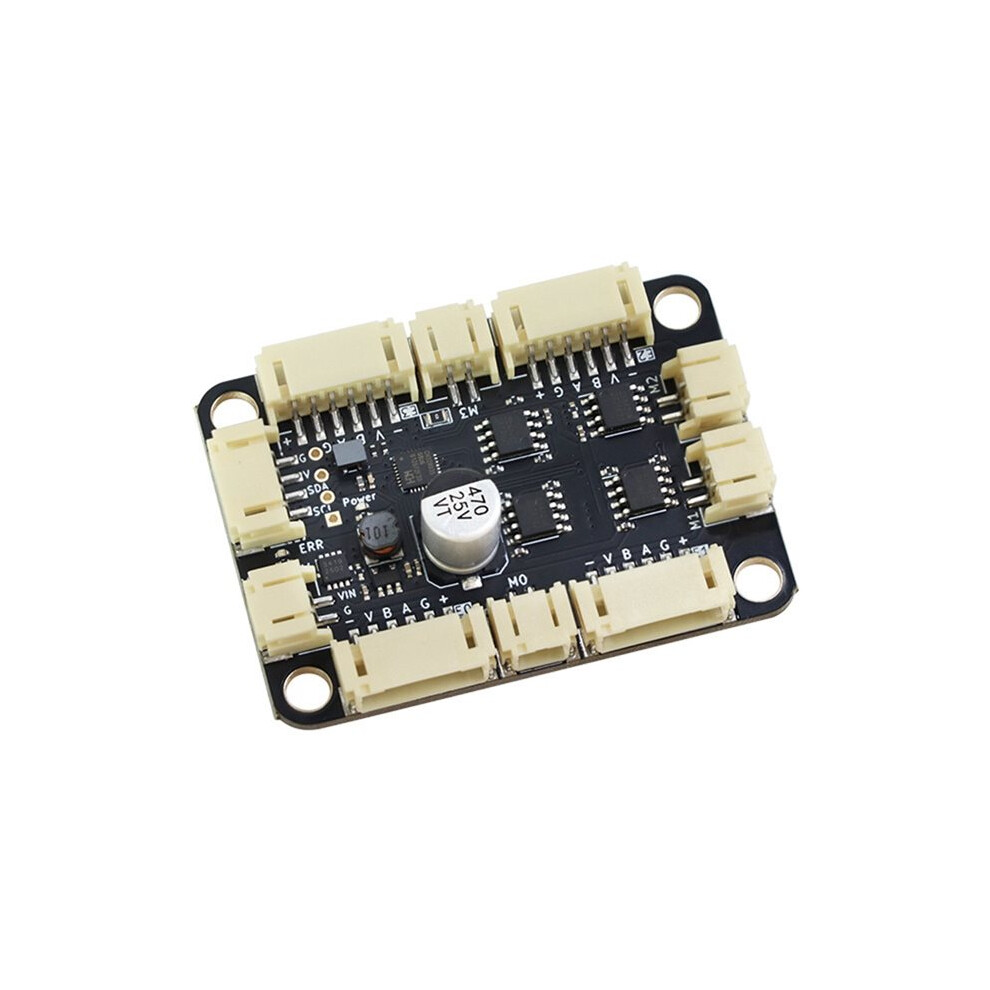

MD40 Driver Motor Module I2C-Controlled PH2.0 Motor Sensor Board for 4-Channel Motor Driver Car Platform

MD40 Driver Motor Module I2C-Controlled PH2.0 Motor Sensor Board for 4-Channel Motor Driver Car Platform Beskrivelse

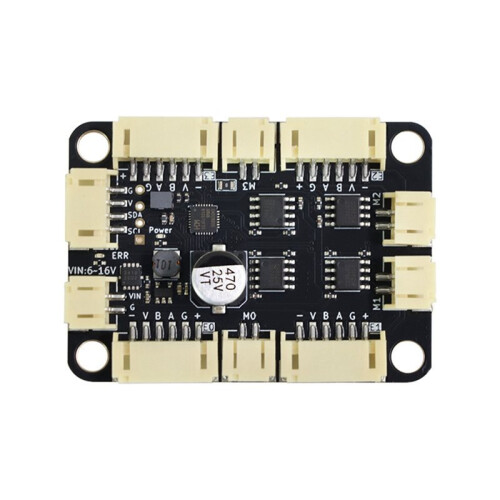

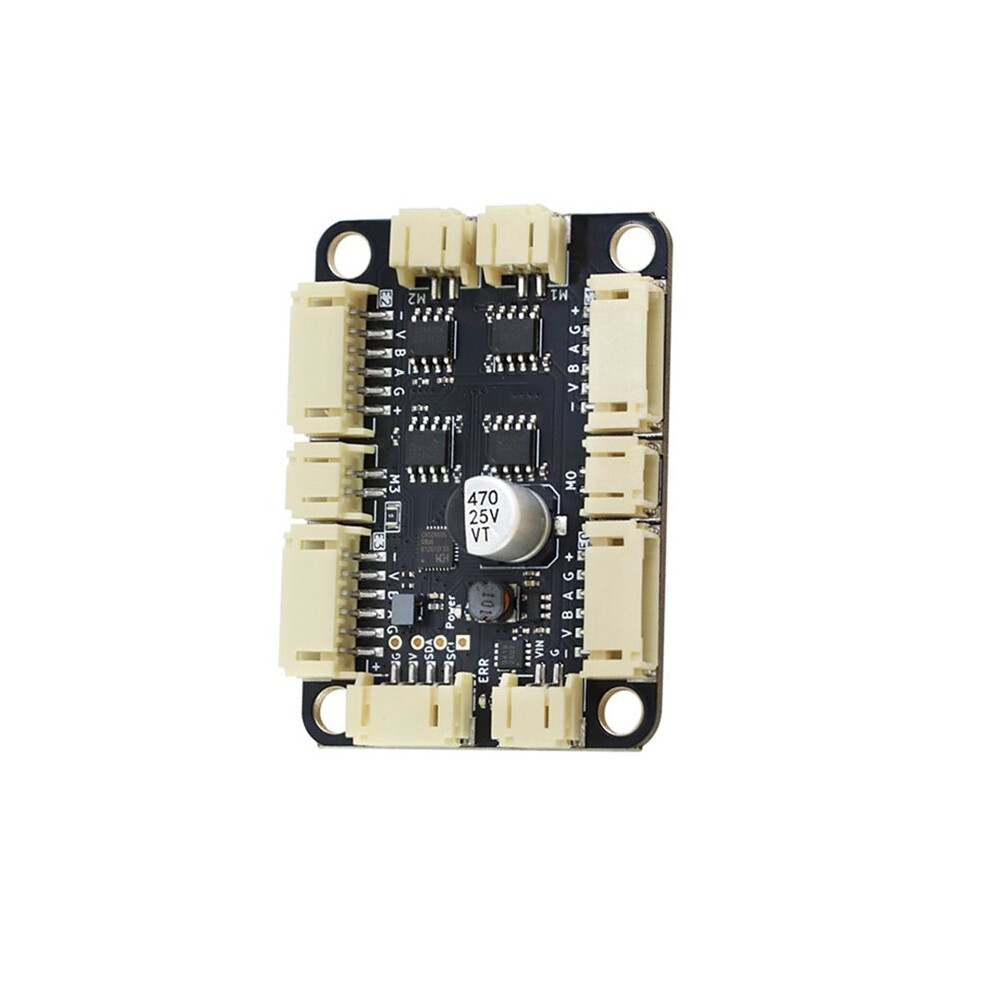

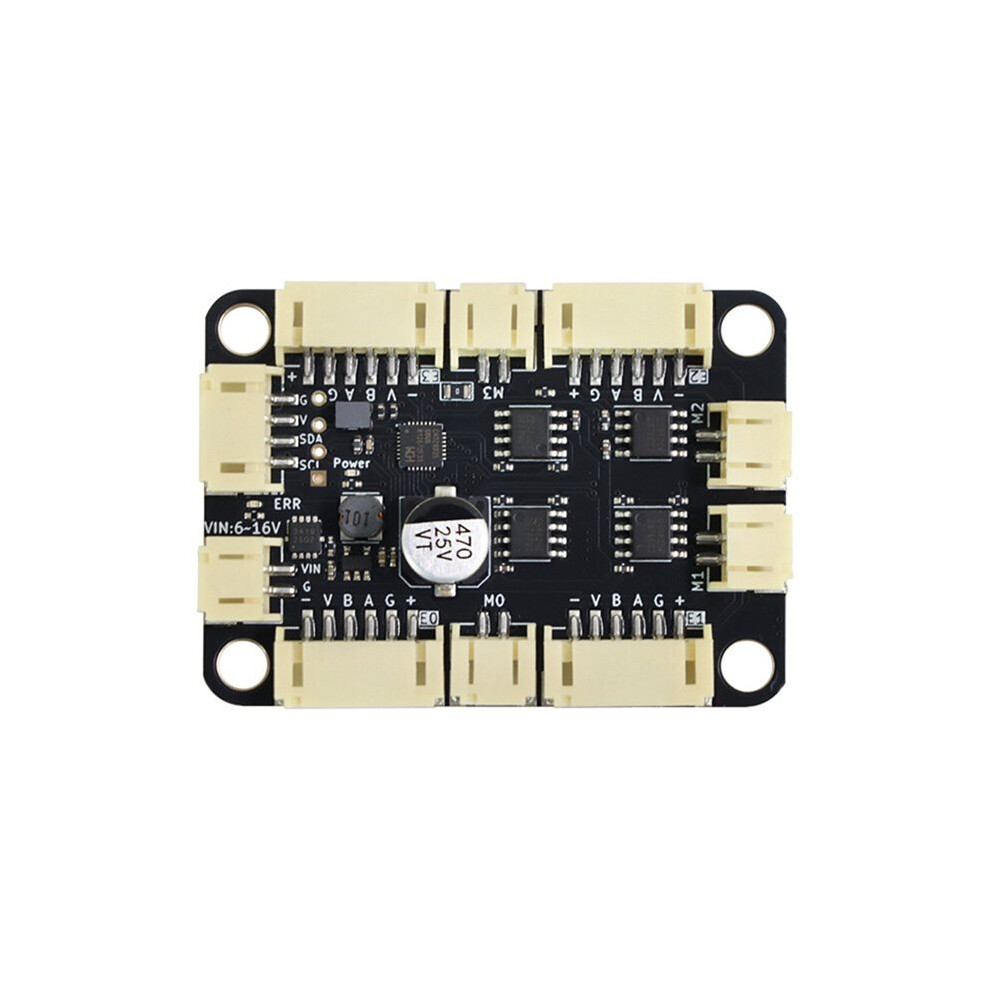

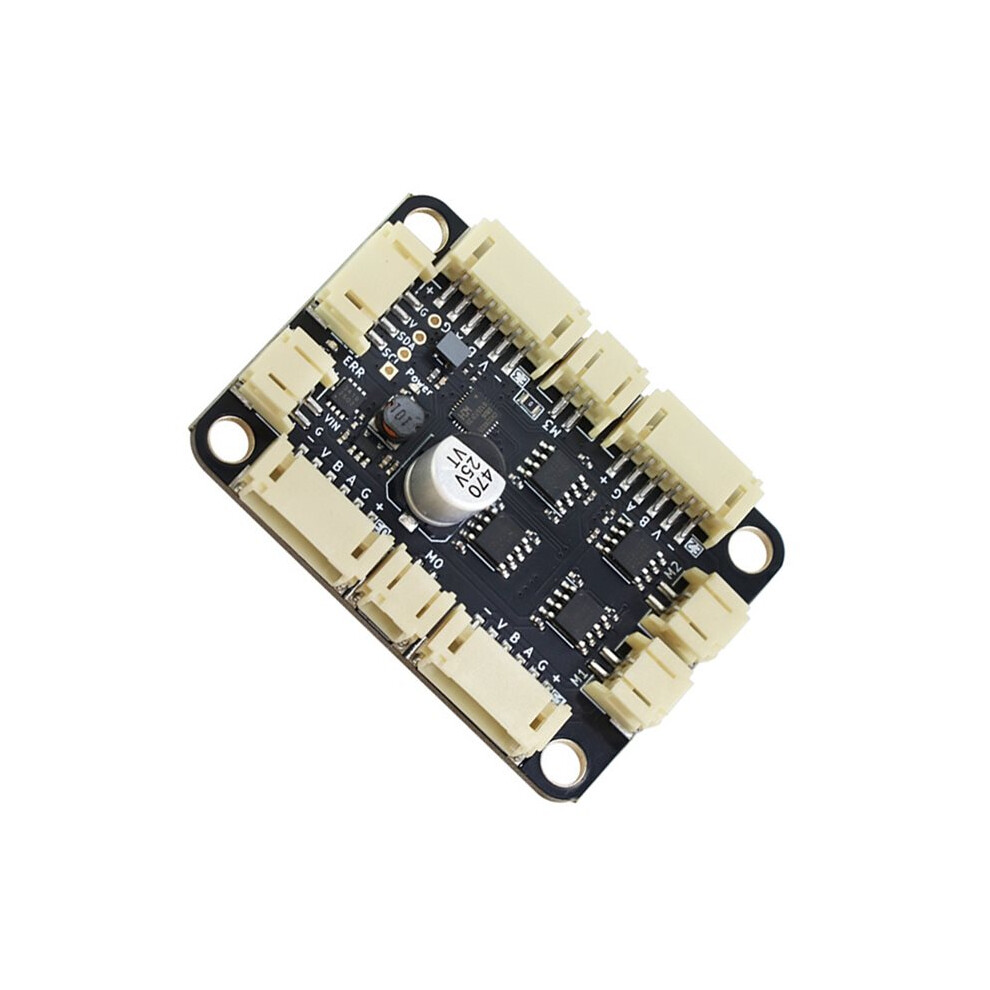

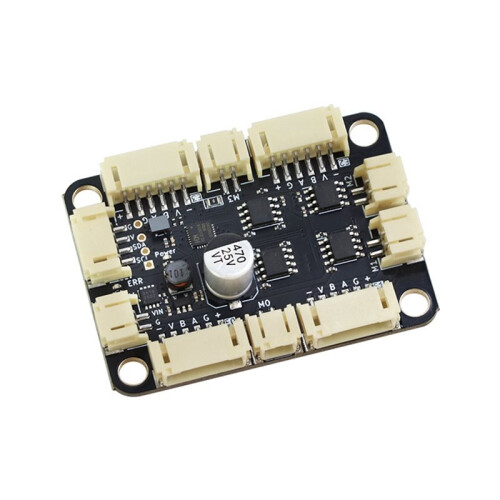

This 4-channel encoder motor driver module, based the CH32X035 microcontroller, integrates four SS6625E motor driver chips. It features four motor (M0-M3) and encoder motor (E0-E3), utilizing I2C communication for control. This module provides a comprehensive closed-loop control solution with full signal feedback support, ideal for precise motor management.

Voltage (Connected to Development Board): 5V
External Power Supply Voltage: 6-16V
Interfaces: I2C interface and PH2.0 pitch connectors. The 2-pin connector (VIN, G) serves as the external power input; the remaining 2-pin connectors are for motors (M0-M3); and the 6-pin connectors (-, V, B, A, G, +) are for encoder motors (E0-E3).
Connection Method: PH2.0 anti-reverse DuPont cables
Communication Protocol: I2C communication; Address: 0x16
Dimensions: 56 x 40 mm; compatible with bricks and features M4 mounting holes.
Color: As Shown
Material: PCB

Package Contents:
1*MD40 Motor Driver Module
