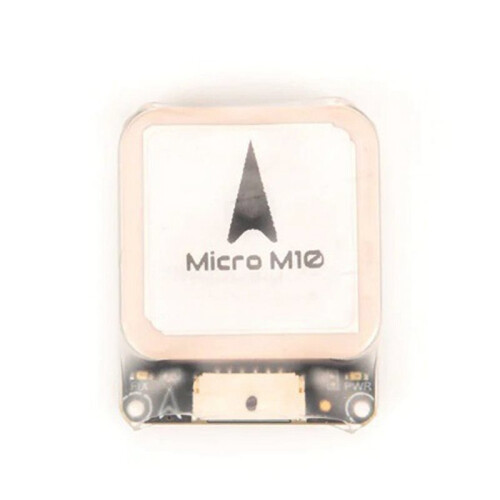

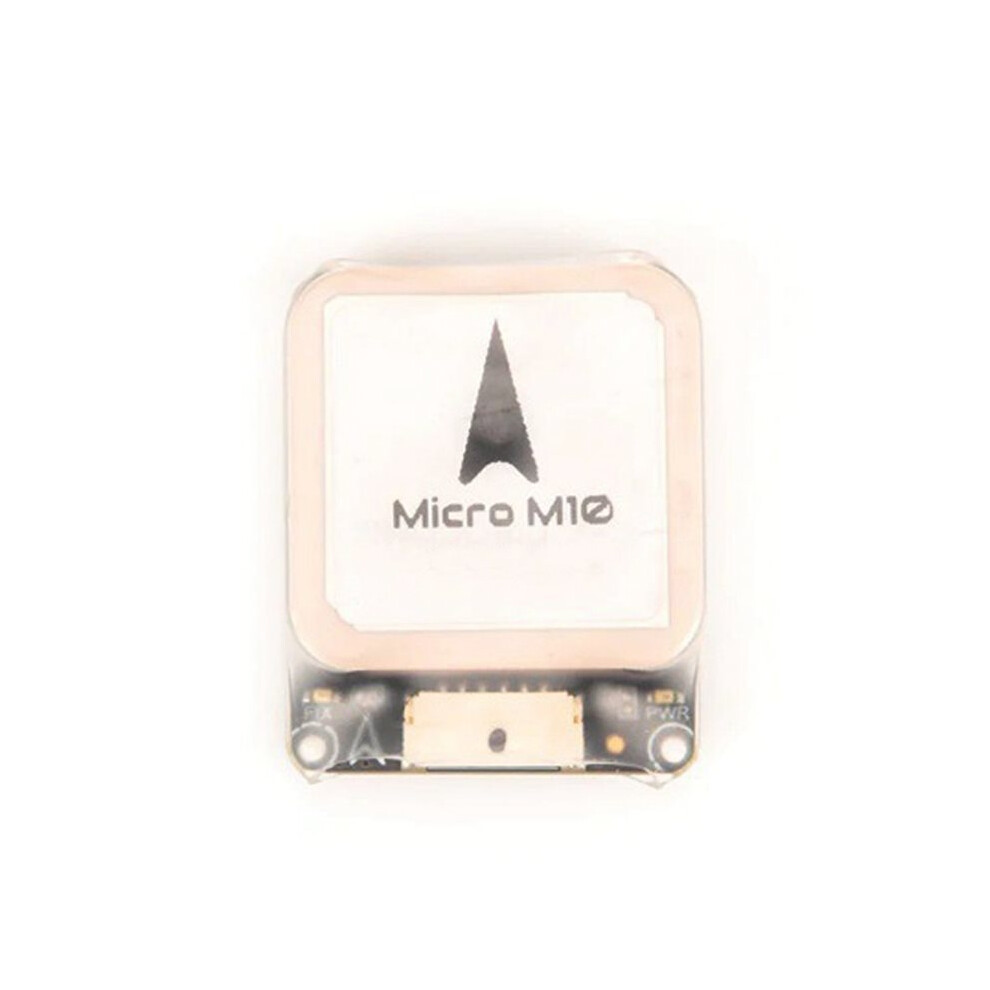

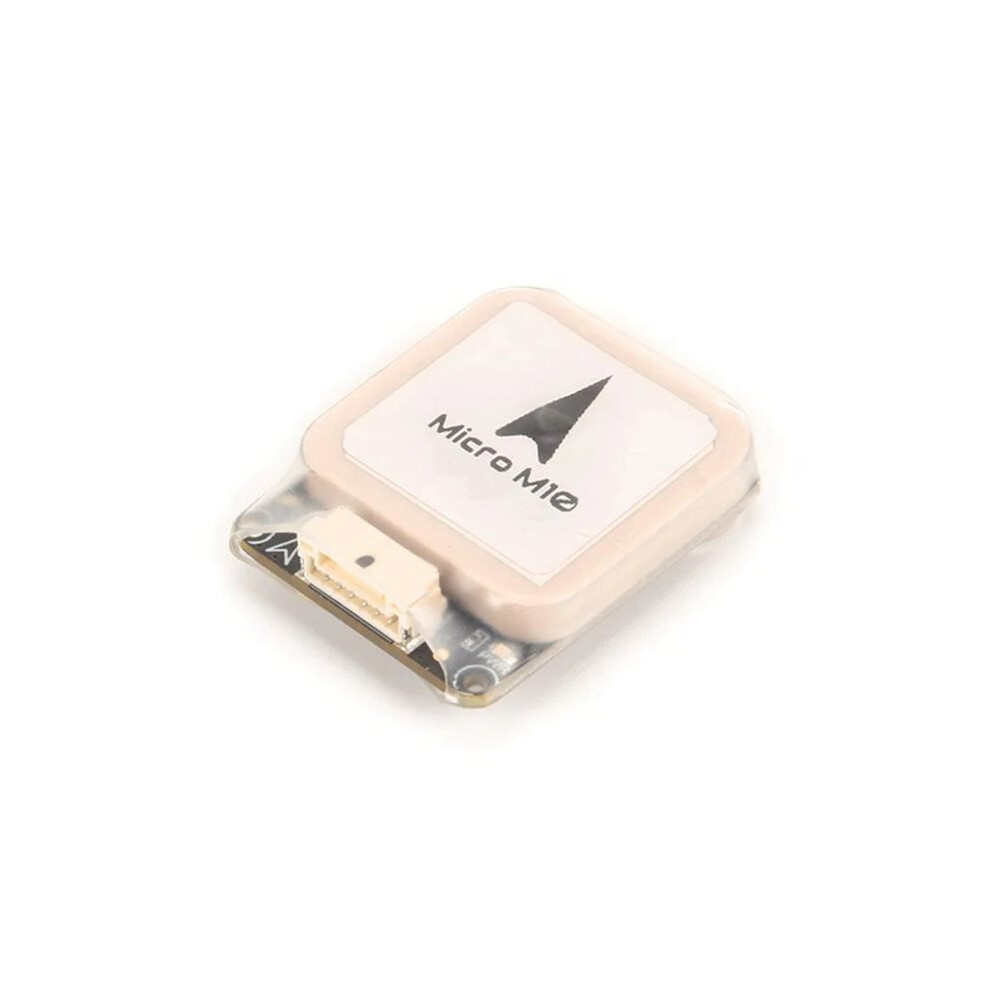

Micro M10 GPS with IST8310 Digital Compass Ceramic Patch Antenna for RC Airplane FPV Long Range Drone
Merke Semoic
Ny
På lager
Derfor vil du elske å handle hos OnBuy:
- Tjen Cashback på hvert kjøp – bruk det umiddelbart på din neste bestilling
- Gratis levering – på millioner av varer på hele nettstedet
- Kunder elsker oss – 130,000 anmeldelser med vurderingen “Utmerket”
638,55 kr
772,03 kr
17 % rabatt!
GRATIS levering
1%
Tjen 6,39 kr med én gang
Les mer
Prisene for varer solgt av OnBuy inkluderer mva.
Rente- og gebyrfri delbetaling tilgjengelig
Se full produktbeskrivelse og detaljer
Levering: Standard (Gratis) | ons 12. - fre 14. aug
Solgt av: PUPUSUN
Returer: 30 dager
180 dagers betalingsbeskyttelse
Du vil kanskje også like
Beskrivelse og detaljer
Sammendrag
- These Micro GPS uses multi-constellation GNSS powered by u-blox M10, a concurrent GNSS receiver which can receive and track multiple GNSS systems.
- Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS,Galileo, GLONASS and BeiDou can be received concurrently. It also comes with the IST8310 compass.
- The high-gain 25 x 25 mm² patch antenna provides excellent performance and the omnidirectional antenna radiation pattern increases flexibility for device installation.
- It features active circuitry for the ceramic patch antenna, Supercapacitor for warm starts.
- Firmware Support for M10 GPS: PX4 1.14, ArduPilot 4.3, INAV 5.0.0, Betaflight 4.3.0 or newer is required.
Micro M10 GPS with IST8310 Digital Compass Ceramic Patch Antenna for RC Airplane FPV Long Range Drone Beskrivelse
These Micro GPS uses multi- GNSS powered by u-blox M10, a concurrent GNSS receiver which can receive and track multiple GNSS systems.
Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS,Galileo, GLONASS and BeiDou can be received concurrently. It also comes with the IST8310 compass.
The high-gain 25 x 25 mm² patch antenna provides excellent performance and the omnidirectional antenna radiation pattern increases flexibility for device installation.
It features active circuitry for the ceramic patch antenna, Supercapacitor for warm starts.
Firmware Support for M10 GPS: PX4 1.14, ArduPilot 4.3, INAV 5.0.0, Betaflight 4.3.0 or newer is required.
Newest Ublox 10th Gen GNSS
Fast & Accurate Positioning
IST8310 Compass
Small Form Factor
Color: As Shown
Material: PCB+Plastic
Package Contents:
- 1x Micro GPS module
- 1x JST GH 6 Position Connector
- 1x JST-GH 6pin Colored Silicon Cable
Detaljer
| OPC | PX2C9ZC |
|---|---|
| Merke | Semoic |
| Koder | 6033832874079 (EAN) |
| Produkt- og sikkerhetsinformasjon |
Produktdata
| Height | 1cm |
|---|---|
| Width | 8cm |
| Length | 15cm |
| Weight | 0.0275kg |
| Colour | As Shown |
| Material | PCB+Plastic |
