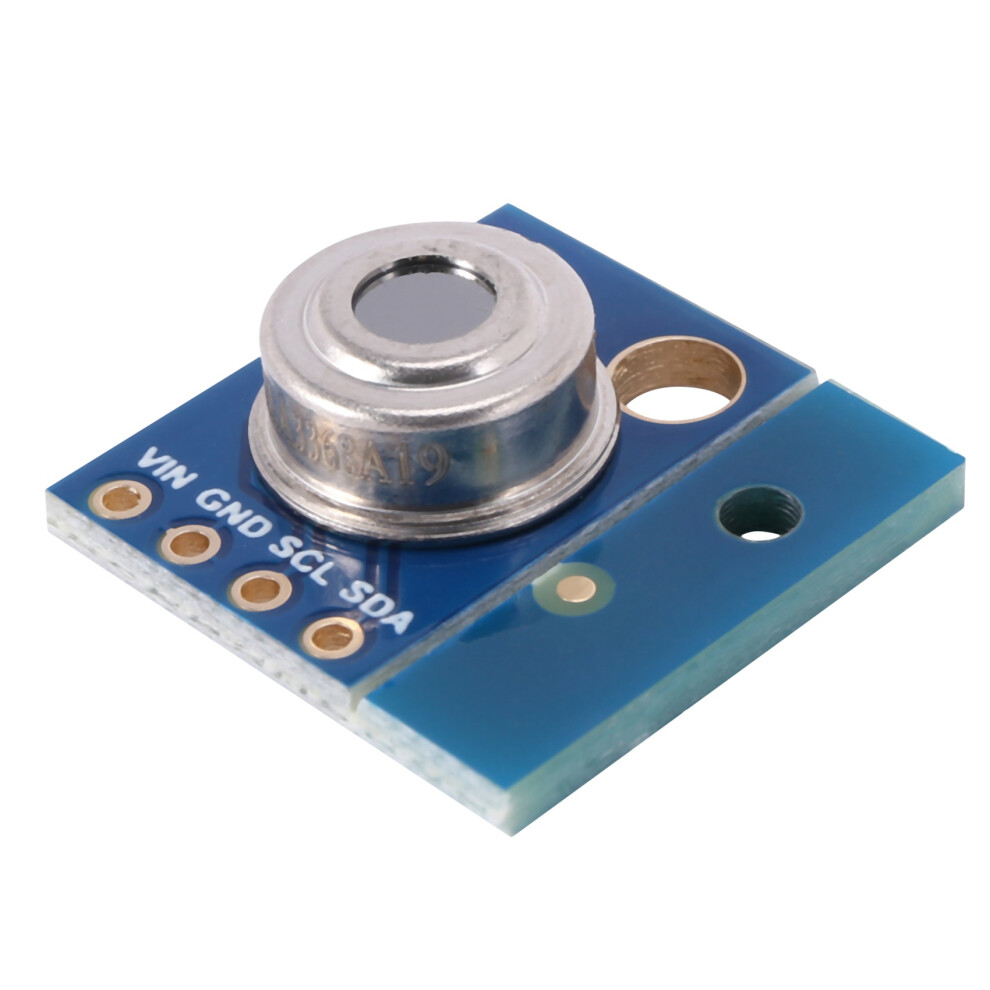

MLX90614ESF New MLX90614 Contactless Temperature Sensor Module

MLX90614ESF New MLX90614 Contactless Temperature Sensor Module Beskrivelse

New,Good

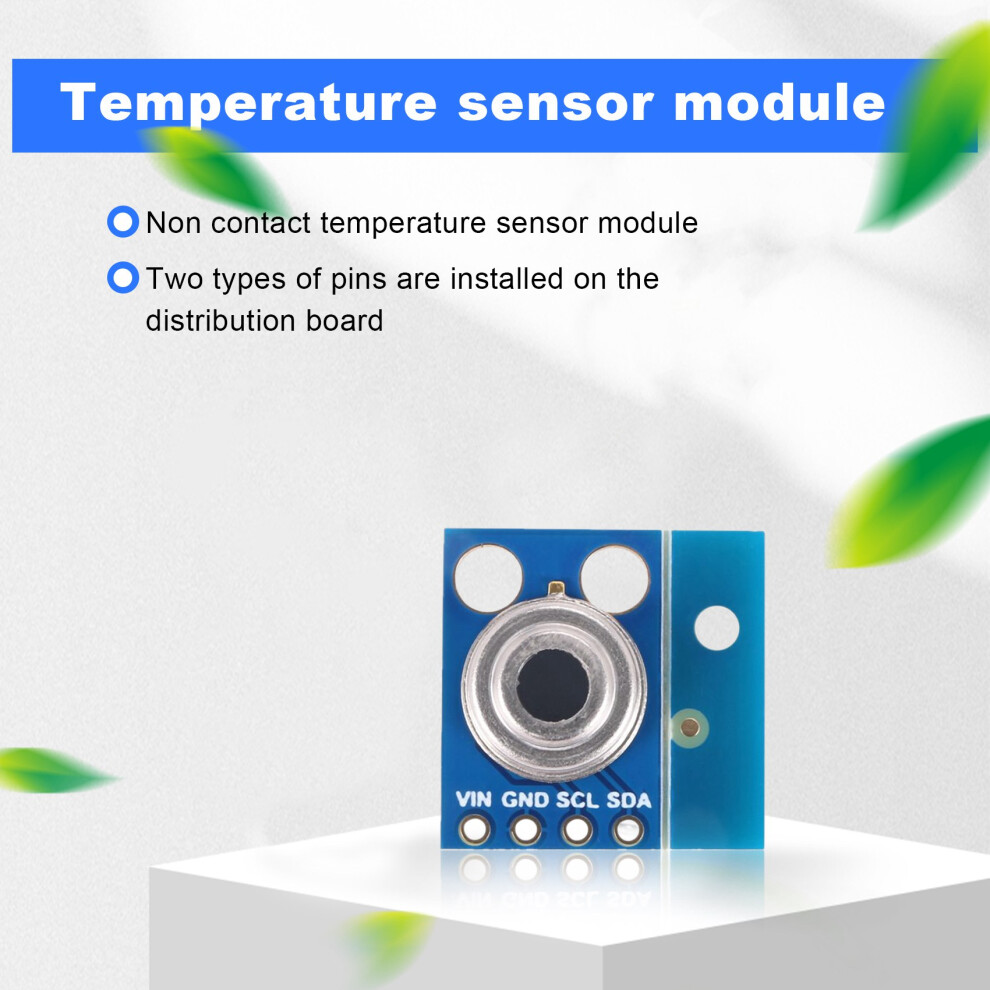

Contactless Temperature Sensor Module
MLX90614ESF
Small size, low cost

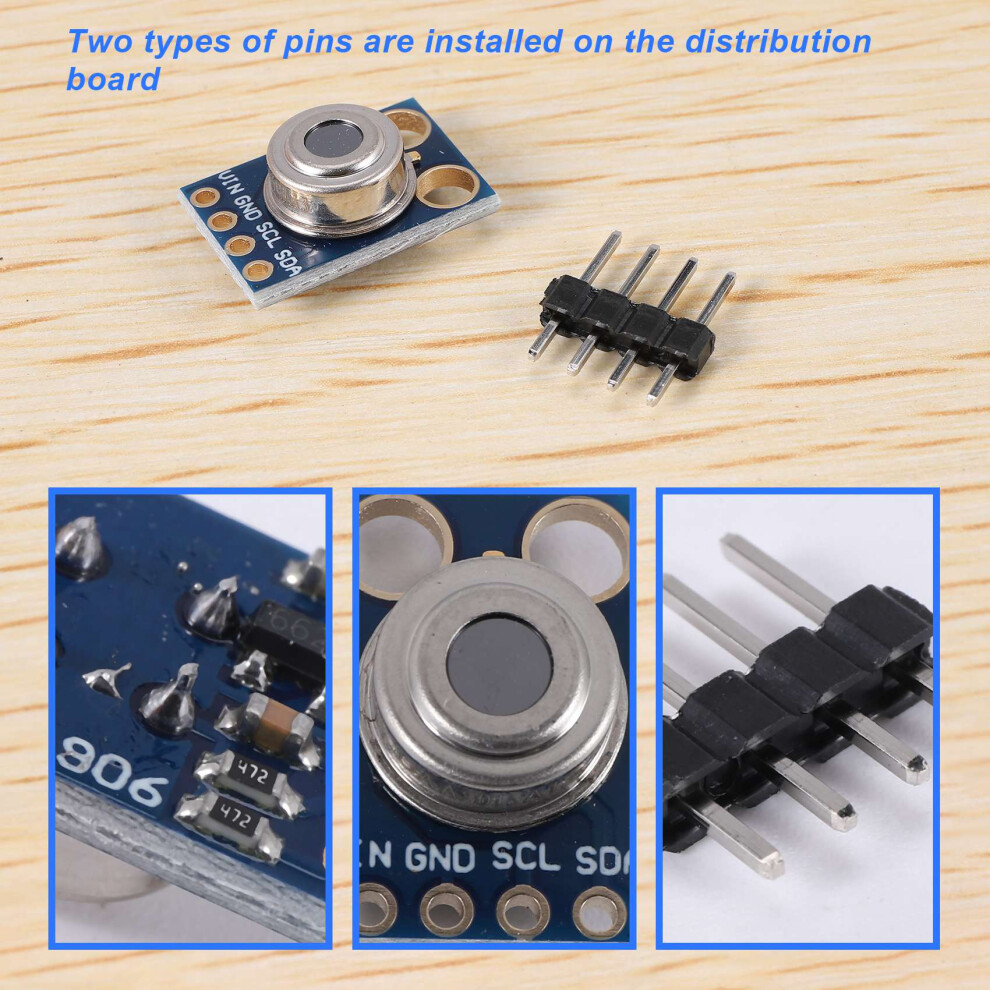

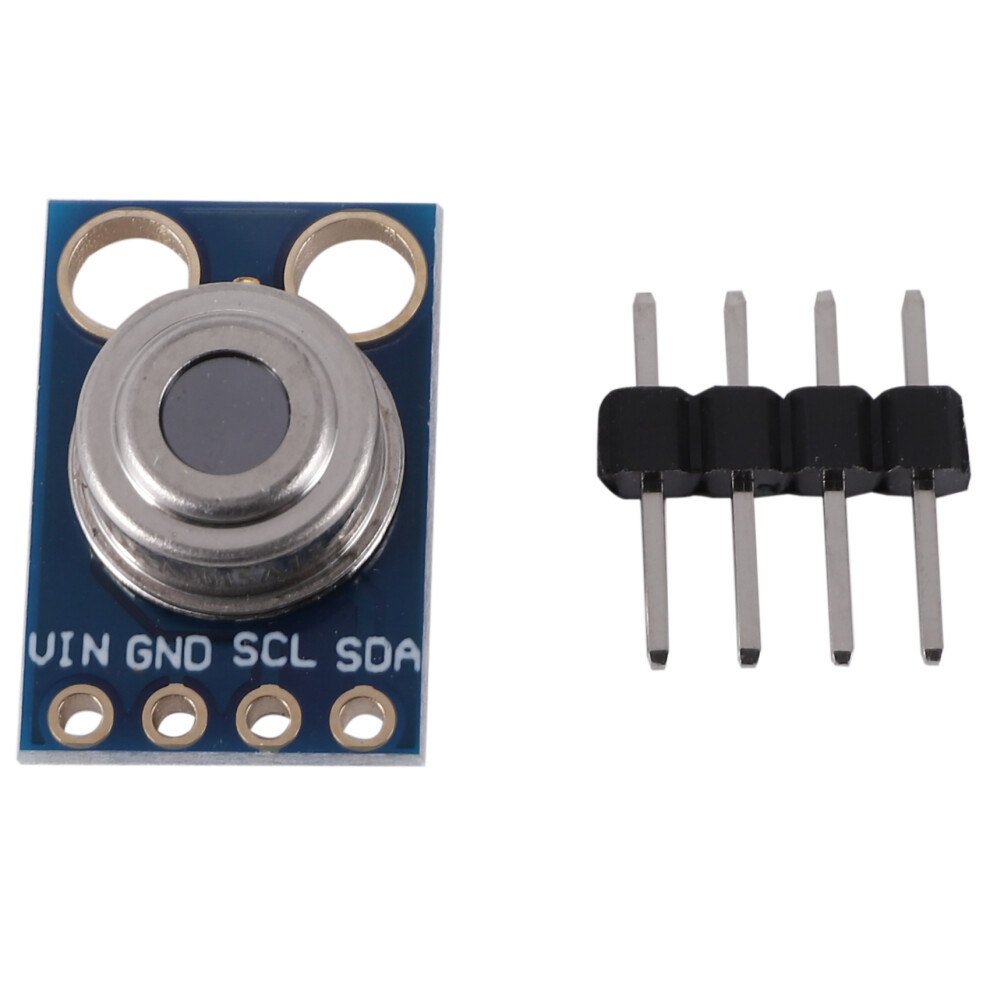

Mounted a breakout board with two types of pins
10k Pull resistors for the I2C interface with solder jumpers (Do not included Jumpers)
Easy to integrate

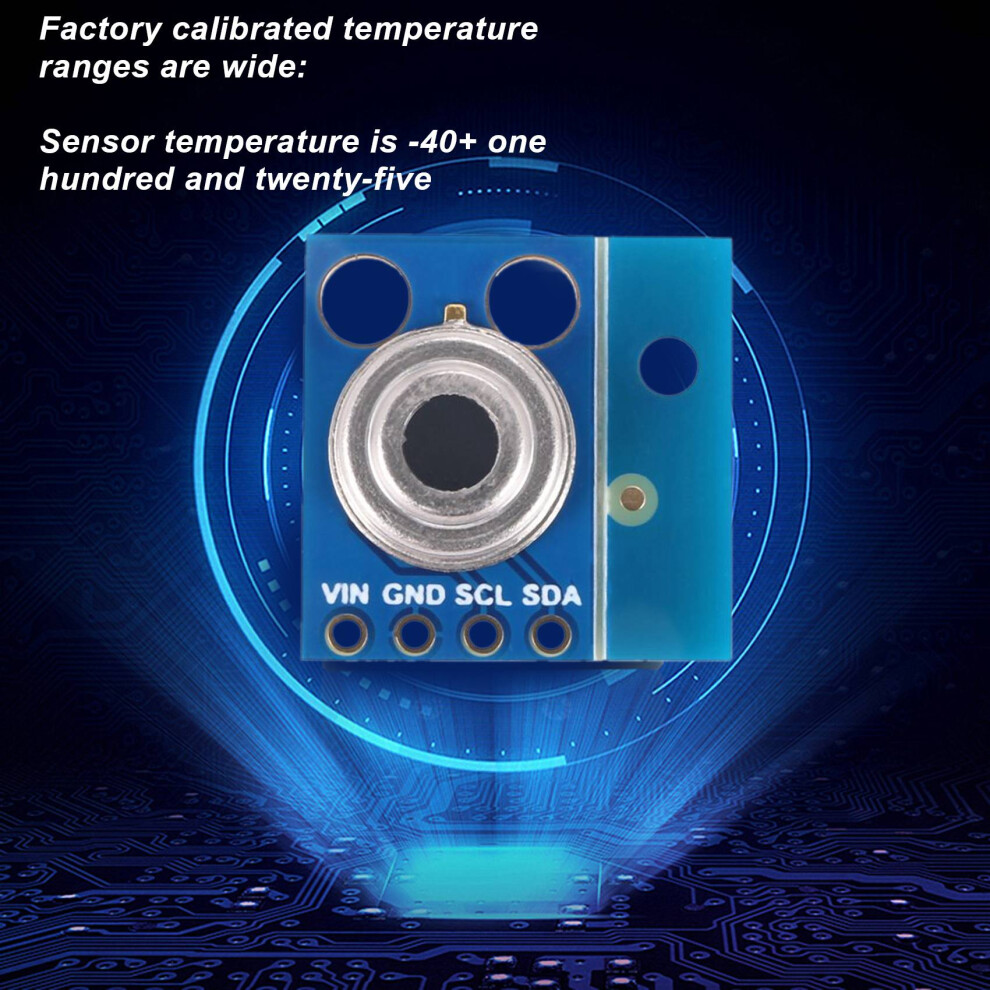

Factory calibrated in wide temperature range:
-40 ... + 125 Celsius for sensor temperature and
-70 ... + 380 Celsius for object temperature.
High accuracy of 0.5 Celsius over wide temperaturerange (0 ... + 50 Celsius for both Ta and To) High () accuracy calibration
Measurement resolution of 0.02 Celsius
Single and dual zone versions
SMBus compatible digital interface
Customizable PWM output for continuousreading
Simple adaptation for 8 ... 16V applications
Sleep mode for reduced power consumption
Different package options for applications andmeasurements versatility
Color: picture color
material: plastic
size: 16.5*11.5*6mm
Package Contents: 1* Module
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
