Range Sensor Module 10-180Cm Distance Sensor Tof10120 Distance Sensor Uart I2C Output 3-5V Rs232 Interface for Tof05140

Range Sensor Module 10-180Cm Distance Sensor Tof10120 Distance Sensor Uart I2C Output 3-5V Rs232 Interface for Tof05140 Beskrivelse

-of-flight ultrasonic distance
sensor TOF10120 range sensor provides accurate and repeatable long range distance measurement for high-speed autofocus (AF). The innovative -of-flight technology enables

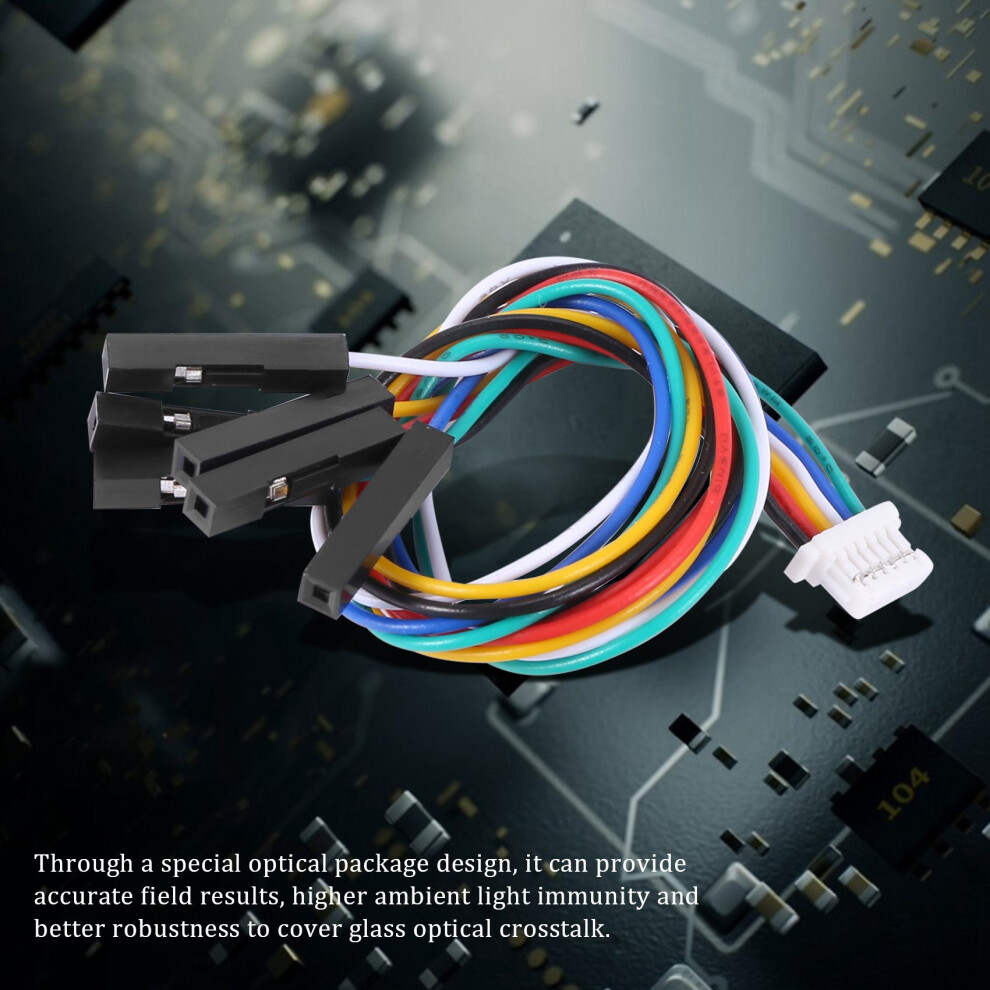

performance independent of object reflection. TOF10120's -of-flight sensing technology is realized by 's SPAD (Single Photon Avalanche Diodes) with low-cost standard CMOS process. It allows accurate in the field result, higher immunity to ambient light and better ruggedness to cover-glass optical crosstalk through special optical package design.
940nm classified as class 1 under operating condition

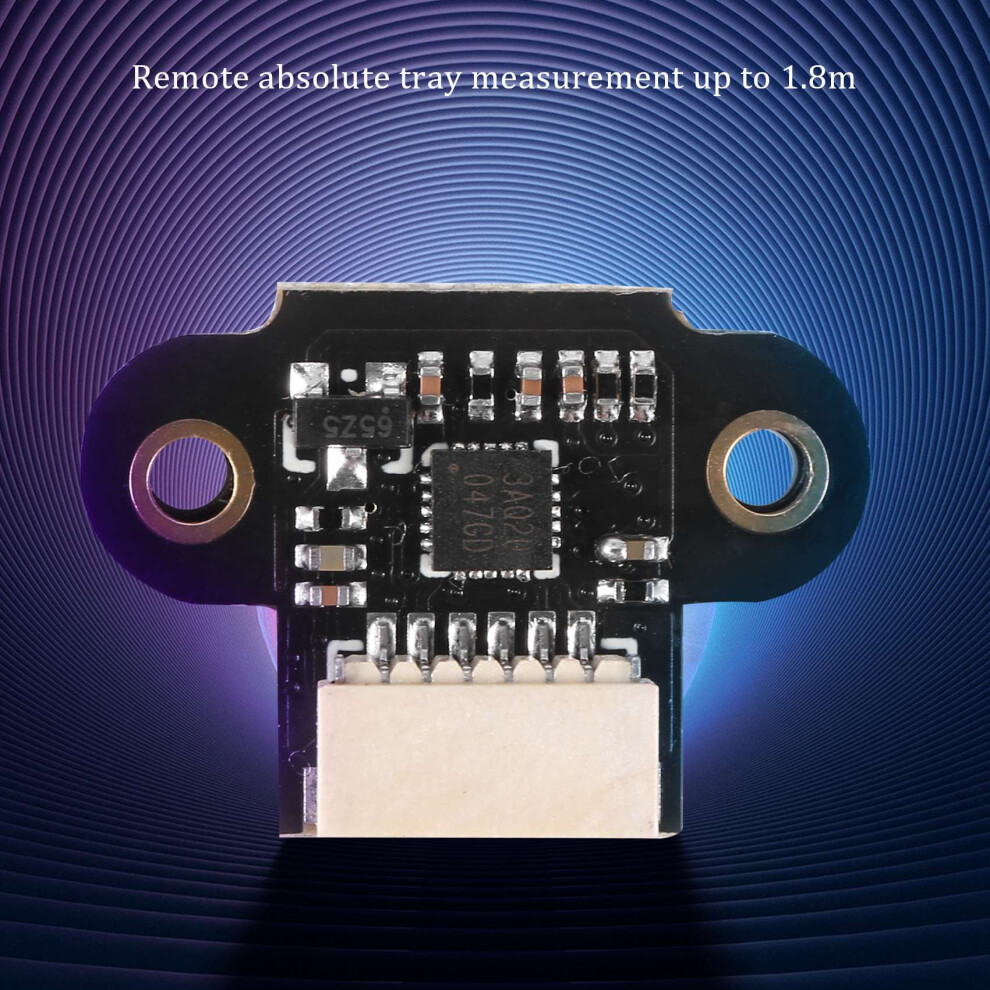

Long range absolute pallet measurement to 1.8m

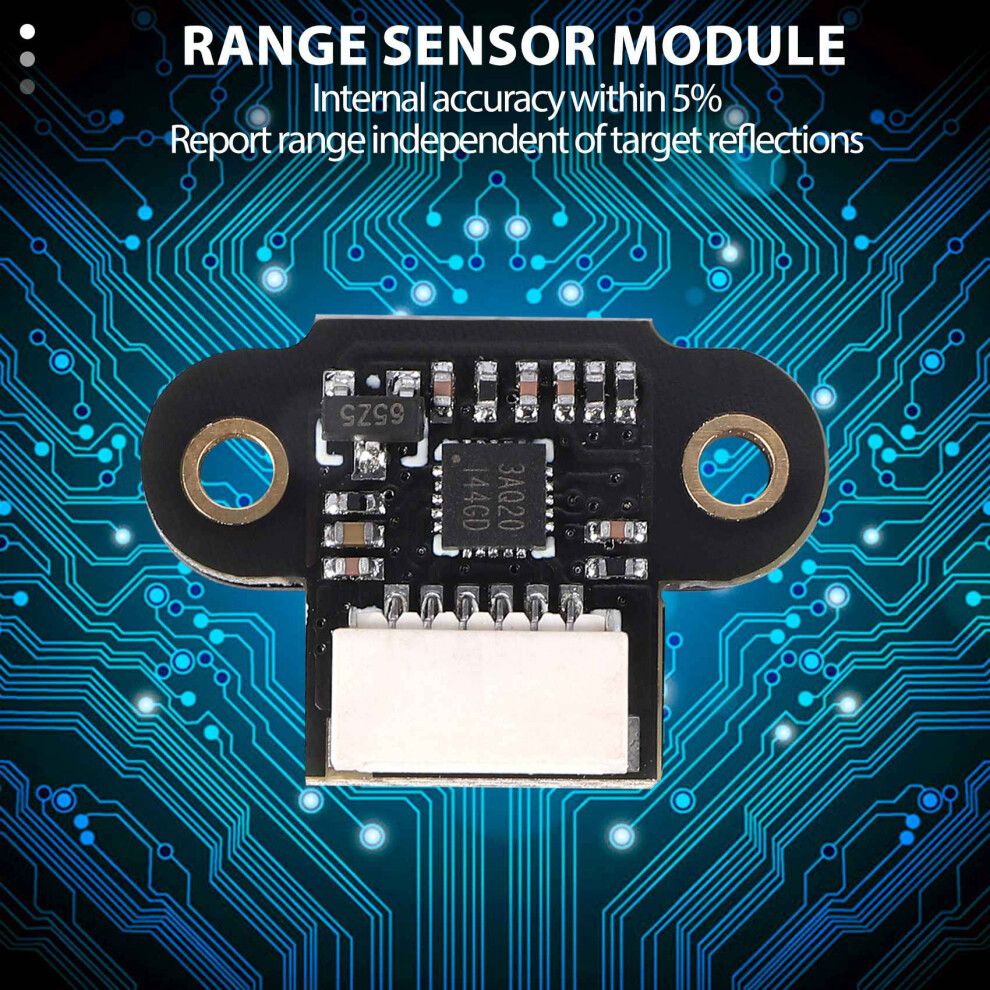

Within 5 % accuracy inside
Reported range is independent of target reflection
Operates in high infrared ambient light levels
Advanced optical -talk compensation
High speed range MAX 30 msec
Single power supply
Txd interface for device control and data transfer
High-speed AF
Continuous AF for video
Laptops / tablets
Robotics (obstacle detection)
Range range 100 ~ 1800mm
colour:Photo Color
Material:plastic
Package Contents:
1 * Range Sensor Module
