Rotary Hall Magnetic Encoder 775 Reduced Motor Code Disc 795 Motor Speed Measurement Direction 775-P16

Rotary Hall Magnetic Encoder 775 Reduced Motor Code Disc 795 Motor Speed Measurement Direction 775-P16 Beskrivelse

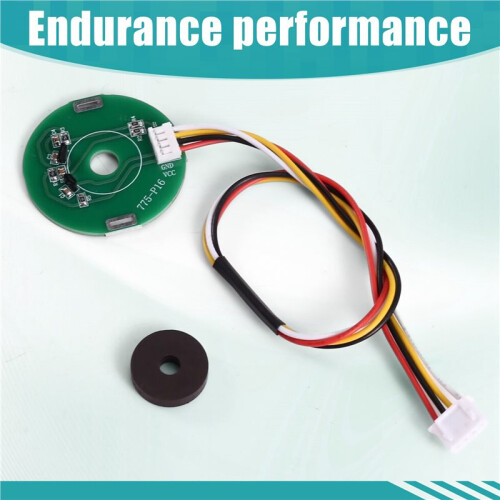

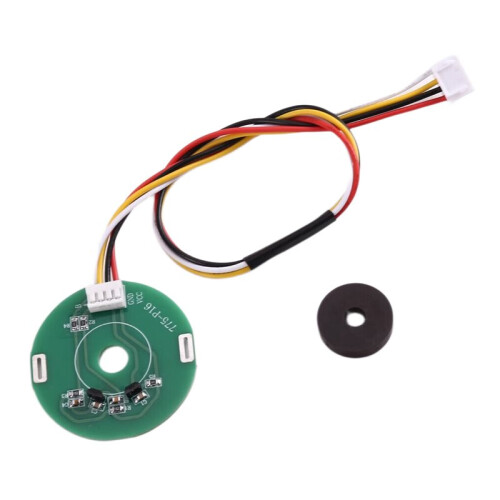

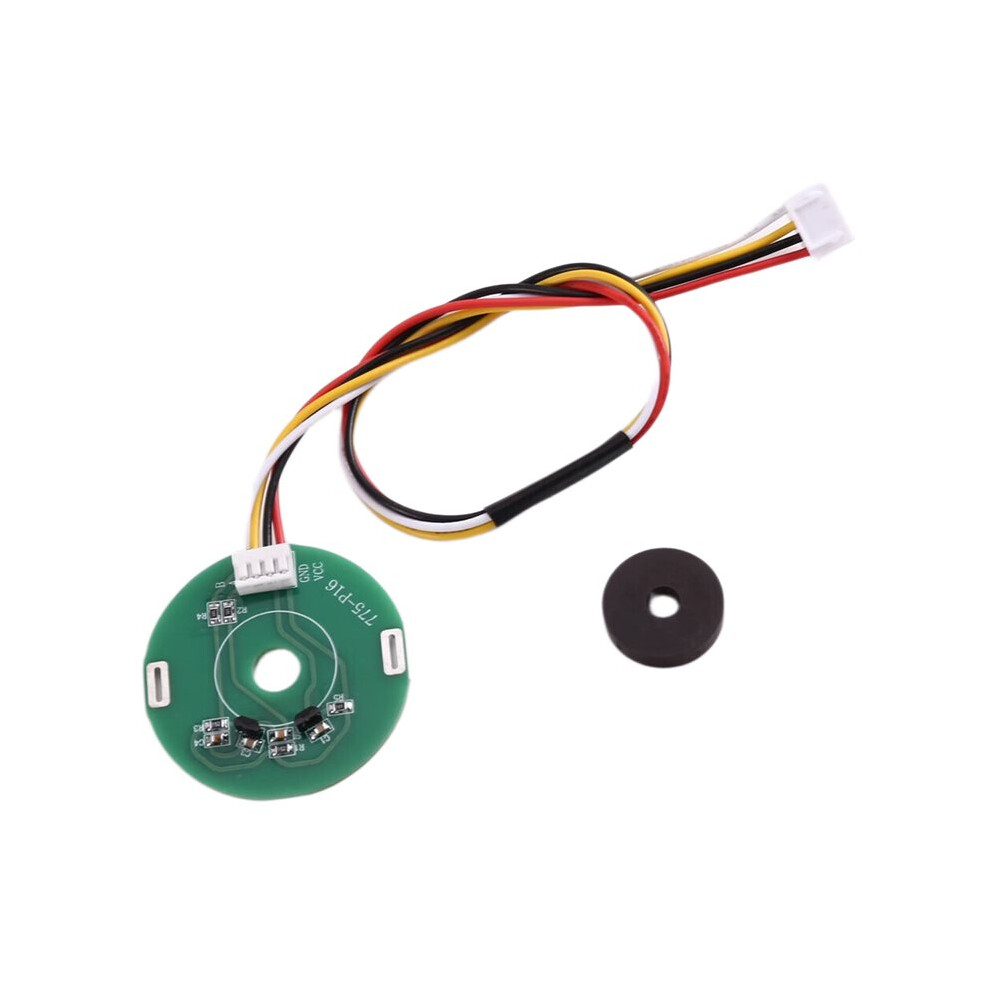

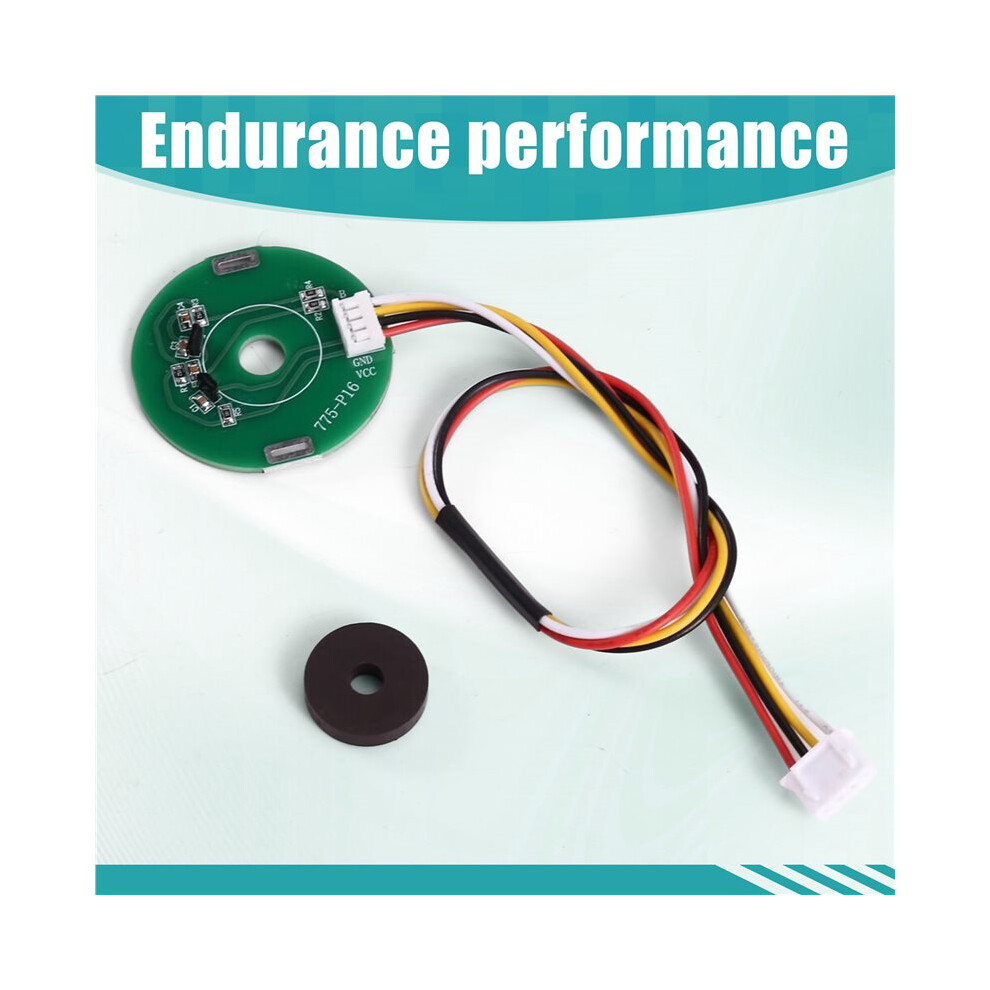

1 Hall Encoder 775-P16 is a high-performance, low-cost, two-channel incremental magnetic encoder suitable for any harsh environment

2 Each magnetic encoder contains a magnetic grid and a magnetic sensitive detection circuit, outputting two channels of square waves with a 90 orthogonal phase angle.
3 Designed according to the motor diameter and spindle size, the PCB board with the sensor is welded and fixed to the motor tail electrode, and the magnetic grid is sleeved the tail shaft.

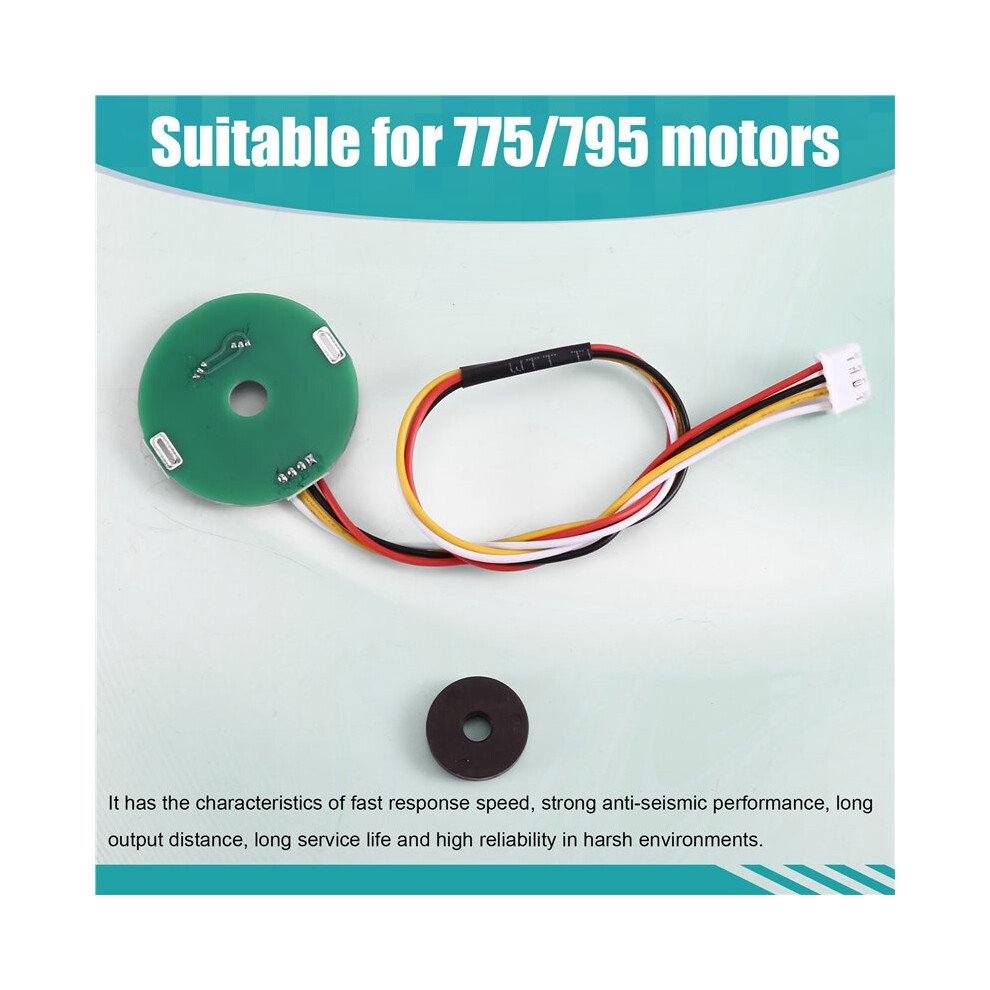

4 It has the characteristics of fast response speed, strong anti-seismic performance, long output distance, long service life and high reliability in harsh environments.
5 Suitable for 775/795 motors
Parameters:
Model: 385-P16
Model: 775-P16 Hall encoder
Operating voltage: 5V
Operating temperature: -20~+80C
Operating frequency: 100Khz
Resolution: 16 pulses per circle
Applicable motor: 775
Magnetic steel size: 18*5.0*4mm
Output signal: AB phase square wave, phase angle difference 1/4 cycle
Color: As Shown
Material: PC

Package Contents:
1*Rotary Hall Magnetic Encoder
