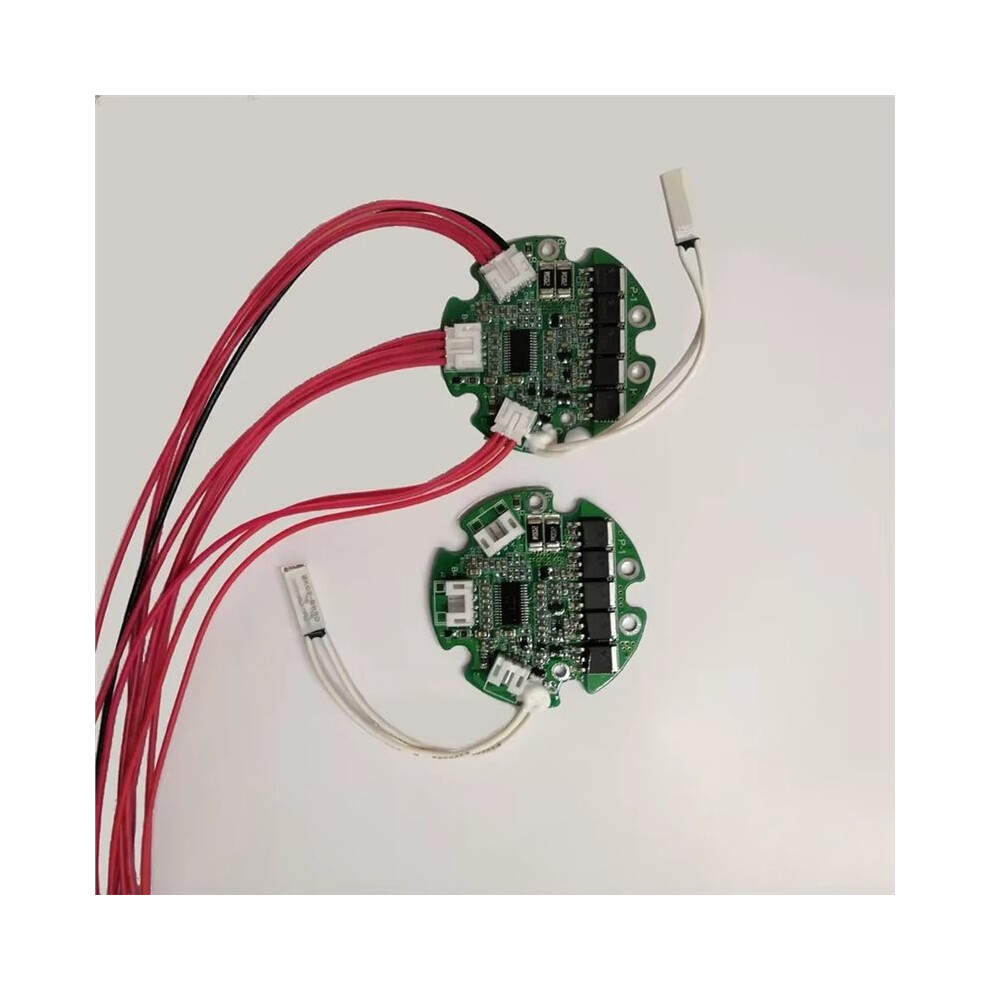

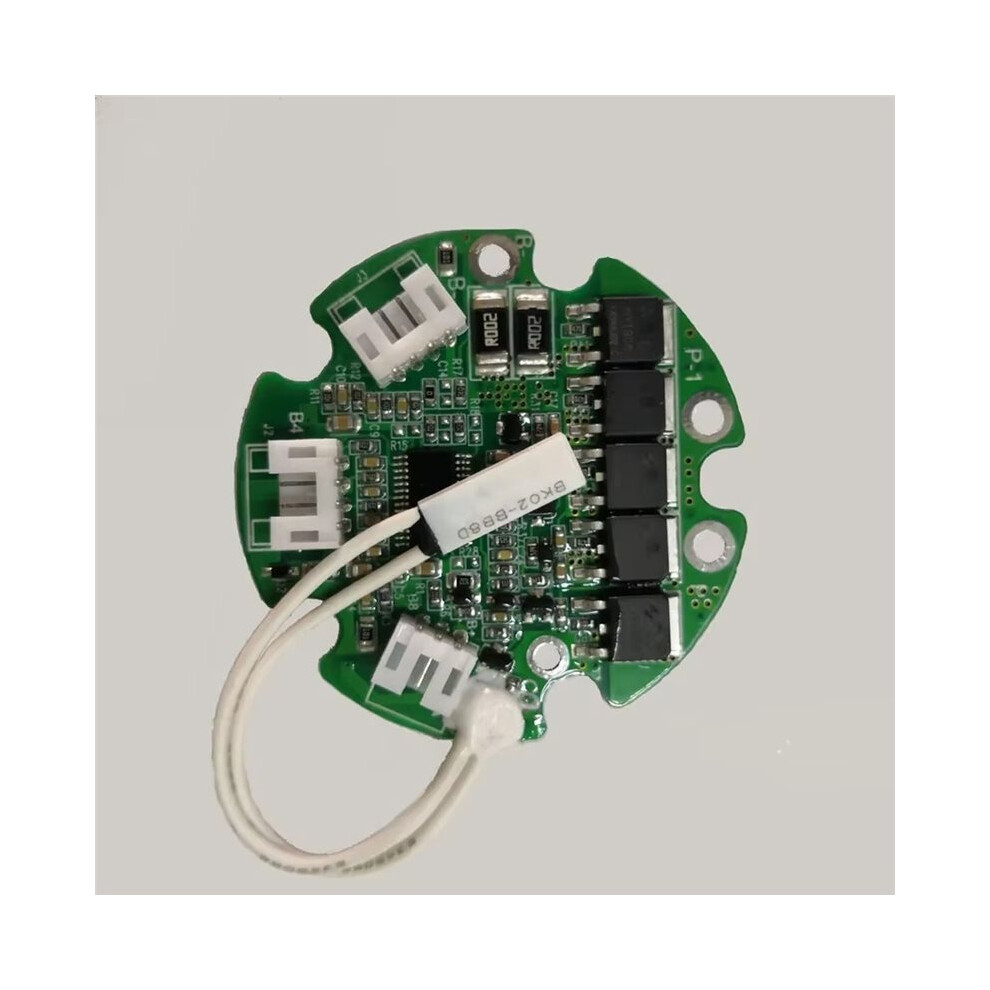

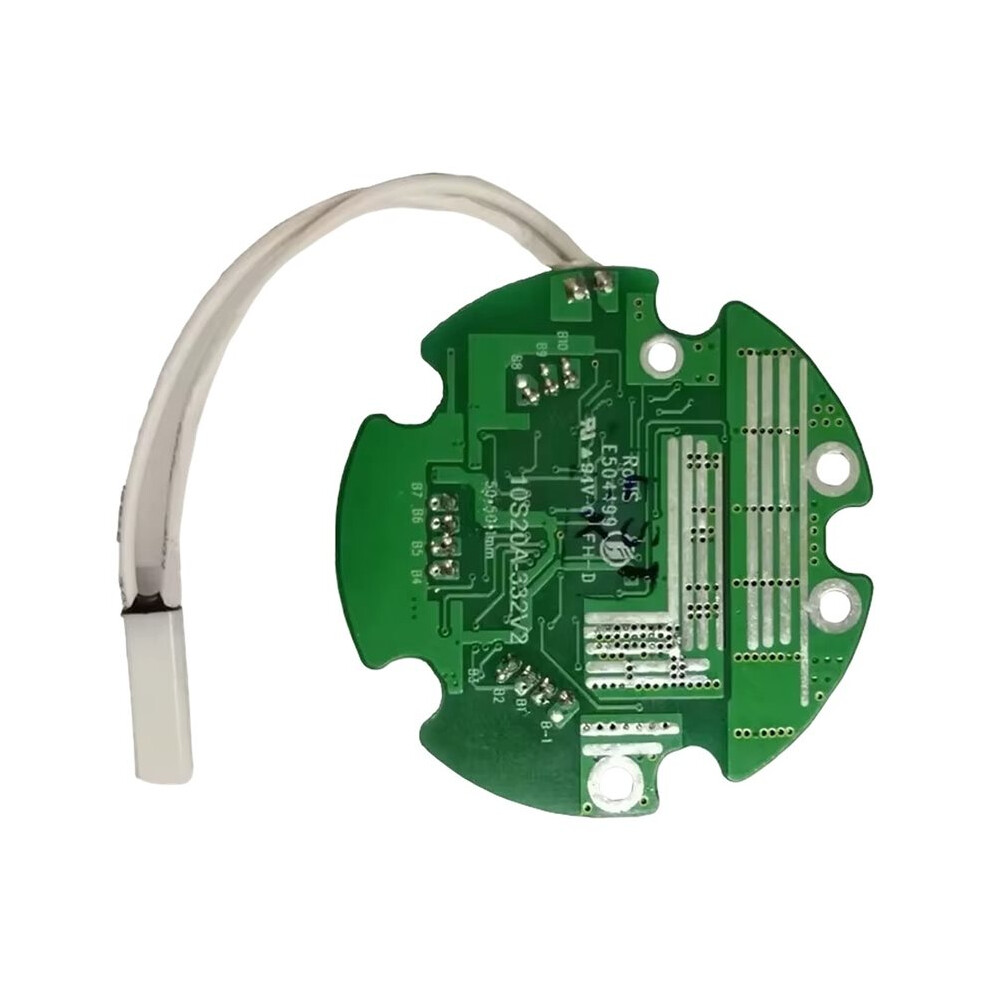

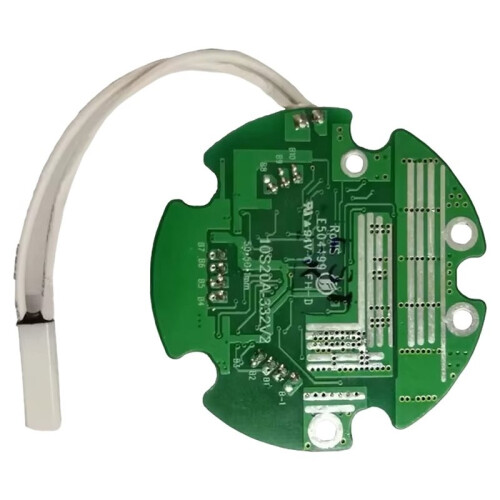

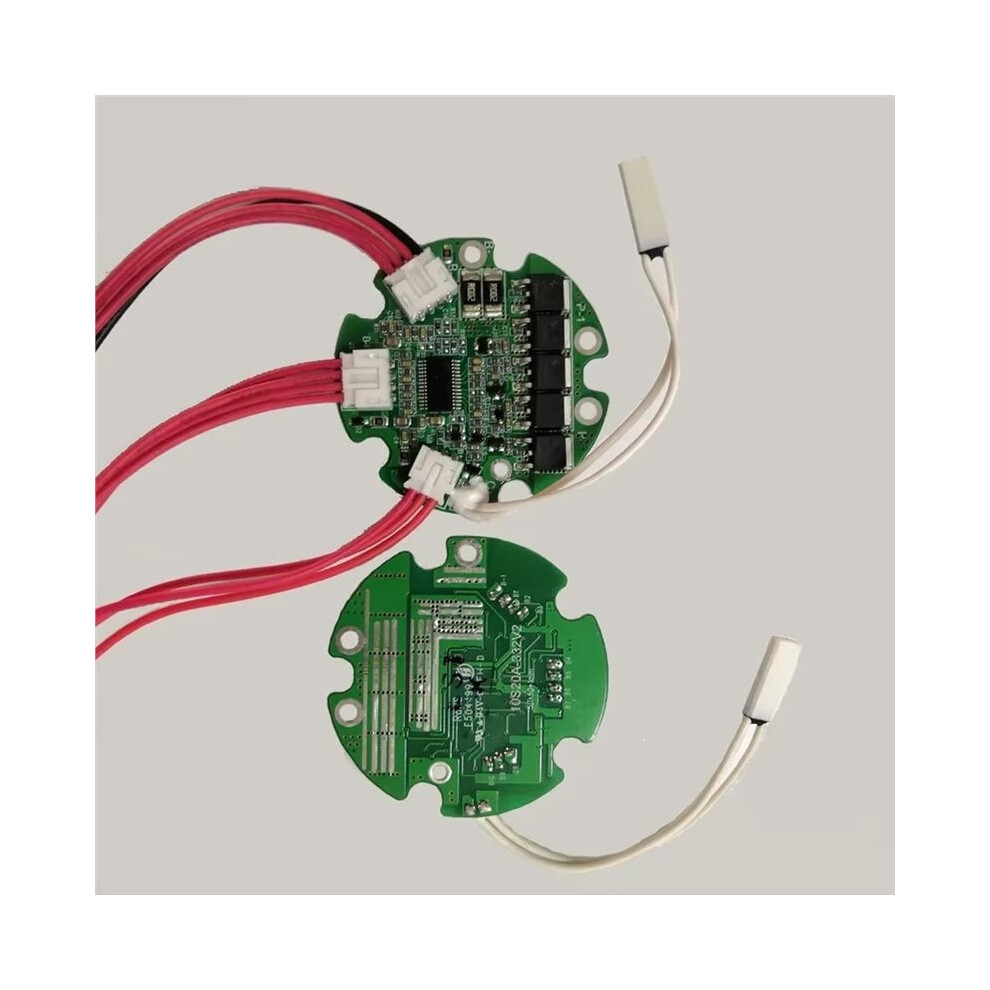

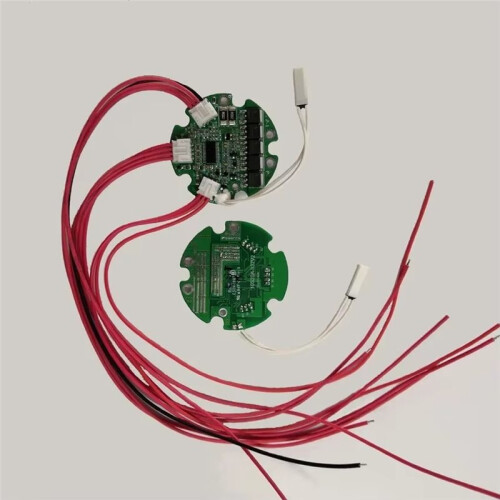

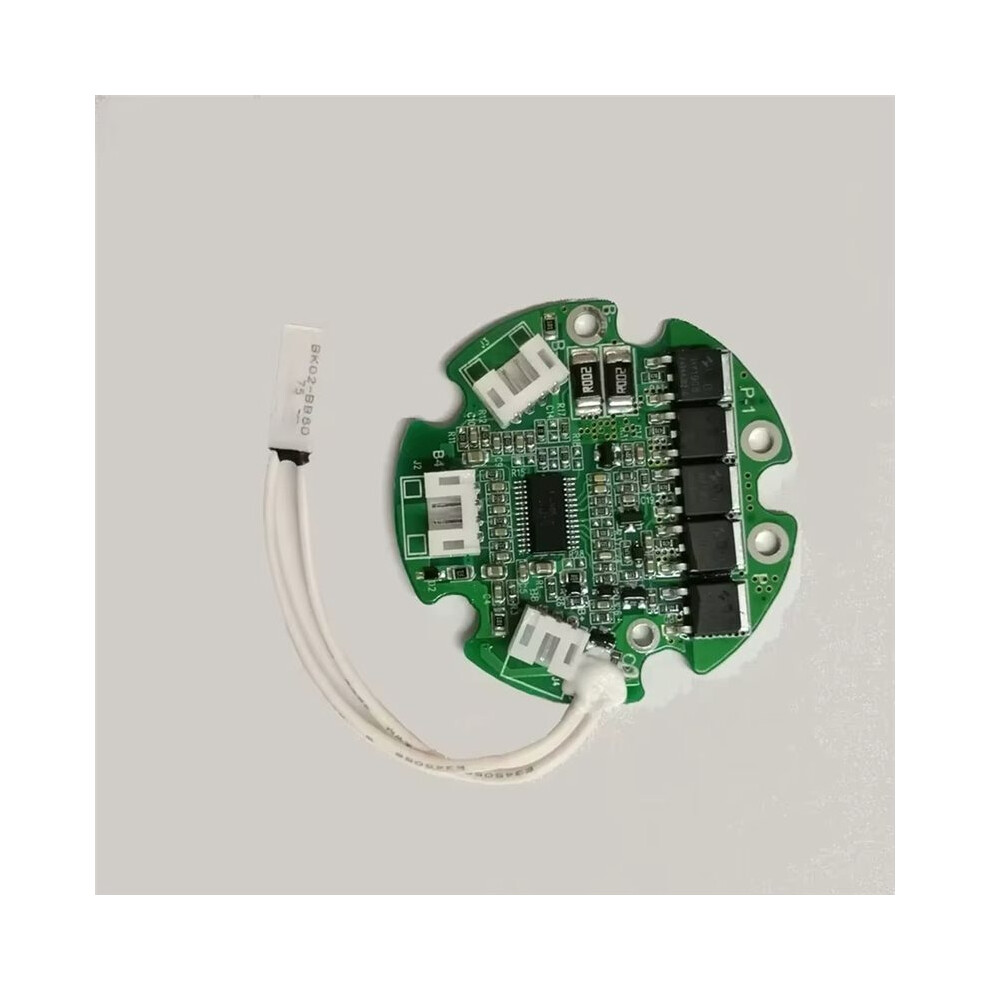

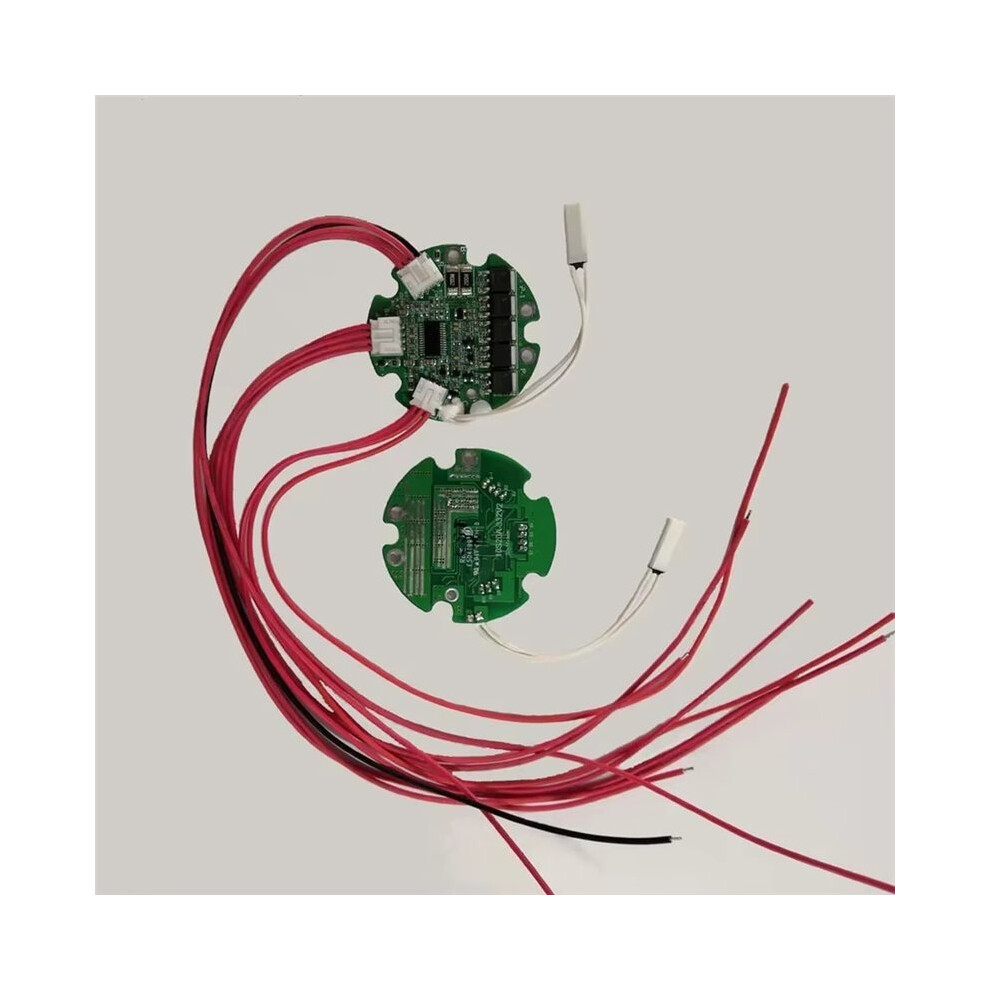

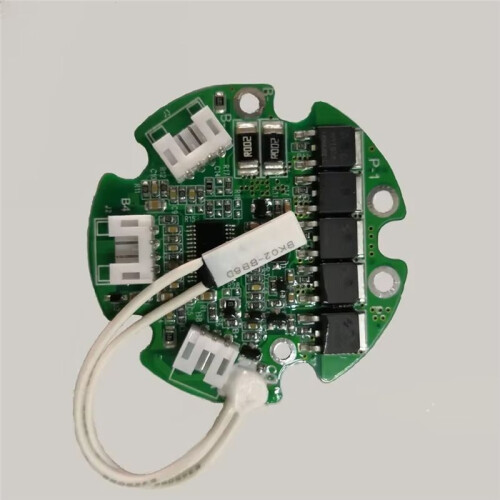

Round for Bms 10S 36V 20A for Bottle Battery Pack Split Port for Charge and Discharge with Temp Sensor

Round for Bms 10S 36V 20A for Bottle Battery Pack Split Port for Charge and Discharge with Temp Sensor Beskrivelse

10S 36V for BMS for bottle battery packs Designed for 10S 36V battery configurations, this round BMS ensures stable performance in bottle-shaped battery packs. Its compact 50 x 49.5 x 8 mm size fits seamlessly into tight spaces.
High continuous discharge current of 20A With a continuous discharge current of 20A, this BMS supports high-power applications while maintaining safe and reliable operation under heavy load conditions.
5A charge current with split port design Equipped with a 5A charge current and a split port for charge and discharge, this BMS enables efficient power management and flexible connection options for battery systems.
Integrated temperature sensor for safety The built-in temperature sensor monitors battery health in real , helping prevent overheating and enhancing overall safety during charging and discharging cycles.
Universal compatibility with INR-103620 model Compatible with Model Number INR-103620, this for BMS is ideal for users seeking a reliable, plug-and- solution for their battery pack upgrades or replacements.

10S 36VDetailSpec
DischargeMaximal Continuous Discharging Current 20A
apex Discharging Current10020A
Over Current Protection Current10020A
ChargeCharging Voltage42V
Charging Current5A
Over charge protectionOver Charge Detection Voltage 4.250.025V
Over Charge Detection Delay Time15mS-140mS
Over Charger Release Voltage 4.150.05V
Over discharge protectionOver Discharge Detection Voltage2.80.025V
Over Discharge Detection Delay Time150mS-250mS
Over Discharger Release Voltage3.00.075V
Over current protectionOver Current Detection Voltage10025mV
Over Current Detection Delay Time150mS-250mS
Over Current Protection ConditionDisconnect the load
Short ProtectionDetection ConditionExterior Short Curcuit
Detection Delay
