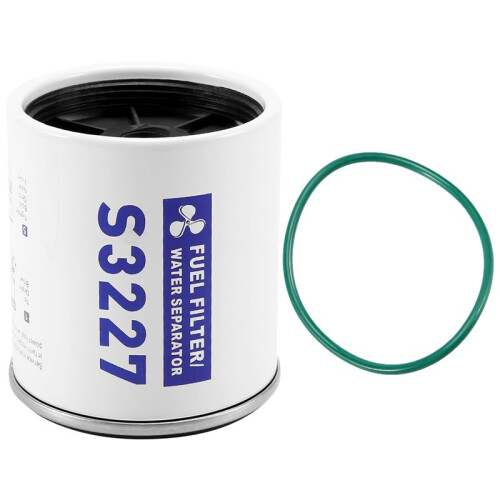

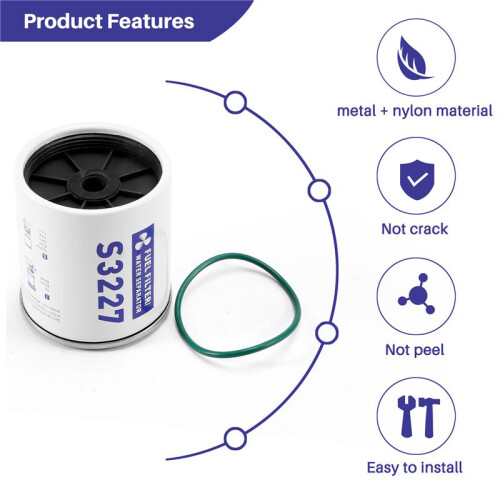

S3227 Outboard Marine Fuel Filter elements Fuel Water Separator Filter elements

S3227 Outboard Marine Fuel Filter elements Fuel Water Separator Filter elements Beskrivelse

color: White

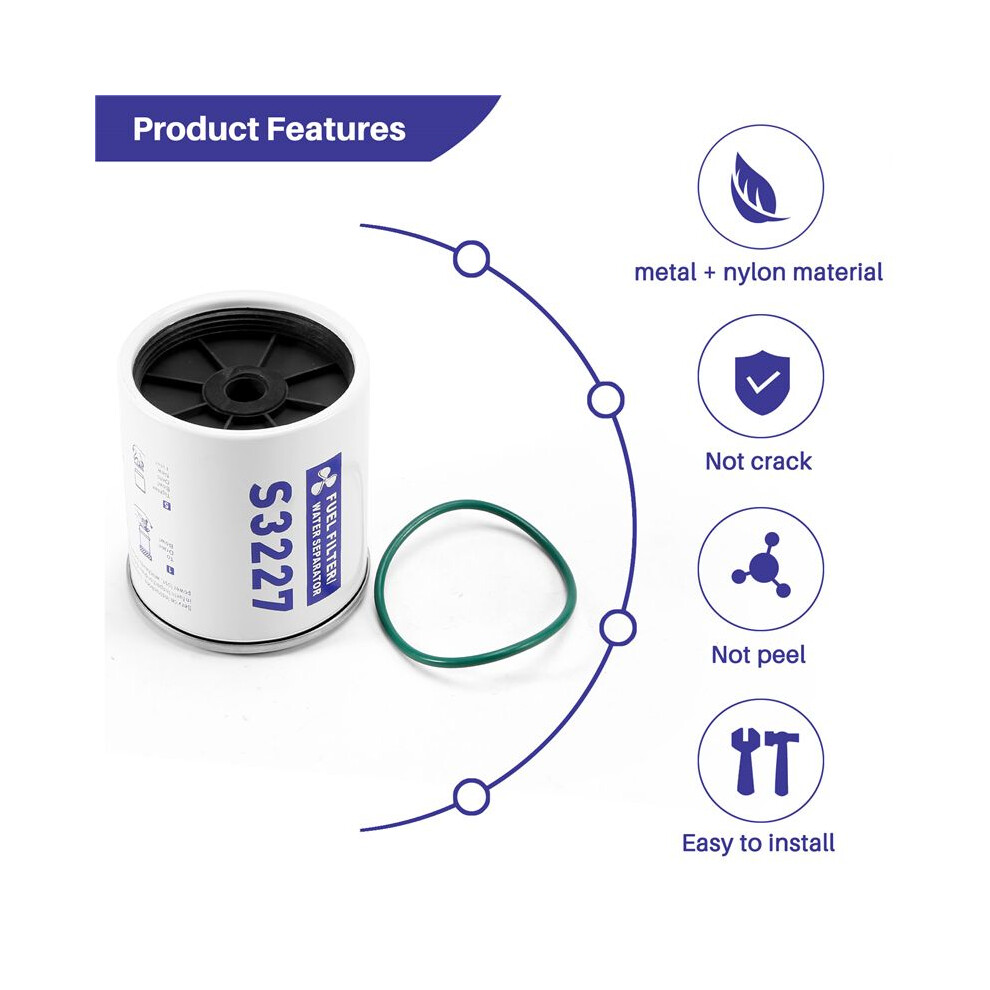

Material: metal + nylon
Application: Outboard engine for Mercury speedboats Motorboats, etc.

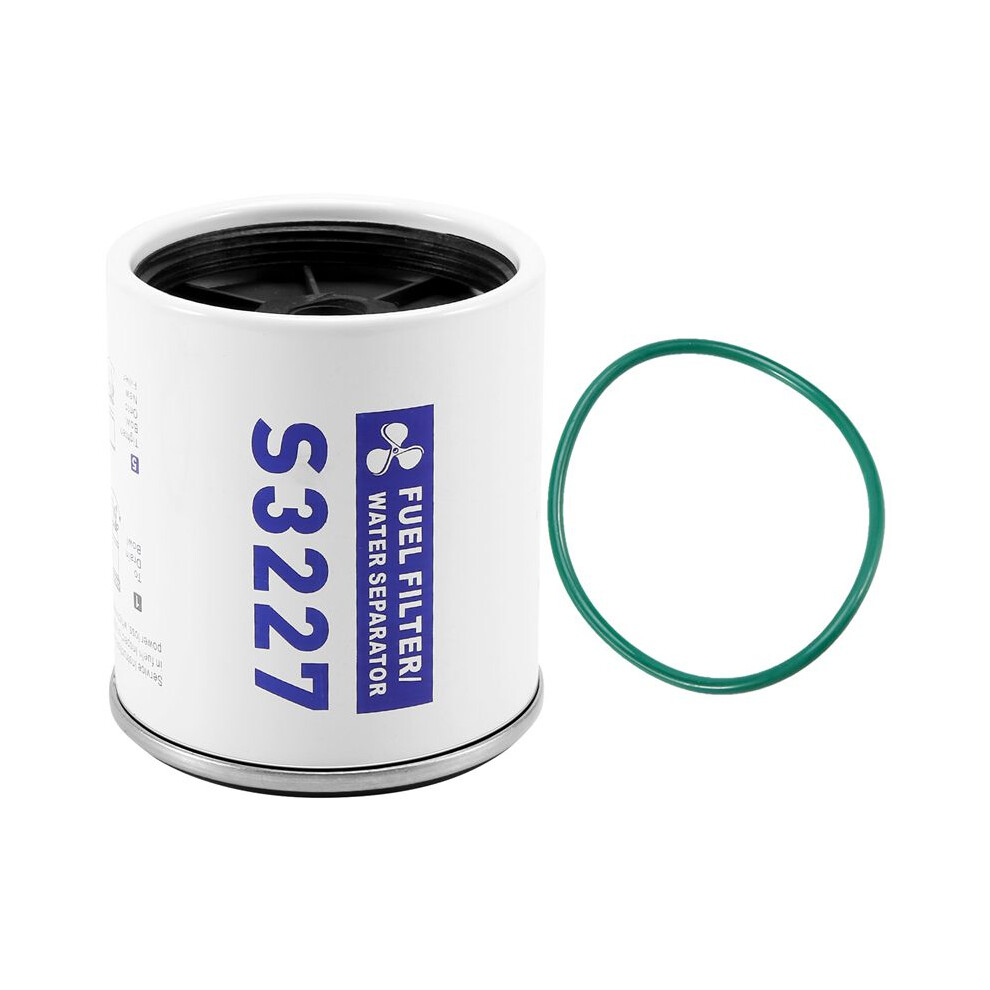

The o-ring does not compress and allow the filter to Press the housing, which then creates a leak. The O-rings are excellent quality.

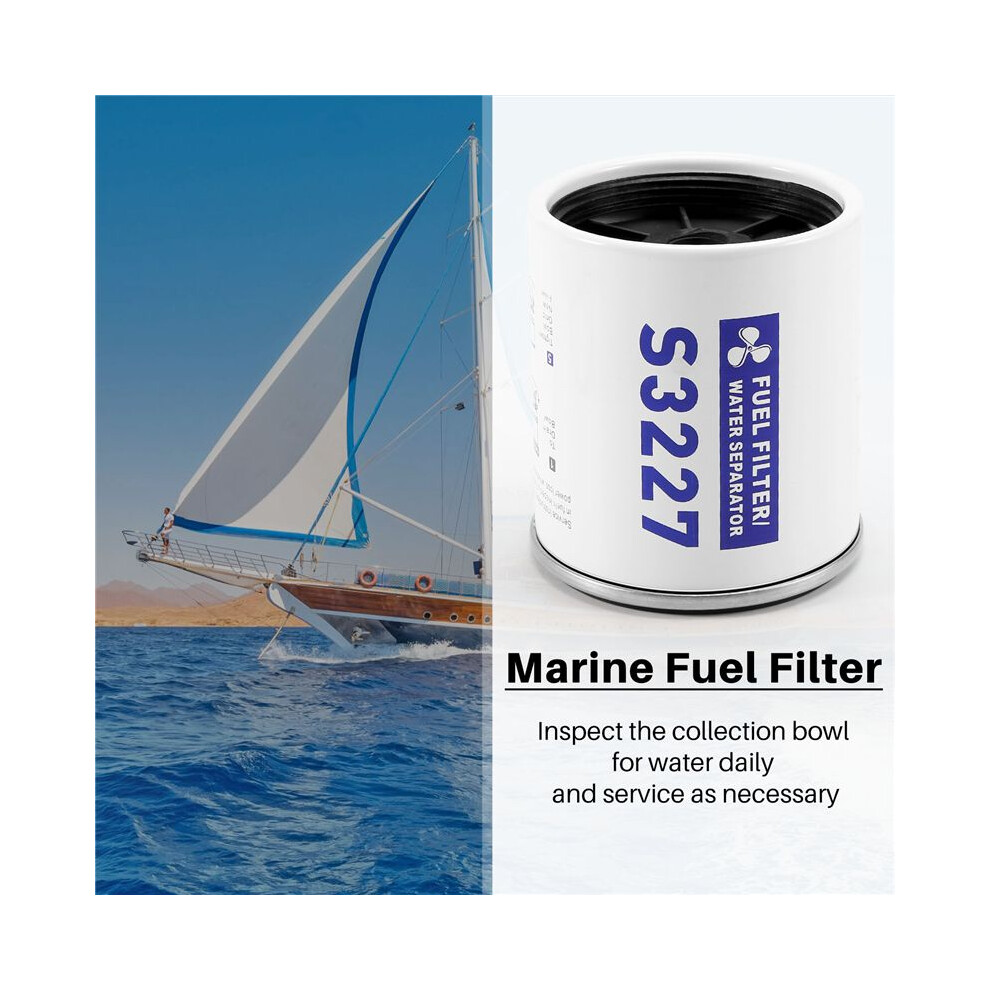

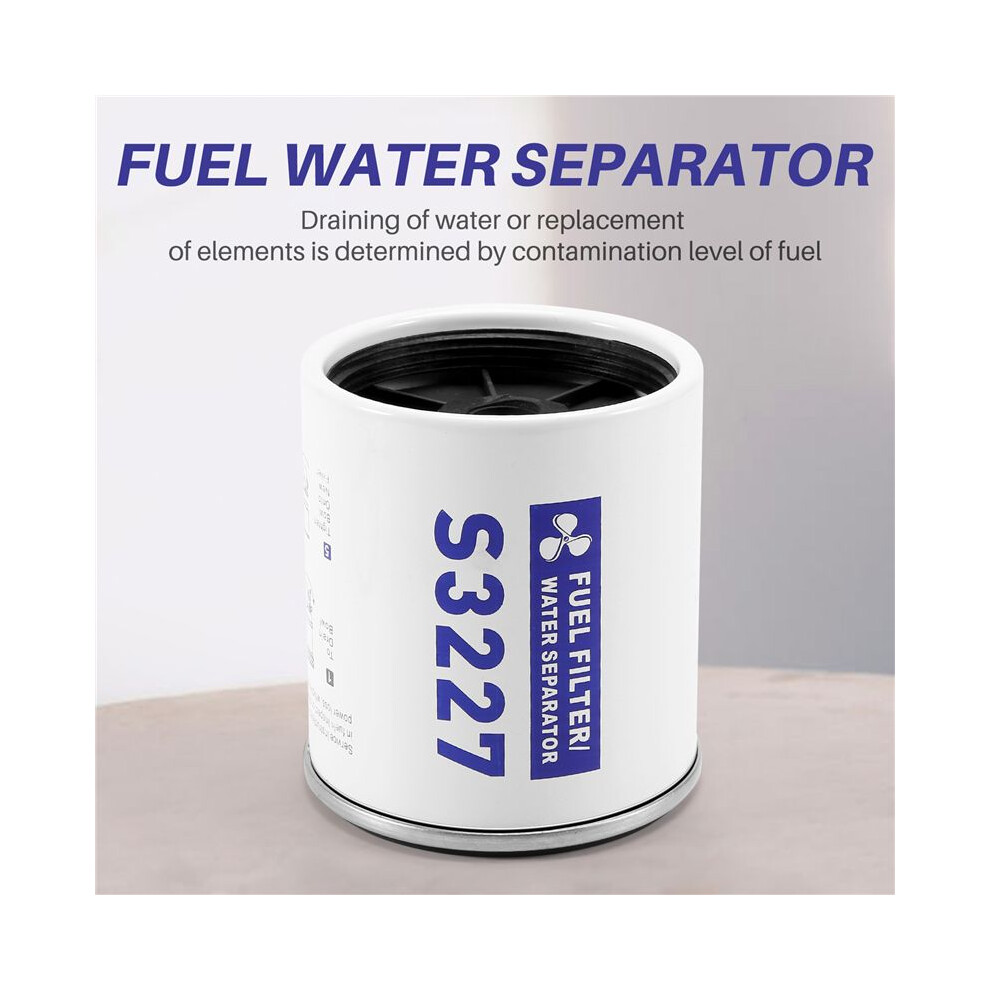

Draining of water or replacement of elements is determined by contamination level of fuel. Inspect the collection bowl for water daily and service as necessary. Replace elements at least once a year or when a decrease of power is noticed.
To Drain Water
1. Loosen self-venting drain plug to drain water from bowl into a container.
2. Tighten drain.
3. Use primer bulb to fill filter with fuel.
4. Start engine and check ensure there are no leaks.
Category: Oil-water separator

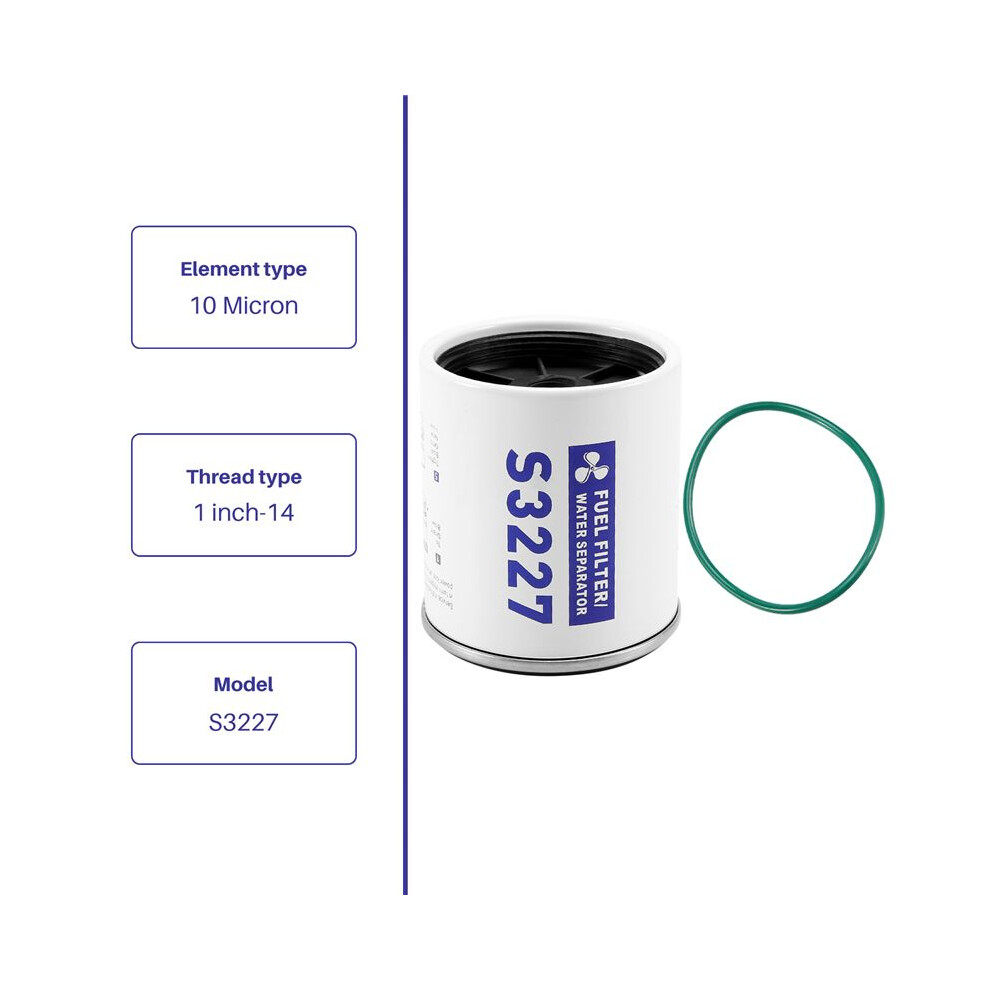

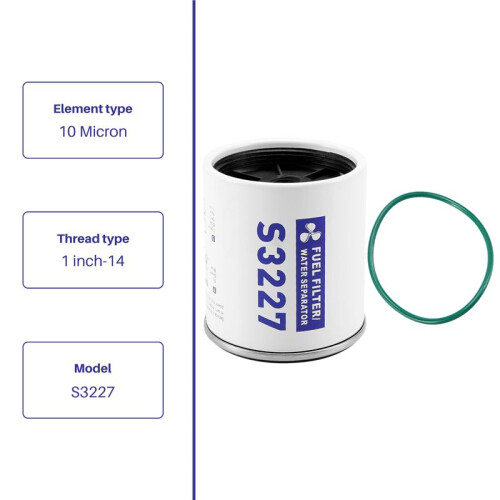

ELEMENT TYPE: 10
THREAD TYPE: 1 inch-14
CONNECTION TYPE: 3.125 inch Female Bottom Threads
Model: S3227

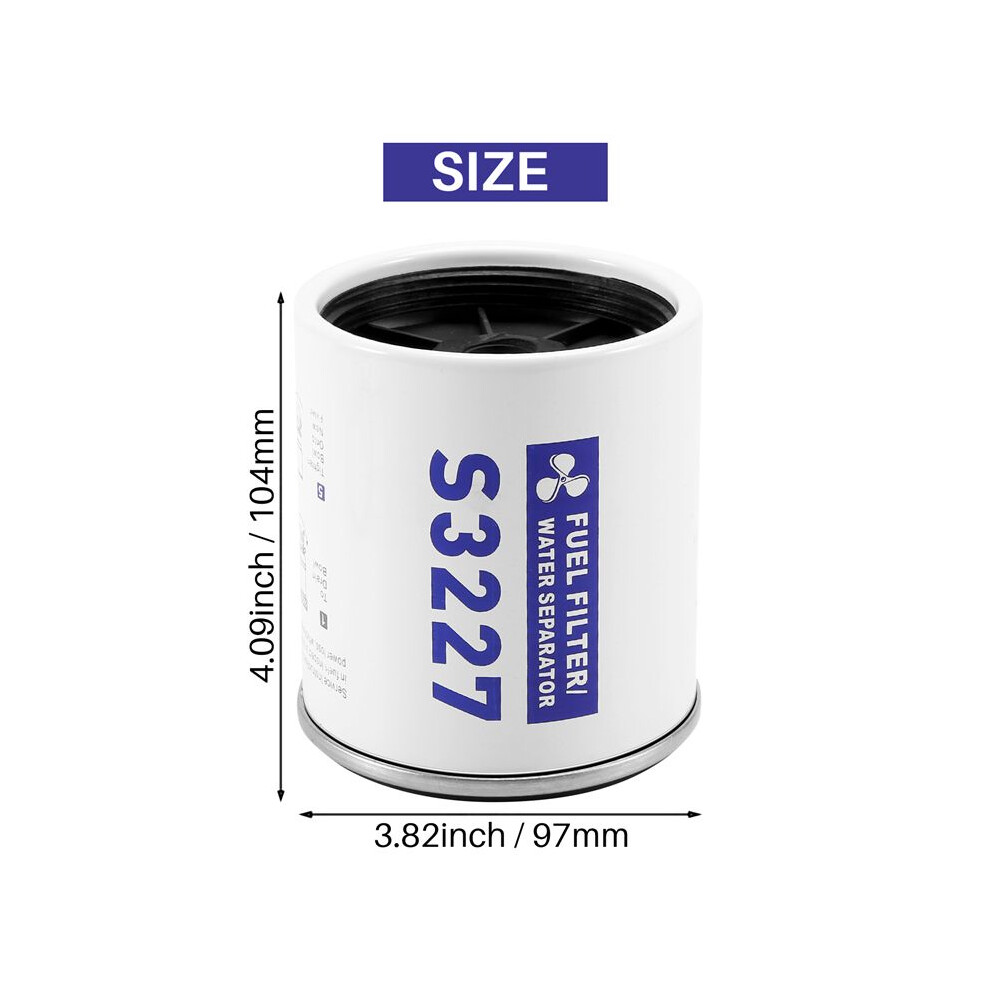

Size: φ97*104mm
Suitable for: ship yacht
Tank material: iron plate
Filter paper: oil-water separation filter paper
Sealing ring: high quality nitrile rubber
References:
ASHIKA 30-09-997
1 457 434 448
Package Contents:1* Fuel Filter Element
