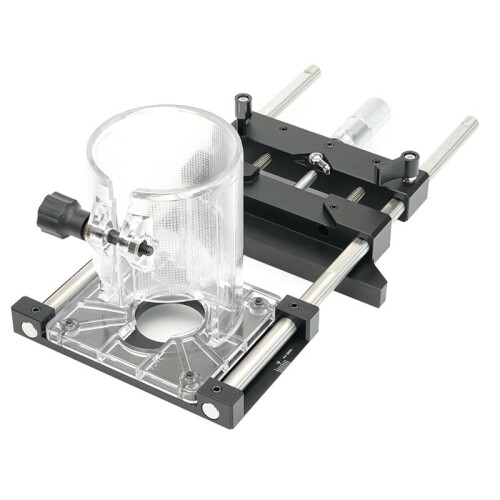

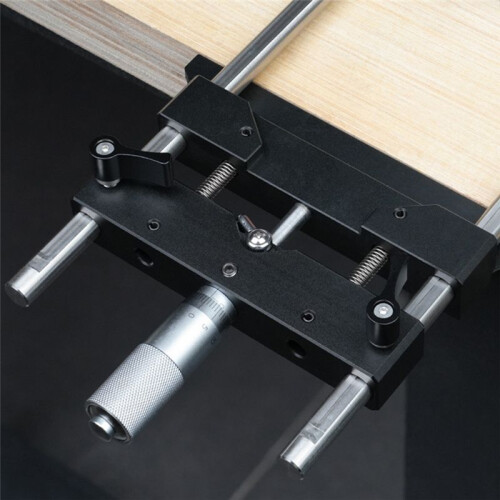

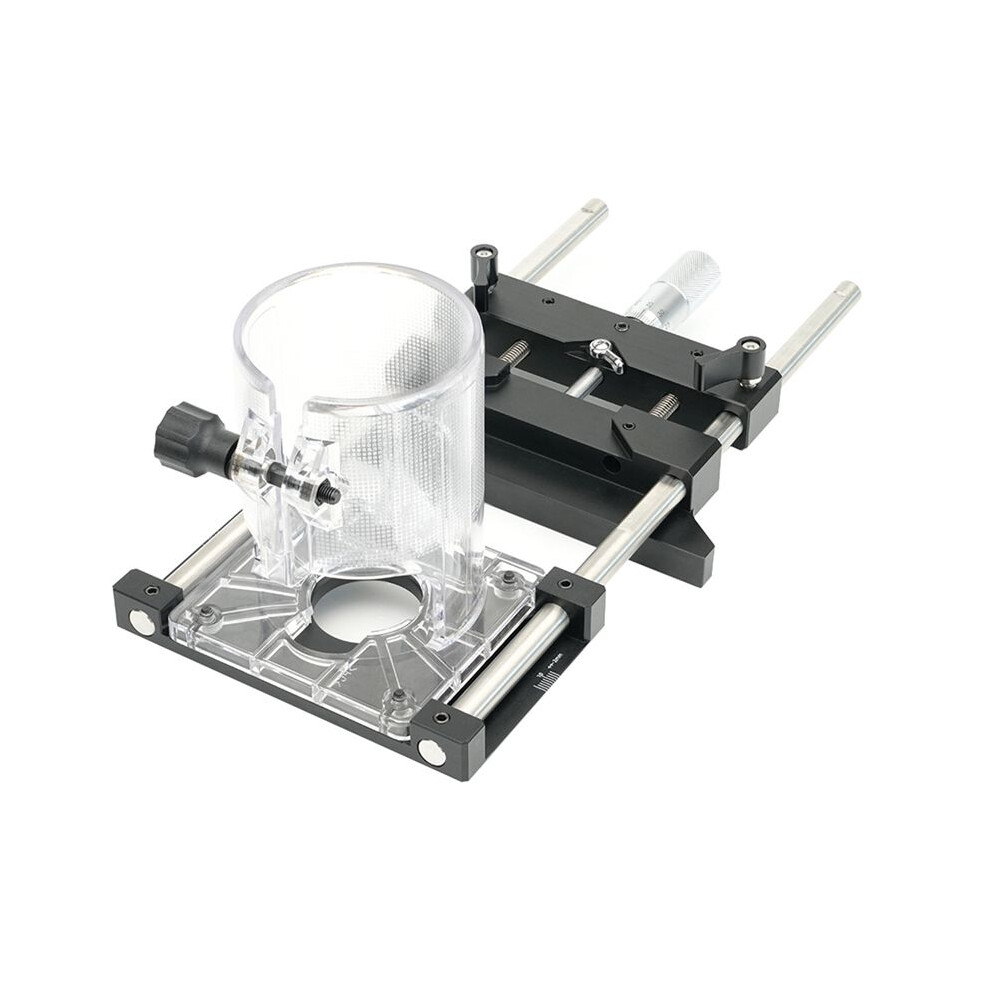

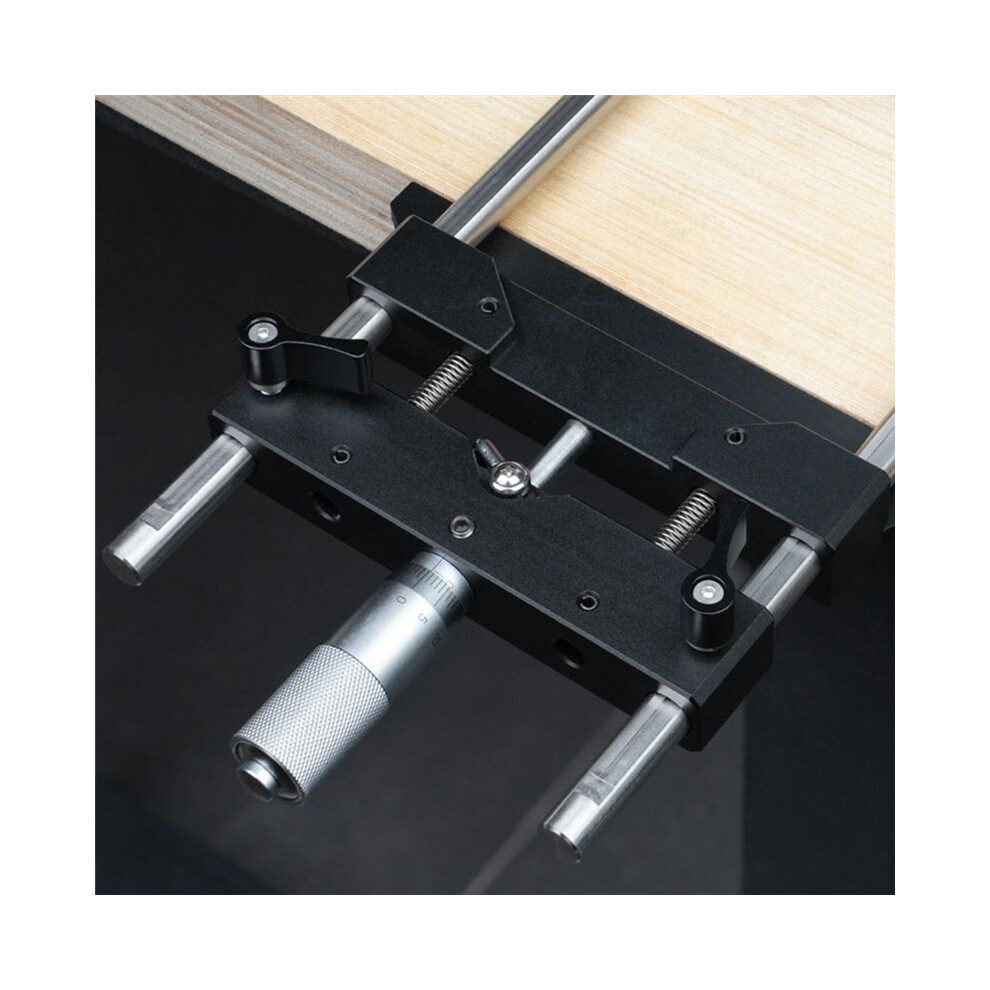

Slotted Bracket Woodworking Desktop Chute Guide Making Tool Workbench Adjustable Linear Guide Rail Slotting Template

Slotted Bracket Woodworking Desktop Chute Guide Making Tool Workbench Adjustable Linear Guide Rail Slotting Template Beskrivelse

Product specifications:Suitable for 65mm diameter trimming machine
Fine adjustment accuracy:0.01mm
Fine adjustment range:0-18mm
Slotting range:18-168mm (from center to support)

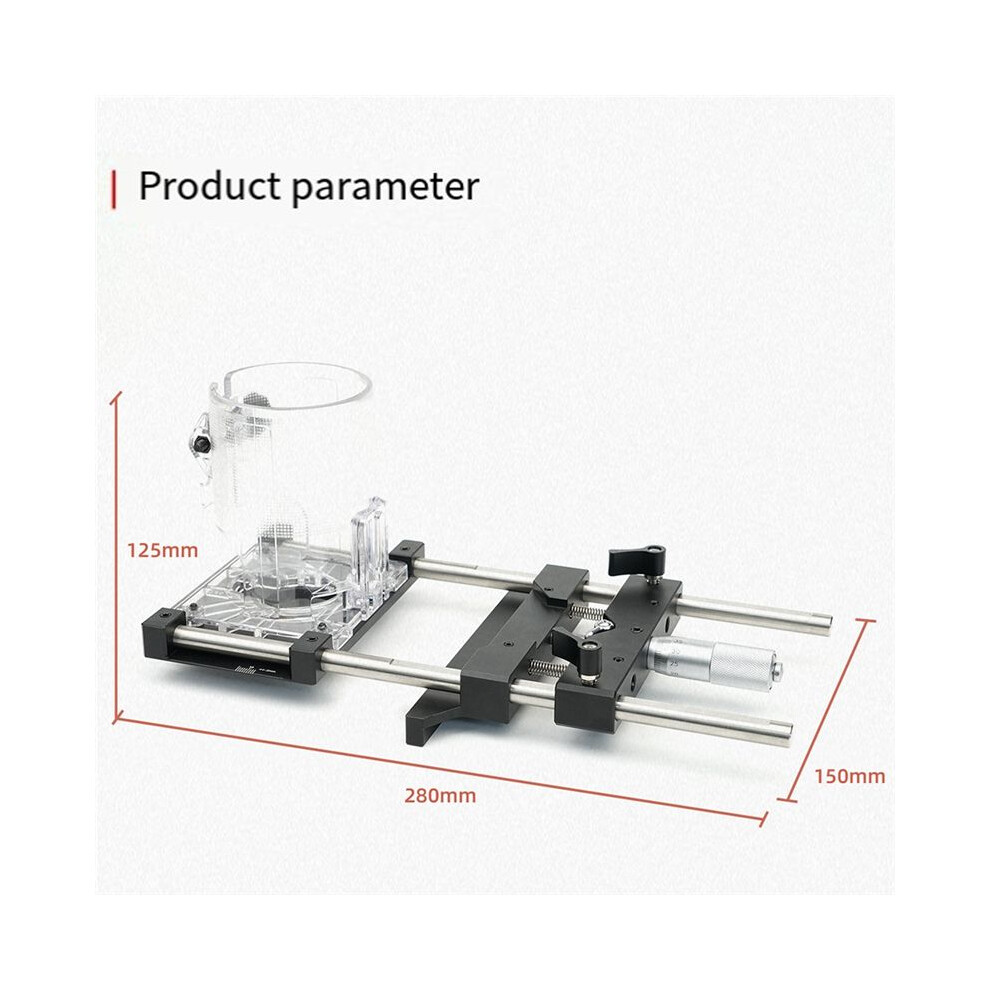

Product size:280x150x125mm

Product Name:Trimming Machine Fine Adjustment Backbone
Usage method:
Zero the scale of the fine-tuning handle before use
According to the diameter of the milling cutter installed, refer to the scale markings
Align scale markings with homework reference lines
Backing , aligning with the of the wooden board and locking it tightly
Uniform translation operation for the first cutting of the product
Rotate the handle to adjust the feed amount and lock it tightly
Performing the second cutting of the product with uniform translation operation
Repeated fine-tuning and cutting can produce the required dimensions
Colour:As Shown
Material:Aluminum Alloy

Package Contents:
1 x Slotted Bracket
