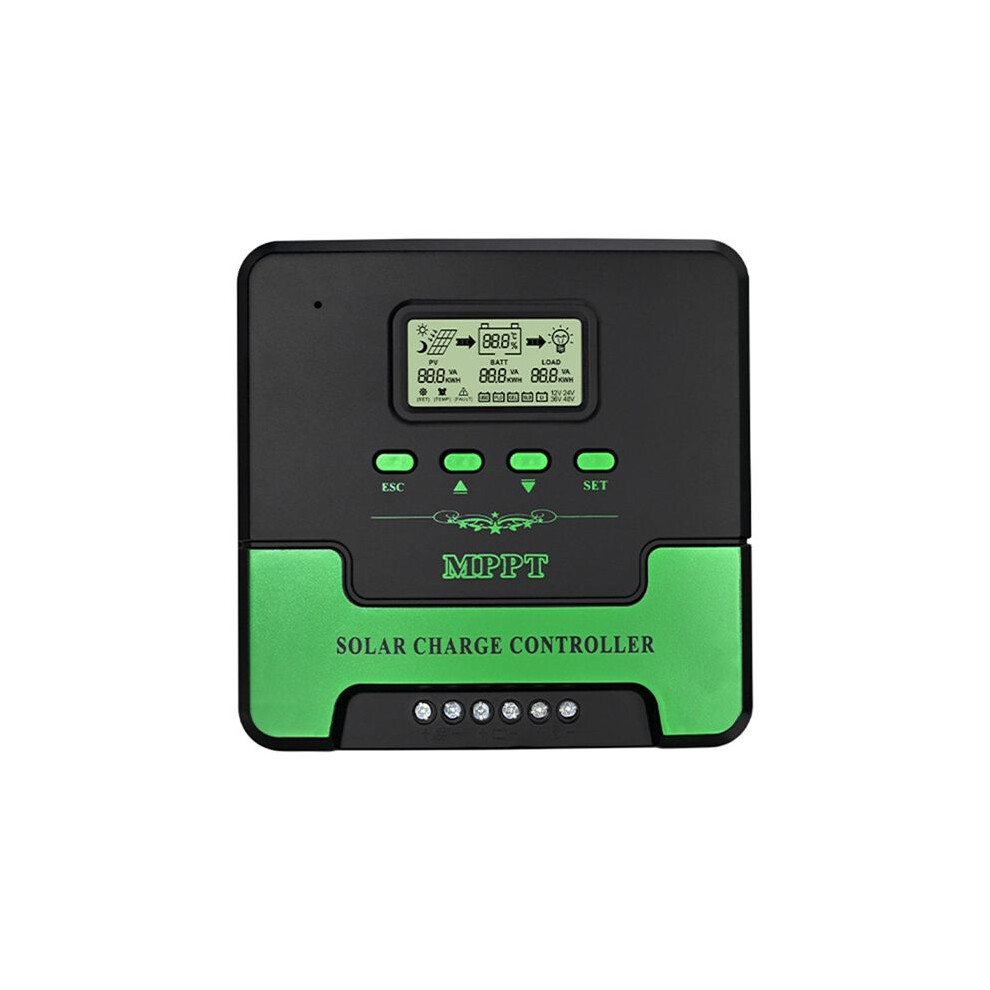

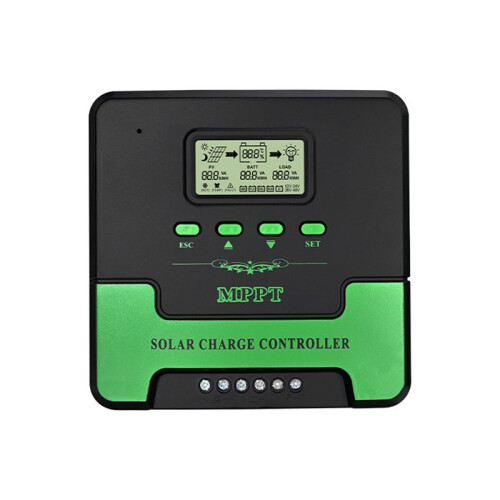

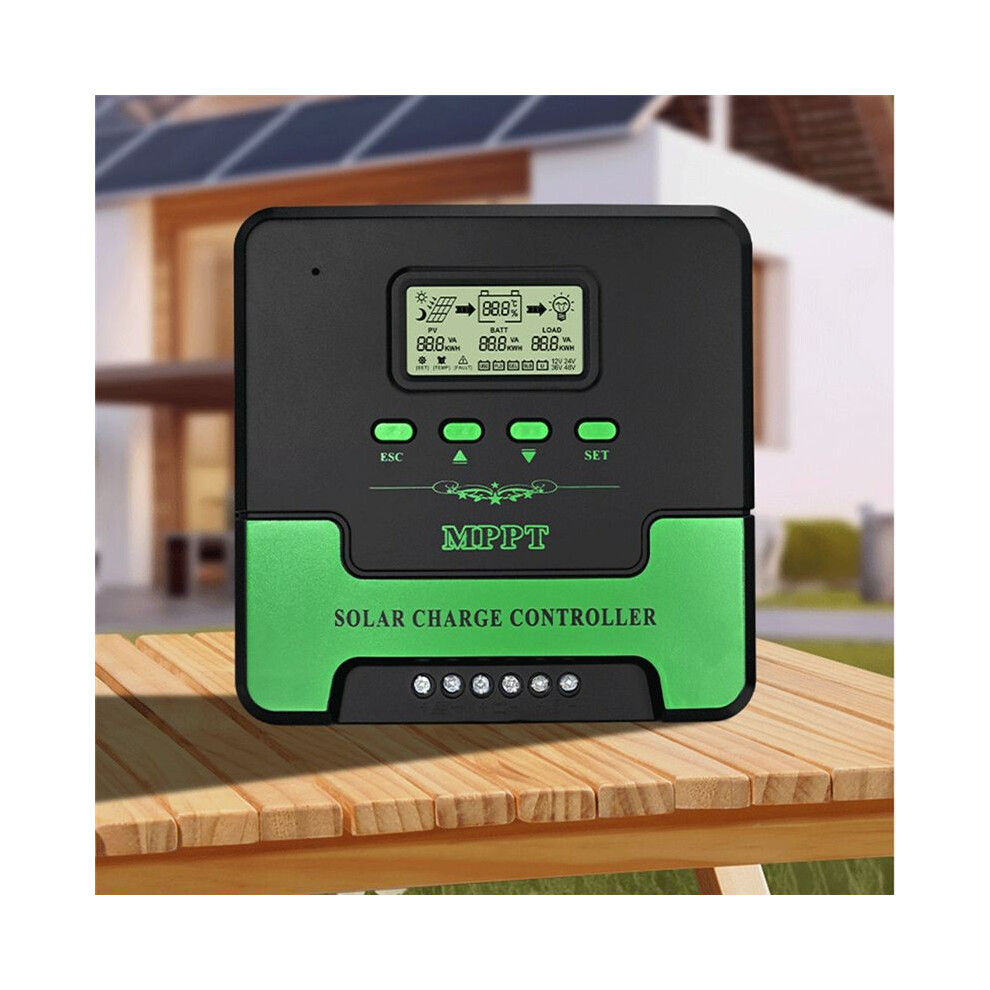

Solar Charging Controller 12V 24V WiFi Automatic Solar Panel Regulator 20A Dual USB LCD Controller

Solar Charging Controller 12V 24V WiFi Automatic Solar Panel Regulator 20A Dual USB LCD Controller Beskrivelse

1.LCD display: LCD display setting is adopted, and the display timing setting corresponds to the LCD display, which can clearly observe the operation status of the equipment and facilitate the modification and setting of the operation parameters.
2.Large-section wiring port: The wiring port with large -section and large spacing is adopted to increase the insulation performance and installation reliability, effectively reduce the circuit voltage drop and reduce consumption.
3.Multiple USB charging : Support most USB port devices the market, mobile phones, tablet computers, PSP game consoles, etc.
4.Wide range of applications: Suitable for solar street lights, solar roofs, solar billboards, solar power generation systems, solar RVs, and solar awnings.

Name: Solar controller
System voltage: 12V/24 self-identification
No-load consumption: 0.4W
Maximum solar input voltage: VOC 100V (Different rate different voltage)
Battery voltage: 9-32V
Maximum power voltage range: battery voltage +2V-100V (Different rate different voltage)
Rated charging current: 20A
Rated load current: 20A
USB output: 5V/3A
Conversion efficiency: 98%
MPPT tracking efficiency: Greater than 99%
Temperature compensation coefficient: -2mv//2V
Working temperature: -10-+65
Protection level: IP21
Color: Black & Green
Material: plastic

Package Contents:
1 x Solar Charging Controller
